Viofo VS1 Mini Dash Cam HK5 Hardwire Kit Bundle
Couldn't Load Pickup availability

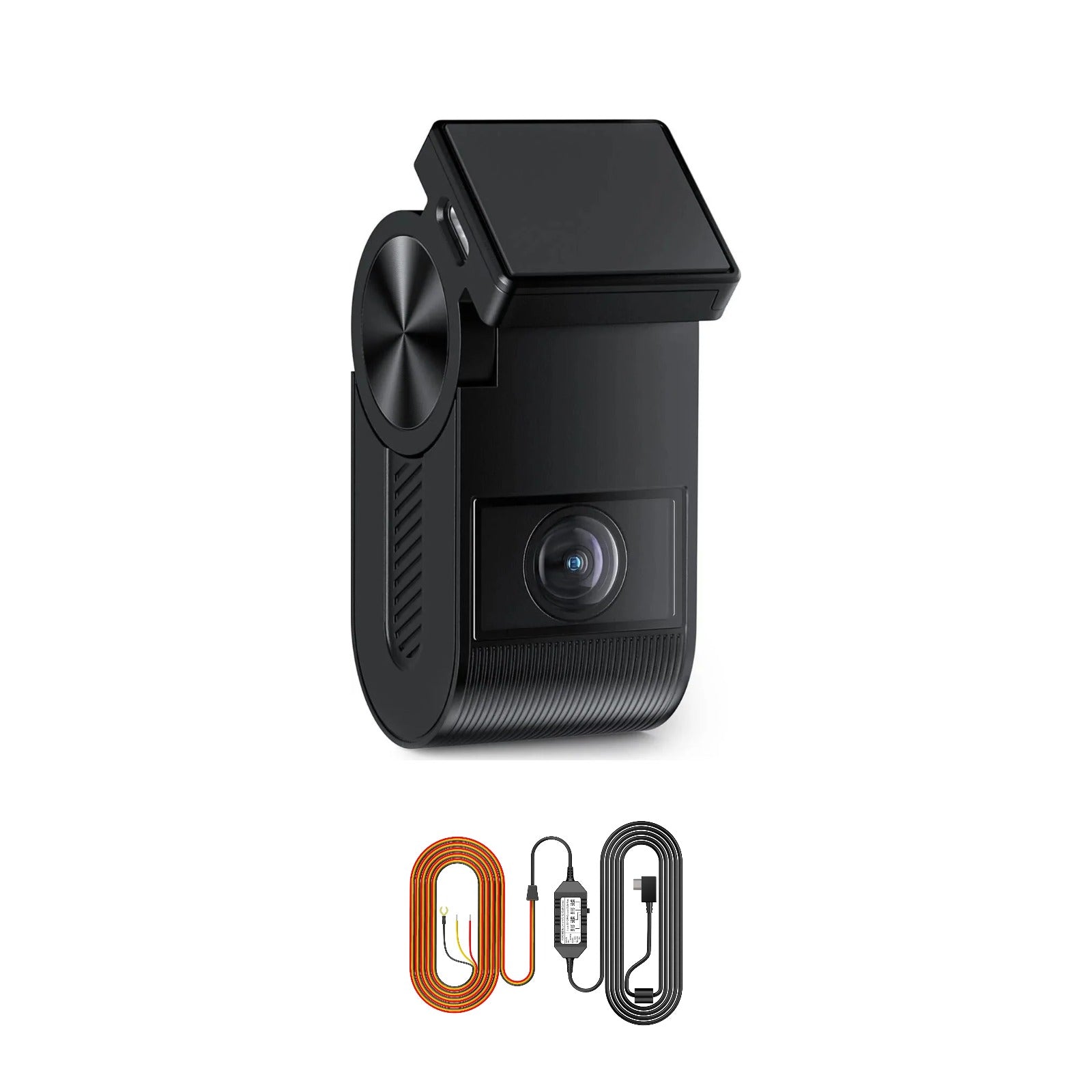

This VIOFO VS1 Mini bundle combines the compact, screenless 2K front dash cam with a Sony STARVIS 2 IMX675 sensor, HDR, 5GHz Wi-Fi, GPS and voice control with the HK5 hardwire kit.

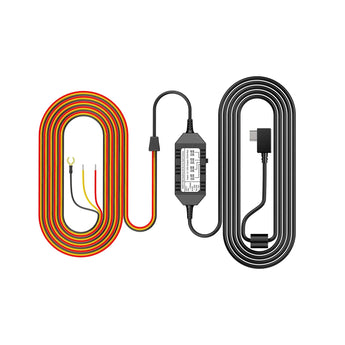

The HK5 is VIOFO's hardwire kit for the VS1, powering the camera from the fuse box for parking mode. A memory card is not included; the VS1 Mini 128GB bundle adds one, or choose the VIOFO 128GB microSD card separately. The dash cam is also sold on its own.
Key specifications
- Channels: 1 (front)
- Recording: 2560x1440p 30fps with HDR
- Sensor: Sony STARVIS 2 IMX675 1/2.8" 5MP
- Lens: F1.6, 140°
- Wi-Fi: 2.4GHz and 5GHz
- GPS: built-in
- Display: none (set up and view in the VIOFO app)
- microSD: up to 512GB (not included)
- Bundle extras: HK5 hardwire kit
VS1 Mini Dash Cam Bundle
HK5 Hardwire Kit

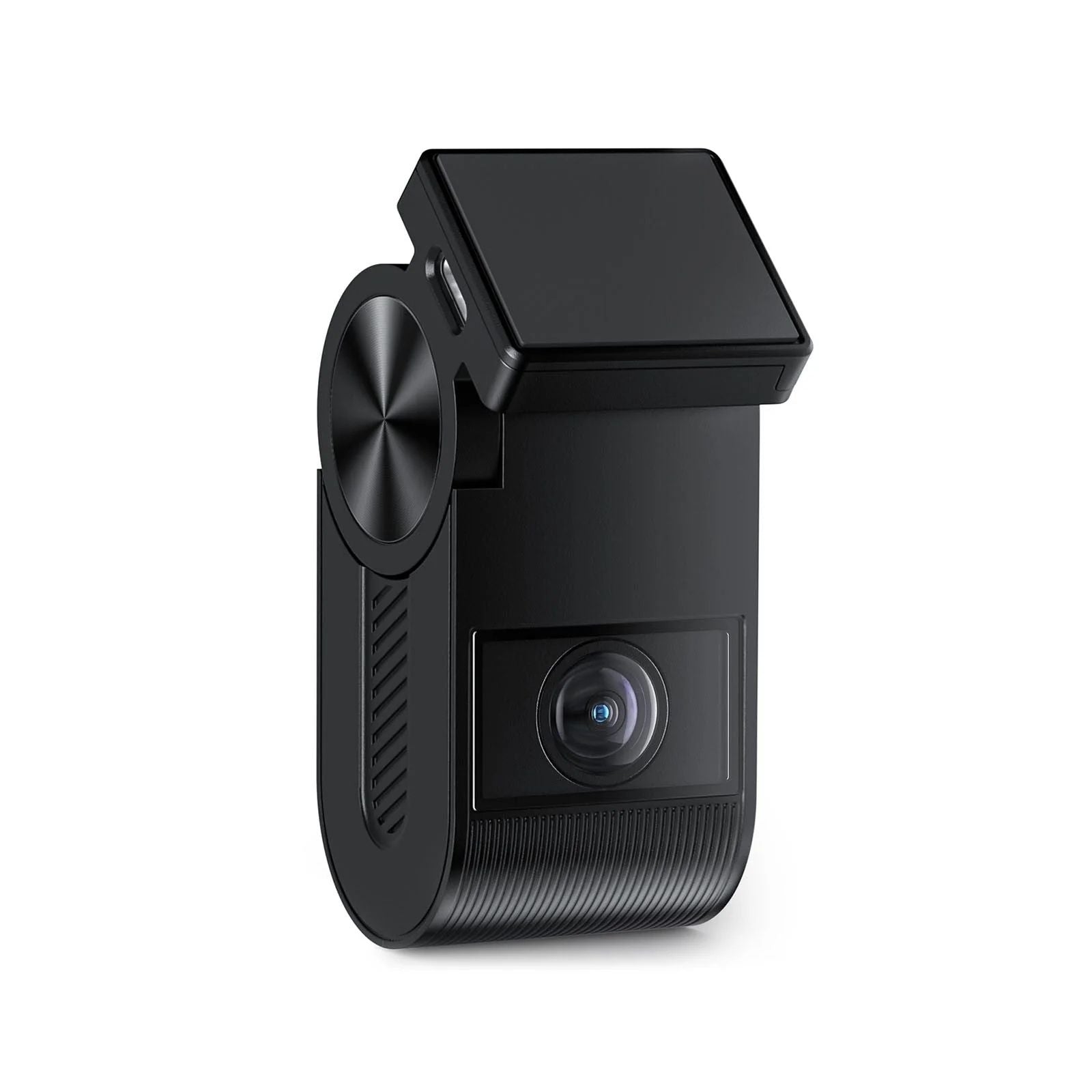

The VS1 Mini's compact, screenless body tucks neatly behind your rear-view mirror, keeping the road view clear. The Sony STARVIS 2 IMX675 sensor and 2K HDR keep number plates readable day and night, and a 180° rotatable bracket lets you mount it on the front or rear windscreen.
Explore the full range in Viofo.
Specification
| Channels | 1-Channel |
|---|---|
| Sensor | Sony STARVIS 2 IMX675 1/2.8" 5MP |
| Video Resolution | 2560x1440P 30fps / 2560x1080P 30fps / 1920x1080P 30fps |
| HDR | Supported |
| Lens | F1.6 Aperture, FOV=140° |
| Wi-Fi | Built-in 2.4GHz & 5GHz |
| Parking Mode | Auto Event Detection / Time-lapse Recording / Low Bitrate Recording |
| G-sensor | Off / Low / Middle / High Sensitivity |
| Loop Recording | Off / 1 min / 2 min / 3 min / 5 min / 10 min |
| GPS | Logger Built-in |
| Voice Notification | Supported |
| Voice Control | Supported |
| CPL | CPL-400 (Optional) |
| Bluetooth | Built-in, Support BTR200 (Optional) |
| Hardwire Kit | HK5 Included |
| Micro SD Card | Up to external 512GB microSD Card (Optional) |
| Video Format | MP4 |
| Image Format | JPEG |
| LCD | No Screen |
| Input Power | DC 5V / 1A |
| Operating Temperature | -20°C~65°C |
| Storage | Temperature -20°C~70°C |
| Size | 1.31×1.23 × 3.03 inch |
What's Included
- VS1 Dash Cam
- Car Charger
- USB-C Data Cable
- Mount Sticky Pad
- Trim Removal Tool
- Windshield Static Stickers
- Product Manual
Bundle Extras
- HK5 Hardwire Kit
Other bundles for this product
Viofo
Explore the full Viofo range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Viofo
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Viofo News & Guides
The latest Viofo product news, launches and guides from the CEN team in Nottingham.
Viofo A229 Plus vs A229 Pro: Is 4K Worth It?
Same body, same mount, same hardwire kit. The only real difference is 2K versus 4K at the front, and it...
Viofo A229 Pro vs A329S: Which Should You Buy?
Both record 4K, both take a 2K rear camera, and the price gap is bigger than the spec gap. Here...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
More from Viofo
More options from the same range, in stock and ready to go
Save 11% New Release Viofo T340TW 4CH Dash Cam Front, Cabin, Telephoto & Waterproof Rear RRP£539.95£479.95 / Save 11%Pre Order
Save 11% New Release Viofo T340WW 4CH Dash Cam 4K Front, Cabin & Dual Waterproof Rear RRP£539.95£479.95 / Save 11%Pre Order
Save 13% New Release Viofo T340W 3CH Dash Cam 4K Front, Cabin & Waterproof Rear RRP£479.95£419.95 / Save 13%Pre Order
Save 14% New Release Viofo T330TW 3CH Dash Cam 4K Front, Telephoto & Waterproof Rear RRP£439.95£379.95 / Save 14%Pre Order
Save 8% Popular Viofo A229 Plus 2CH Dash Cam Front Rear 2 Channel 2K RRP£249.95£229.95 / Save 8%In stock
Save 6% Staff Pick Viofo A229 Pro 2CH Dash Cam 2 Channel 4K Front 2K Rear RRP£309.95£289.95 / Save 6%In stock
Frequently Asked Questions
Q: What SD card do I need for this dash cam?
A: Use a high-endurance microSD card designed for continuous recording. Standard cards wear out quickly in dash cams. CEN stocks suitable high-endurance cards, and the maximum supported capacity is listed in the Specification tab.
Q: Does this dash cam record while the car is parked?
A: Parking mode is listed in the Specification tab. Where supported, it requires constant power from either a hardwire kit or a dedicated dash cam battery pack, both of which CEN stocks.
Q: Do I need to hardwire the dash cam?
A: Not necessarily. All dash cams work from the 12V socket for drive recording. Hardwiring hides the cabling and enables parking mode, and CEN offers professional hardwire installation from our Nottingham premises.
Q: Will the footage be accepted by my insurer or the police?
A: Dash cam footage is widely used in insurance claims and can be submitted to most UK police forces through their online portals. Recording quality matters, so check the resolution in the Specification tab.
Q: Front only or front and rear - which should I choose?
A: A front camera covers the most common claim scenarios. A two-channel system adds rear coverage for rear-end collisions and tailgating evidence, which is where many disputed claims arise. Three-channel systems add an interior view, suited to taxi and fleet use.
Q: What is included in the VS1 Mini hardwire bundle?
A: You get the VS1 Mini dash cam, car charger, USB-C data cable, mount sticky pad, trim tool and static stickers, plus the HK5 hardwire kit. A microSD card is not included.
Q: Why the HK5 hardwire kit?
A: The HK5 is VIOFO's hardwire kit made for the VS1. It connects the camera to your fuse box for constant power, enabling auto event detection, time-lapse and low bitrate parking modes.
Q: Does the VS1 Mini have a screen?
A: No. The VS1 Mini is screenless to stay compact behind the mirror. You set it up and review footage in the VIOFO app over 5GHz Wi-Fi.
