Viofo HK5 Hardwire Parking Mode Power Cable USB Type C for VS1 Dash Cam
Couldn't Load Pickup availability

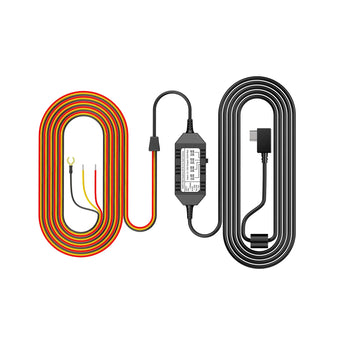

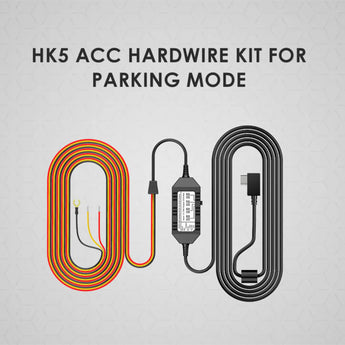

The Viofo HK5 is a 4m USB Type-C hardwire power cable for the Viofo VS1 dash cam. It connects to your vehicle's fuse box to enable parking mode recording, with ACC detection and four selectable voltage cut-off settings to protect your car battery.
Key specifications
- Compatible with: Viofo VS1
- Connector: USB Type-C
- Input: 12V–24V
- Maximum output: 5V 2A
- Cable length: 4m (13.1ft)
- Battery protection: 4 selectable voltage cut-off options
- Parking mode: ACC detection with automatic switching
HK5 Series Hardwire Cable
- Supports 12V–24V electrical systems
- 4 selectable voltage cut-off options to prevent battery drain
- ACC detection automatically switches parking mode on and off
- Provides a constant power supply via the vehicle fuse box
With ACC detection, the dash cam enters parking mode automatically when the engine is switched off, then resumes normal recording once the vehicle is started.
The HK5 connects to your fuse box (VCC, ACC, GND), replacing the need for a cigarette lighter adaptor and providing continuous power from the moment you set off.
While parked, the cable keeps the dash cam running by drawing power from the fuse box. It powers down automatically before your car battery is drained.
Battery Discharge Prevention
The HK5 supplies continuous power in parking mode until the battery voltage drops to the configured threshold, at which point it cuts power to protect the battery.
Configurable Voltage Cut-off
Four voltage cut-off levels are available. When the battery drops to the selected threshold, the HK5 stops supplying power to the dash cam to prevent discharge.
12V / 24V Compatible
The HK5 accepts input from any vehicle running on 12V or 24V, making it suitable for cars, vans, SUVs, trucks and buses.
Cable Connection
Designed specifically for the Viofo VS1 and its USB Type-C power input. Connect the HK5 to the GPS power port only. If you need a hardwire cable for other Viofo models, the Viofo HK4 is compatible with the A119 Mini, A229 and A329.
Explore the full range in Viofo Hardwire Kits.
Specification
| Maximum output | 5V 2A |
|---|---|
| Input | 12V - 24V |
| Cable length | 4 metres / 13.1 feet |
More specs
| |
What's Included
- Viofo HK5 Hardwire Cable
Bundle & Save
Viofo
About the Viofo HK5
From our tech experts at CEN
A hardwire kit is what turns a dash cam into a parking camera. It draws a permanent feed from the fuse box, keeps the 12V socket free, and includes a voltage cutoff that shuts the camera down before your battery is affected.
Who it suits
VS1 owners who want parking protection from the smallest camera in the range.
Our tech experts advise
The VS1 draws very little in parking mode, which makes it a sensible camera to leave recording on a car parked on the street. If you would rather not take the trim off and probe the fuse box yourself, we fit hardwire kits at our Beeston workshop alongside a camera install. See dash cam installation.
Explore the full Viofo range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Viofo
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from Viofo Hardwire Kits
More options from the same range, in stock and ready to go
PopularViofo HK4 Hardwire Power Cable USB C with 8pcs Fuse Set A229 Series Dash Cam
RRP £29.95Save 16%£24.95
New ReleaseViofo HK6-F USB-C Hardwire Kit for T330 and T340 Parking Mode
£24.95
Viofo D5000 Dual USB A Cigarette Car Charger for A229 Series A119 Mini Dash Cam
£19.95
Viofo D6000 Dual USB C Cigarette Car Charger for A329 Series A229 Ultra Dash Cam
£19.95
PopularViofo HK6 Hardwire Power Cable USB C with 8pcs Fuse Set A329S Series Dash Cam
£29.95
Frequently Asked Questions
Q: Is this accessory compatible with my dash cam?
A: Dash cam accessories are generally model-specific. The compatible camera models are listed in the product description, and you can contact CEN to confirm compatibility before ordering.
Q: What does a hardwire kit do?
A: A hardwire kit powers your dash cam directly from the vehicle's fusebox, hiding the cable and enabling parking mode. Kits include battery protection so your car battery is never drained below a safe level.
Q: Why would I add a dash cam battery pack?
A: A battery pack powers parking mode for longer periods without drawing on your car battery at all. It charges while you drive and is the recommended option for extended parking protection.
Q: Can CEN fit this accessory?
A: Yes. CEN offers professional dash cam and accessory installation from our Nottingham premises. Contact us to book.
Q: Which dash cam is the VIOFO HK5 for?
A: The HK5 is the USB Type-C hardwire cable for the VIOFO VS1 dash cam.
Q: How does the HK5 protect my car battery?
A: It offers 4 voltage cut-off options. When the battery voltage drops to the selected threshold, the HK5 stops powering the dash cam.
Q: How long is the HK5 cable?
A: The HK5 hardwire cable is 4 metres (13.1ft) long, with a 12V to 24V input and 5V 2A maximum output.
