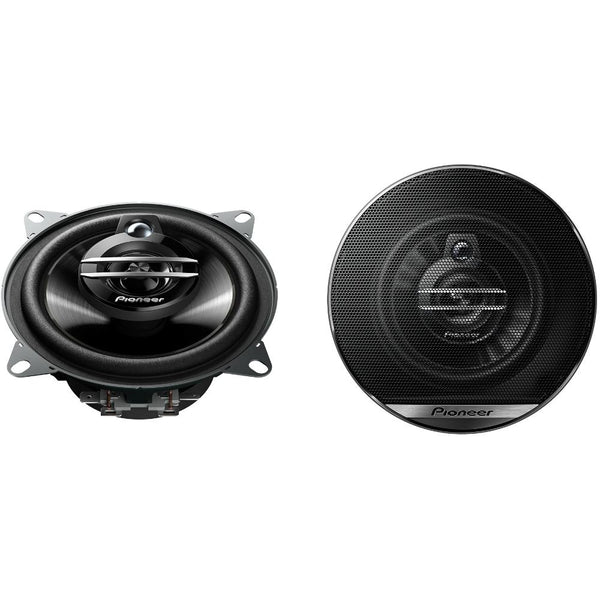

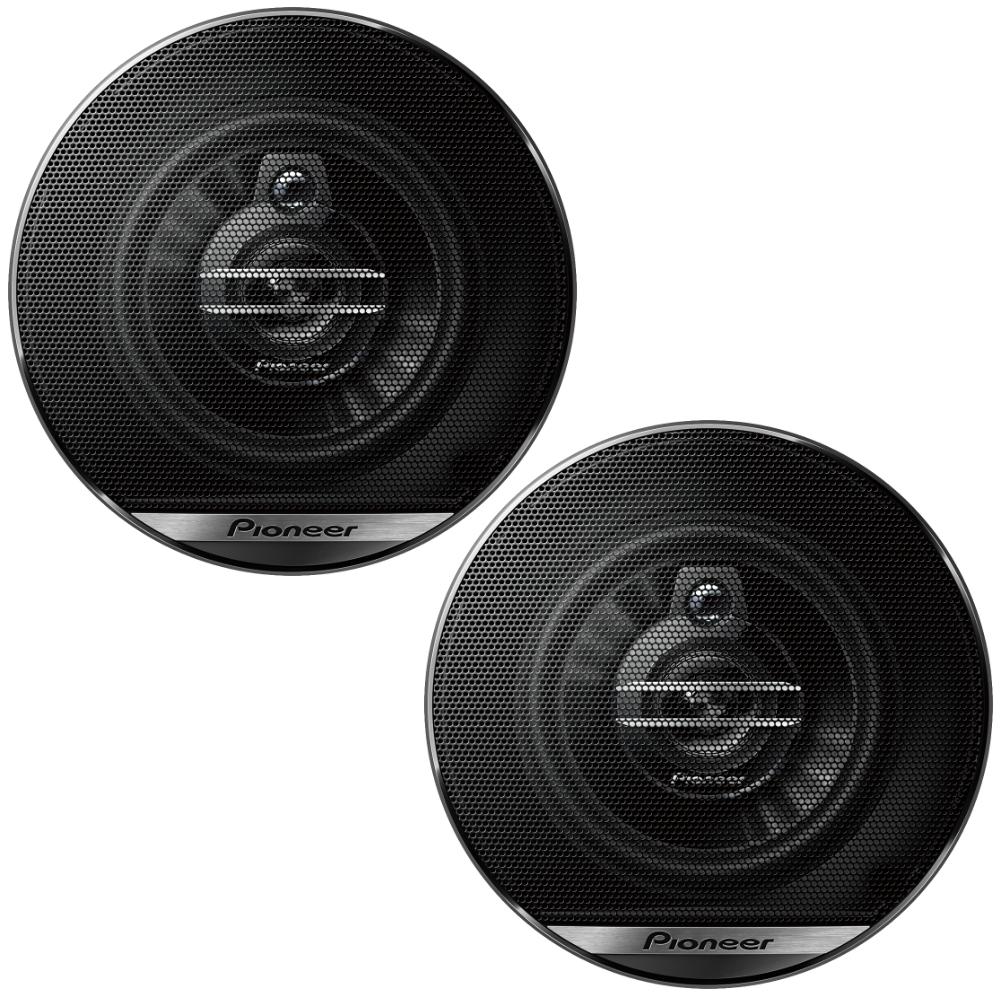

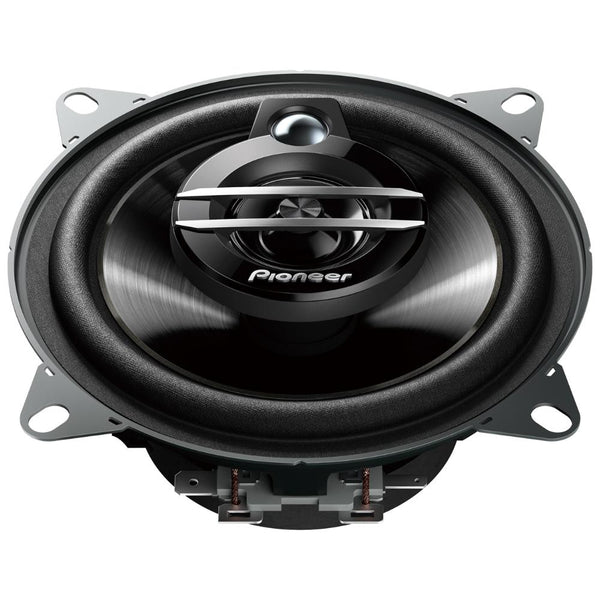

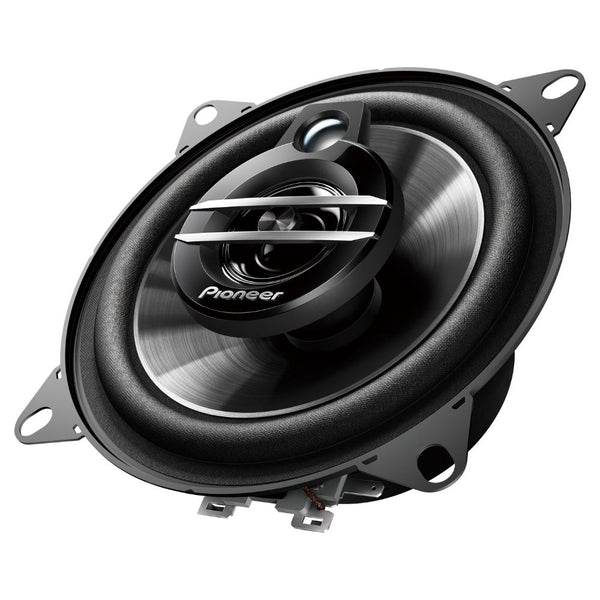

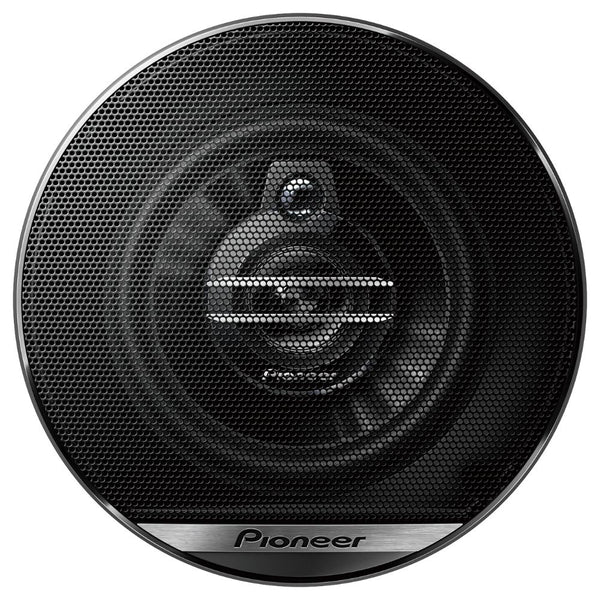

Pioneer TS-G1030F 10cm 4 Inch 3 Way Car Coaxial Door Shelf Dash Speakers 30w RMS
Couldn't Load Pickup availability
The Pioneer TS-G1030F is a 10cm (4 inch) 3-way coaxial speaker rated at 30W RMS nominal and 210W maximum, part of Pioneer's G-series. Suitable for door, shelf and dash mounting positions.
This listing is the 10cm (4 inch) TS-G1030F. The Pioneer G-series coaxial range is also available as the Pioneer TS-G1730F 17cm 3-way coaxial speaker at 40W RMS.
Key specifications
- Size: 10cm (4 inch)
- Type: 3-way coaxial
- Power: 30W nominal (RMS), 210W maximum
- Frequency response: 35Hz – 27,000Hz
- Sensitivity: 87dB
- Impedance: 4Ω
- Cut-out hole: 106mm
- Mounting depth: 43mm
Pioneer G-series
The G-series is built for improved sound quality over factory speakers, with strong value for money. Each speaker features rigid construction and a multi-bolt mounting pattern for straightforward installation in most vehicles. Higher power handling and improved sensitivity deliver clear highs and stronger bass, even at high volumes.
TS-G1030F
The TS-G1030F is a practical upgrade for any 10cm fitment. Its Blue Injection Moulded Polypropylene Cone provides strong midbass response alongside the 3-way coaxial design's extended high-frequency reproduction.
- Outstanding midbass response from the Blue Injection Moulded Polypropylene Cone
- 30W RMS nominal power handling
- 210W maximum power output
- 10cm (4 inch) 3-way coaxial design
- Multi-bolt pattern for easier installation
- Suitable for door, shelf and dash mounting positions
Explore the full range in Pioneer TS-G Speakers.
Specification
| Impedance | 4 Ω |
|---|---|
| Frequency response | 35 - 27,000 |
| Sensitivity | 87 dB |
| Voice Coil | type Copper |
| Voice Coil | bobbin type KAPTON |
| Weight | 0.35 kg |
| Mounting Depth | 43 mm |
More specs
| |
What's Included
- Pioneer TS-G1030F
- Grills
- Speaker Cable and connectors 20cm
- Screws
Pioneer
About the Pioneer TS-G1030F
From our tech experts at CEN
A 4 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 30w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication. These go where the originals were and sound better immediately.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Pioneer News & Guides
The latest Pioneer product news, launches and guides from the CEN team in Nottingham.
Apple CarPlay Stereo Buying Guide: Single DIN, Double DIN, Wired vs Wireless
The short answer: almost any car with a standard stereo aperture can have wireless Apple CarPlay and Android Auto for...
Embrace the Past with the Pioneer SXT-C10PS Retro Style Car Radio
In the ever-evolving world of car audio, there's a growing appreciation for the timeless charm of classic designs. The Pioneer...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Pioneer TS-G Speakers
More options from the same range, in stock and ready to go

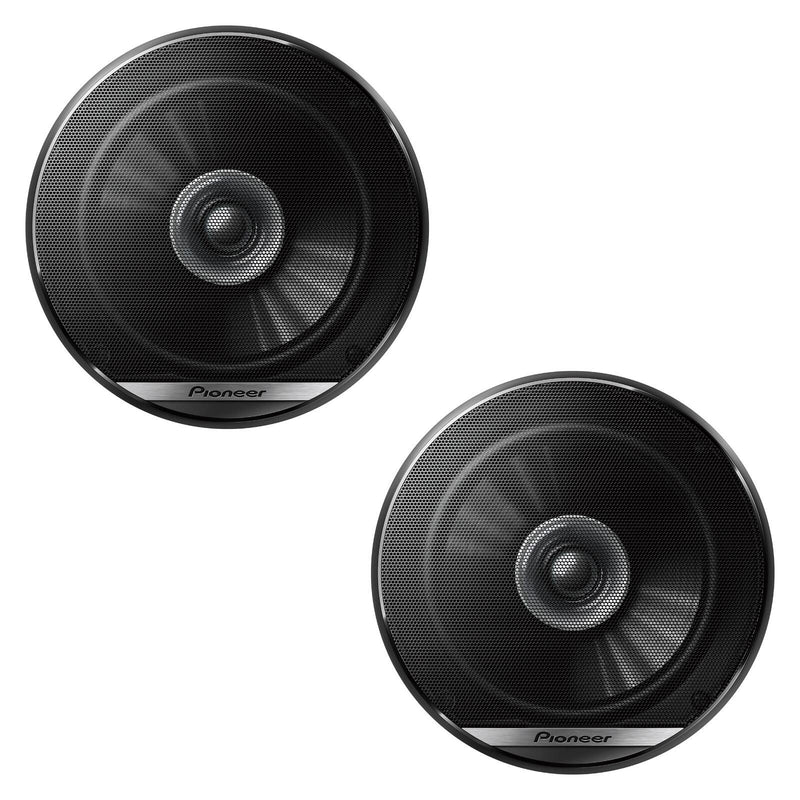

PopularPioneer TS-G1710F 17cm 6.5 Inch Dual Cone Car Van Coaxial Door Speakers 40w RMS
£25.00
View product

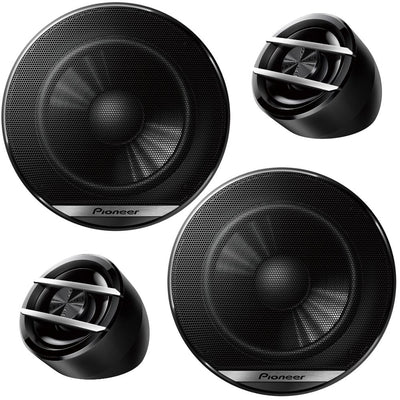

Staff PickPioneer TS-G130C 13cm 5 Inch 2 Way Car Van Component Door Speakers 40w RMS
£34.99£50.00Save 30%

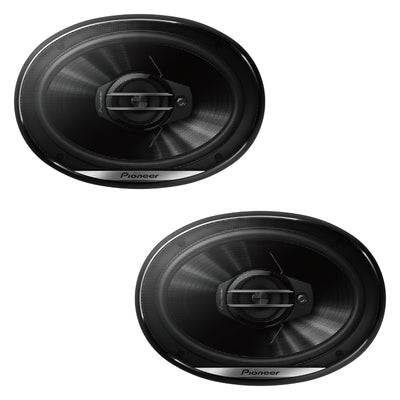

Best SellerPioneer TS-G6930F Speakers 6x9” 3 Way Car Parcel Shelf Coaxial System 45w RMS
£44.99£54.99Save 18%

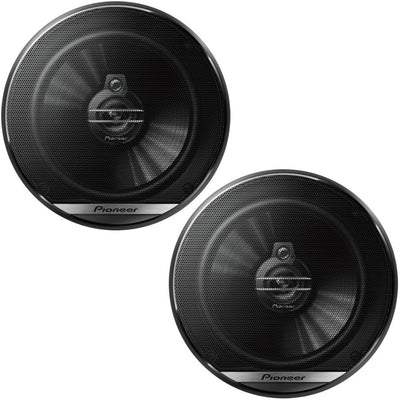

Pioneer TS-G1730F 17cm 6.5 Inch 3 Way Car Van Coaxial Door Speakers 40w RMS
£34.95£40.00Save 12%

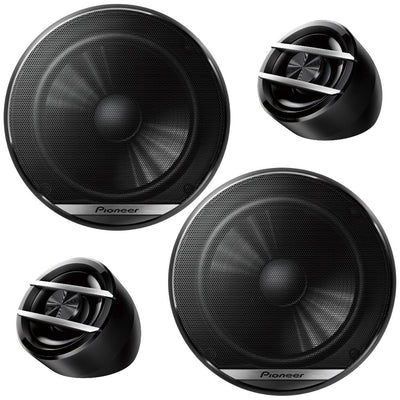

Pioneer TS-G170C 17cm 6.5 Inch 2 Way Car Van Component Door Speakers 45w RMS
£49.99£60.00Save 16%
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: How many ways is the Pioneer TS-G1030F?
A: It is a 3-way coaxial speaker, with a woofer, a 30mm midrange and a 10mm tweeter in one unit.
Q: What cut-out size and mounting depth does the TS-G1030F need?
A: It needs a 106mm cut-out hole and 43mm of mounting depth.
Q: What's in the box with the TS-G1030F?
A: The speakers, grilles, 20cm speaker cables with connectors, and screws.
