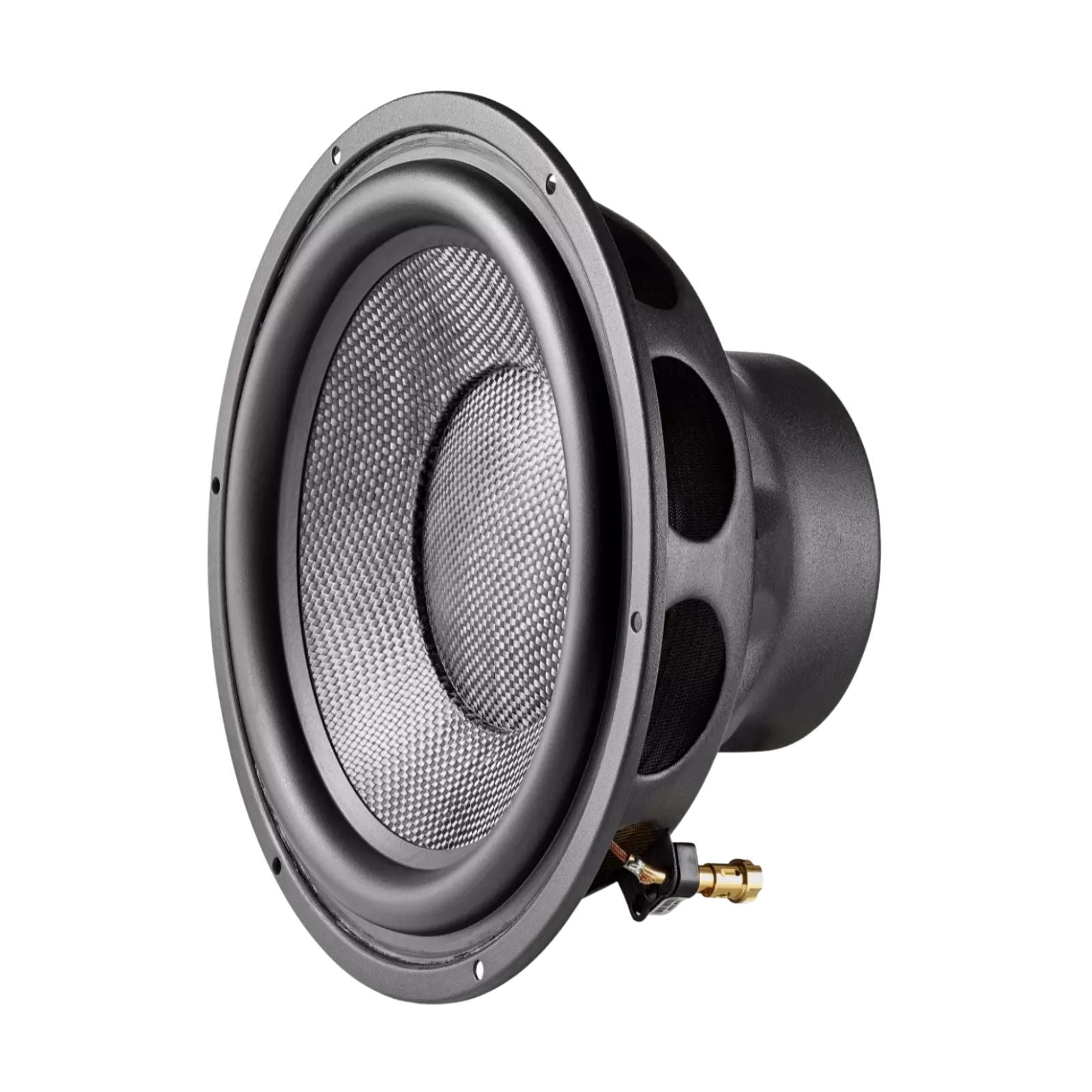

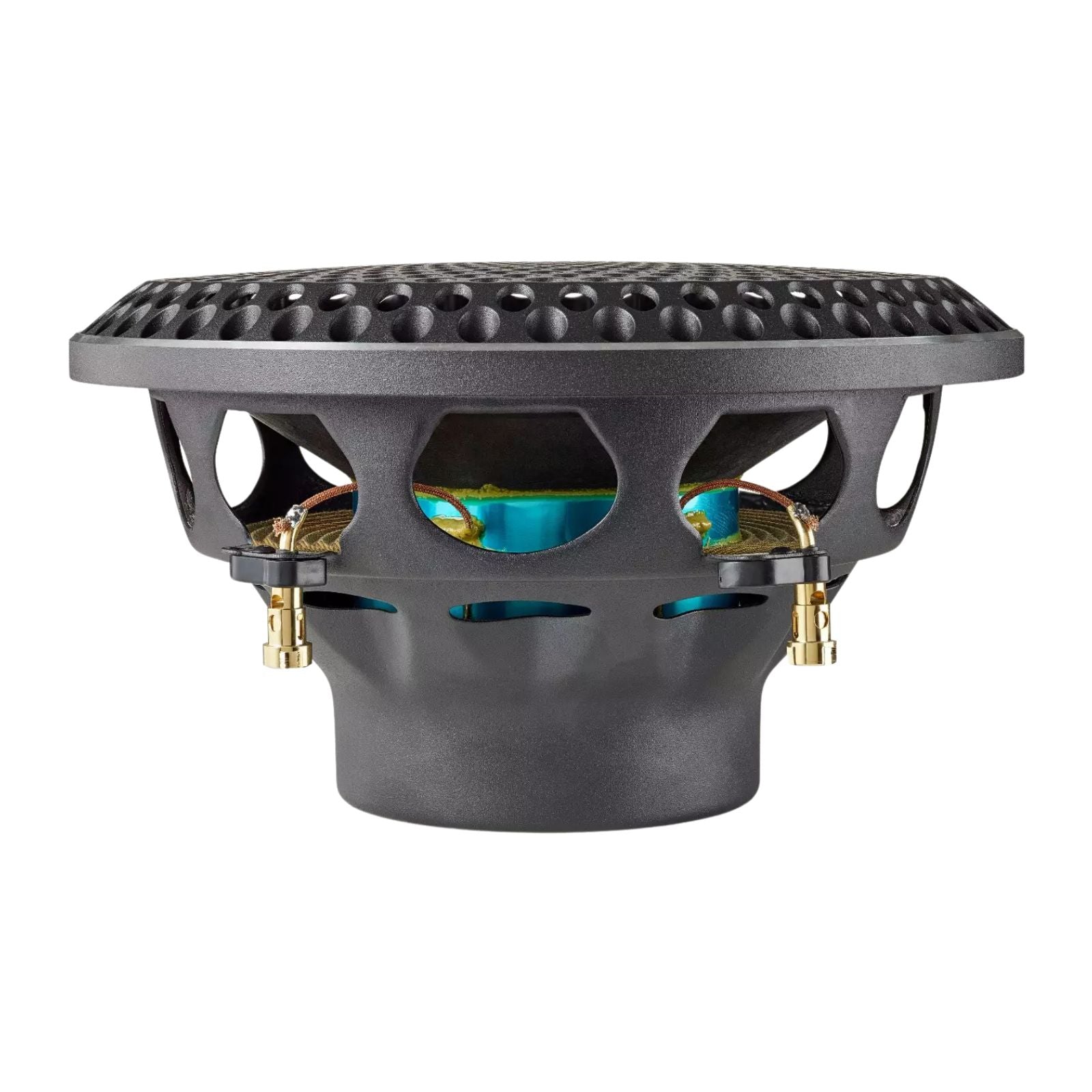

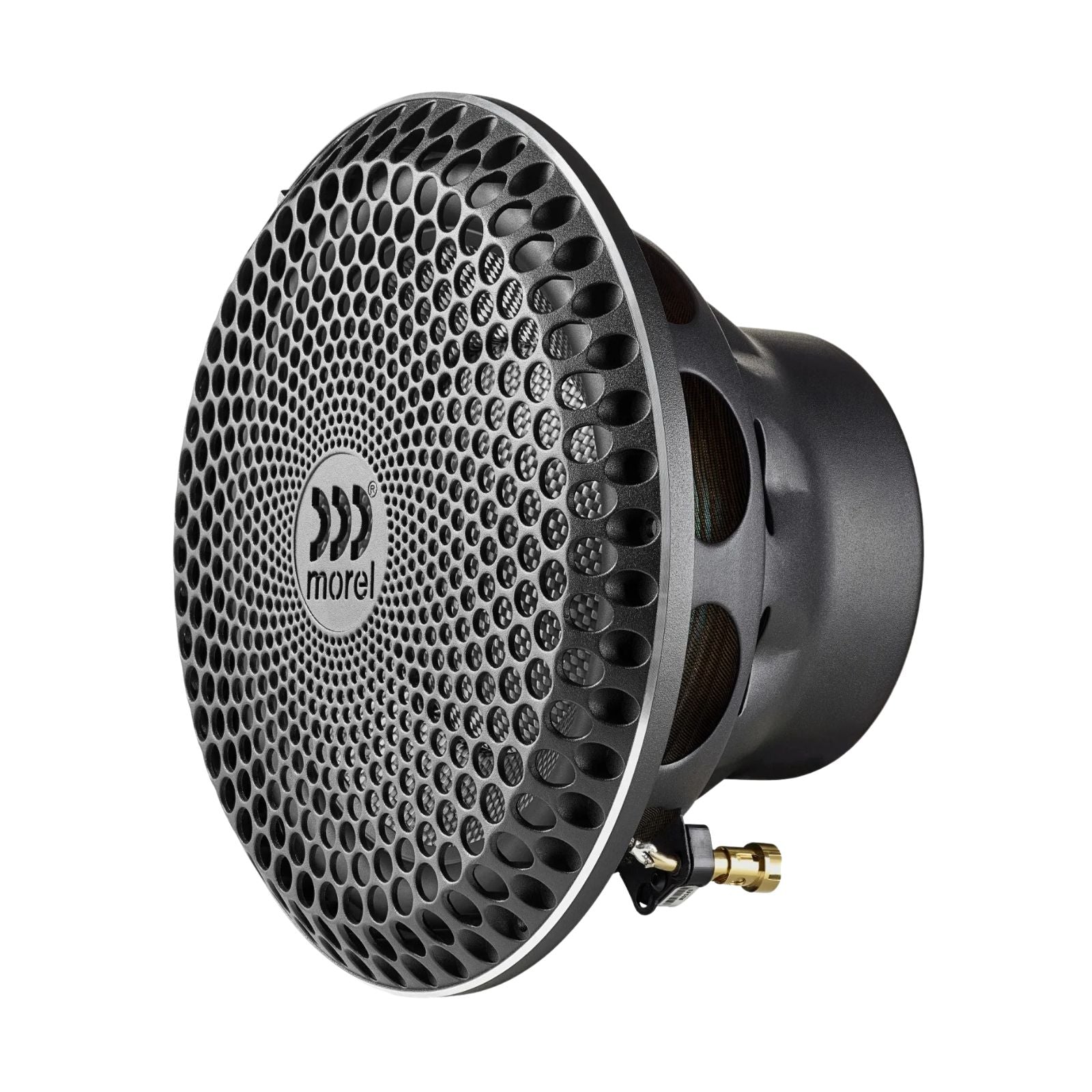

Morel Ultimo SCX102 10 Inch 2 Ohm Subwoofer

The Morel Ultimo SCX102 is a 10 inch single 2 ohm car subwoofer from Morel's Ultimo SCX range, featuring a 5.1 inch Hexatech External Voice Coil, dual ferrite magnet motor, and a carbon fibre/cellular fibre sandwich cone built for compact sealed and vented enclosures.

This listing is the 10 inch model. The Ultimo SCX is also available as the 12 inch Ultimo SCX122.

Key specifications

• Size: 10 inch
• Voice coil: single 2 ohm, 5.1" (130 mm) Hexatech aluminium
• Sensitivity (1 W / 1 m): 82.8 dB
• Frequency response: 10 – 500 Hz
• Xmax: ±9 mm
• Magnet system: double ferrite, vented
• Mounting depth: 133.5 mm (5.26")
• Mounting cutout: 227 mm (8.94")

Morel Ultimo SCX102

The Ultimo SCX uses Morel's EVC™ motor design with a dual ferrite magnet assembly and a massive 5.1" Hexatech™ voice coil. This setup manages heat efficiently for high power handling and promotes linear, piston-like movement to reduce distortion and improve bass control.

The carbon fibre/cellular fibre sandwich cone delivers high rigidity and superior damping, maintaining accuracy and detail across all volume levels. The SCX102 is designed to perform in a range of compact enclosures, suiting enthusiasts who want both musicality and high output.

Features

• Engineered for optimal performance in compact sealed and vented enclosures
• 5.1" External Voice Coil (EVC™) with single 2 ohm winding for exceptional power handling
• Carbon fibre/cellular fibre sandwich cone for high rigidity, superior damping, and accuracy at all volumes
• Split 10AWG spring posts evenly disperse tension for improved linearity
• Heavy-gauge stamped steel Uniflow™ chassis eliminates unwanted resonance
• Developed using Klippel analysis and Finite Element Analysis tools
