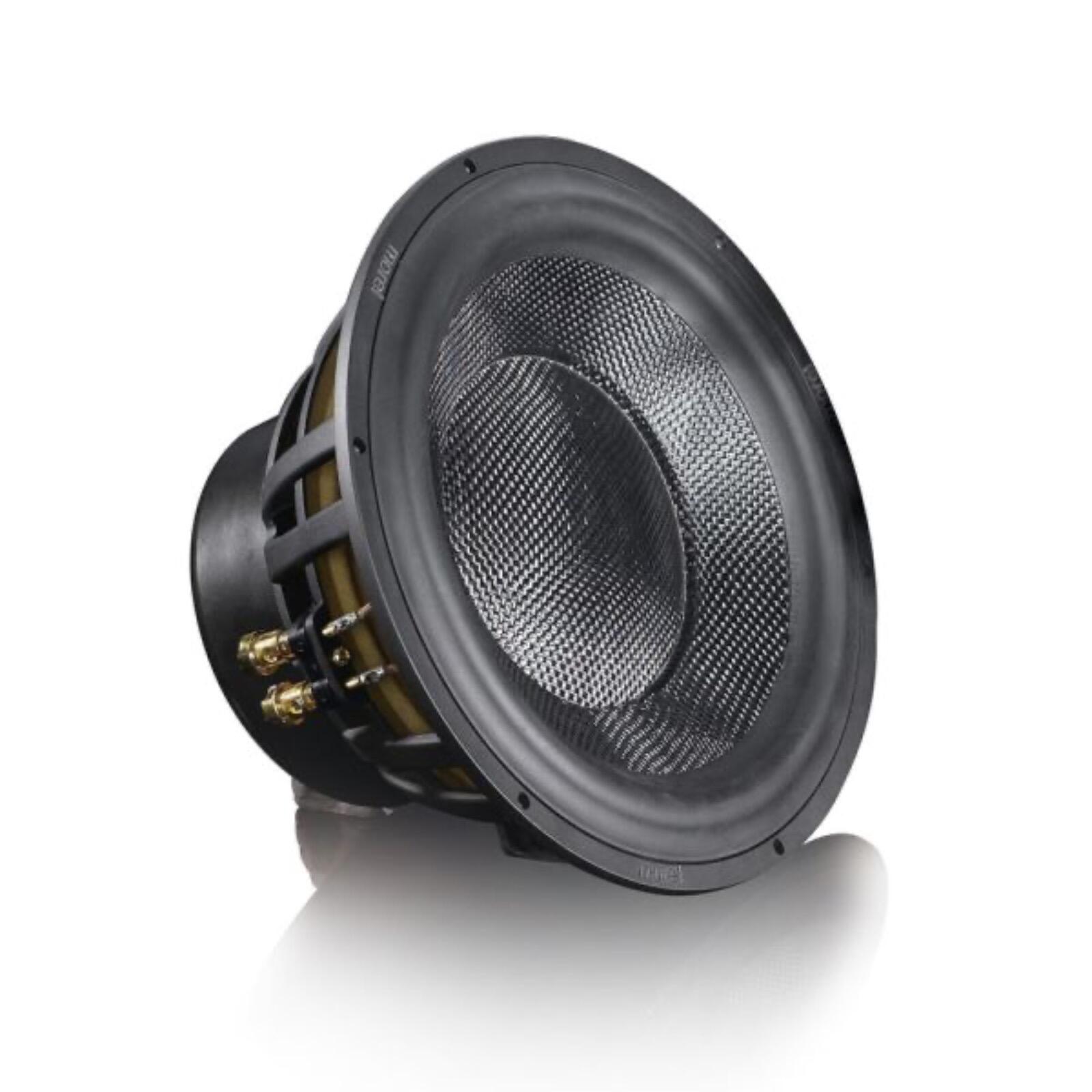

The Morel Ultimo TI 802 is an 8-inch (200 mm) car subwoofer with a single 2-ohm voice coil, rated at 800 W RMS. It features a titanium voice coil former, a 5.1-inch Hexatech External Voice Coil (EVC) and a copper shorting ring, and sits at the top of Morel's Ultimo Titanium subwoofer range.
This listing is the 2-ohm version. The Ultimo TI 8-inch is also available as the 4-ohm Ultimo TI 804.
Key specifications
- Size: 8 inch (200 mm)
- Impedance: single 2-ohm voice coil
- Power handling: 800 W RMS (3,000 W peak)
- Sensitivity (1 W / 1 m): 84 dB
- Frequency response: 20–900 Hz
- Dimensions: 22.2 x 22.2 x 12 cm
- Mounting depth: 11.4 cm
- Mounting hole diameter: 20 cm

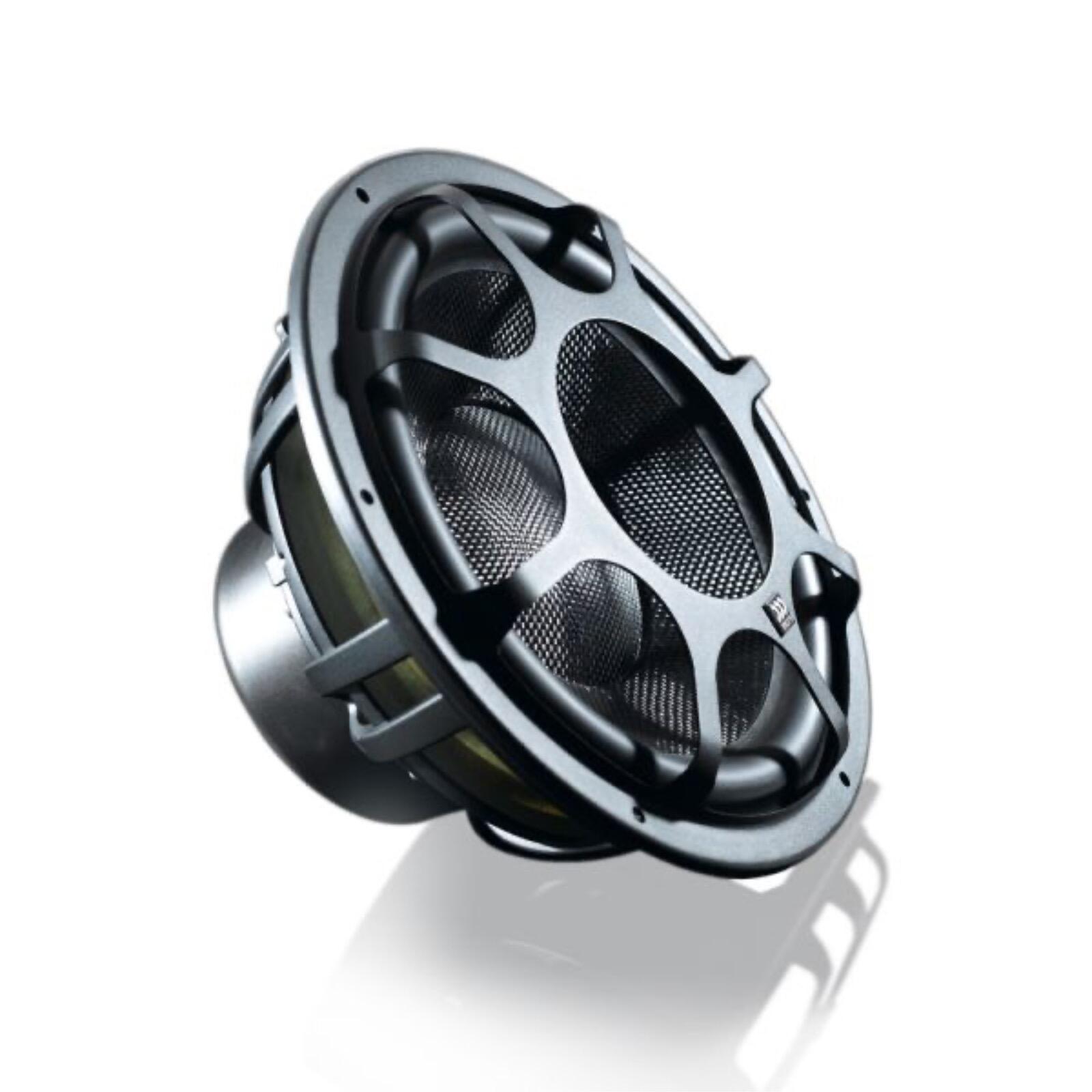

- Grille included
Ultimo TI 8" (200 mm) subwoofer — 800 W at 2 ohm
The Ultimo Titanium is Morel's flagship subwoofer series, developed to improve on the musicality and high power handling of the original Ultimo range.
At the heart of the Ultimo TI is Morel's titanium voice coil former — exceptionally stiff and lightweight. This improves driver dynamics for quicker transient response, lower distortion and increased power handling.
A copper shorting ring reduces distortion and produces a flat impedance response. This is particularly important in subwoofers, where distortion levels are typically high.
The Ultimo TI 802 also carries over key technology from the original Ultimo series:
- 5.1" Hexatech™ External Voice Coil (EVC™)
- DMM™ (Dual Magnet Motor) — achieves over 90% efficiency
- PFS™ (Progression Field Symmetry) spider/surround — stiffens the spider as excursion increases for maximum linearity and minimum distortion
The titanium voice coil technology and continued parameter optimisation also allow the Ultimo TI to work more efficiently in smaller enclosures than its predecessors, making it a strong choice where boot space is limited.
Explore the full range in Morel Subwoofers.
Specification
| Impedance | (Ohms) 2 |
|---|---|
| Sensitivity | (dB @ 1W/1m) 84 |
| Frequency Response | (Hz) 20-900 |
| Mounting Depth | (cm) 11.4 |
More specs
| |
What's Included
- ULTIMO TI 8" (200 MM) SUBWOOFER 800W @ 2 OHM
Morel
About the Morel ULTIMO TI 802
From our tech experts at CEN
A Morel Ultimo Ti 8 inch subwoofer, 2 ohm.
Who it suits
Drivers building a system where the bass has to keep up with a good front stage rather than simply be loud. The Ultimo line is Morel at its most serious and deserves a properly built enclosure.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier driving it: box volume and tuning decide what you actually hear, and impedance decides how it should be wired. We build enclosures to suit the vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Subwoofers
More options from the same range, in stock and ready to go
Save 57% Morel Primo 804 8 Inch Single 4 Ohm Subwoofer 250w RMS RRP£349.00£149.00 / Save 57%Low stock
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the Morel Ultimo TI 802 a single or dual voice coil subwoofer?
A: It has a single 2 ohm voice coil.
Q: How much power does the Ultimo TI 802 handle?
A: It is rated at 800 W RMS and 3000 W peak.
Q: What mounting depth does the Ultimo TI 802 need?
A: Mounting depth is 11.4 cm with a mounting hole diameter of 20 cm. A grille is included.
