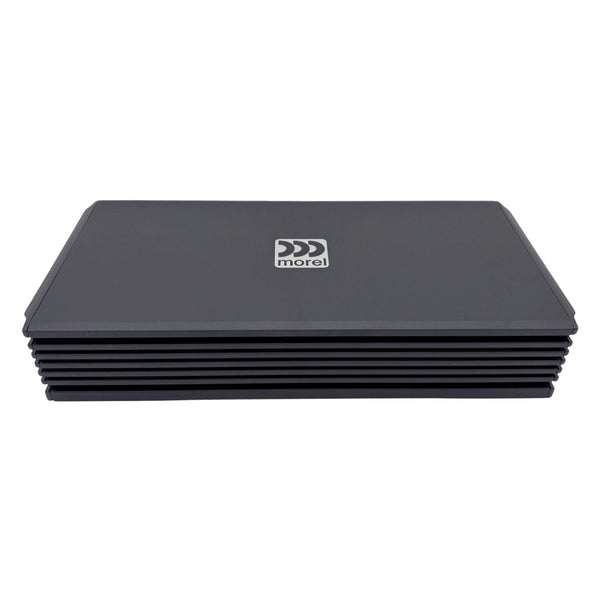

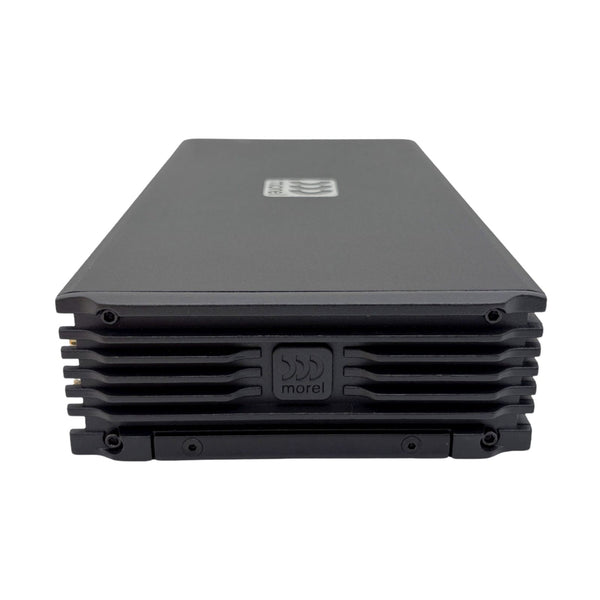

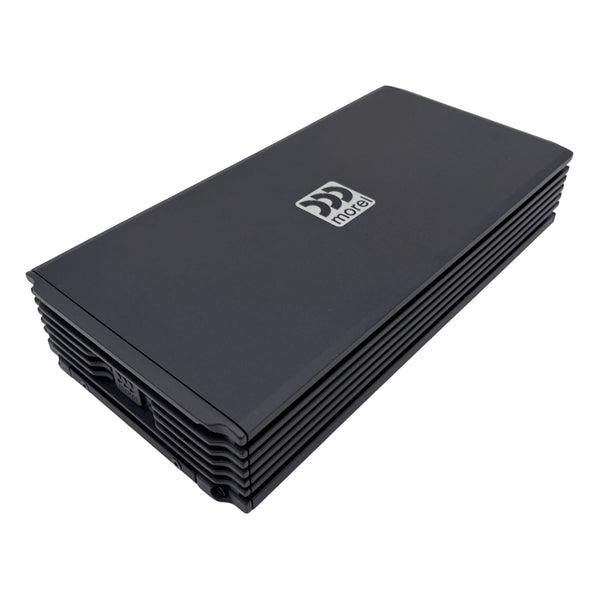

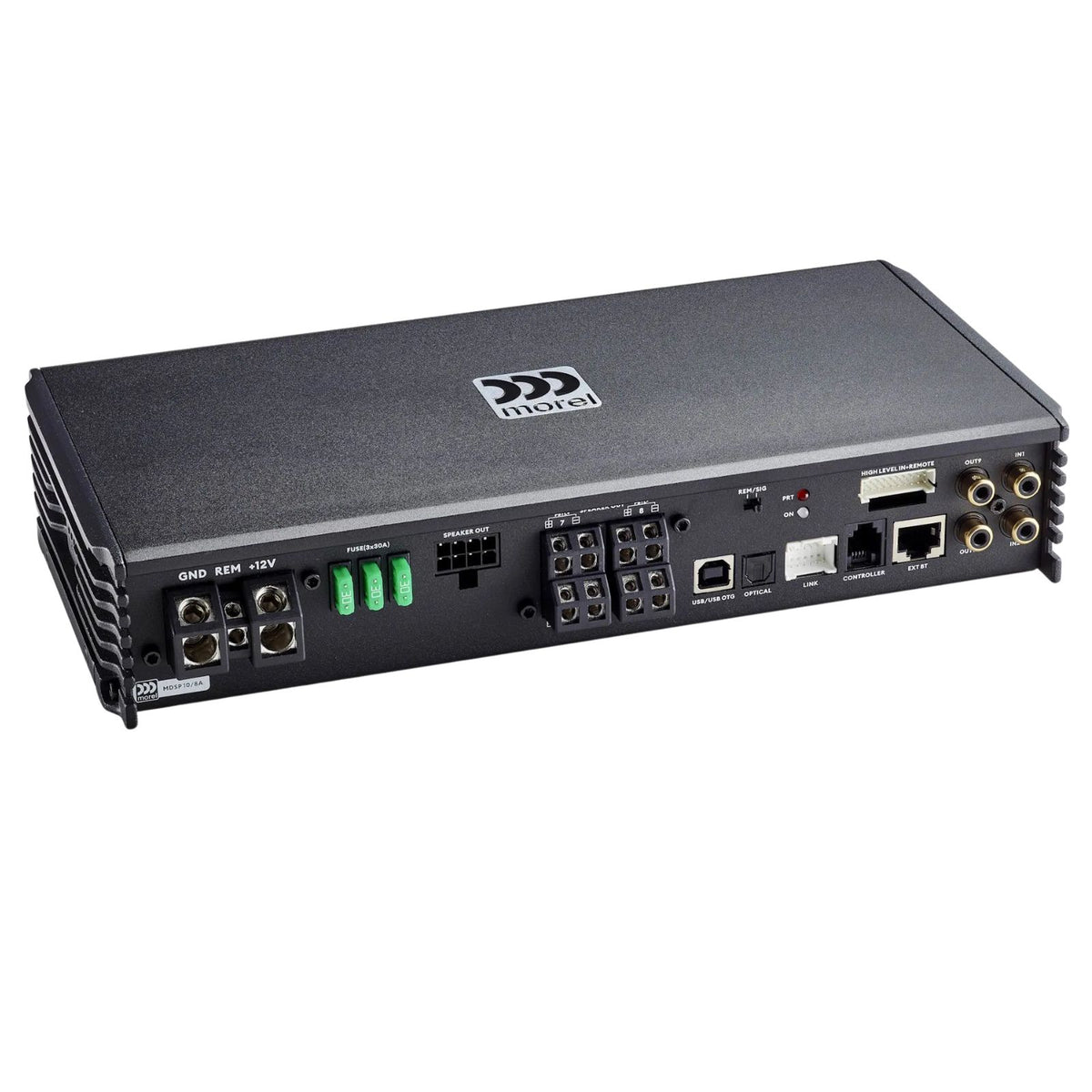

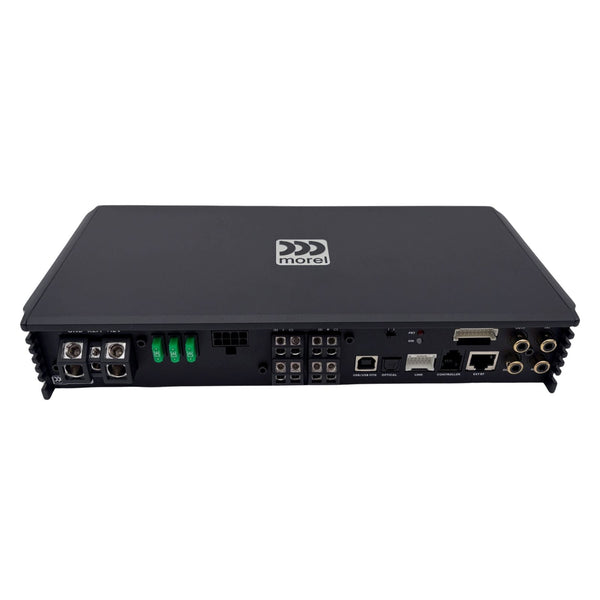

Morel MDSP 10/8A Class D 10 Channel DSP Amplifier 960w RMS
Couldn't Load Pickup availability
The Morel MDSP 10/8A is a 10-channel Class D DSP amplifier delivering 960W RMS (4 x 80W + 4 x 160W), with 8 amplified channels and up to 10 DSP-controlled outputs. It is part of Morel's MDSP amplifier range.
Key specifications
- Channels: 8 amplified, up to 10 DSP-controlled outputs (incl. 2V RCA outputs)
- Power @ 4 ohms: CH1–4 4 x 80W RMS, CH5–8 4 x 160W RMS (960W RMS total)
- Bridged (CH5–8, PBTL): 2 x 320W RMS
- Inputs: 8-channel speaker-level (up to 30V), RCA, optical, Bluetooth, USB-DAC
- DSP: 96kHz/24-bit, 10-band parametric EQ per channel plus global
- Crossover: 6–48 dB/oct, Bessel, Butterworth or Linkwitz-Riley
- Time delay: 0–20 ms in 0.01 ms steps
- Power supply: 9–17V DC, 3 x 30A Mini ATC fuses
- Size: 275 x 136 x 50 mm, 0.41 kg
Morel MDSP 10/8A: precision, power and performance in one compact design
The MDSP series is designed for modern vehicle integration, offering flexibility and sound quality in a compact unit. It suits both OEM system upgrades and high-end custom installs.
Authentic sound with advanced MDSP control
The MDSP 10/8A puts out up to 80W x 4 + 160W x 4 RMS through Class D amplification. High-resolution DSP includes parametric EQ, fully adjustable crossovers, and per-channel input/output EQ for precise system-wide tuning. High-voltage speaker-level inputs, signal summing, and Morel's Speaker Load Assurance Module (SLAM) keep factory amplifiers stable during OEM integration. If you are also looking for speakers to pair with this amplifier, Morel's Maximo Ultra 602 MKII coaxials are a natural match.
Installer-focused features, listener-focused sound
Start/stop compatibility, automatic source switching, and TuneLink for multi-amp tuning from a single device keep setup efficient. Bluetooth streaming and DRC compatibility give users direct control. If a dedicated amplifier channel is needed alongside the MDSP 10/8A, the Morel MPS 4.400 is a compatible 4-channel option from the same range.
Features
- Delivers up to 80W x 4 + 160W x 4 RMS for high-output performance
- Premium internal components including WIMA high-grade parts for audio performance and long-term reliability
- Accepts up to 8 channels of speaker-level input (up to 30V) for seamless OEM integration
- Up to 10 DSP-controlled output channels, including 2V RCA low-level outputs for system expansion
- SLAM intelligently engages the OEM amplifier to preserve factory audio functionality
- Input EQ, Output EQ and Global EQ for precise sound shaping
- Speaker-level, RCA, optical, Bluetooth (streaming), and USB-DAC inputs with automatic source switching
Explore the full range in Morel Amplifiers & Accessories.
Specification
| Dynamic Range | ≥100dB |
|---|---|
| S/N (RCA) | ≥98dB |
| T.H.D | ≤0.03% |
| Frequency Response | 20Hz ~ 20kHz |
| Input Sensitivity | 16V / 30V RMS (High-Level) 0.1 - 2V RMS (Low-Level) |
| Input Impedance | High-Level: 4.7Ω RCA: 10kΩ |
| Output Impedance (RCA) | 51Ω |
| Load Impedance (RCA) | CH1~CH4: 4Ω CH5~CH8: 2Ω |
| Output Power @ 4Ω | CH1~CH4: 80W (RMS) / 160W (PEAK) CH5~CH8: 160W (RMS) / 320W (PEAK) |
| Output Power @ 2Ω | CH1~CH4: N/A CH5~CH8: 160W (RMS) / 320W (PEAK) |
| Bridged Output @ 2Ω (PBTL) | CH5~CH8: 2x320W (RMS) / 2x640W (PEAK) |
| Voltage (DC) | 9~17V |
| Idle Current | ≤0.1 |
| REM Input | High-Level Start (H1+/H1-) or ACC Start is Optional |
| REM Output | 12V (200mA) |
| Outboard Fuse (Mini ATC) | 30A x 3 |
| Signal Output (RCA) | 2V (RMS) |
| System Sampling Rate | 96kHz/24bit |
| Crossover | Full / High-Pass / Low-Pass / Band-Pass |
| Crossover Type | Bessel / Butterworth / Linkwitz-Riley |
| Crossover Slope | 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB |
| Crossover Frequency | 20Hz~20kHz @ 1Hz Step |
| Polarity Inversion | 0º/180º |
| Output Equalizer | 10-Band Parametric Equalizer ± 12dB per Channel 10-Band Parametric Equalizer ± 12dB Global |
| Output Equalizer Q Value | 0.404 - 28.852 |
| Output Equalizer Resolution | 0.1dB per Step |
| All-Pass Filtering | Input (Per Channel); Output (Per Channel) |
| Delay Distance | 0 - 692 cm; 0 - 273 inch |
| Delay | 0 - 20 ms |
| Delay Step | 0.01 ms |
| Presets | 6 |
| Net Weight (kg) | 0.41 |
| Dimensions | 275mm x 136mm x 50mm |
What's Included
- Morel MDSP 10/8A
Morel
About the Morel MDSP 10/8A
From our tech experts at CEN
An 8-channel Class D amplifier with a 10-channel digital sound processor built in, so amplification and tuning arrive in one chassis, rated at 960w RMS.
Who it suits
Drivers who want processed, properly tuned sound without finding space for a separate DSP and amplifier. In cars where space is tight, and in any vehicle keeping its factory head unit, this is the tidy answer.
Our tech experts advise
The processing is only worth what the tuning puts into it: measurements in the car, delays set for the driving seat, crossovers chosen for your drivers. That is the work, and we do it at our Beeston workshop. It also needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Morel Amplifiers & Accessories
More options from the same range, in stock and ready to go

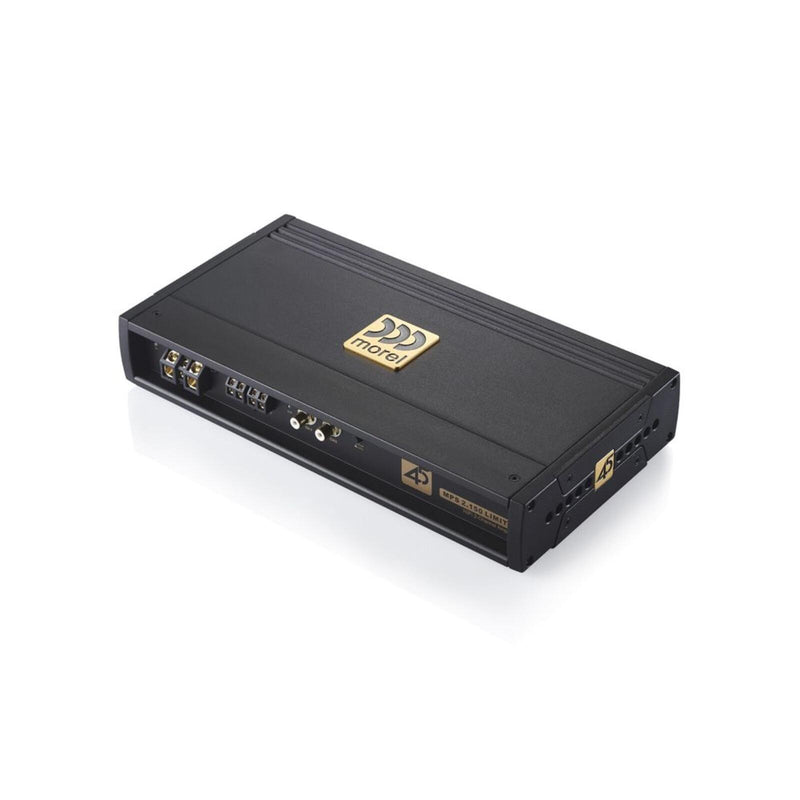

Morel MPS 2.150 Amp 2 Channel Class A B Car Amplifier 150w RMS
£999.00
View product

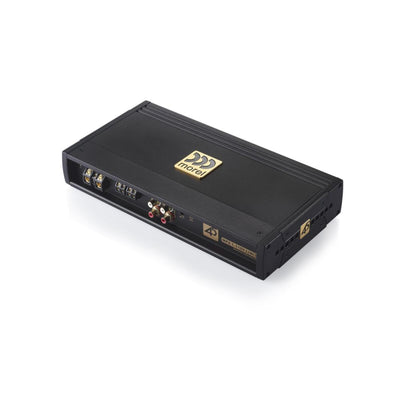

Morel MPS 1.1100 Amp Monoblock Class D Mono Subwoofer Amplifier 1100w RMS
£1,099.00

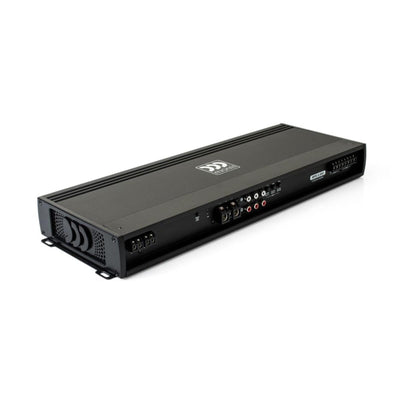

Morel MPS 5.950 Amp 5 Channel Amplifier 4x70w + Mono Sub 1 x 550w RMS at 2ohm
£749.00

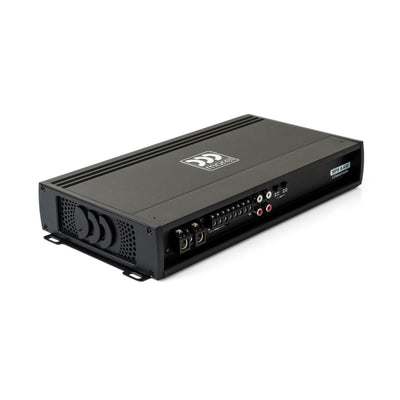

Morel MPS 4.400 Amp 4 Channel 4x70w Class A B Car Stereo Amplifier 400w RMS
£449.00

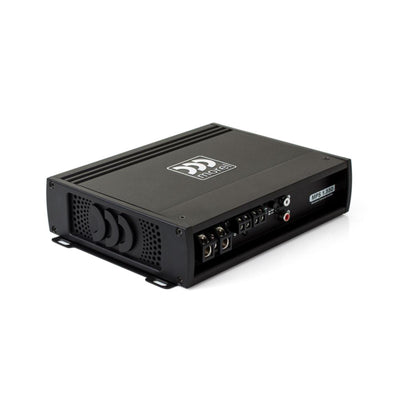

Morel MPS 1.550 Amp Monoblock Class D Mono Subwoofer Amplifier 550w RMS at 2ohms
£499.00
Frequently Asked Questions
Q: Can the Morel MDSP 10/8A connect to a factory head unit?
A: Yes. It accepts up to 8 channels of speaker-level input (up to 30V), offers signal summing, and SLAM keeps the factory amplifier engaged so factory audio functions are preserved.
Q: How much power does the MDSP 10/8A deliver?
A: Channels 1-4 deliver 80W RMS each at 4 ohms and channels 5-8 deliver 160W RMS each at 4 or 2 ohms. Channels 5-8 can be bridged to 2 x 320W RMS.
Q: Does the MDSP 10/8A have Bluetooth?
A: Yes. It supports Bluetooth streaming alongside speaker-level, RCA, optical and USB-DAC inputs, with automatic source switching.
