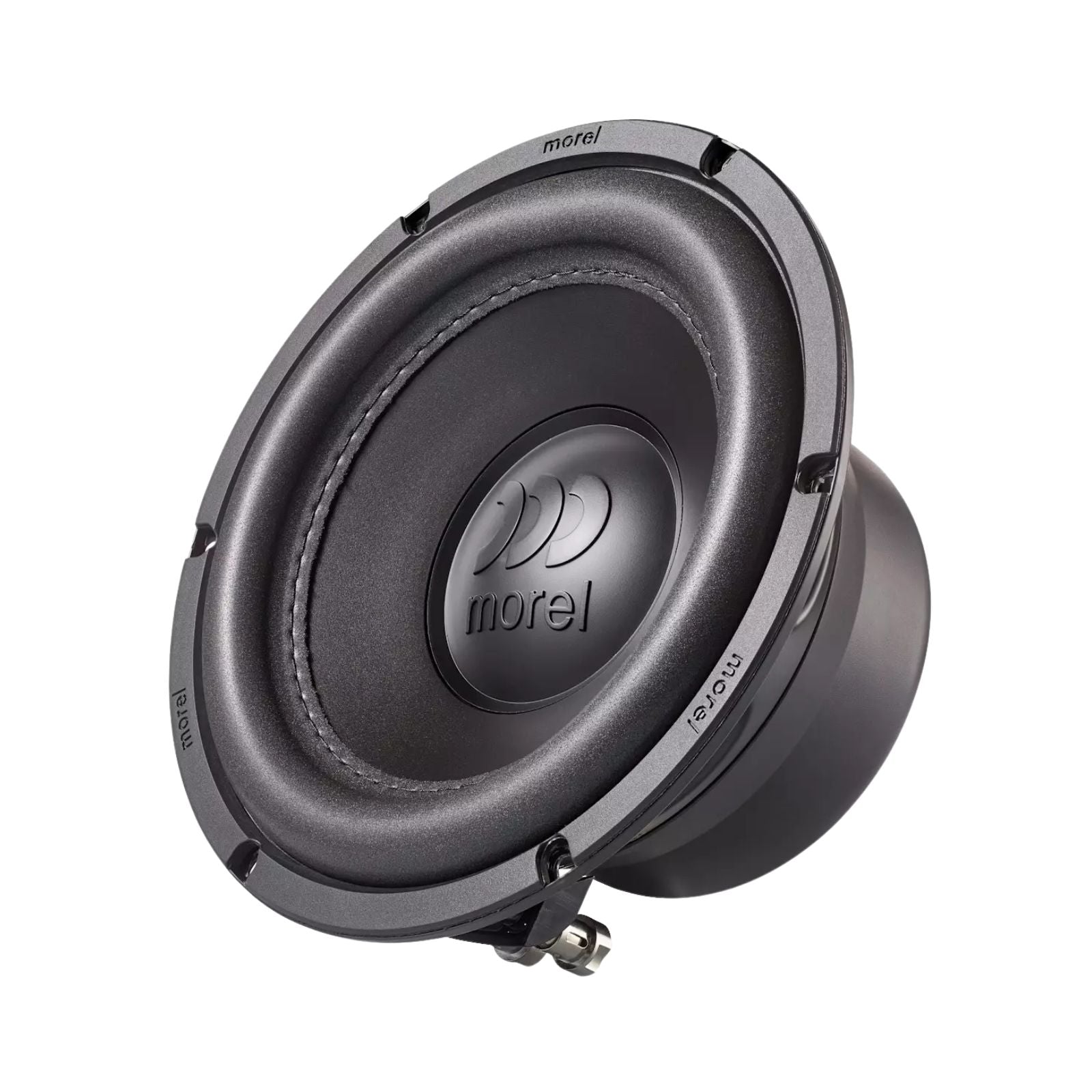

MOREL KINETIC KS804 8 INCH SINGLE 4 OHM SUBWOOFER 250W RMS
Elevate your audio system with the Kinetic series, where cutting-edge technology meets best-in-class bass performance. Feel the depth, embrace the dynamics, and enjoy a listening experience that moves you like never before.
The all-new Morel Kinetic subwoofers harness innovative engineering in an affordable package. Available in 8", 10" and 12" sizes, these subwoofers deliver deep, powerful bass with unparalleled authority in compact enclosures. Each model uses a robust 2" voice coil capable of handling up to 350 Watts RMS power. The Kinetic features tinsel lead wires that are woven directly into the driver’s primary suspension to give exceptional durability, whereas damped
polymer cones and stitched high-excursion surrounds enhance each subwoofer's ability to reproduce low frequencies with precision. Experience the fusion of power, precision and affordability with Morel's Kinetic subwoofers.
Features
- Designed for sealed and vented enclosures
- Thick gauge stamped steel chassis designed to eliminate internal resonances
- Optimized for efficiency and low distortion levels

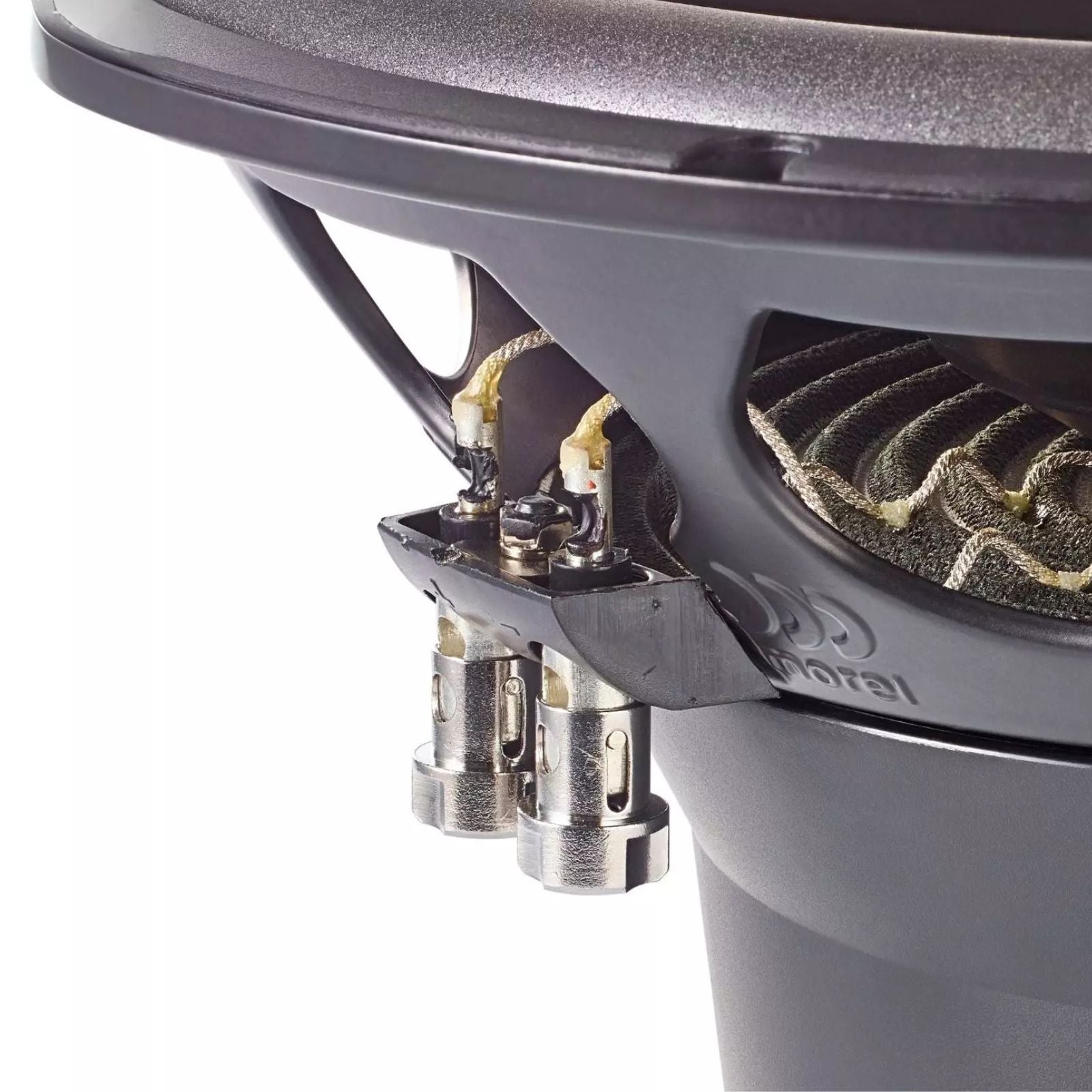

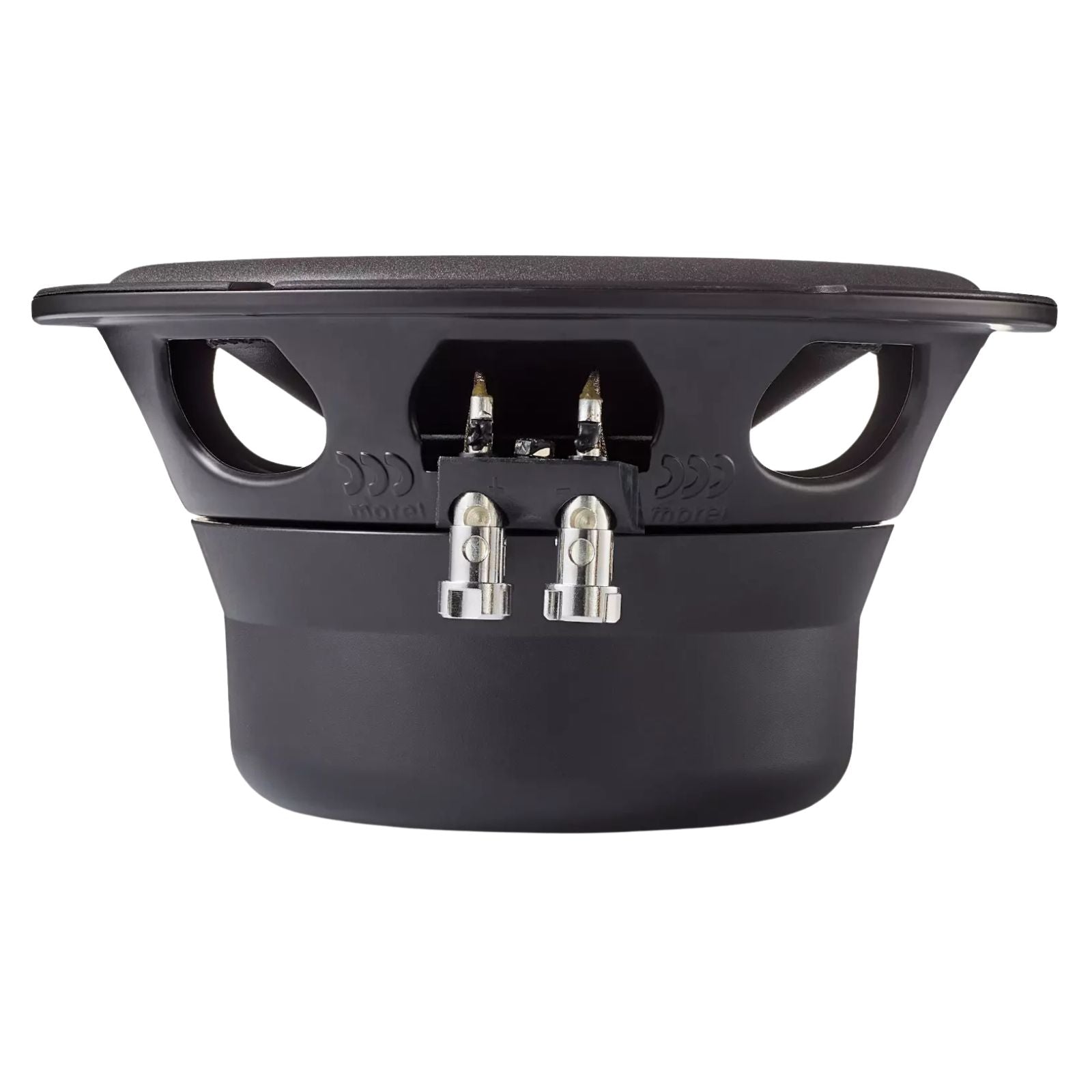

- Spring post terminals provide optimal connection with speaker wire
- Klippel and FEA optimized
Specification
| Overall Dimensions | 8” |
|---|---|
| Power Handling | Wrms 250 |
| Max. Trans. Pwr Handling Wrms | 500 |
| Sensitivity | (2.83 V/1M) dB 82.1 |
| Frequency response | Hz 20-500 |
| Resonance Freq. Fs Hz | 34.5 |
| Voice Coil | Diameter mm (inch) 51 (2.0) |
| Voice Coil | Height mm (inch) 23 (0.9) |
| Voice Coil | Type/Former Aluminum |
| Voice Coil | Wire Copper |
| DC Resistance (ohm) * VC in parallel | 3.6 |
| Voice Coil | Induct. @1 kHz (mH) 1.5 |
| Magnet | System Double magnet vented |
| HE-Magnetic Gap Height mm (inch) | 8 (0.3) |
| BL Product/BXL | 10.3 |
| Max. Linear Ex./Xmax mm (inch) | ±8mm (0.3) |
| Electrical Q Factor QES | 0.67 |
| QTS | 0.61 |
| QMS | 6.43 |
| Moving Mass MMS - gr/os | 94.3 (3.3) |
| Equiv. Can Air Load VAS - L (cu.ft) | 17.2 (0.6) |
| Cone | Type One piece formed |
| Cone | Material Damped polymer |
| Unit Diameter mm(inch) | 222 (8.8) |
| Mounting Depth | mm (inch) 103.5 (4.1) |
| Mounting Cutout | 198 (7.8) |
More specs
| |
What's Included
- KINETIC KS804
