Morel Kinetic KS124 12 Inch 4 Ohm Subwoofer 350w RMS

The Morel Kinetic KS124 is a 12 inch, 4 ohm car subwoofer rated at 350W RMS, from Morel's Kinetic range. It features a damped polymer cone, stitched high-excursion surround, and a 51mm (2 inch) copper voice coil on an aluminium former, and is designed for sealed or vented enclosures.

This listing is the 12 inch KS124. The Kinetic range is also available in the Kinetic KS104 (10 inch) and Kinetic KS804 (8 inch).

Key specifications

• Size: 12" (304mm unit diameter)
• Impedance: 4 ohms
• Power handling: 350W RMS, 700W max transient
• Sensitivity: 86 dB (2.83 V/1m)
• Frequency response: 10 – 500 Hz
• Voice coil: 51mm (2") copper on aluminium former
• Xmax: ±8mm
• Mounting cutout: 273mm, mounting depth: 142mm
• Enclosure compatibility: sealed or vented

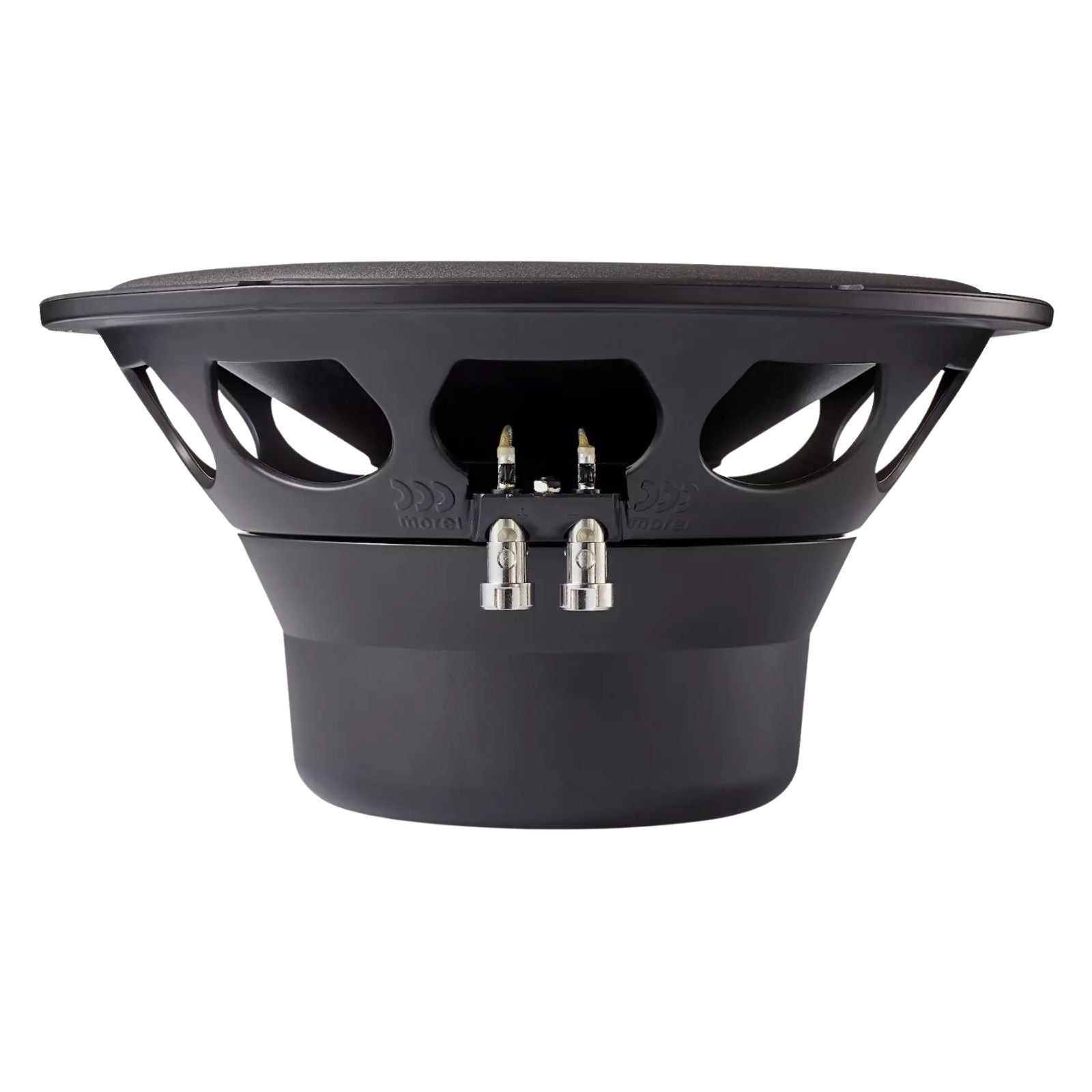

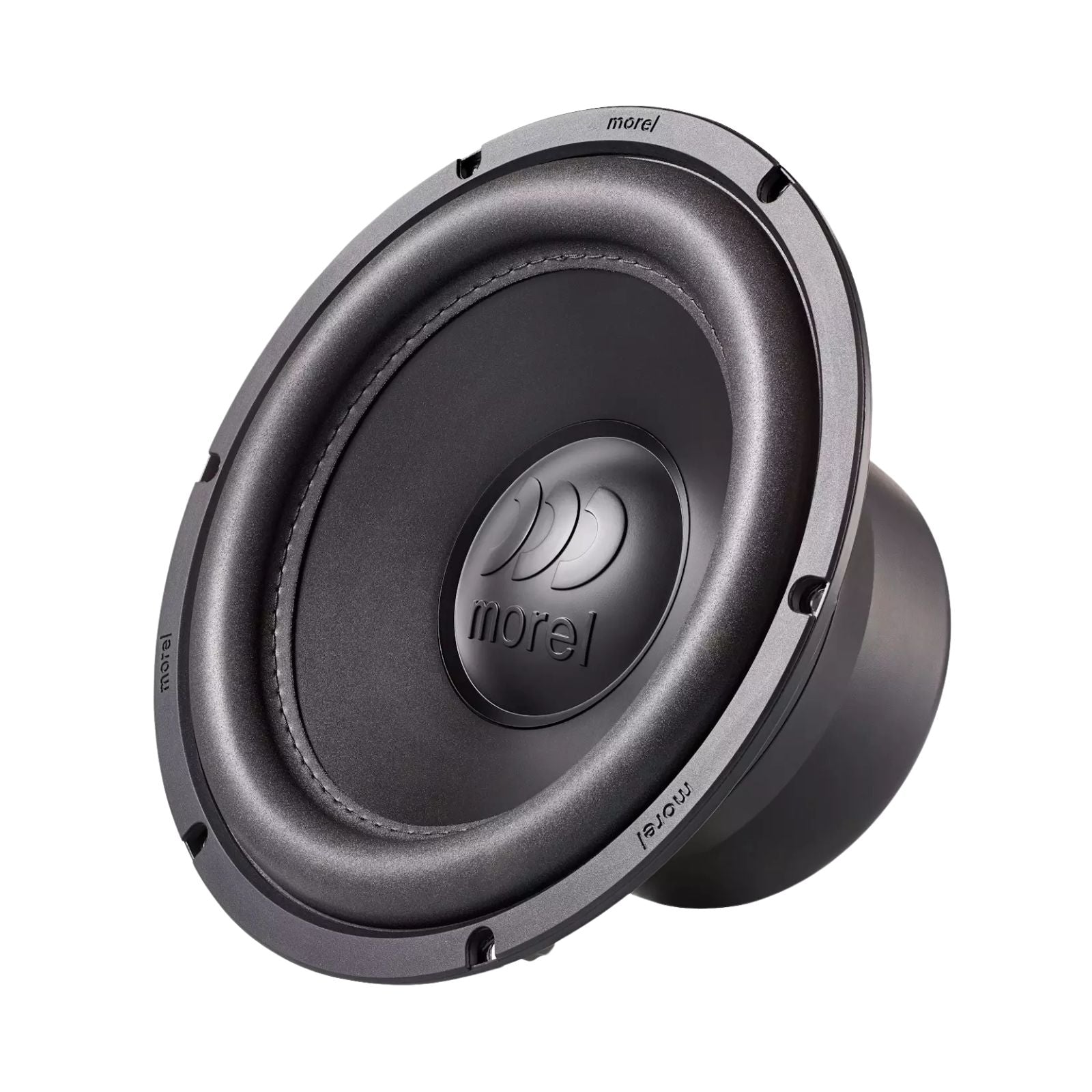

Morel Kinetic KS124 12 inch single 4 ohm subwoofer, 350W RMS

The Morel Kinetic subwoofers combine innovative engineering with an affordable price point. Available in 8", 10" and 12" sizes, they deliver deep, powerful bass from compact enclosures. The KS124 uses tinsel lead wires woven directly into the primary suspension for exceptional durability, alongside a damped polymer cone and stitched high-excursion surround for precise low-frequency reproduction.

Features

• Designed for sealed and vented enclosures
• Thick gauge stamped steel chassis to eliminate internal resonances
• Optimised for efficiency and low distortion
• Spring post terminals for a secure speaker wire connection
• Klippel and FEA optimised
