Morel IP-UNI62 6.5 Inch 2 Way Component Speakers 80w RMS
Couldn't Load Pickup availability
INTEGRATION PERFORMANCE IP-UNI62
Ultra-slim 6.5-inch (165mm) Component System

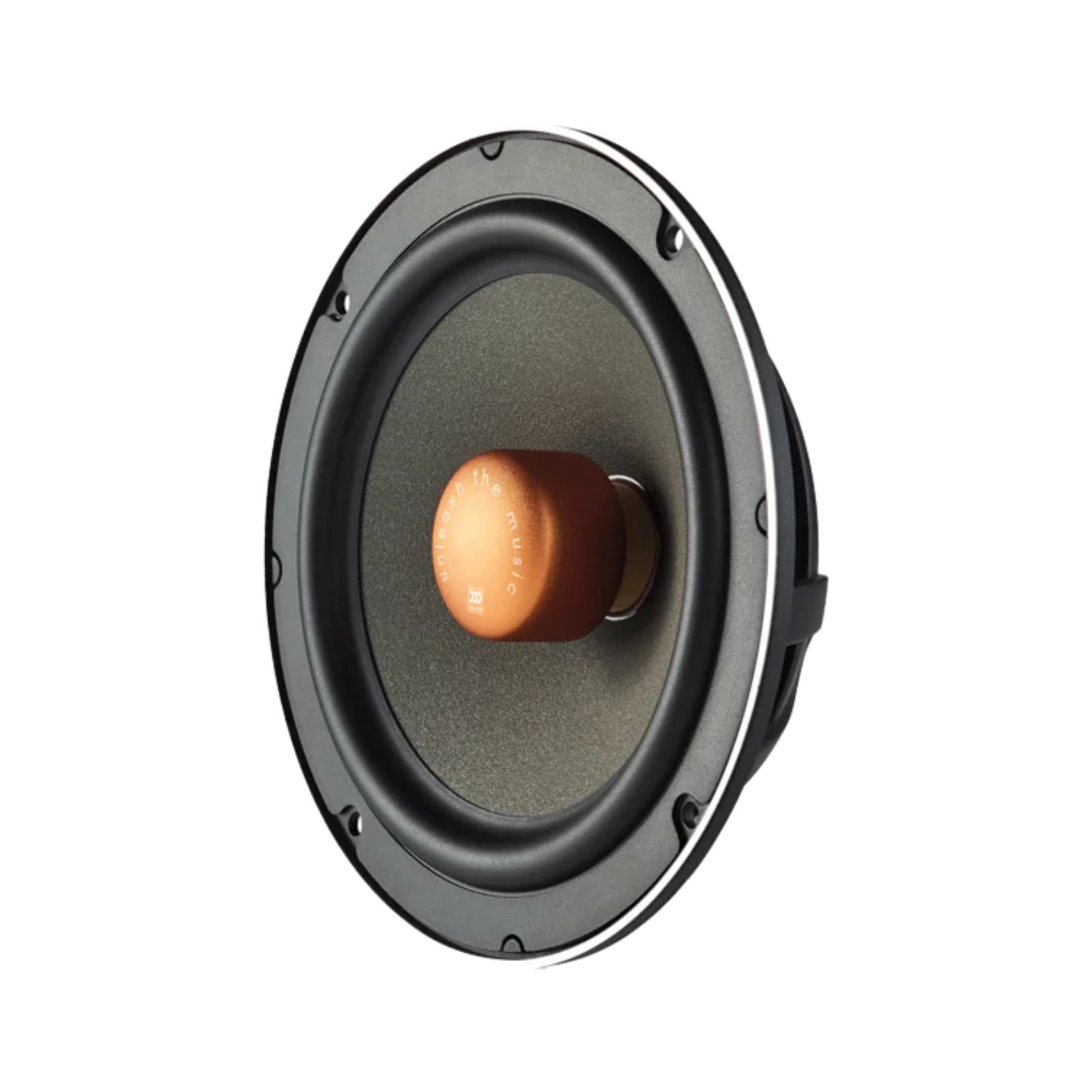

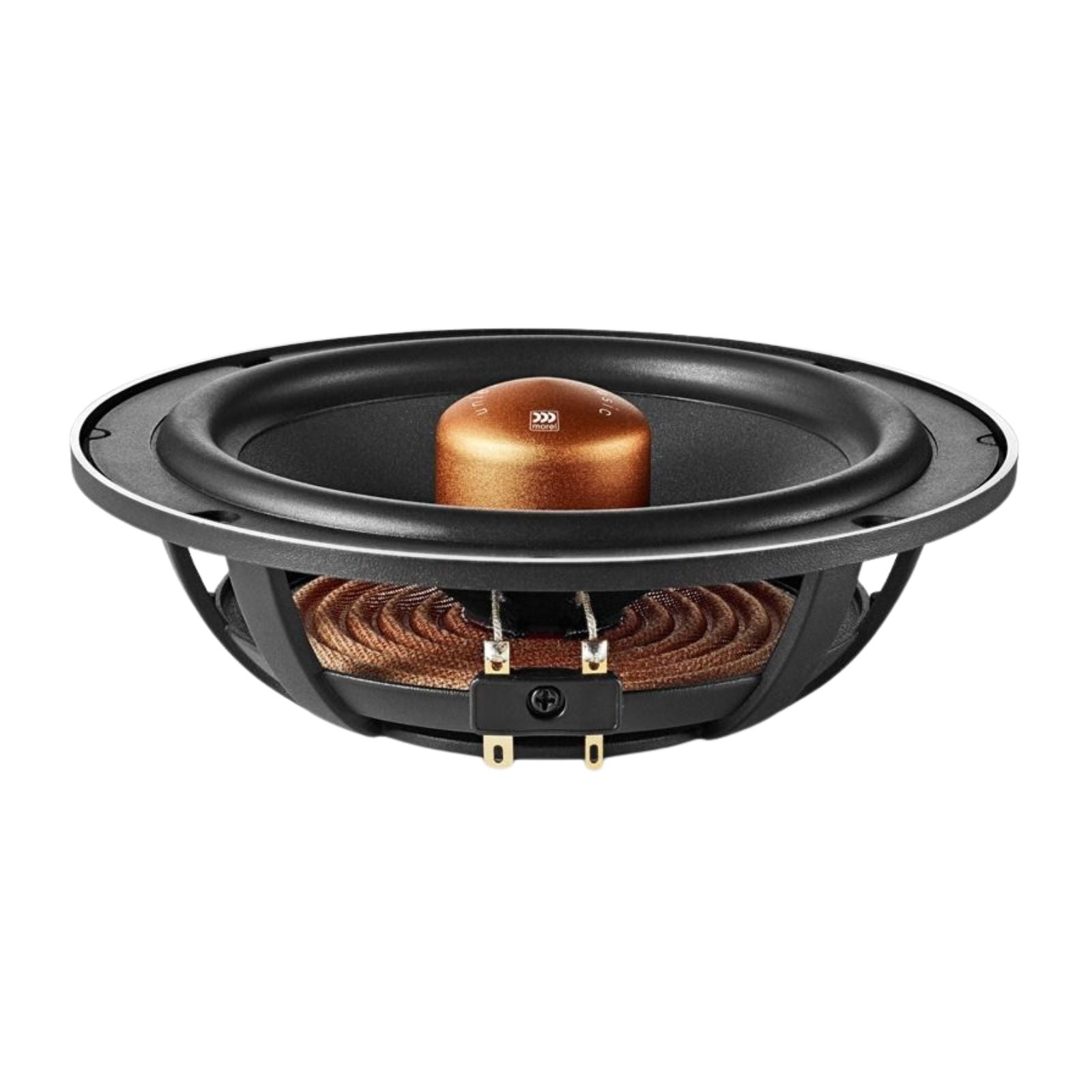

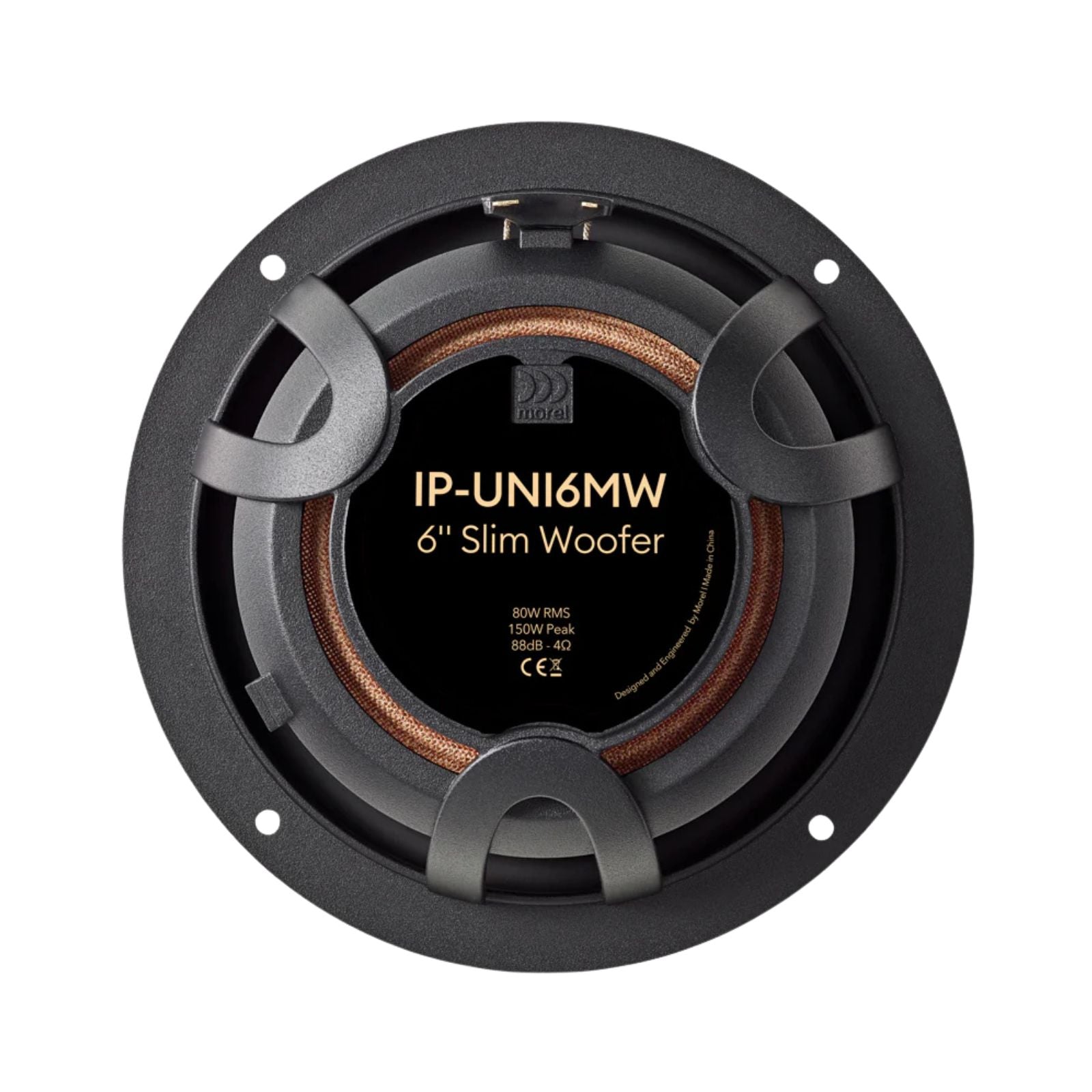

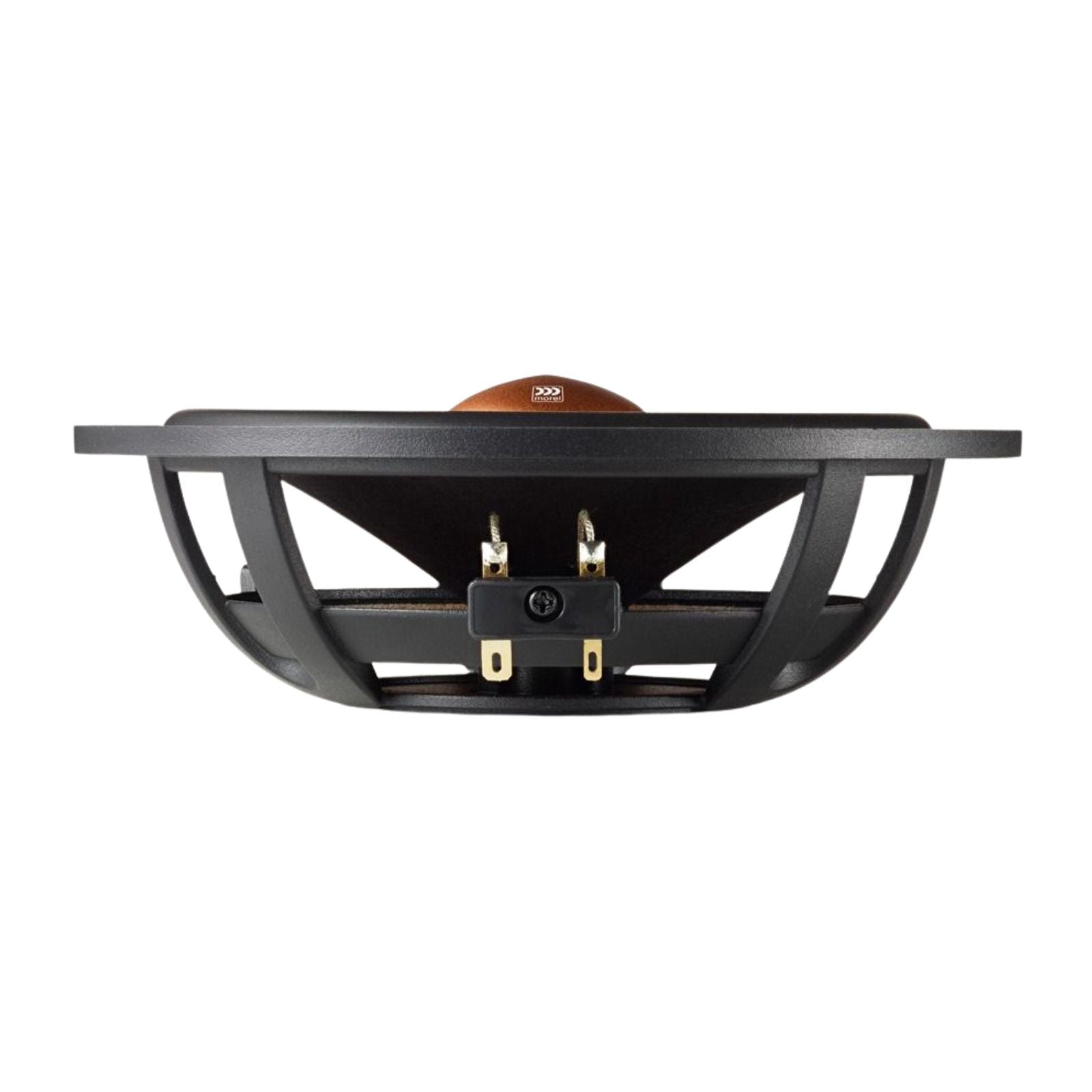

The IP-UNI62 2-way system is engineered to deliver Morel’s signature sound in a compact, easy-to-integrate package—ideal for a wide range of factory upgrade applications. Its slim 6.5-inch (165mm) woofer is driven by an innovative inverted neodymium magnet motor, uniquely positioned in front of the cone. This unique architecture allowed our engineers to craft a proprietary chassis with an ultra-shallow mounting depth, making it perfect for tight factory locations without compromising performance.

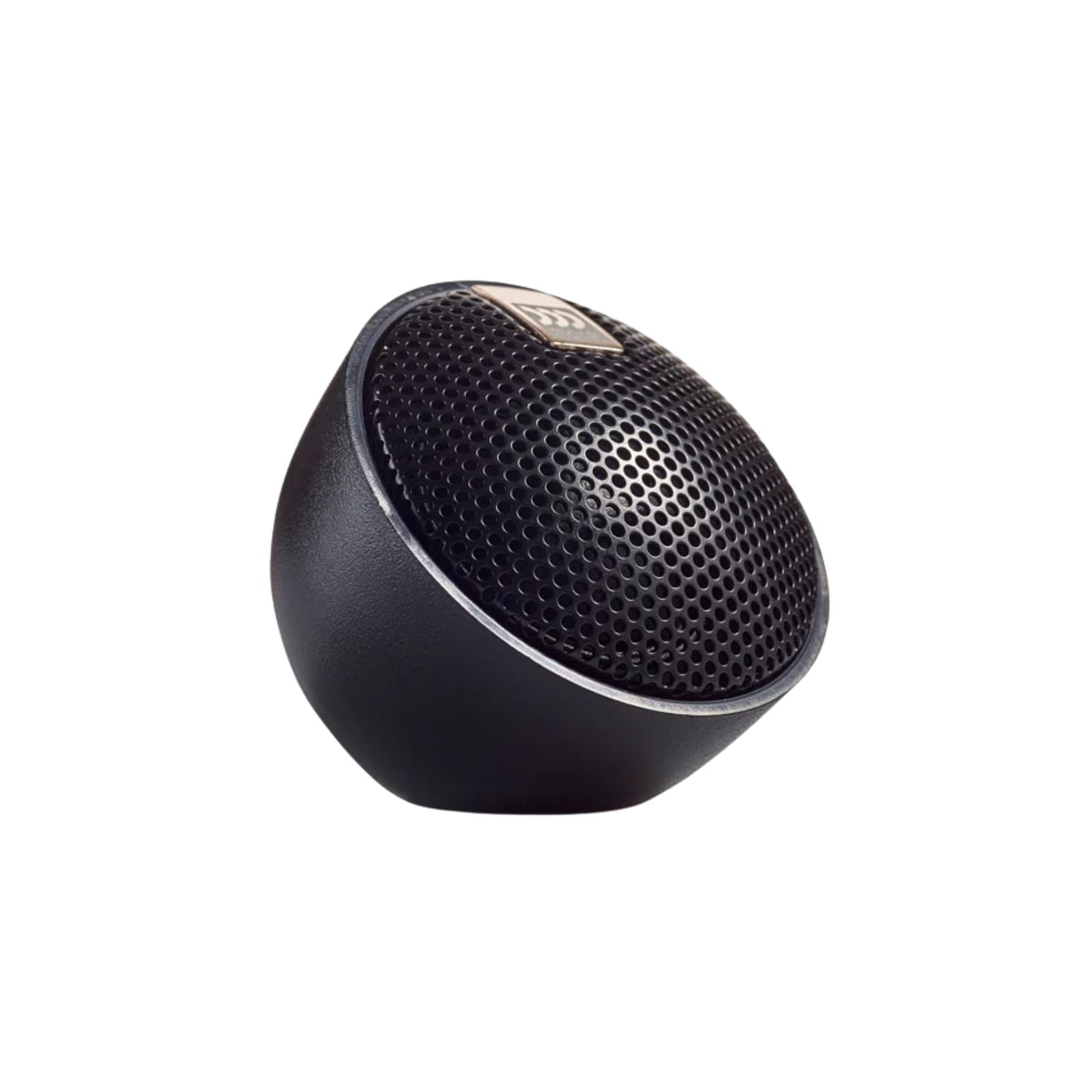

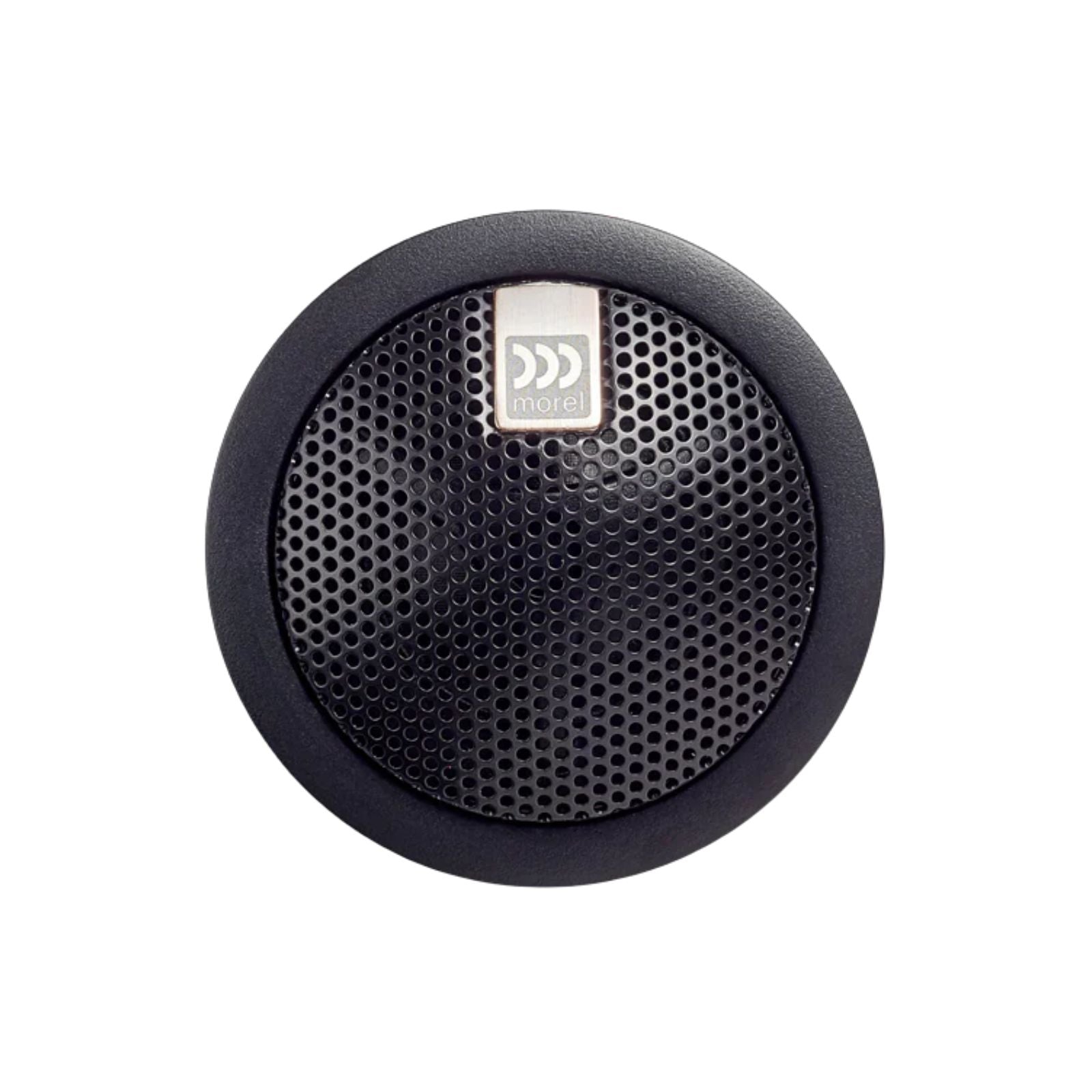

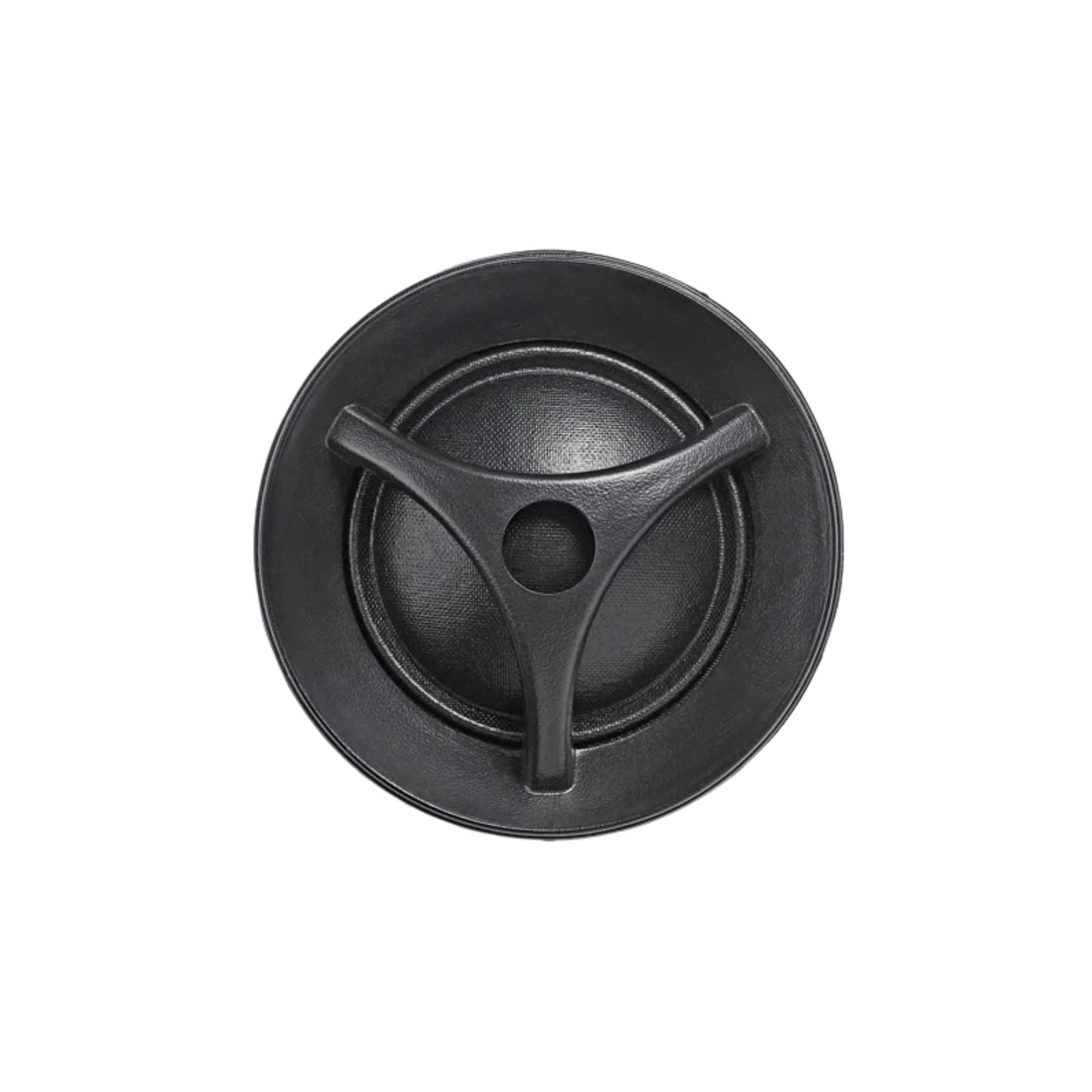

For the high frequencies, Morel’s 1-inch (25mm) soft dome tweeter brings remarkable clarity and detail. Its compact size ensures easy installation in most OEM tweeter positions. Paired with an easy-to-install in-line crossover, the tweeter integrates seamlessly with the woofer to deliver a balanced, full-range soundstage with lifelike imaging and impactful bass.
Whether you’re upgrading your OEM system or designing a more customized setup, the IP-UNI62 offers an ideal blend of performance, fit, and pure Morel sound.
Inline Crossovers – One of the standout features of these speakers is their inline crossovers, which make installation much faster. In many vehicles, the tweeter isn’t located near the main speaker, making traditional crossover installation tricky and time-consuming. With inline crossovers, you simply attach one to the main speaker and another to the tweeter. This means even if the tweeter is mounted in the A-pillar and the speaker in the door, installation is quick and hassle-free.
Specification
| Nominal Impedance (ohm) | 4 |
|---|---|
| Power Handling | Wrms 80 |
| Max. Trans. Pwr Handling Wrms | 150 |
| Sensitivity | (2.83 V/1M) dB 88 |
| Frequency response | Hz 45-5,500 |
| Resonant Freq. Fs Hz | 65 |
| Voice Coil | Diameter mm (inch) 25 (1) |
| DC Resistance (ohm) | 3.1 |
| Magnet | System Neodymium double magnet |
| HE-Magnetic Gap Height mm (inch) | 4 (0.16) |
| BL Product/BXL | 4.3 |
| Electrical Q Factor QES | 0.83 |
| QTS | 0.65 |
| QMS | 3.2 |
| Moving Mass MMS - gr/ounce | 11.1 (0.39) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 12.2 (430.83) |
| Cone | Material Treated Paper Composite Cone |
| Unit Diameter mm(inch) | 210 (8.26) |
| Mounting Depth | mm(inch) 48 (1.9) |
| Net Weight Kg(lb) | 0.5 (1.1) |
| Nominal Impedance (ohm) | 4 |
| Power Handling | Wrms 90 |
| Max. Trans. Pwr Handling Wrms (10ms) | 160 |
| Sensitivity | (2.83 V/1M) dB 91.5 |
| Frequency Response | Hz 1600-20000 |
| FS Hz | 1200 |
| Voice Coil | Diameter mm (inch) 25 (1) |
| Voice Coil | Wire Copper |
| Magnet | System Neodymium |
| Mounting Depth | mm (inch) 20 (0.8) |
More specs
| |

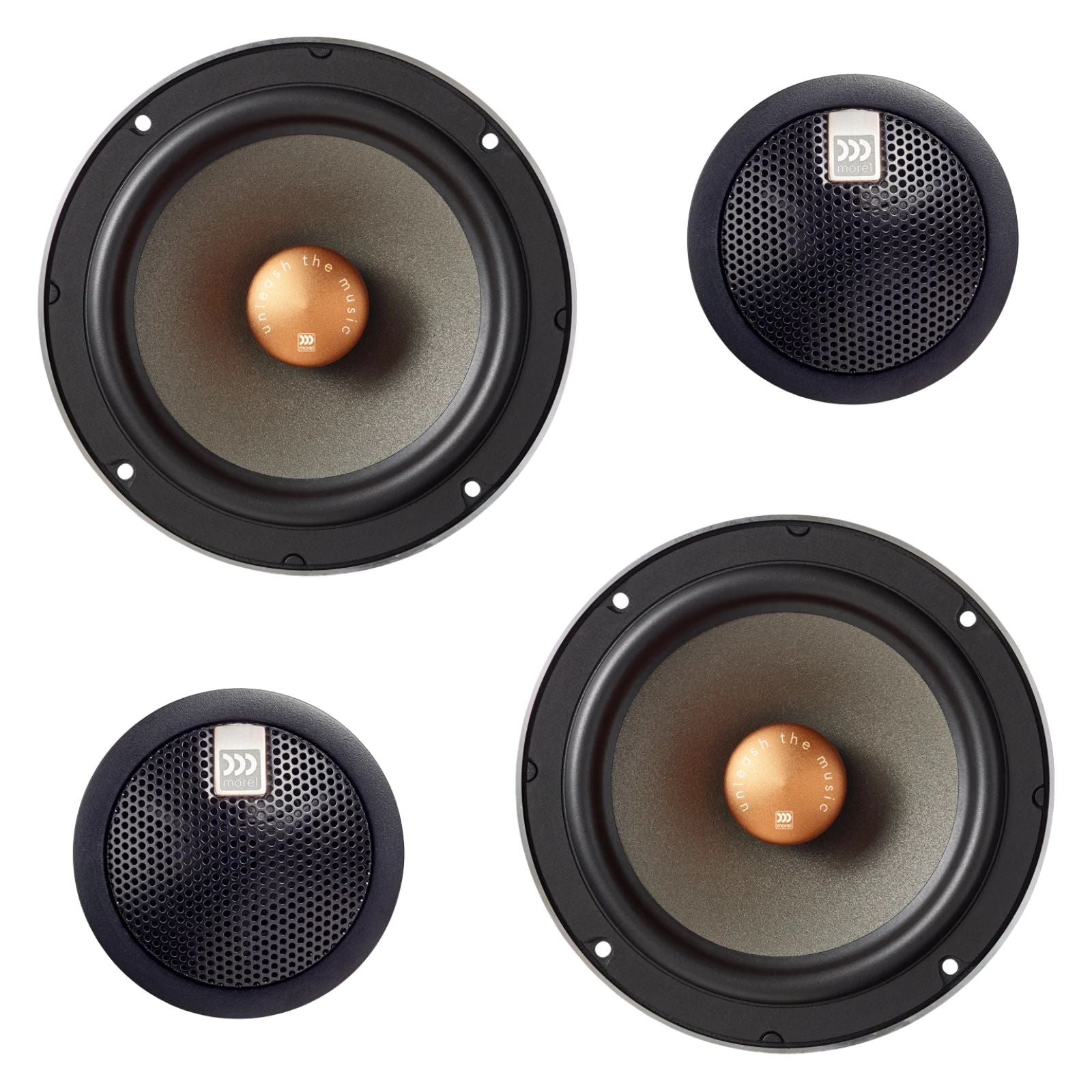

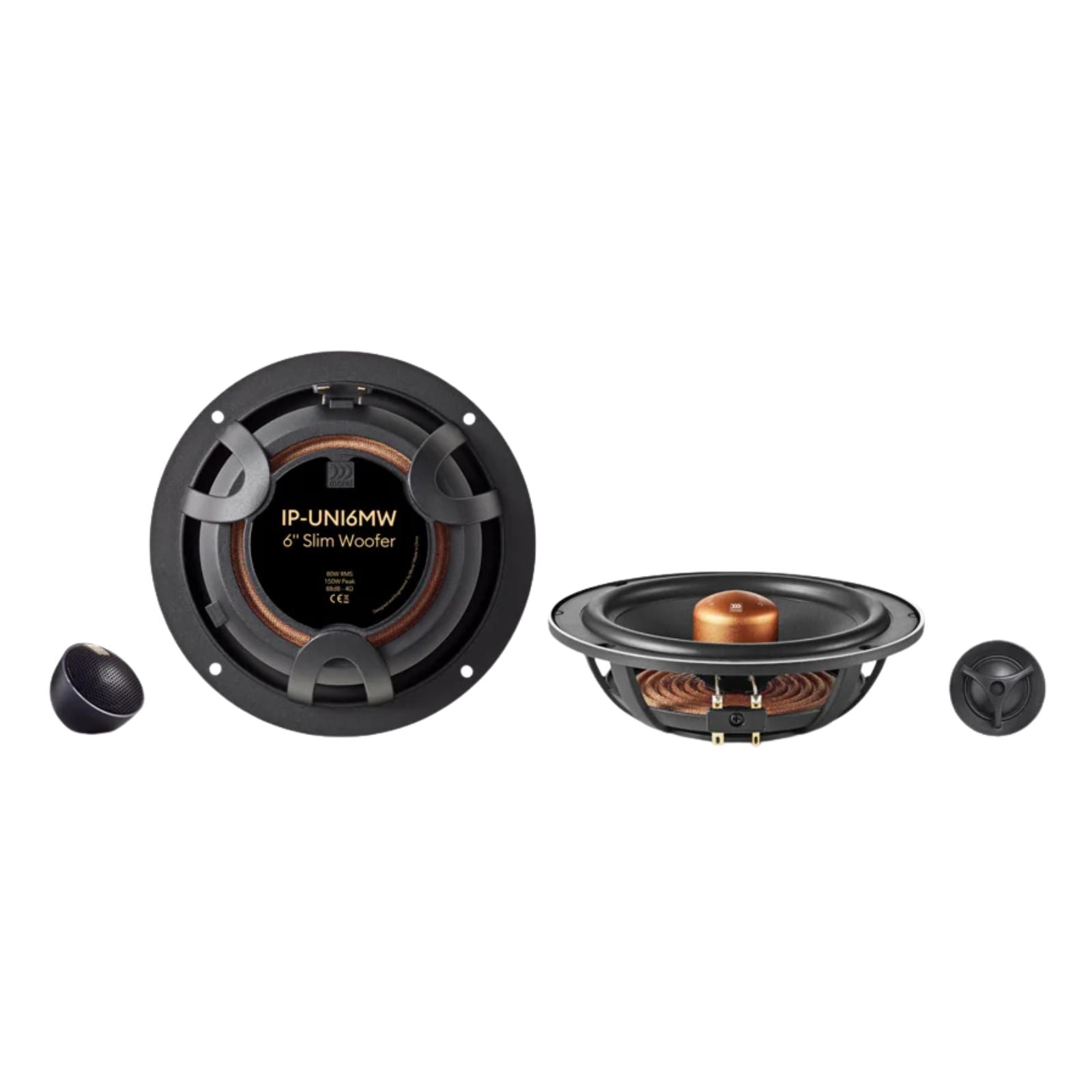

What's Included
- 2 x 6.5" Performance Mid-bass Woofer
- 2 x 1" Performance Soft Dome Tweeter
- 2 x Inline Passive Crossovers
