Match PP-BMW 1.9RAM-HK BMW Harman Kardon Harness for UP 10DSP with MEC Analog In
Couldn't Load Pickup availability
The Match PP-BMW 1.9RAM-HK is a 9-channel upgrade wiring harness for connecting a Match UP 10DSP amplifier (with MEC ANALOG IN extension card) to BMW vehicles fitted with a factory Harman Kardon sound system and RAM (Receiver Audio Module), from mid-2019 onwards. Part of the Match UP plug-and-play range.
Key specifications
- Channels: 9-channel upgrade harness
- Compatible amplifier: Match UP 10DSP with MEC ANALOG IN extension card
- Vehicle compatibility: BMW with RAM receiver and factory Harman Kardon sound system, from mid-2019
- Cable length: 1.00 m
- Vehicle connectors: 42-pole BMW RAM system jacket and plug
- Amplifier connectors: 20-pole, 8-pole and 12-pole MOLEX plugs
- MEC connector: 4-pole MOLEX plug for the MEC ANALOG IN module
Match PP-BMW 1.9RAM-HK
The PP-BMW 1.9RAM-HK enables plug-and-play connection of a Match UP 10DSP amplifier with integrated MEC ANALOG IN extension card to selected BMW vehicles with a Harman Kardon sound system and RAM receiver. For BMW vehicles without the Harman Kardon system, the Match PP-BMW 1.7RAM is also available.
- Plug-and-play connectors for the Match UP 10DSP amplifier with integrated MEC ANALOG IN module
- RAM connection for linking the vehicle cable harness to the RAM receiver
- Cable length: 1.00 m
Explore the full range in Match UP Plug & Play.
Specification
| Type | Wiring |
|---|---|
| Series | PP |
| Article Number | M171307 |
| Country of Manufacture | China |
More specs
| |
What's Included
- 1 x Plug & Play cable harness PP-BMW 1.9RAM-HK
Match
About the Match M171307
From our tech experts at CEN
The Match PP-BMW 1.9RAM-HK is a 9-channel plug-and-play wiring harness that connects a Match UP 10DSP amplifier to BMW vehicles fitted with a factory Harman Kardon sound system and RAM receiver. It covers BMW models built from mid-2019 onwards. The 1.00 m harness uses a 42-pole BMW RAM connector on the vehicle side and MOLEX plugs on the amplifier side.
Who it suits
This harness suits BMW owners from mid-2019 onwards who have the factory Harman Kardon sound system and plan to upgrade using a Match UP 10DSP with the MEC ANALOG IN extension card. If your BMW has the standard or HiFi sound system without Harman Kardon, the Match PP-BMW 1.7RAM may suit better.
Our tech experts advise
Confirm your BMW's build date is mid-2019 or later and that the Harman Kardon system is fitted before ordering. The MEC ANALOG IN extension card must be integrated into the UP 10DSP — this harness does not include it. Installation is priced per vehicle; visit our Nottingham fitting page for details.
Explore the full Match range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Match
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from Match UP Plug & Play
More options from the same range, in stock and ready to go

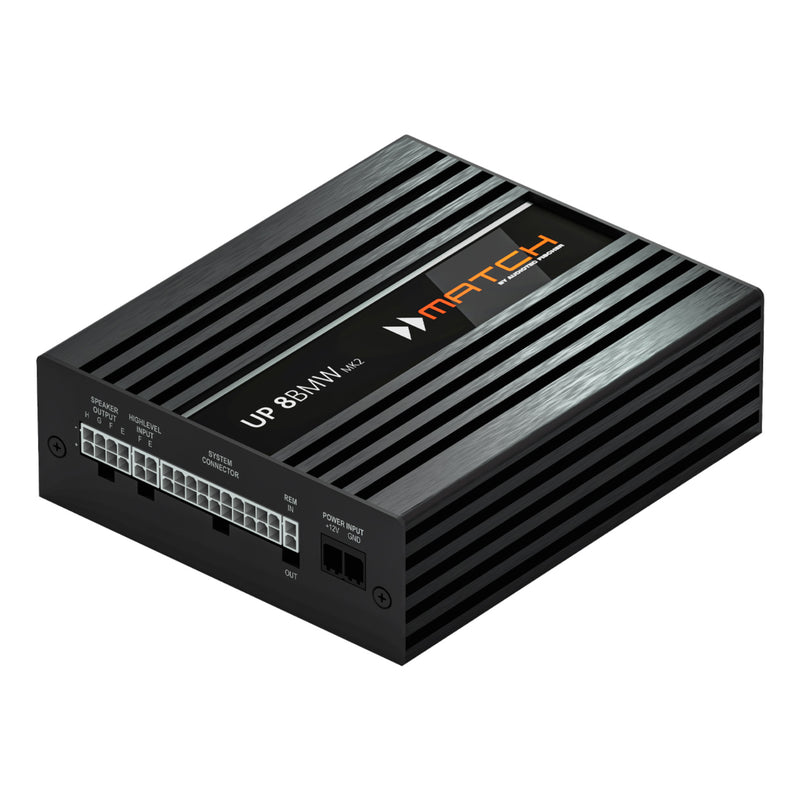

Best SellerMatch UP 8BMW MK2 Plug & Play 8 Channel Amplifier DSP for BMW E, F, G Hi-Fi 676
RRP £729.99Save 4%£699.99

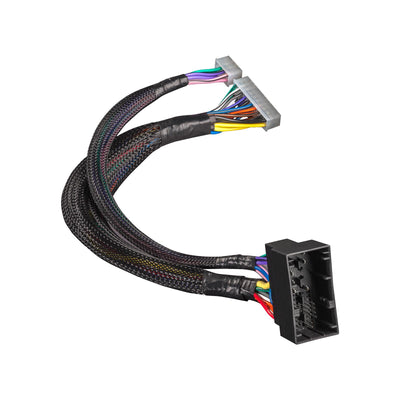

Match PP-BMW 1.7HIFI BMW HiFi Sound System Option 676 Harness for UP 7BMW DSP
£45.99

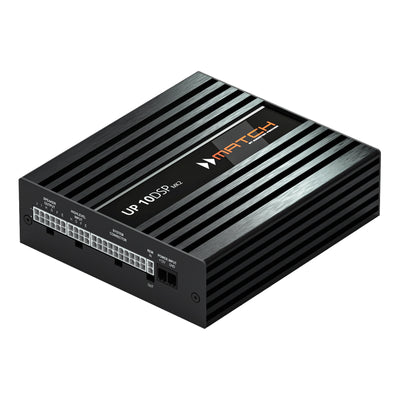

Match UP 10DSP MK2 Universal Upgrade 10 Channel Amplifier & 11 Channel DSP
£899.99
Match UP 10DSP MK2 with MEC Analog In 10 Channel Amplifier & 11 Channel DSP
(1)£959.99
Match UP X4MB-FRT Mercedes C & E Class 2 Way 4 Inch Coaxial Car Speakers 60w RMS
RRP £149.99Save 6%£139.99
Frequently Asked Questions
Q: Which amplifier does the PP-BMW 1.9RAM-HK connect?
A: It is for the MATCH UP 10DSP fitted with the ANALOG IN extension card (MEC ANALOG IN).
Q: Which BMW models is the PP-BMW 1.9RAM-HK for?
A: BMW vehicles with RAM (Receiver Audio Module) from mid-2019 onwards with the factory Harman Kardon sound system.
Q: How long is the PP-BMW 1.9RAM-HK harness?
A: The cable length is 1.00 m.
