Kicker 44L7S122 Solo Baric L7S 12″ 2 Ohm Subwoofer 750w

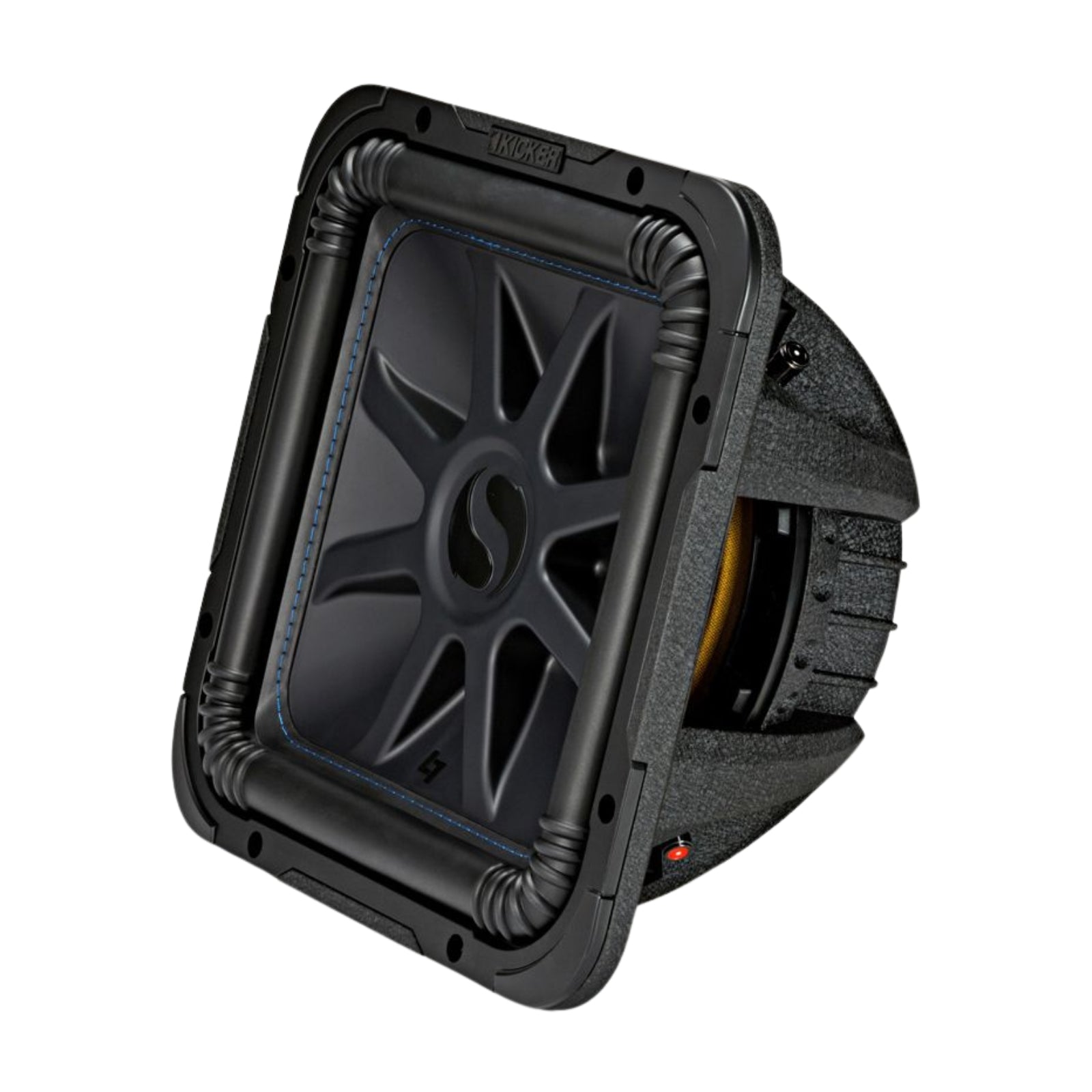

The Kicker 44L7S122 is a Solo-Baric L7S 12" square subwoofer with dual 2-ohm voice coils, rated at 750W RMS. Part of Kicker's Solo-Baric L7S range, the square cone delivers greater cone area and air displacement than a round driver of equivalent size.

This listing is the single 12" driver. The Solo-Baric L7S range is also available as a ready-built dual-driver enclosure: the Kicker 44DL7S122 dual 12" L7S loaded enclosure.

Key specifications

• Size: 12" (30.5 cm) square
• Voice coils: dual 2 ohm (DVC)
• Power: 750W RMS, 1500W peak
• Sensitivity: 88.6 dB (1W/1m)
• Frequency response: 20–100 Hz
• Mounting depth: 16.9 cm
• Mounting cutout (square): 28.1 cm
• Recommended sealed enclosure: 35.4–56.64 litres
• Recommended ported enclosure: 49.6–92.1 litres

Solo-Baric L7S 12" Square Dual Voice Coil Subwoofer – 2 Ohm

44L7S122

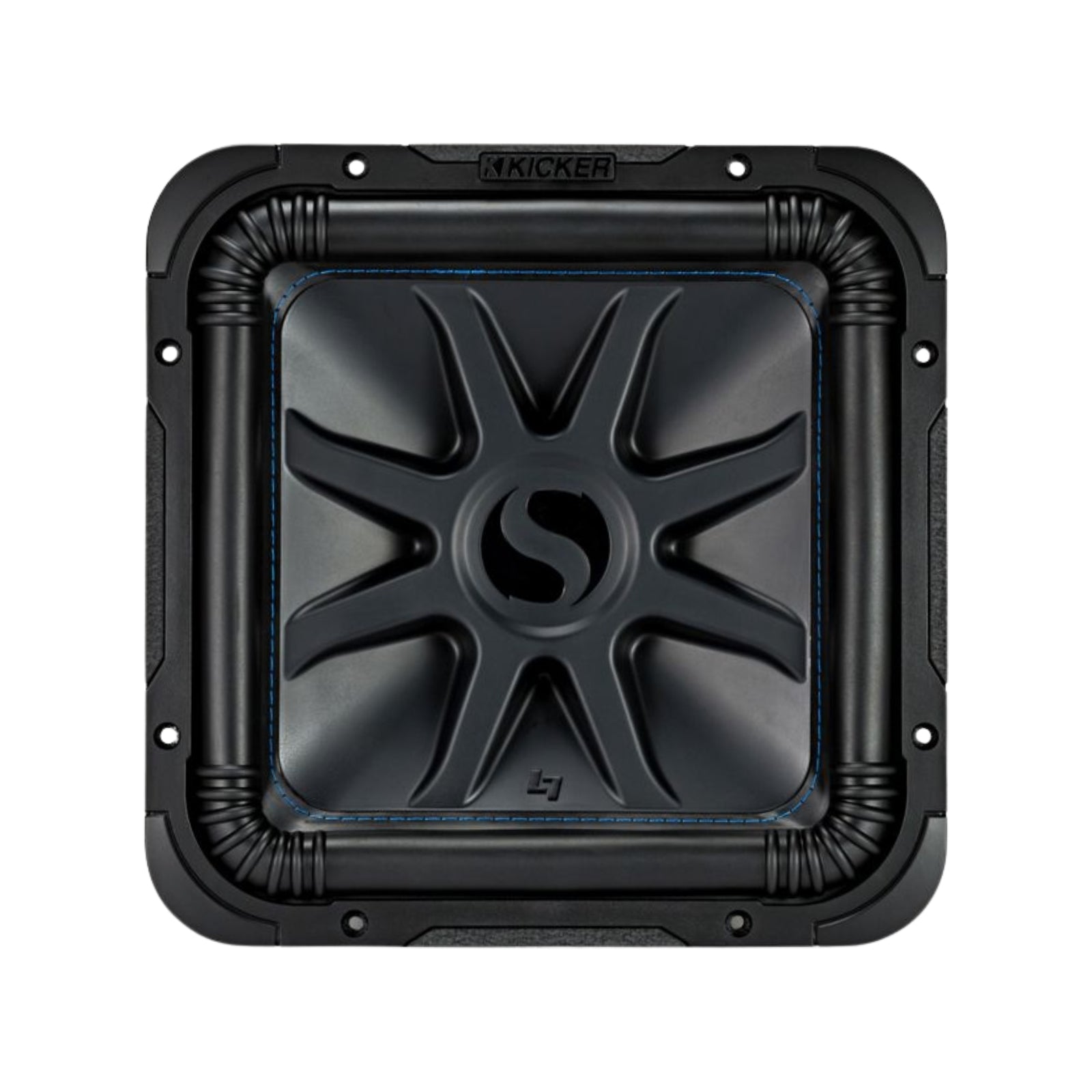

The Kicker Solo-Baric L7S is the original square subwoofer, designed to move more air than a round driver of the same size for deep, clean bass at high power levels.

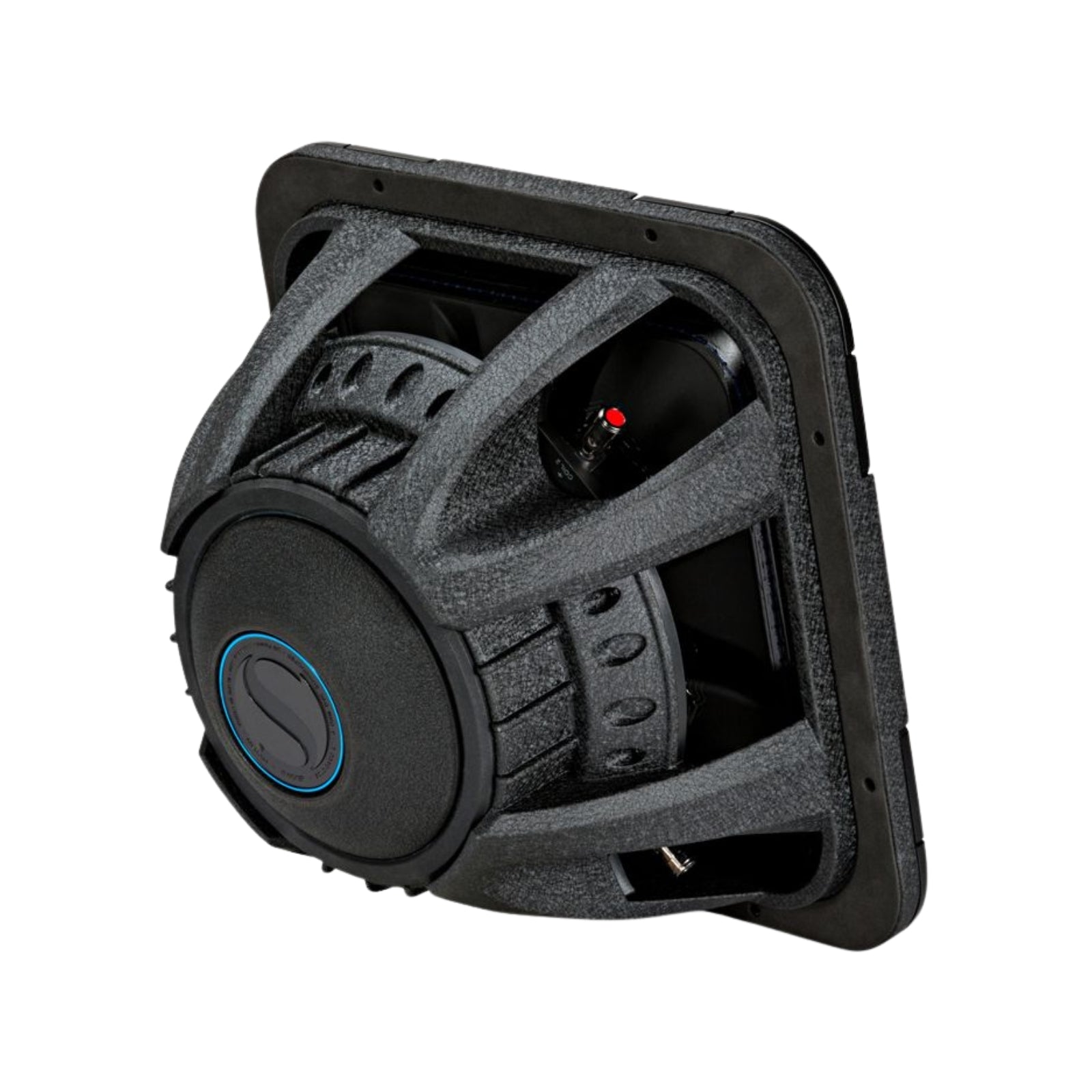

The square cone increases cone area and air displacement over a conventional round woofer. Thermal management is handled by the UniPlate back plate and pole piece with perimeter venting, keeping the driver cool under sustained use.

Features

• Dual 2-ohm voice coils
• Injection-moulded polypropylene cone
• Patented corner ribs to minimise distortion

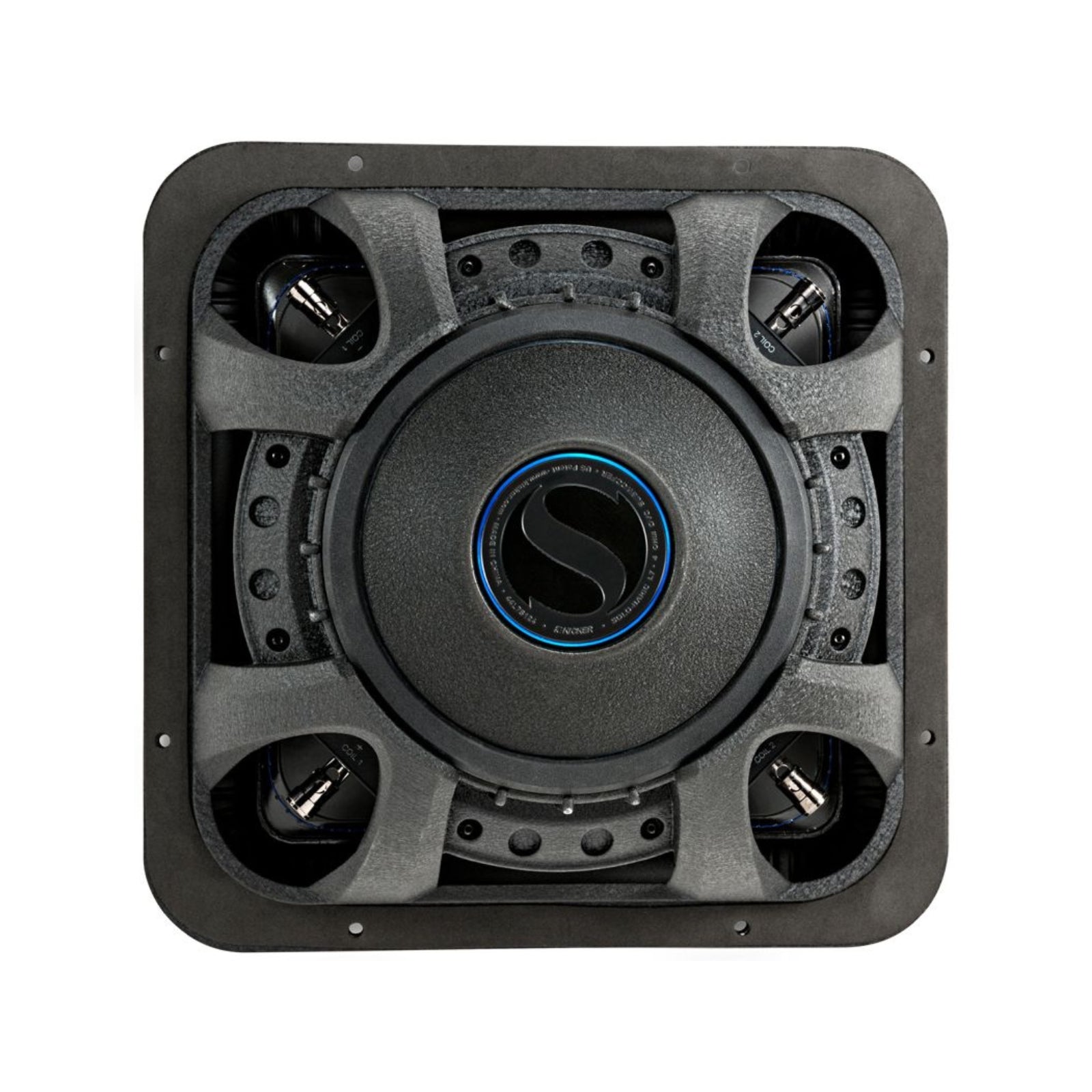

• SoloKon 360-degree back bracing
• Ribbed Santoprene surround with blue surround stitching
• UniPlate back plate and pole piece with perimeter venting for thermal management
• Thick tinsel leads
• Large ceramic magnet
• Cast aluminium basket
• Satin-nickel plated, spring-loaded speaker terminals

The Solo-Baric L7S 12" subwoofer is suited to sealed or ported enclosures and 750W of recommended power.
