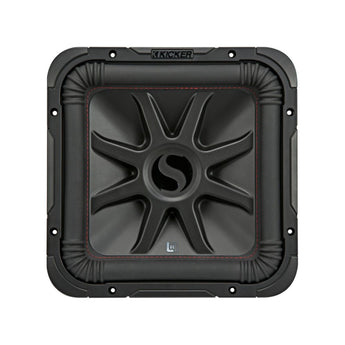

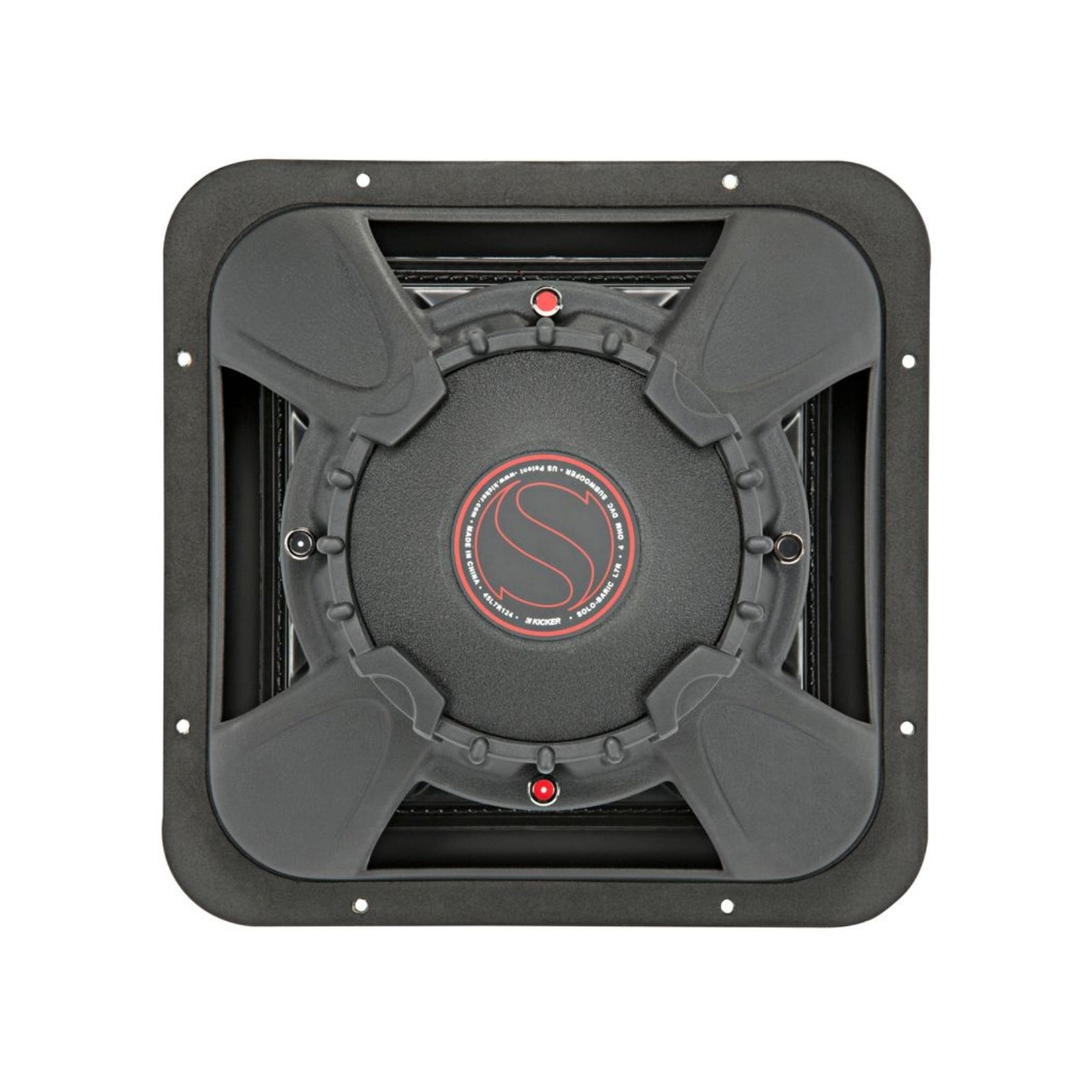

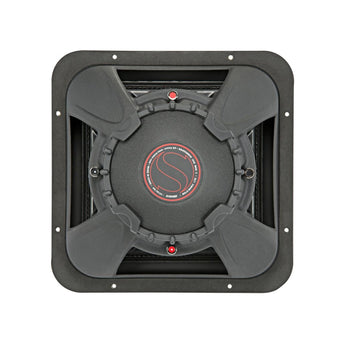

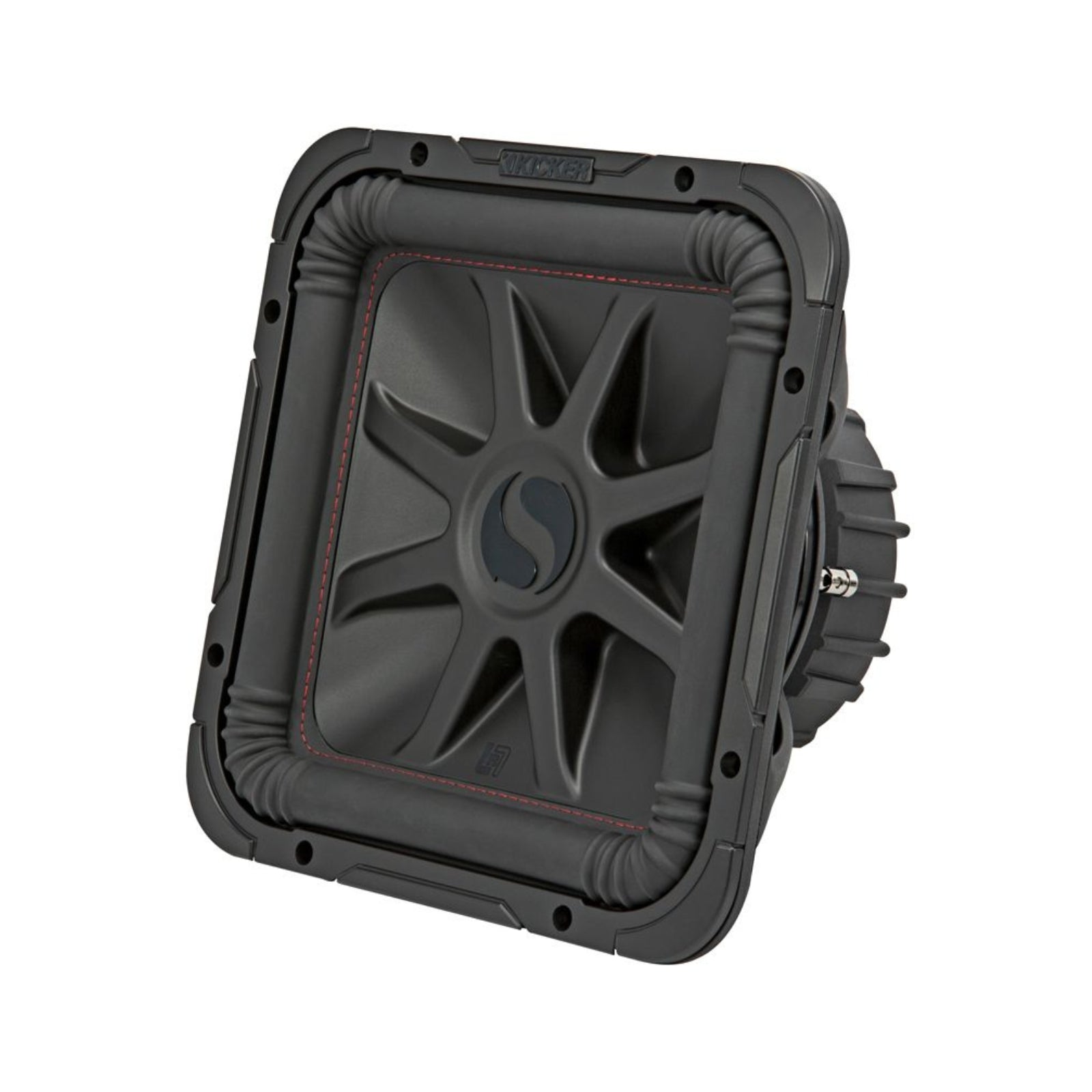

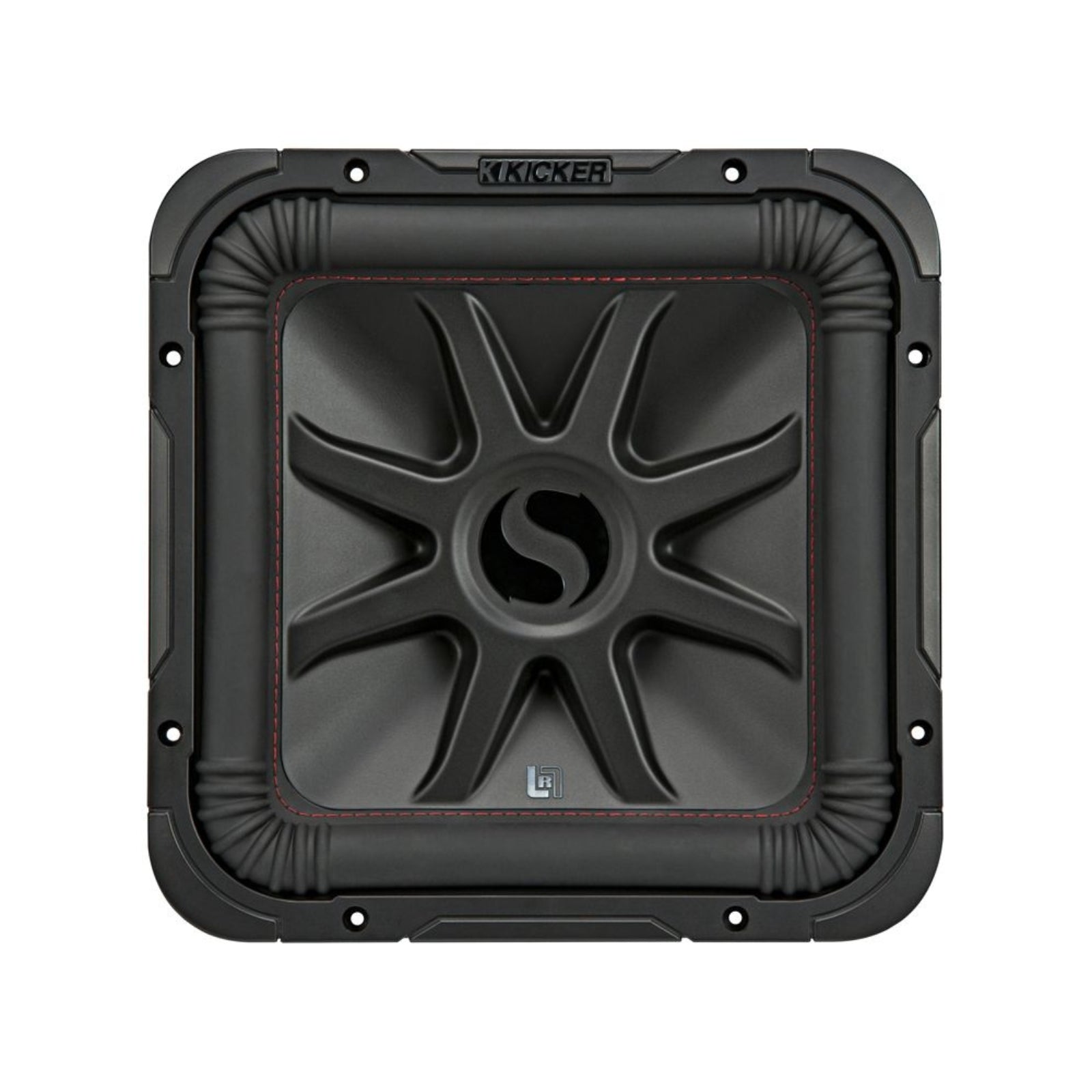

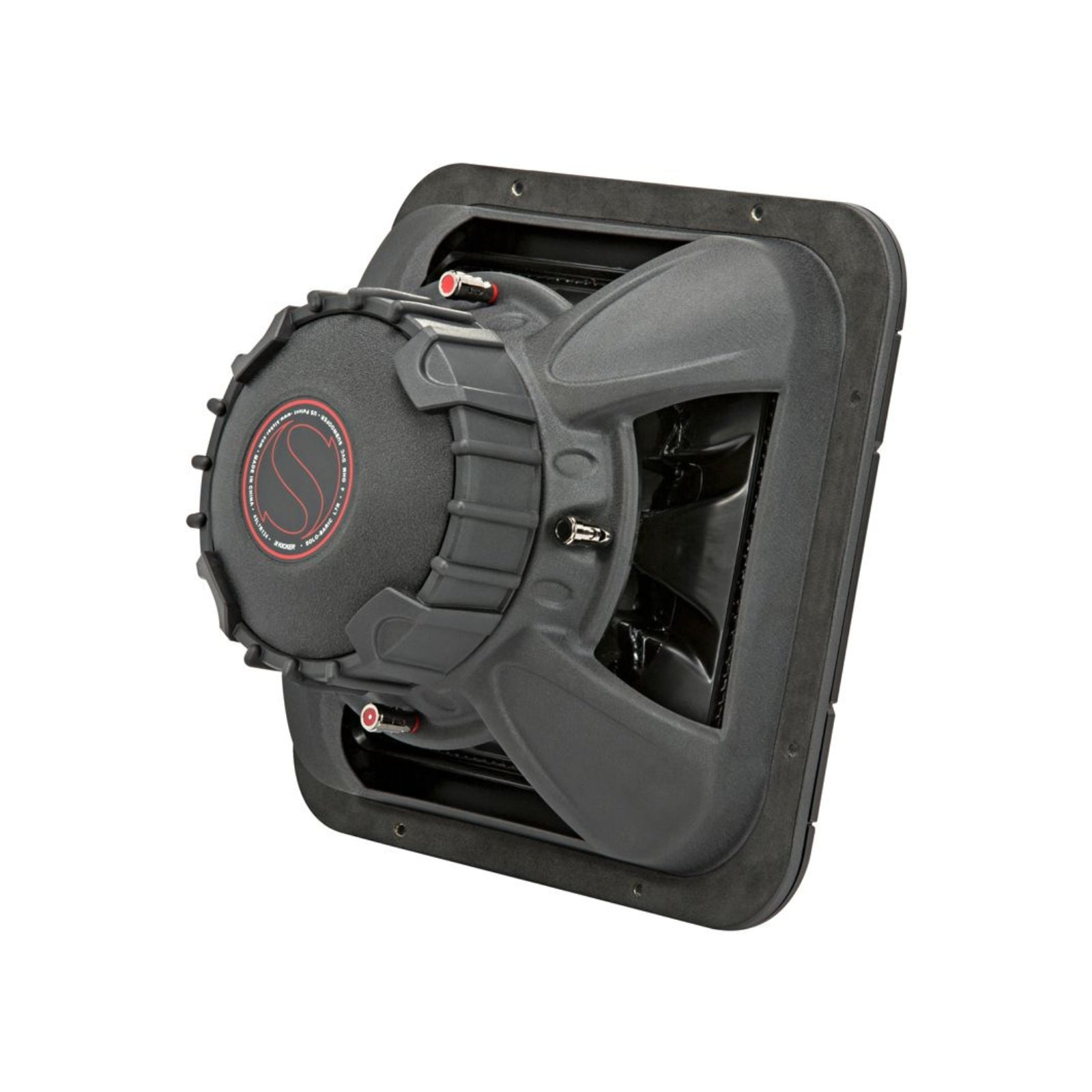

The Kicker 45L7R124 is a 12-inch square subwoofer from the L7R range, rated at 600W RMS (1200W peak) with dual 4 ohm voice coils. Its square cone delivers more cone area than a round sub of equivalent size, producing deeper bass without requiring a larger enclosure.
This listing is the dual 4 ohm version. The L7R 12" is also available in dual 2 ohm (45L7R122).
Key specifications
- Size: 12" square
- Voice coils: dual 4 ohm
- Power handling: 600W RMS, 1200W peak
- Sensitivity: 86.7 dB 1W/1m
- Mounting hole: 28.1 cm
- Mounting depth: 17.4 cm
- Sealed box volume: 24.92–56.64 litres
- Vented box volume: 49.6–92.0 litres
L7R 12" square dual voice coil subwoofer — 4 ohm
The L7R's square cone moves more air than a circular sub of the same diameter, so you get more bass output per watt without needing a bigger box. Kicker designed the L7R specifically to deliver this extra performance within a standard enclosure footprint.
Features
- Dual 4 ohm voice coil
- Wrap-around gasketing
- Patented ribbed corners
- Injection-moulded SoloKon woofer cone
- 360-degree back bracing
- UniPlate back plate and pole piece
- Bumped back plate
- Thick tinsel leads
- Large ceramic magnet
- Steel basket with spoke design
- Nickel-plated speaker terminals
The 45L7R124 is designed for use in a sealed or ported enclosure with 600W of recommended amplifier power. If you'd prefer a ready-to-fit solution, the Kicker 49L7TDF122 L7T 12" loaded enclosure pairs a 12-inch L7T driver with a matched enclosure at the same 600W rating.
Explore the full range in Kicker L7 Subwoofers.
Specification
| Impedance | (Ohms) Dual 4 |
|---|---|
| Voice Coils | Dual |
| RMS Power (W) | 600 |
| Peak Power (W) | 1200 |
| Sensitivity | (dB @ 1W/1m) 86.7 |
| Frequency Response | (Hz) 25-100 |
| Height (cm) | 32 |
| Width (cm) | 32 |
| Depth (cm) | 19.4 |
| Protrusion (cm) | 2 |
| Mounting Depth | (cm) 17.4 |
| Mounting Hole Diameter (cm) | 28.1 |
| Recommended Box Volume Sealed (Litres) | 24.92-56.64 |
| Recommended Box Volume Ported (Litres) | 49.6-92.0 |
What's Included
- Kicker 45L7R124 Subwoofer
Kicker
About the Kicker 45L7R124
From our tech experts at CEN
A 12 inch subwoofer from the Solo-Baric L7 line, whose square cone gives more radiating area than a round driver of the same nominal size, with a 4 ohm voice coil so it can be wired to suit your amplifier.
Who it suits
Drivers who want serious output and have the space and the amplifier to do it justice. It needs an enclosure sized correctly for the driver: sealed for tight and accurate, ported for louder and deeper.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it. Box volume, port tuning and how the voice coils are wired decide what you actually hear. We build enclosures to suit the vehicle and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker L7 Subwoofers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What box size does the Kicker 45L7R124 need?
A: Kicker recommends 24.92-56.64 litres sealed or 49.6-92.0 litres vented (port volume excluded).
Q: How do I wire the 45L7R124 dual voice coils?
A: It has two 4 ohm voice coils. Wired in parallel they give 2 ohms, or in series 8 ohms. Choose the wiring that matches what your amplifier is stable at.
Q: How much power does the 45L7R124 need?
A: It is rated at 600W RMS, with 1200W peak power handling. Match your amplifier to the RMS figure.
