Kicker 49L7TDF122 Sub 12 Inch L7T Subwoofer Down Firing Loaded Enclosure 600w

£399.95
In stock
SKU: 91083MPN: 49L7TDF122
Part of the range · 45 productsPart of the Kicker Loaded Subwoofer Enclosures range · 45 products See the range →

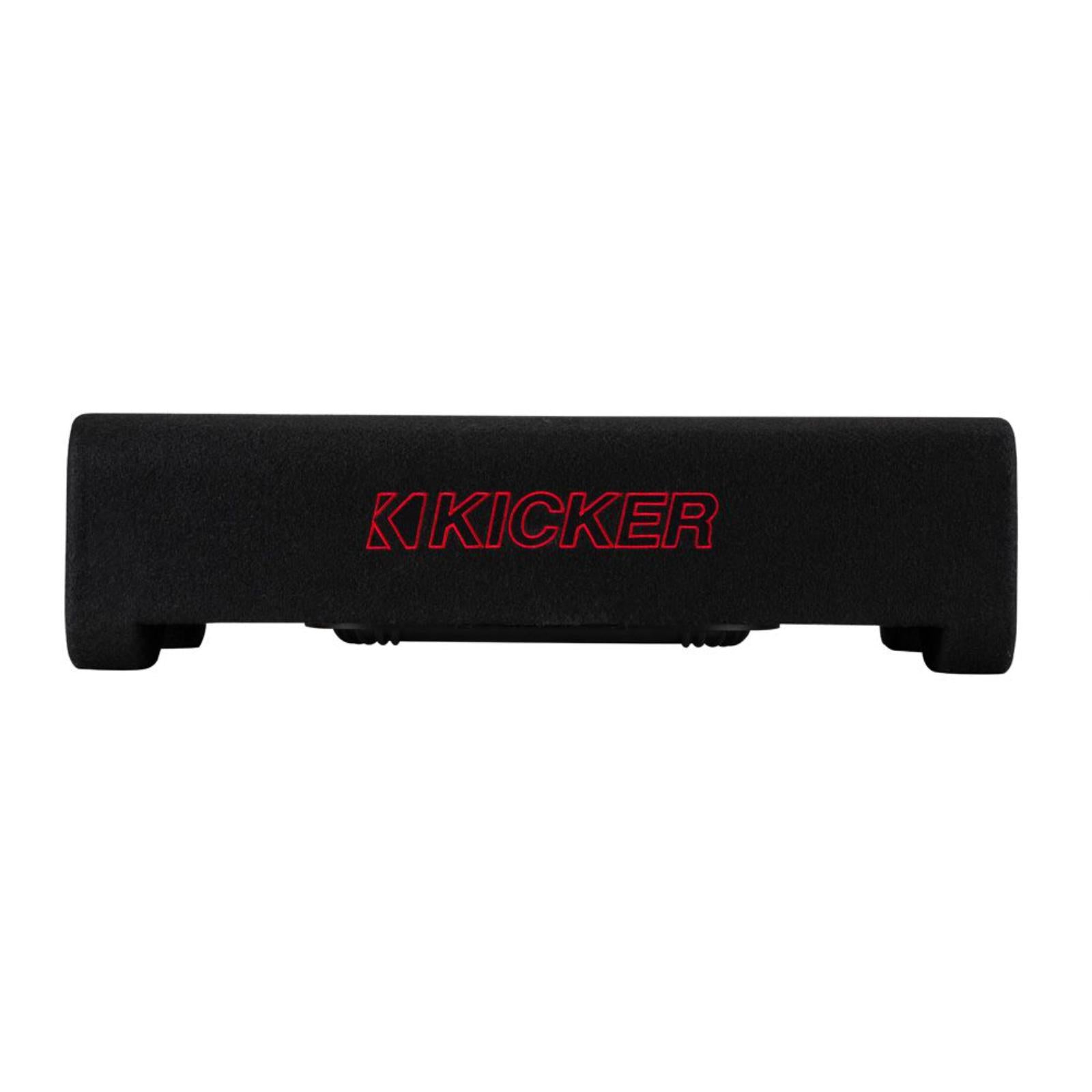

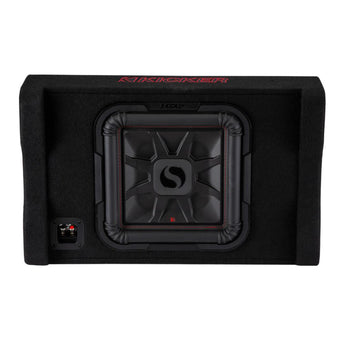

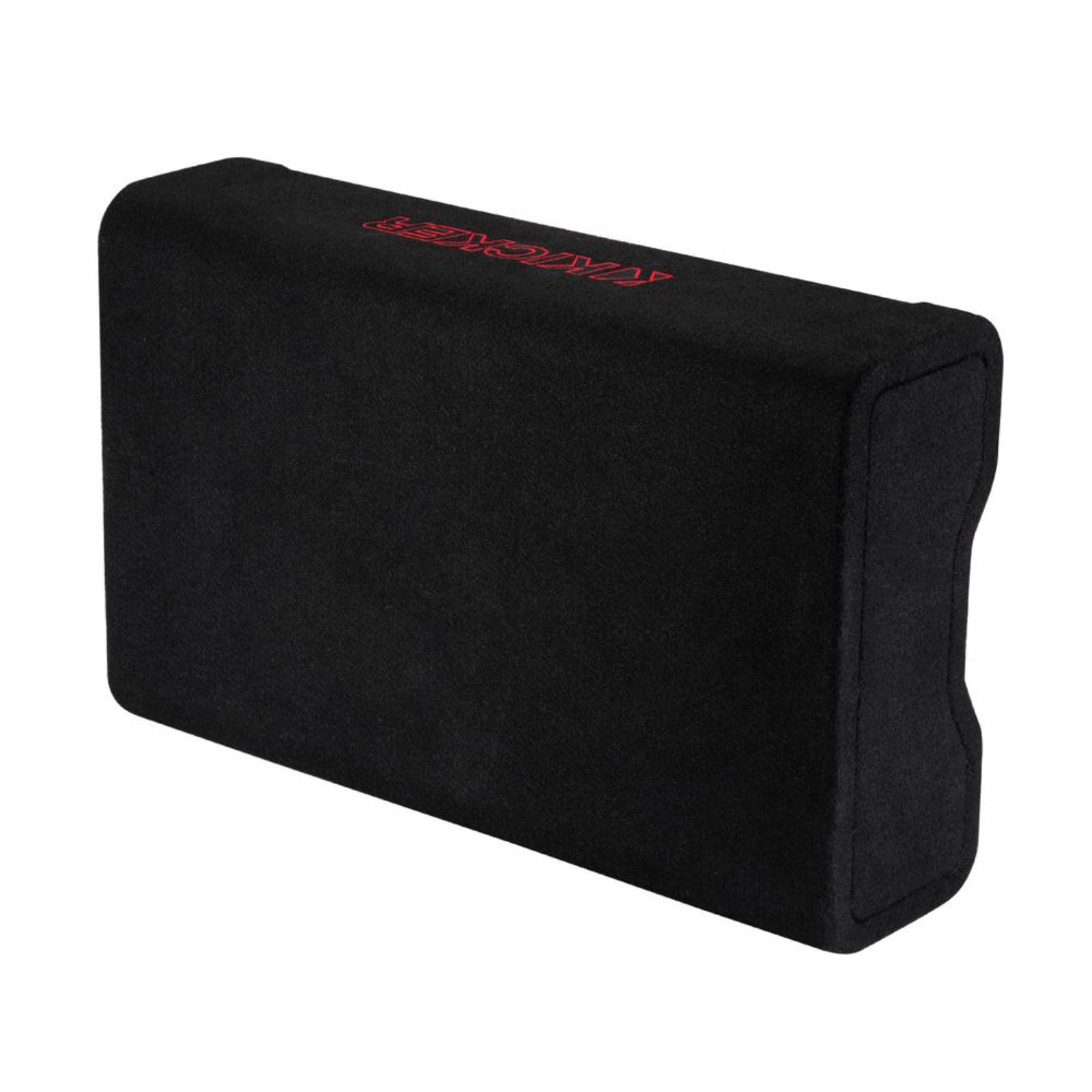

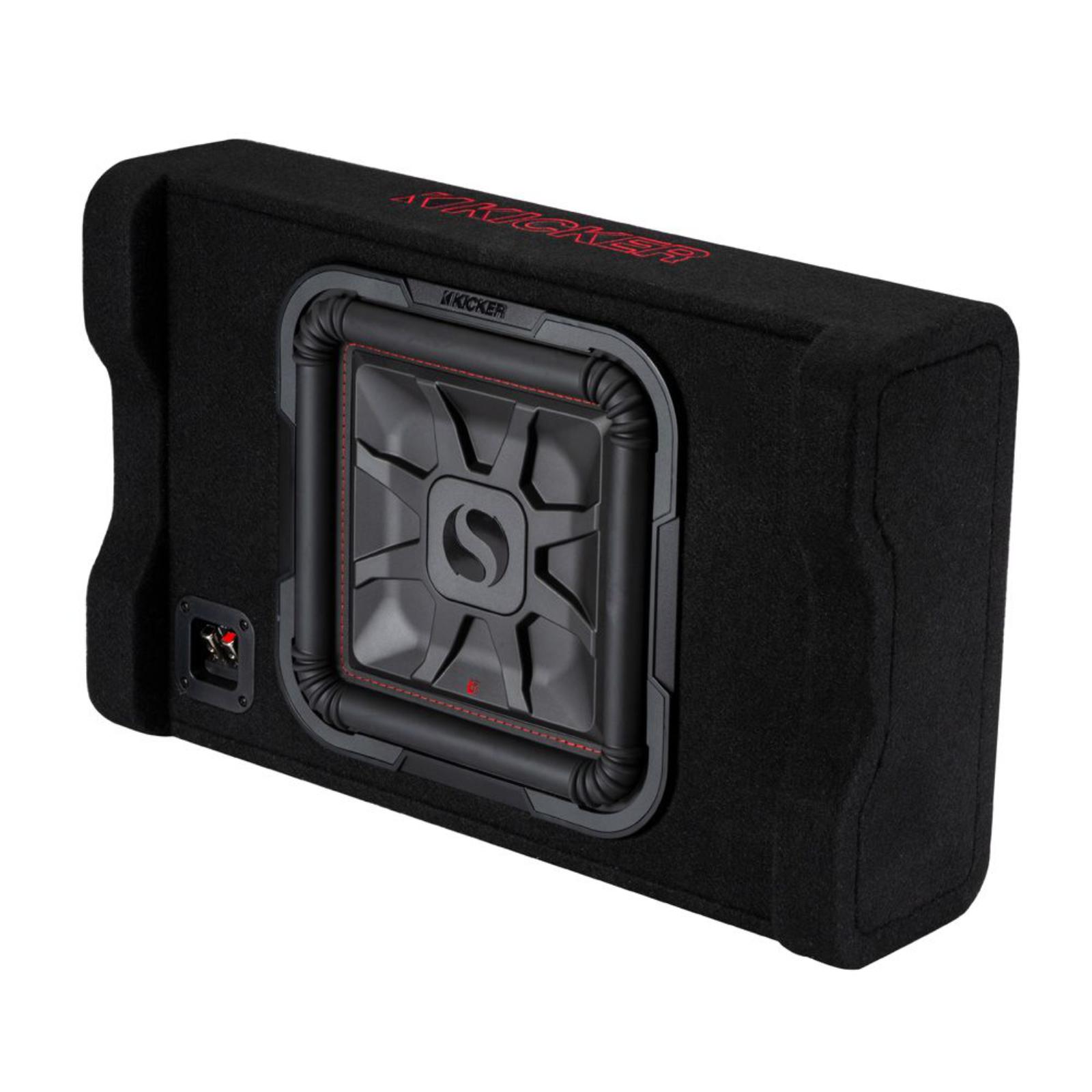

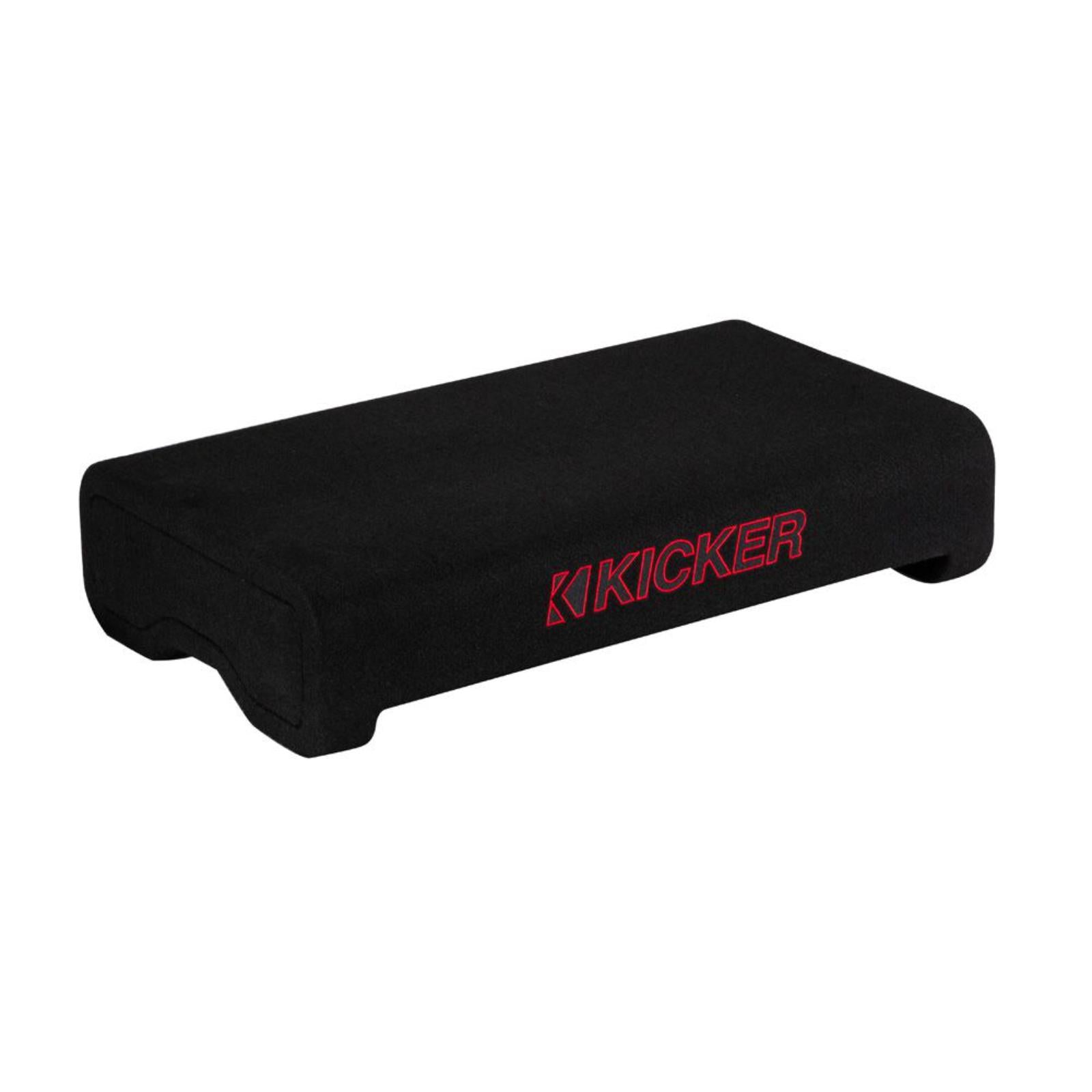

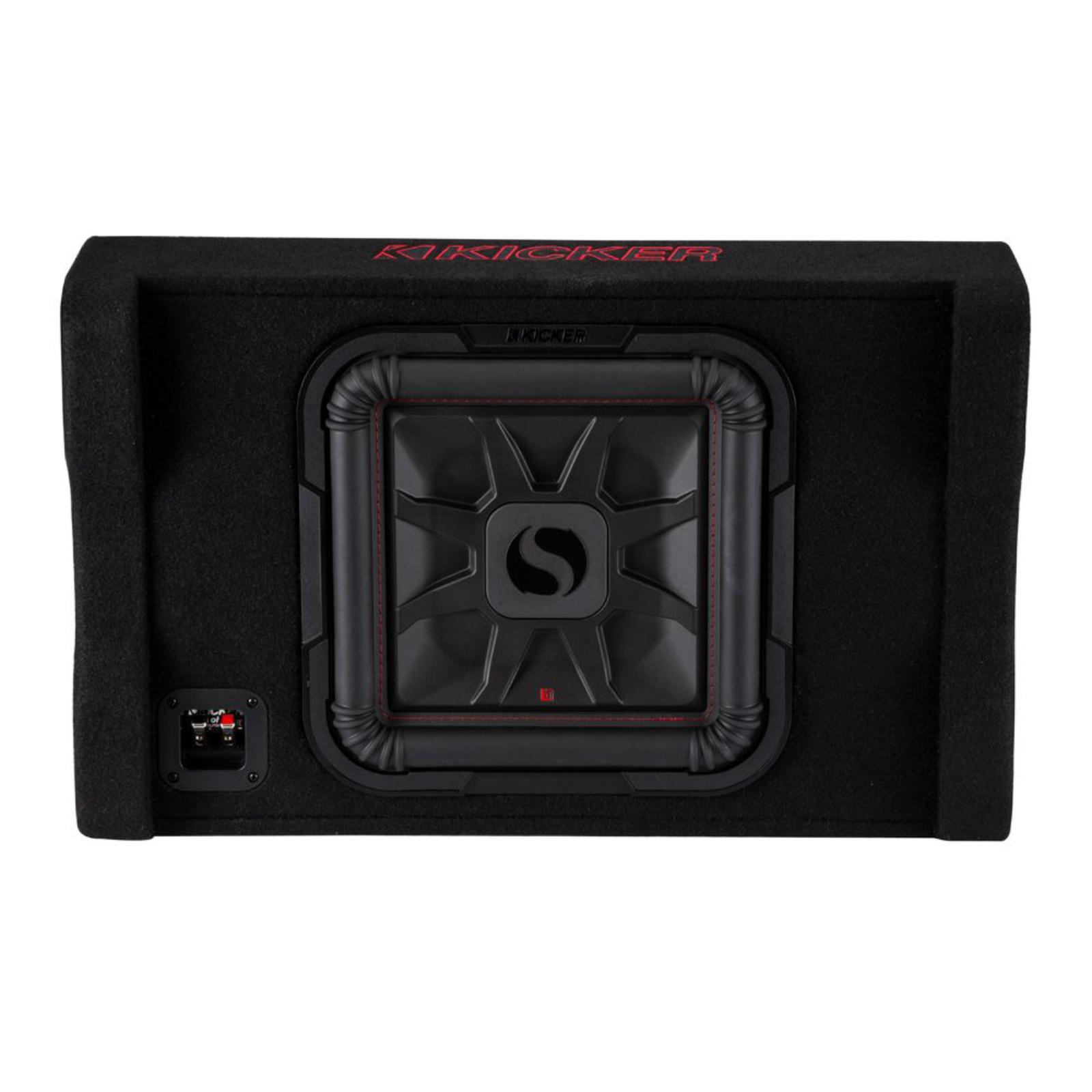

The Kicker 49L7TDF122 is a slim, down-firing loaded enclosure housing a 12 inch L7T square subwoofer, rated at 600W RMS (1200W peak) at 2 ohms. It is part of Kicker's L7T series and is designed for vehicles where boot space is tight but bass performance matters.

This listing is the 49L7TDF122 L7T down-firing loaded enclosure. The Kicker down-firing 12" loaded enclosure range is also available as the Kicker 48TRTP122 at 500W RMS.

Key specifications

  • Subwoofer: 1 x 12 inch L7T square
  • RMS power: 600W
  • Peak power: 1200W
  • Impedance: 2 ohm
  • Sensitivity: 86.1dB (1W/1m)
  • Frequency response: 25–100Hz
  • Enclosure: sealed, down-firing, MDF with internal bracing
  • Dimensions: 38.0 x 60.5 x 16.7cm (H x W x D)
  • Built-in amplifier: no

L7T 12" down-firing loaded enclosure, 2 ohm

The Kicker 49L7TDF122 fits a 12" square subwoofer into a slim, ready-to-fit enclosure — ideal where boot space is limited but bass quality is not negotiable.

At 600W RMS, the L7T delivers serious low-end output. Kicker's square sub design uses nearly 20% more cone area than a comparable round subwoofer, moving more air and producing louder bass without requiring a larger box.

The down-firing enclosure is built from thick MDF with internal bracing. It resists flex, stacked weight and surface scratches, so luggage can be loaded on top without risking damage to the driver below.

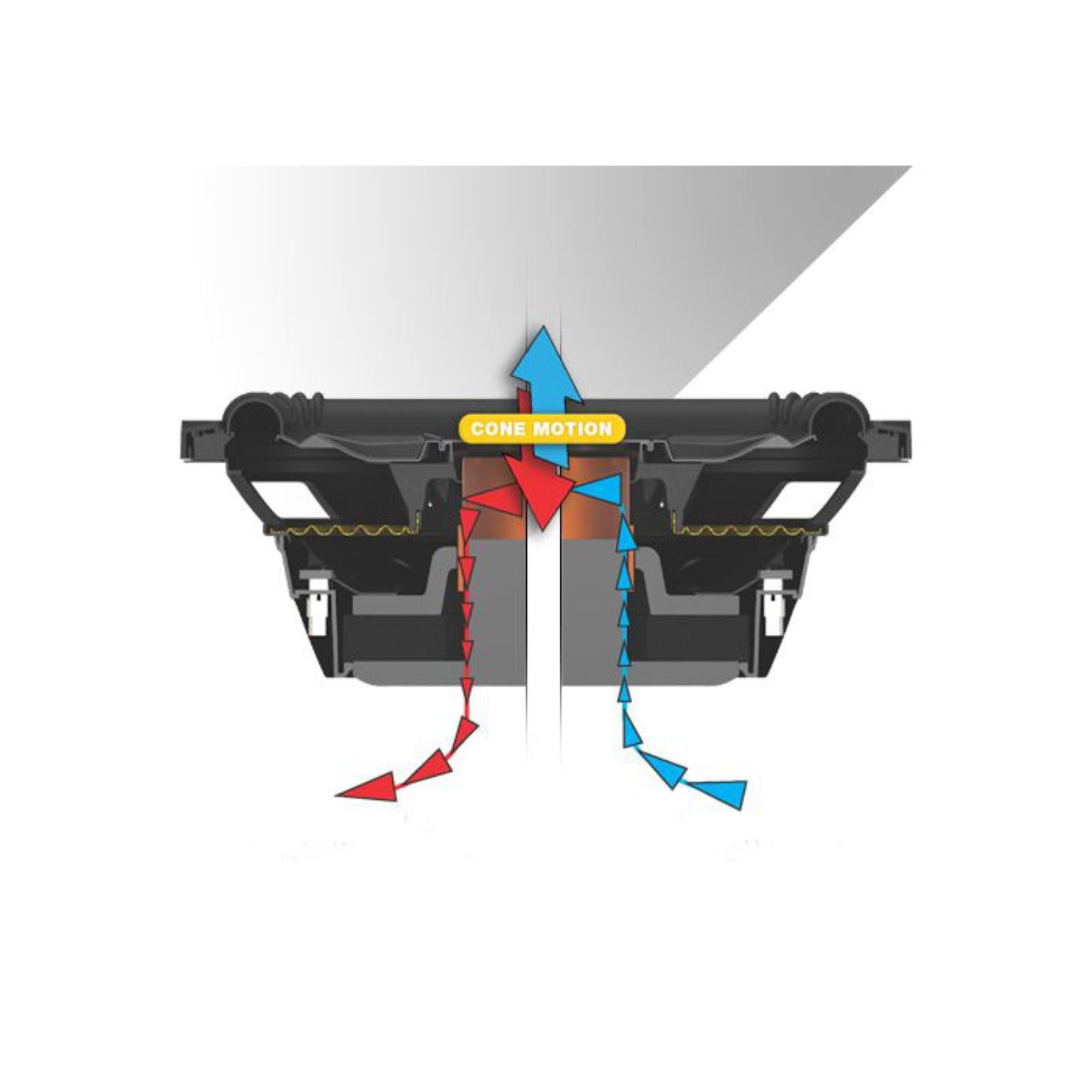

Forced-Air Cooling keeps the voice coil temperature in check. As the cone moves down, hot air is pushed out; as it moves up, cool air is drawn back in. This delivers consistent performance and long-term reliability at high power levels.

Features

  • 12 inch L7T square subwoofer
  • 2 ohm impedance
  • 600W RMS power handling
  • Down-firing design provides protection for the subwoofer driver
  • Thick MDF construction with strong internal bracing

Explore the full range in Kicker Loaded Subwoofer Enclosures.

Specification
Impedance(Ohms) 2
Sensitivity(dB @ 1W/1m) 86.1
Frequency Response(Hz) 25-100
More specs
  • Style Sealed
  • Woofer Quantity 1
  • RMS Power (W) 600
  • Peak Power (W) 1200
  • Height (cm) 38.0
  • Width (cm) 60.5
  • Depth (cm) 16.7
  • Grills Not Included
  • Built-in Amplifier No
What's Included
  • Kicker 49L7TDF122 12" Down Firing Enclosure
Download User Manual(PDF)
Product information

Kicker

About the Kicker 49L7TDF122

From our tech experts at CEN

The Kicker 49L7TDF122 is a slim, sealed, down-firing loaded enclosure housing a 12 inch L7T square subwoofer, rated at 600W RMS (1200W peak) at 2 ohms. It measures 38.0 x 60.5 x 16.7cm. Kicker's square cone design gives nearly 20% more cone area than a comparable round driver, moving more air without needing a larger box.

Who it suits

This suits drivers who want strong bass but have limited boot depth. The down-firing design means luggage can sit on top without risking the driver. For a slightly smaller option, consider the Kicker 49L7TDF102 10 inch L7T enclosure.

Our tech experts advise

This enclosure has no built-in amplifier, so you will need a separate unit rated stable at 2 ohms — the Kicker 47KEY500.1 is a suitable match. Measure your boot carefully before ordering: the enclosure is 60.5cm wide and 16.7cm deep. Installation is priced per vehicle; see our car audio installation page for details.

Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
