JL Audio C3-650
Evolution™ C3 Series 6-1/2" convertible component speaker system
2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
C3 Product Spotlight
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

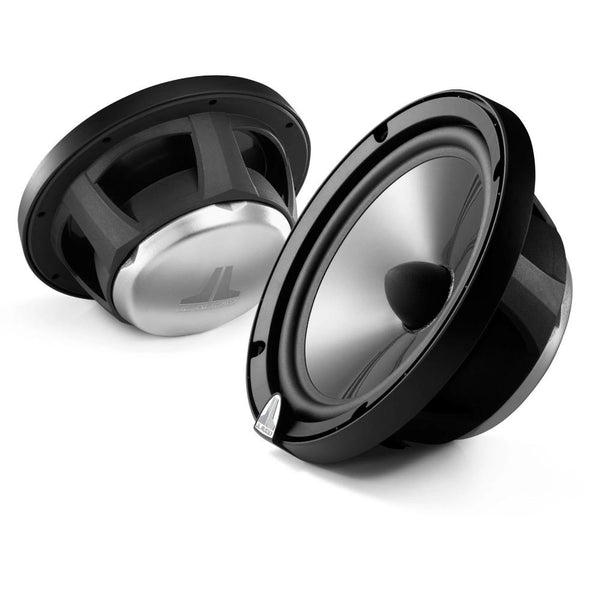

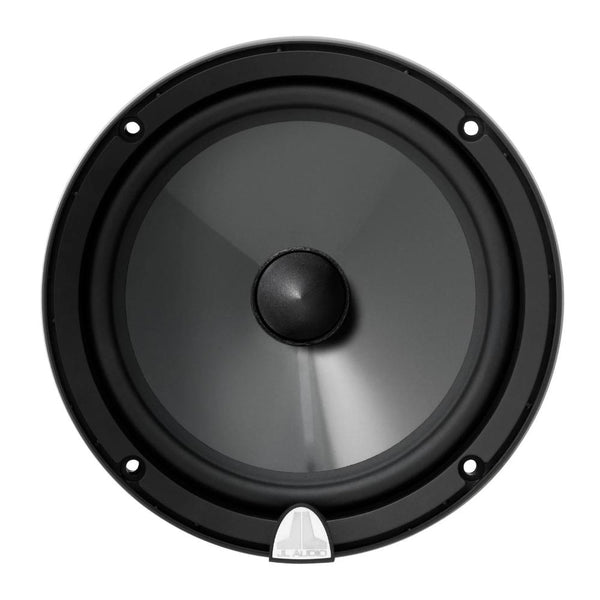

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

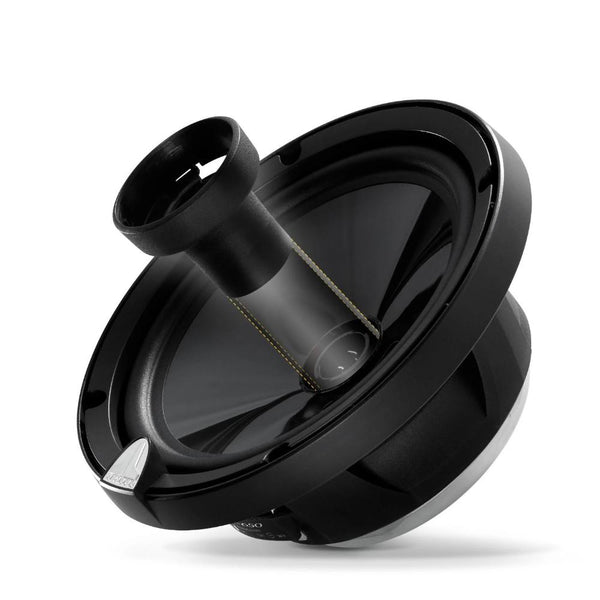

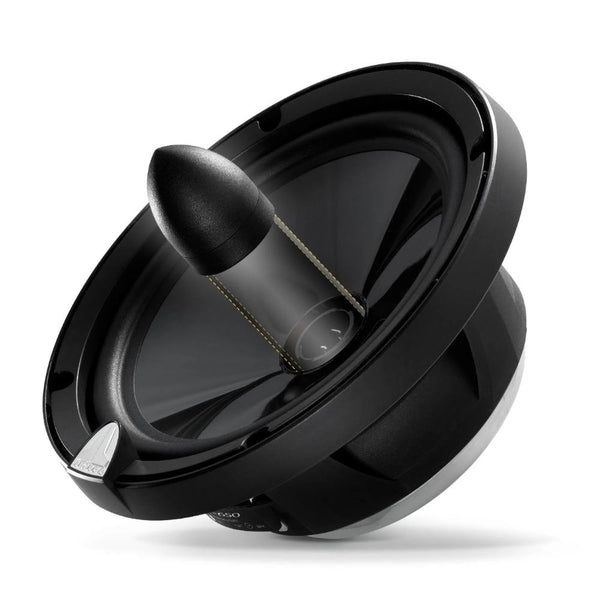

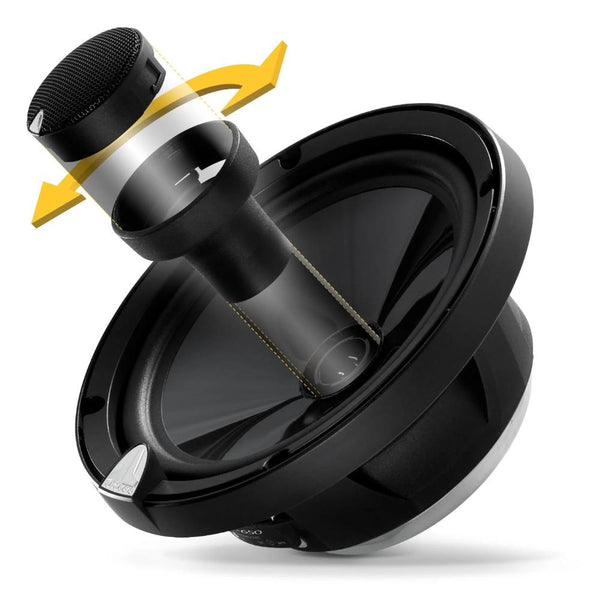

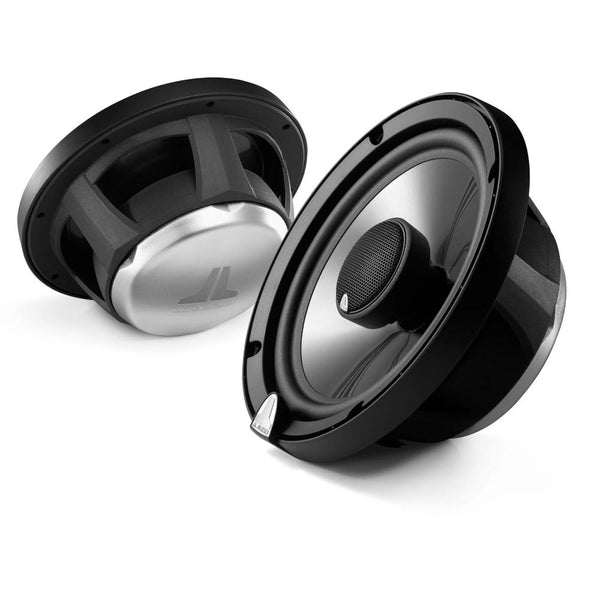

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

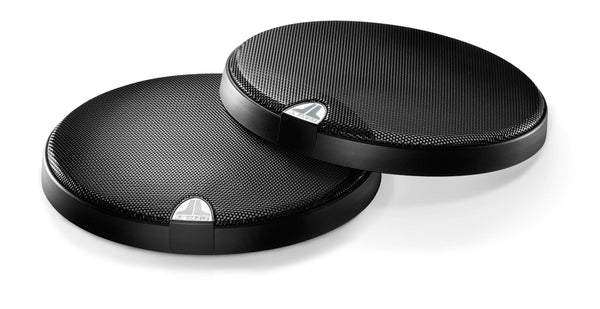

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
Specification
Part Number: C3-650
- Continuous Power Handling (RMS) 50 W
- Recommended Amplifier Power (RMS) 20 - 50 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 6 Ω
- System Frequency Response 4 kHz - 24 KHz ± 3 dB
- Flush Mount Fixture Diameter (A1) 1.67 in / 42 mm
- Surface Mount Fixture Diameter (A2) 1.71 in / 43 mm
- Flush Mount Mounting Hole Diameter (B) 1.46 in / 37 mm
- Flush Mount Mounting Depth (C) 0.40 in / 10 mm
- Flush Mount Tweeter Frontal Protrusion (D1) 0.23 in / 6 mm
- Surface Mount Tweeter Frontal Protrusion (D2) 0.76 in / 19 mm
- Width (W) 1.96 in / 50 mm
- Depth (D) 1.34 in / 34 mm
- Height (H) 0.90 in / 23 mm
*With supplied crossover
What's Included
2 Year Warranty

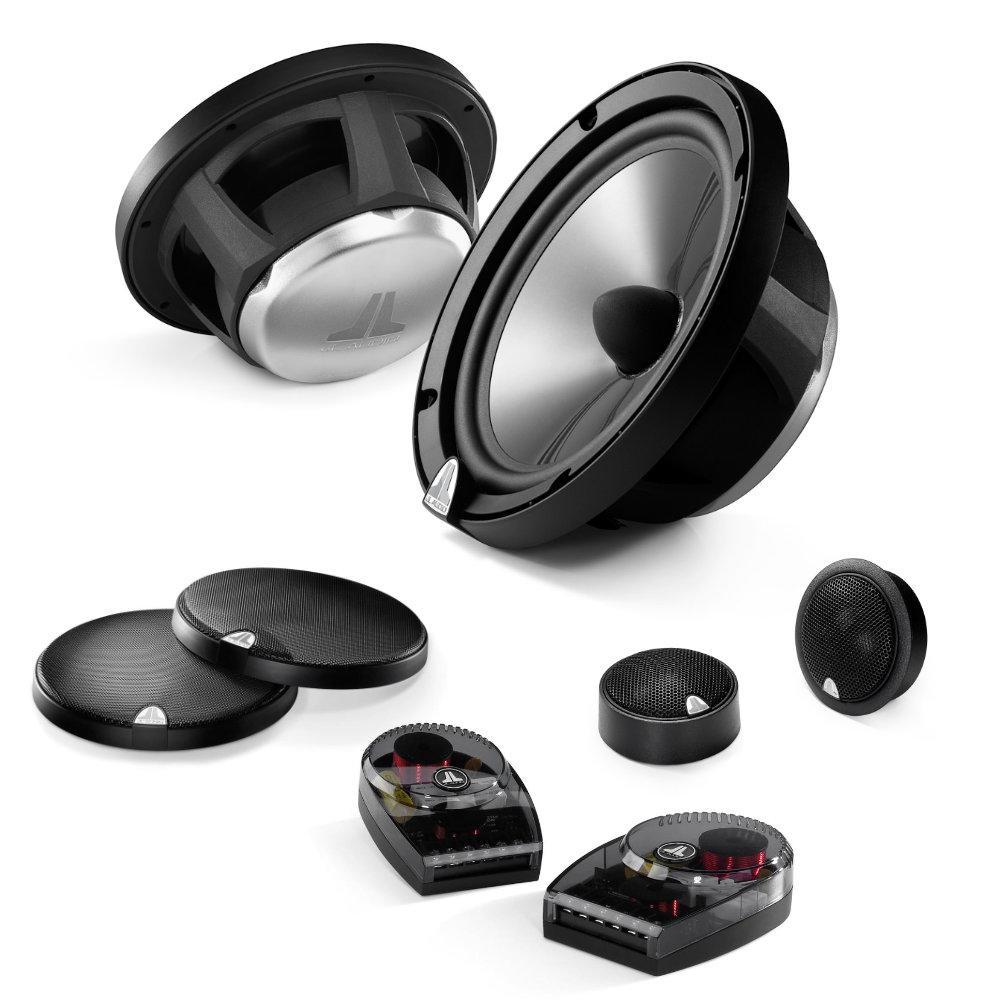

- 2 C3-525cw Woofers
- 2 C3-100ct Tweeters
- 2 C3-525-XO Crossovers
- 2 Woofer grilles
- 2 Flush mount tweeter housings
- 2 Surface mount tweeter housings
- 2 Coaxial mount tweeter fixtures
- 2 Metal spring clips for tweeter fixtures
- Two M4x30mm Pan-head machine screws
- 2 Crimp-on 0.187" Male quick slides
- 2 Crimp-on 0.110" Male quick slides
- 2 Crimp-on 0.25" Female quick slides
- 2 Crimp-on 0.187" Female quick slides
- 4 Crimp-on 0.110" Female quick slides
- 12 Crimp-on spade connectors
- Four 1" Flat head self-tapping screws
- Twelve 1-1/8" Pan head self-tapping screws
- 8 Speed clips
- Owner's manual
- Woofer cutout template
