JL Audio C2-400x C2 Series 4" 10cm Coaxial Car Door Dash Speakers 35w RMS
Couldn't Load Pickup availability

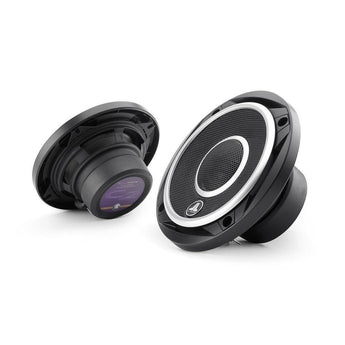

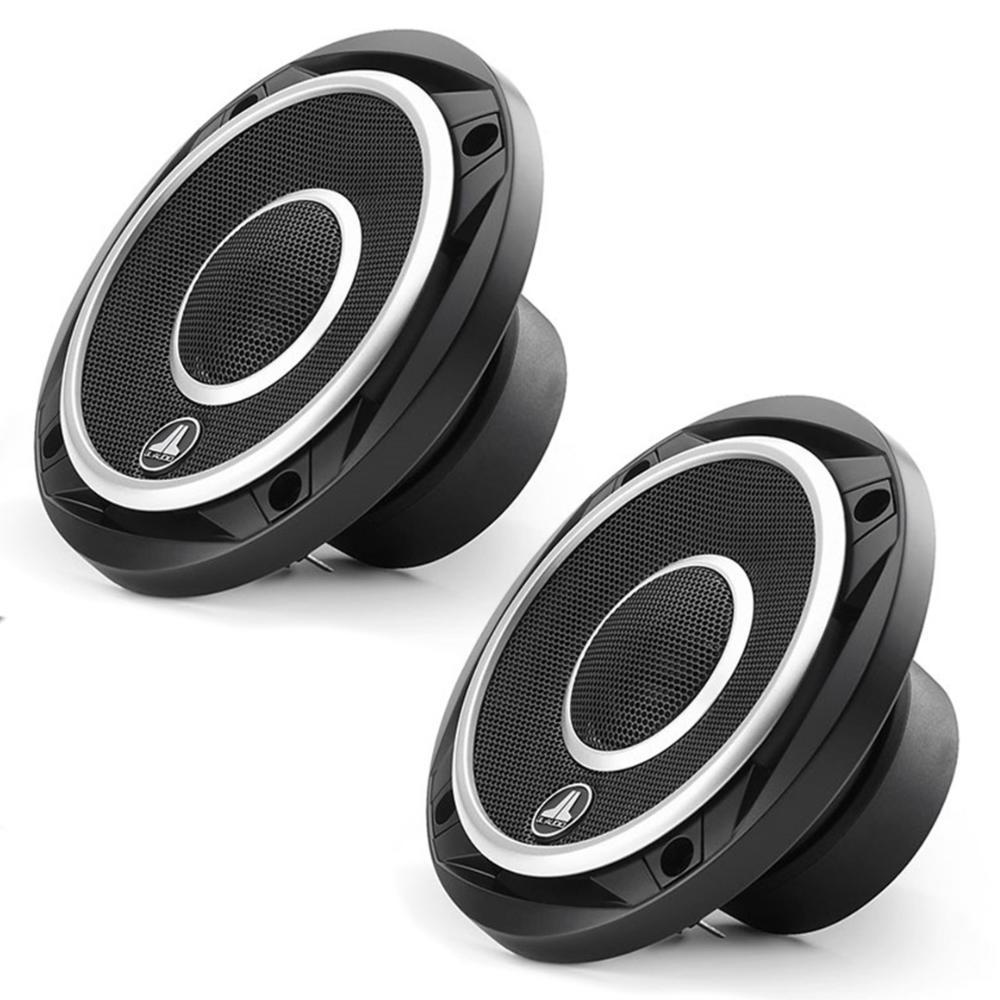

The JL Audio C2-400x is a pair of 4" (100 mm) coaxial car speakers from the Evolution™ C2 Series, rated at 35W RMS with 0.75" silk dome tweeters. Grilles and 4x6" adaptor plates are included.
This listing is the C2-400x. If you're looking for the C1 Series equivalent, JL Audio also offer the C1-400x 4" coaxial speakers.
Key specifications
- Size: 4" (100 mm) coaxial
- Power handling: 35W RMS, 105W peak
- Recommended amplifier power: 10–50W RMS per channel
- Sensitivity: 84.5 dB @ 1W / 1m
- Impedance: 4 Ω
- Frequency response: 71 Hz – 22 kHz ± 3 dB
- Mounting hole diameter: 97 mm; mounting depth: 46 mm
- Grilles: included
- Sold as: pair

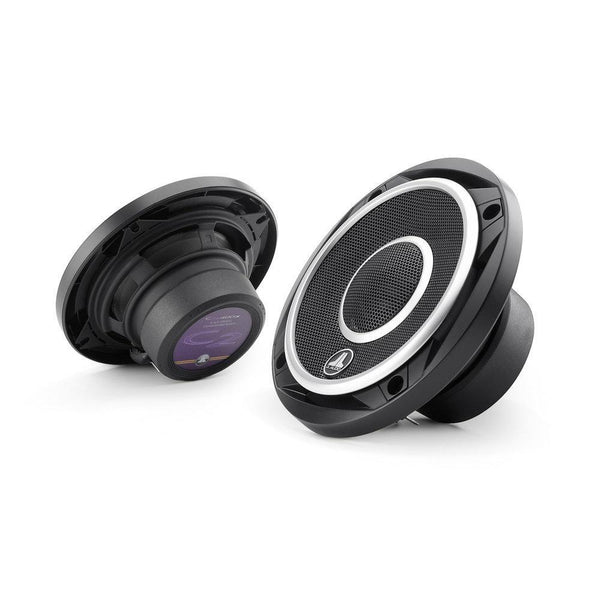

Evolution™ C2 Series 4-inch (100 mm) coaxial speaker system
Coaxial speaker system: 4" (100 mm) woofer with 0.75" (19 mm) silk dome tweeter.
The Evolution C2 Series delivers clear high-frequency detail, smooth mid-range and strong mid-bass, using real silk dome tweeters and precision-engineered woofer designs.
The C2-400x woofers feature mineral-filled polypropylene cones, long-excursion capability and stamped steel frames, developed using JL Audio's woofer design experience and advanced modelling systems.

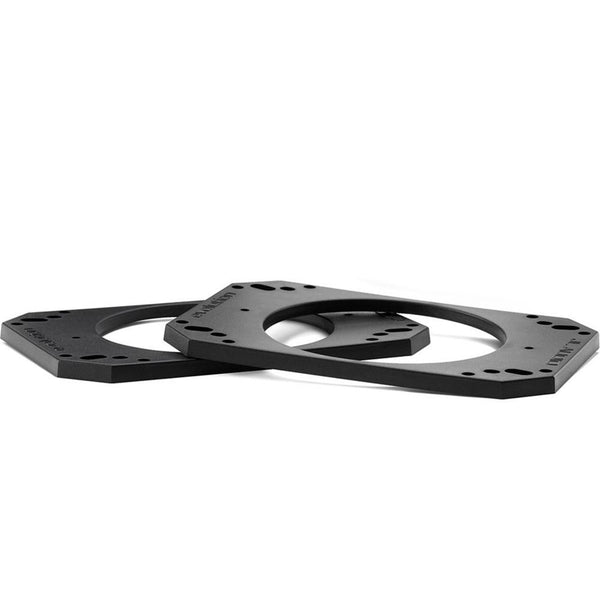

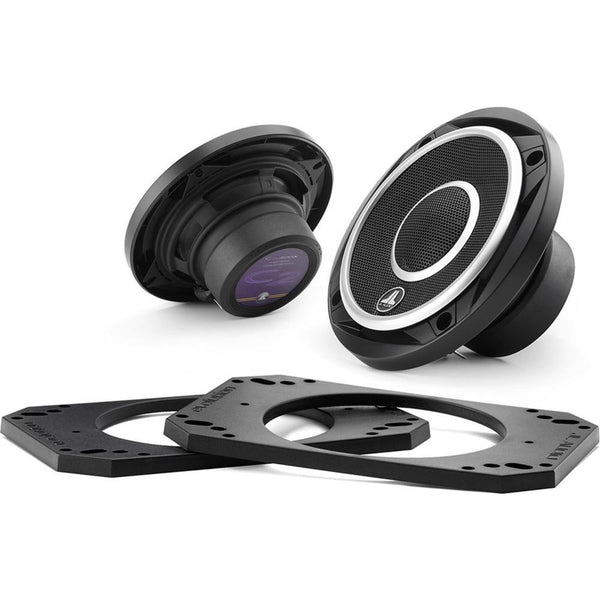

Breakaway mounting tabs allow installation in four-hole or two-hole configurations. Injection-moulded adaptor plates are included for mounting into 4x6" (100x150 mm) speaker locations.
The coaxially mounted 0.75" silk dome tweeters deliver smooth, extended response on and off axis. Their small size minimises protrusion, allowing the C2-400x to fit behind most factory speaker grilles.

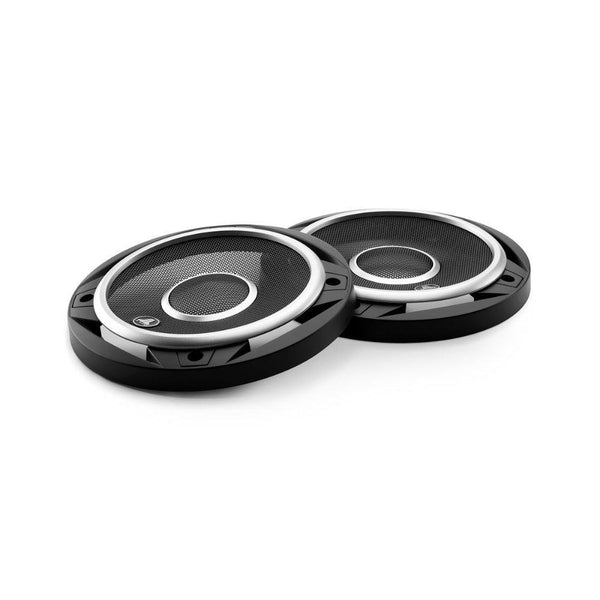

Included grilles feature a black tray with satin silver accents, a black steel mesh grille and an electroformed JL Audio logo.
Sonic character: Clean and Dynamic.
Sold as a pair.
Explore the full range in JL Audio C2 Speakers.
Specification

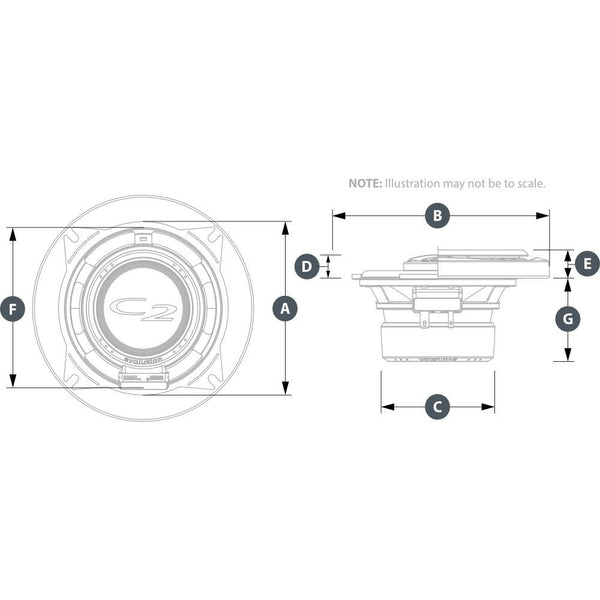

| Mounting Depth | (G) 1.81 in / 46 mm |
|---|---|
More specs
| |
What's Included
- Two 4" 2-way speakers
- 2 Grilles
- Two 4x6 adapter brackets
- 8 Self-tapping screws (#8 x 1-3/8")
- 8 Speed clips
- 4 Self-tapping screws (#8 x 8mm)
- 2 Crimpable female quick slides (0.205"/5.2mm)
- 2 Crimpable female quick slides (0.11"/2.8mm)
- 2 JL Audio logo grille badges
- Owner's Manual
- Paper template
JL Audio
About the JL Audio C2-400X
From our tech experts at CEN
JL Audio C2 Series 4 inch coaxial speakers, with the tweeter mounted in the centre of the woofer, rated at 35w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without relocating tweeters. C2 adds noticeably more detail and output for a modest step up.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering. Door treatment matters as much as the speaker, and JL drivers repay an amplifier. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from JL Audio C2 Speakers
More options from the same range, in stock and ready to go
JL Audio C2-350x C2 Series 3.5" 9cm Coaxial Car Door Dash Speakers 25w RMS Pair
£92.90
View product

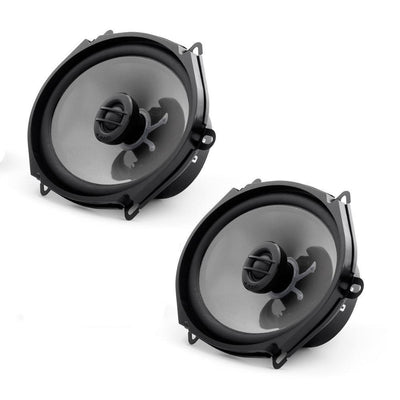

JL Audio C2-570x C2 Series 5x7" 6x8" Coaxial Car Door Speakers 60w RMS Pair
£149.00

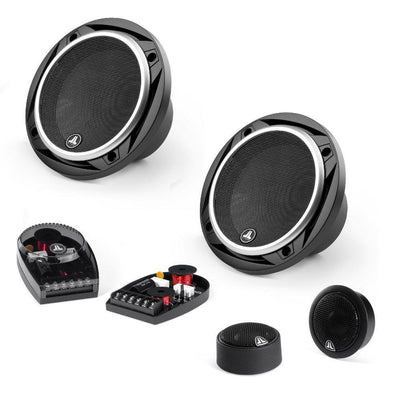

JL Audio C2-525 C2 Series 5.25" 13cm Component Car Door Speakers 60w RMS Pair
£219.00

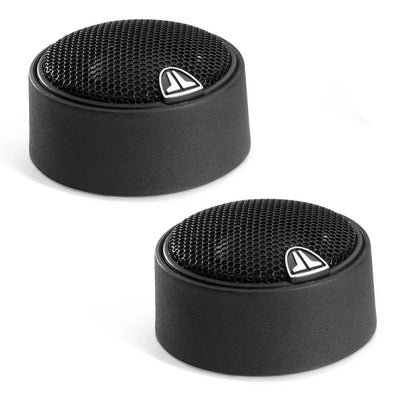

JL Audio C2-075CT C2 Series 19mm Car Component Tweeters Crossovers 60w RMS Pair
£92.90
JL Audio C2-650x C2 Series 6.5" 17cm Coaxial Car Door Speakers 60w RMS Pair
£169.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Will the JL Audio C2-400x fit a 4x6 inch speaker location?
A: Yes. Injection-moulded adaptor plates are included to mount the C2-400x into 4 x 6 inch (100 x 150 mm) locations, and breakaway tabs allow four-hole or two-hole mounting.
Q: Are grilles included with the C2-400x?
A: Yes. Each speaker comes with a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Q: How deep is the C2-400x?
A: The mounting depth is 46 mm and the mounting hole diameter is 97 mm.
