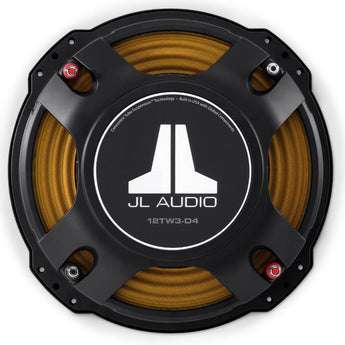

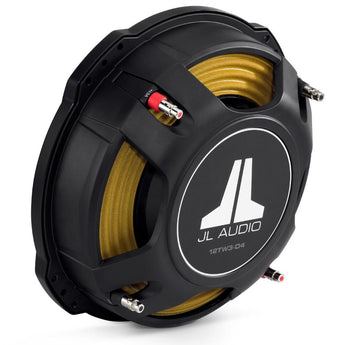

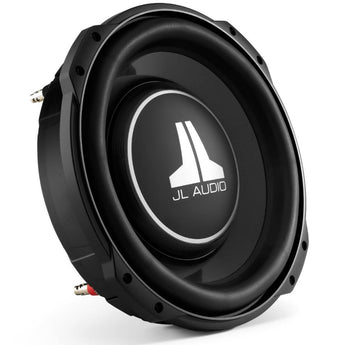

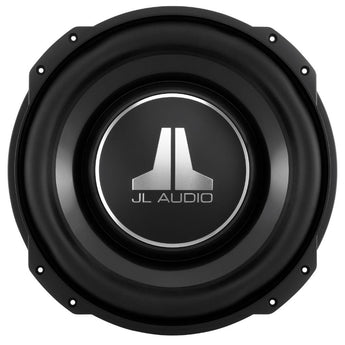

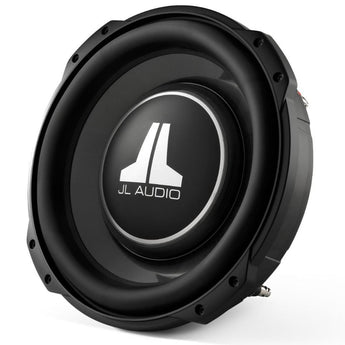

JL Audio 12TW3-D8 12 Inch TW3 Series Shallow Mount Subwoofer Dual 8 ohm 400w RMS

£419.00
Black Friday
Low stock
SKU: 90929MPN: 12TW3-D8
Part of the range · 60 productsPart of the JL Audio Subwoofers range · 60 products See the range →

The JL Audio 12TW3-D8 is a 12-inch (300 mm) shallow mount subwoofer from the TW3 Series, rated at 400W RMS with dual 8 ohm voice coils and a mounting depth of just 3.5 in (89 mm).

This listing is the dual 8 ohm version. The TW3 12-inch is also available in dual 4 ohm (12TW3-D4), and the TW3 Series includes a 10-inch model (10TW3-D4).

Key specifications

  • Size: 12 inch (300 mm)
  • Power handling: 400W RMS
  • Recommended amplifier power: 200–400W RMS
  • Impedance: dual 8 ohm (dual voice coil)
  • Mounting depth: 3.5 in / 89 mm
  • Mounting hole diameter: 11.625 in / 295 mm
  • Linear excursion (Xmax, one way): 0.6 in / 15.2 mm

12TW3-D8 Shallow Mount: 12-inch (300 mm) Subwoofer Driver, Dual 8 Ω

Built on the same core technology as JL Audio's TW5 thin-line subwoofers, the TW3 Series combines shallow mounting depth with high excursion capability — exceeding that of the W3v3s. JL Audio's patented thin-line woofer technology achieves this via a "concentric tube" structure moulded into the cone body, which supports the voice coil and a full annular spider while positioning the motor further forward than conventional designs allow.

TW3s are optimised for small sealed enclosures and use a tab-ear mounting design to maximise cone area within the mounting footprint.

  • Very shallow mounting depth: 3.25 / 3.50 inches
  • No pole vent — allows mounting close to the rear wall of an enclosure
  • Very small sealed enclosure volume requirements
  • Long linear excursion: 0.60 in / 15.2 mm (one-way)
  • DMA-optimised motor design
  • "Concentric tube" architecture
  • Patented "floating cone attach method" technology
  • Cast alloy frame
  • Injection-moulded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminium-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in the USA at JL Audio's Miramar, Florida factory with global components
Specification
Overall Diameter (A)    A113.2 in / 335 mm
A212.5 in / 318 mm
Mounting Depth(E)    3.5 in / 89 mm
More specs
  • Continuous Power Handling (RMS)    400 W
  • Recommended Amplifier Power (RMS)    200 - 400 W
  • Nominal Impedance (Znom)    Dual 8 Ω
  • Nominal Diameter    12 in / 300 mm
  • Mounting Hole Diameter (B)    11.625 in / 295 mm
  • Bolt Hole Circle Diameter (C)    12.5 in / 318 mm
  • Motor Outer Diameter (D)    6.125 in / 156 mm
  • Driver Displacement    0.029 cu ft / 0.82 L
  • Net Weight    14.9 lb / 6.8 kg
  • Free Air Resonance (Fs)    26.46 Hz
  • Electrical “Q” (Qes)    0.558
  • Mechanical “Q” (Qms)    10.766
  • Total Speaker “Q” (Qts)    0.531
  • Equivalent Compliance (Vas)    1.72 cu ft / 48.73 L
  • One-Way Linear Excursion (Xmax)*    0.6 in / 15.2 mm
  • Reference Efficiency (no)
  • Efficiency (1 W / 1 m)**    84.11 dB SPL
  • Effective Piston Area (Sd)    83.517 sq in / 0.0539 sq m
  • DC Resistance (Re)***    14.800 Ω
What's Included
  • 12TW3-D8
  • Warranty information
  • JL Audio stickers
Product information

JL Audio

About the JL Audio 12TW3-D8

From our tech experts at CEN

A JL Audio 12 inch TW3 Series subwoofer driver, shallow mount for vehicles where depth rules out a conventional sub, dual 8 ohm, handling 400w RMS.

Who it suits

Drivers building a system around a properly specified enclosure rather than a box off the shelf. TW3 gives more output than TW1 while staying shallow.

Our tech experts advise

This is a driver, not a finished system: enclosure volume and tuning decide most of what you hear, and JL publish specifications worth building to, and the dual 8 ohm coils decide how it should be wired to your amplifier. We build enclosures to suit both driver and vehicle at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full JL Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JL Audio

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: Do I need an amplifier for this subwoofer?

A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.

Q: What size enclosure does this subwoofer need?

A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.

Q: What does RMS power mean?

A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.

Q: Sealed or ported enclosure - which should I choose?

A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.

Q: Can CEN build or supply an enclosure and fit everything?

A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.

Q: What amplifier power does the JL Audio 12TW3-D8 need?

A: JL Audio recommends 200 - 400W RMS of amplifier power for the 12TW3-D8. It is rated at 400W RMS continuous power handling (dual 8 ohm impedance).

Q: How deep is the 12TW3-D8 and what cut-out does it need?

A: The 12TW3-D8 has a mounting depth of 3.5 in / 89 mm and needs a mounting hole (cut-out) diameter of 11.625 in / 295 mm.

Q: Can the 12TW3-D8 be wired to different impedances?

A: Yes. With dual 8 ohm voice coils, the 12TW3-D8 can be wired as a 4 ohm (parallel) or 16 ohm (series) load to suit your amplifier.

Q: Can the 12TW3-D8 be mounted close to the back of the box?

A: Yes. TW3 subwoofers have no pole vent, which permits mounting close to the rear wall of the enclosure.
