Hertz SPL Show SV 200.1 8 Inch Weather Resistant Midrange Speakers 150w RMS
Couldn't Load Pickup availability

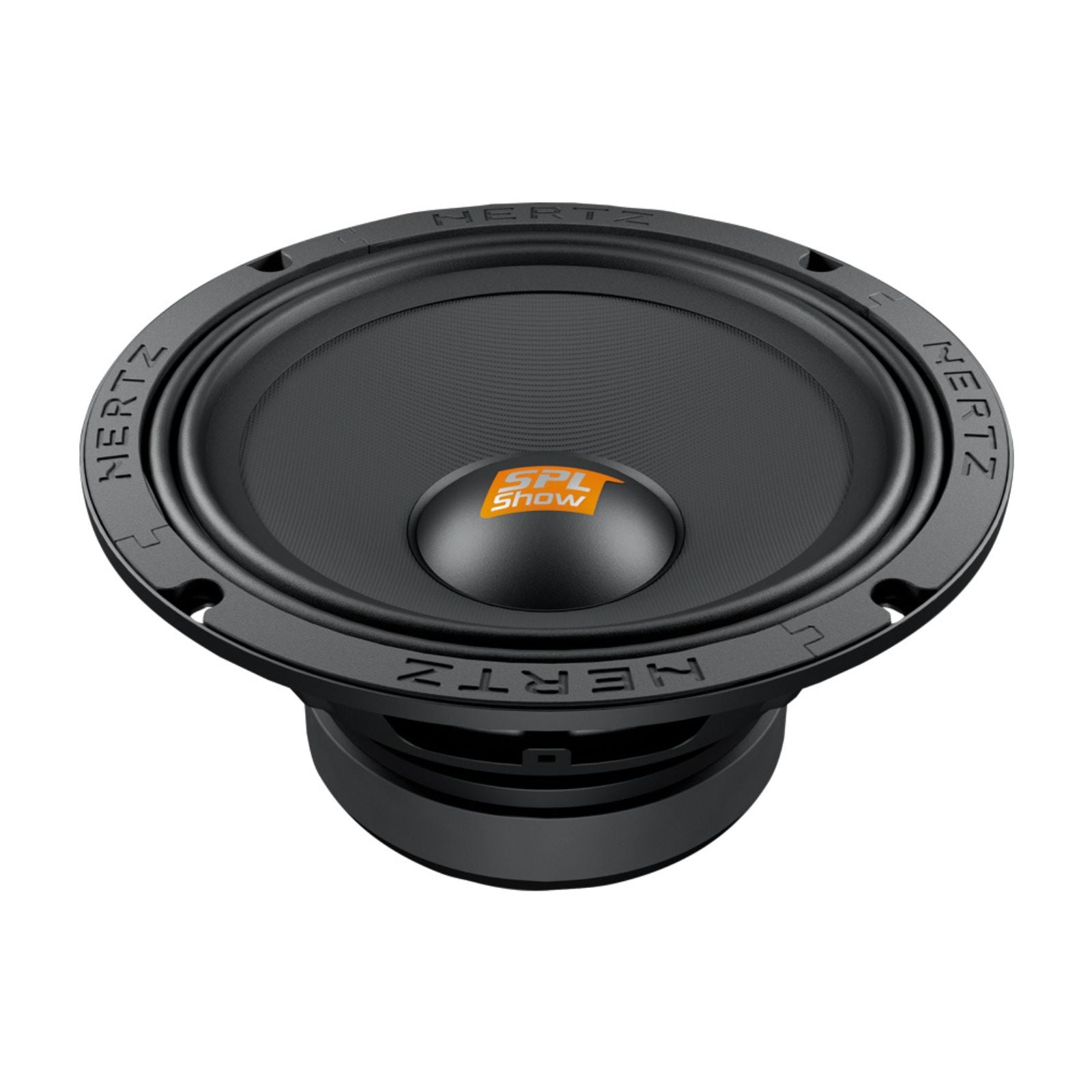

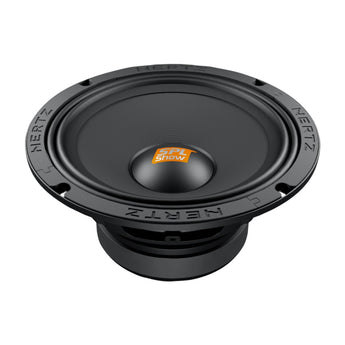

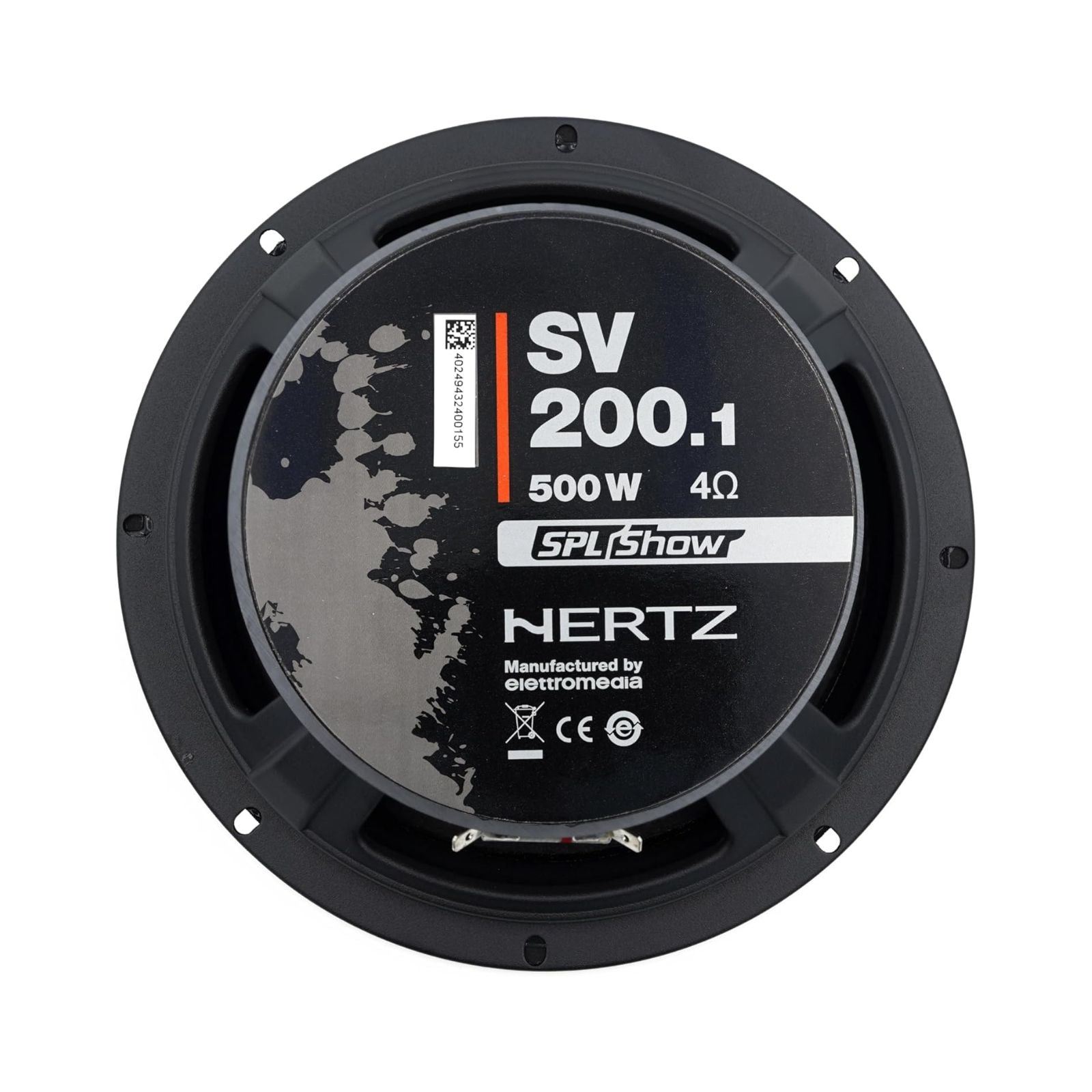

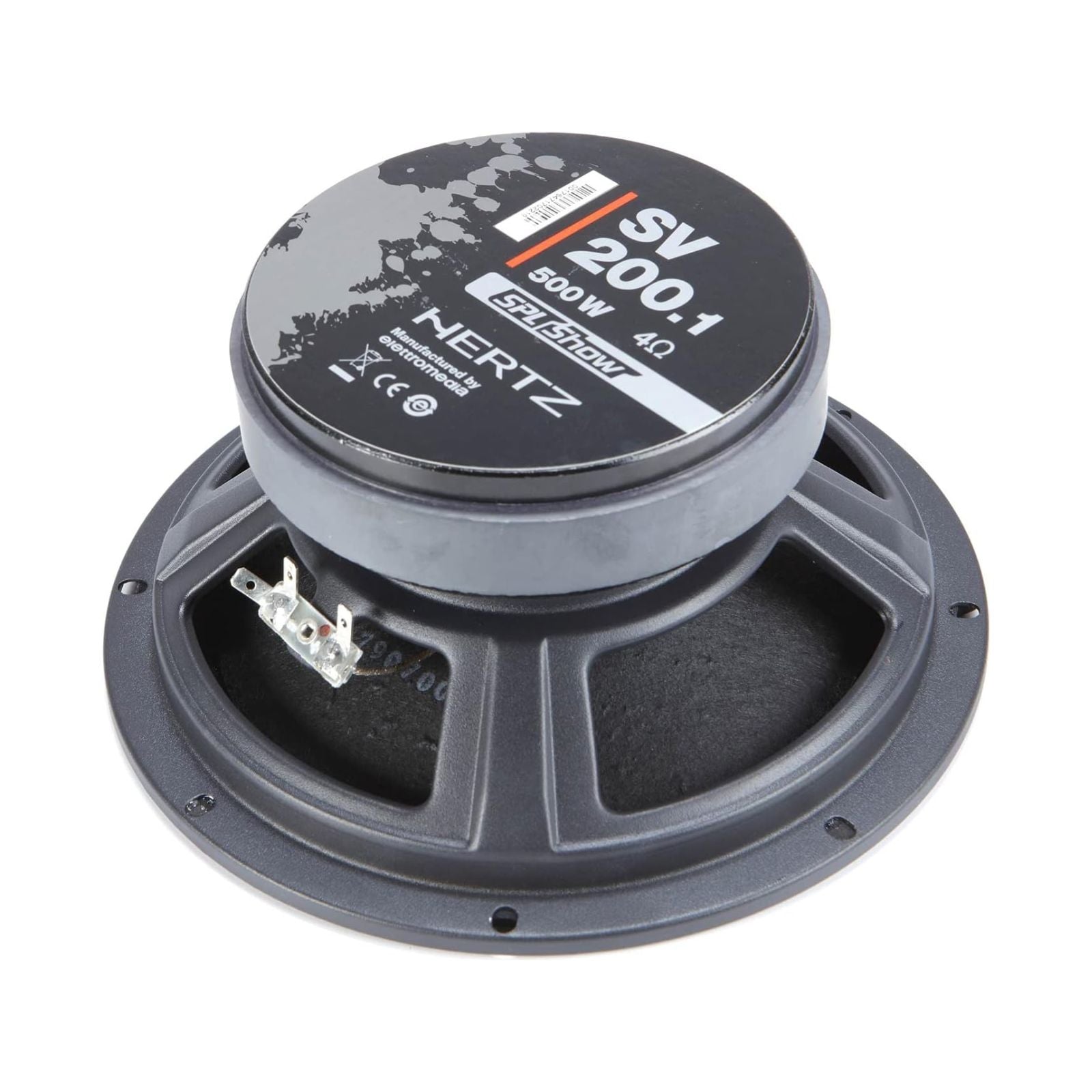

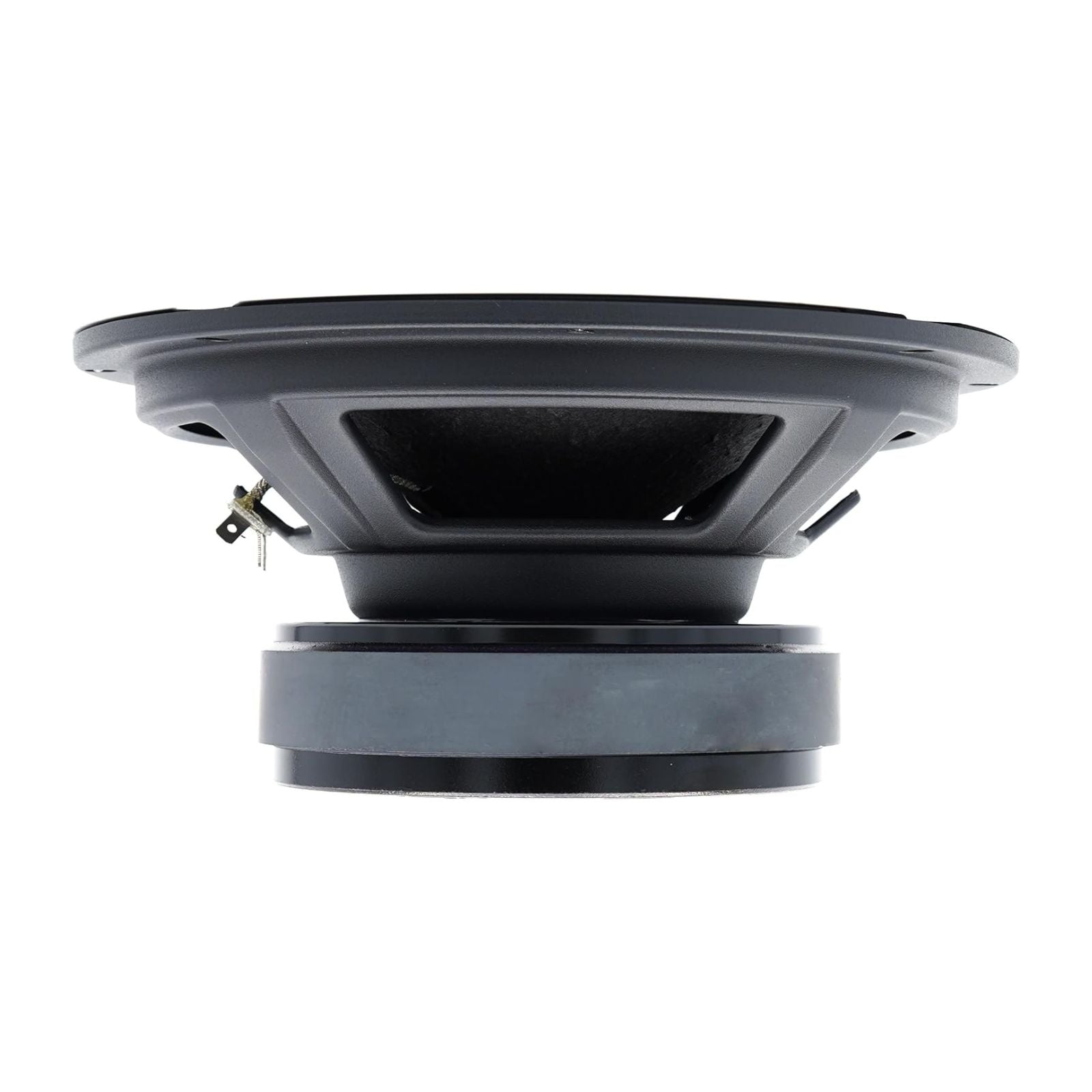

The Hertz SPL Show SV 200.1 is an 8 inch (200 mm) SPL midrange speaker rated at 150W RMS (500W peak) at 4 ohms. It is part of the Hertz SPL Show range, built for SPL competitions.
For a neodymium 8 inch midrange with waterproof, anti-UV treatment, see the SV 200 Neo.
Key specifications
- Type: 8 inch (200 mm) SPL midrange
- Power handling: 150W RMS, 500W peak
- Impedance: 4 ohm
- Frequency response: 100 Hz - 9 kHz
- Voice coil: double-layer copper on KSV former
- Magnet: high density flux ferrite, 130 x 60 x 20 mm
- Mounting depth: 83.8 mm (3.3 in)
- Weight: 2.8 kg per speaker
- Surround: double-wave damped fabric
- Terminals: high current, tin-plated
The SV 200.1 is a 200 mm (8 in.) midrange built for SPL competitions. It features a robust structure with a copper voice coil wound on a two-layer KSV former, giving strong thermal and mechanical capability under extreme conditions. The cone uses a water-repellent pressed paper membrane with paper dust caps — lightweight and durable — and double-wave damped fabric surrounds to maintain linearity and contribute to high SPL scores.
Features
- High magnetic permeability plates for constant, even flux.
- High density flux ferrite magnet for top SPL performance.
- Double-layer copper voice coil wound on KSV former for excellent thermal and mechanical capability.
- High current, tin-plated terminals.
- Damped fabric surround for maximum lightness and extreme SPL.
- Water-repellent pressed paper cone.
Explore the full range in Midrange Speakers.
Specification
| Component | SPL Midrange |
|---|---|
| Size mm (in.) | 200 (8) |
| Power Handling | - Continuous W 150 |
| Power Handling | - Peak W 500 |
| Impedance | Ohm 4 |
| Depth mm (in.) | 83.8 (3.3) |
| Voice Coil | Ø 38 (1.5) |
| Frequency Response | Hz 100 ÷ 9k |
| Magnet | size D x d x h mm (in.) 130 x 60 x 20 (5.1 x 2.4 x 0.8) |
| Weight | of one speaker kg (lb.) 2,8 (6.2) |
| Magnet | High density flux ferrite |
| Cone | Ultra light pressed paper |
What's Included
- SV 200.1
Hertz
About the Hertz SV 200.1
From our tech experts at CEN
A 8 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 200w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker itself, and an amplifier will get far more out of these than a head unit can. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Midrange Speakers
More options from the same range, in stock and ready to go
Best Seller Focal 3.5WM Utopia M Series Single 3.5" Midrange Speaker Driver 50w RMS £359.99 /In stock
Staff Pick Audison Voce AV 3.0 3" 7cm 70mm Dash Door Midrange Speaker with Grills 100w Pair £169.99 /In stock
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What is the Hertz SV 200.1 designed for?
A: It is an 8 inch midrange designed for SPL competitions, built to keep thermal and mechanical capability under extreme conditions.
Q: Is the SV 200.1 a full-range speaker?
A: No. It is an SPL midrange with a rated response of 100 Hz to 9 kHz, so it is normally used alongside tweeters and a subwoofer.
Q: What is the difference between the SV 200.1 and SV 200 Neo?
A: Both are 8 inch SPL midranges. The SV 200.1 is rated at 150W RMS and uses a high density flux ferrite magnet and is built for SPL competition, while the SV 200 Neo uses a neodymium N38 H motor with waterproof, anti-UV treatment for outdoor use.
