Hertz SPL Show SV 200L 8 Inch Weather Resistant Woofer Speakers 250w RMS Pair
Couldn't Load Pickup availability

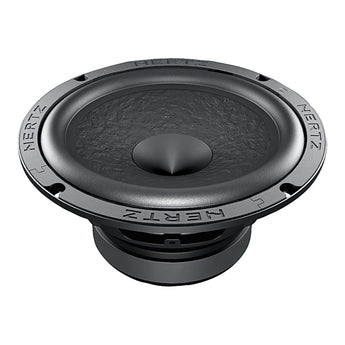

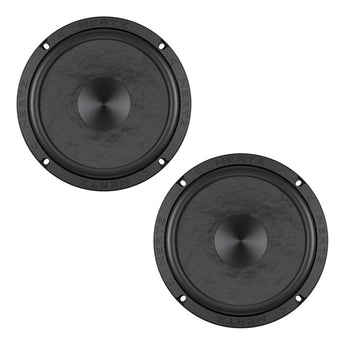

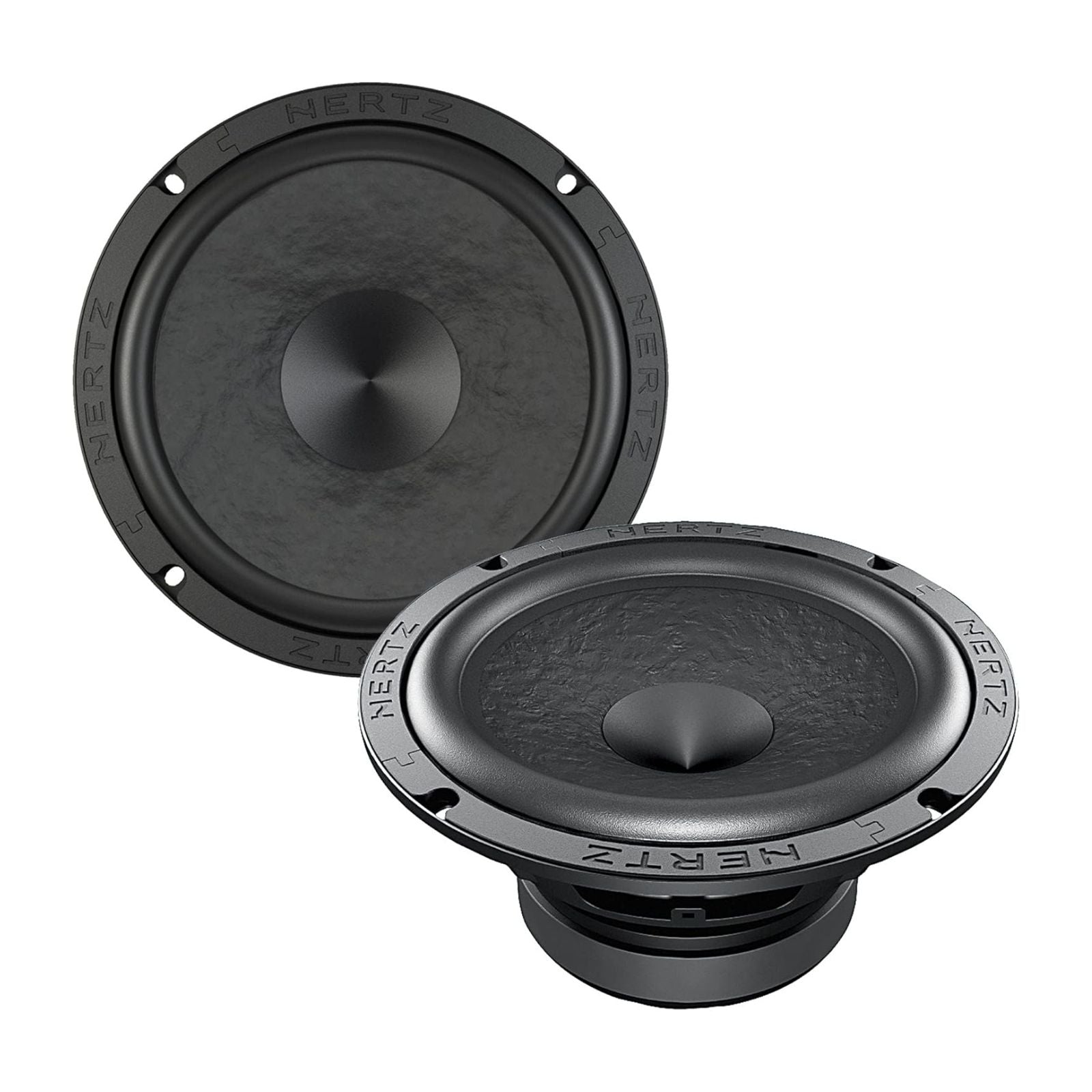

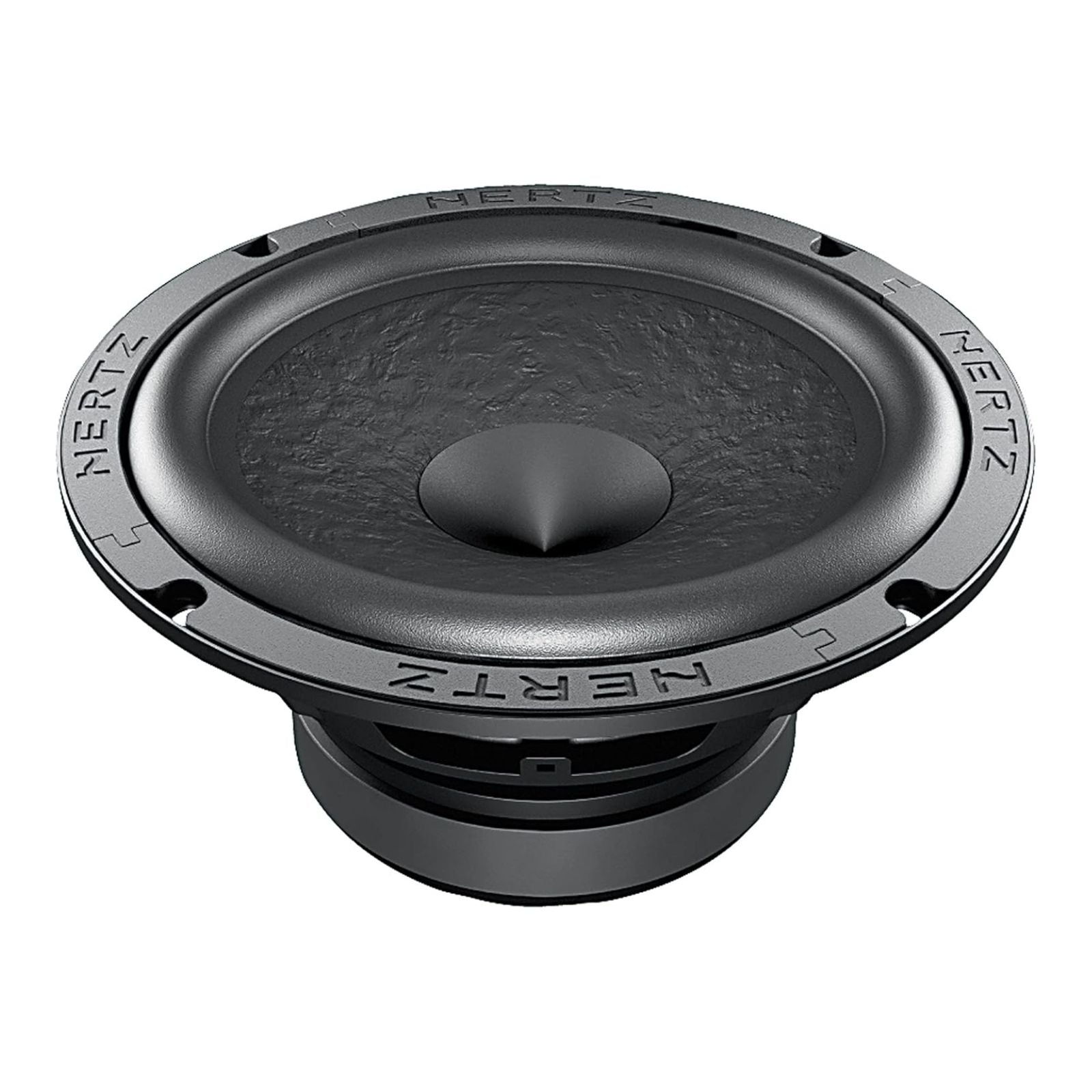

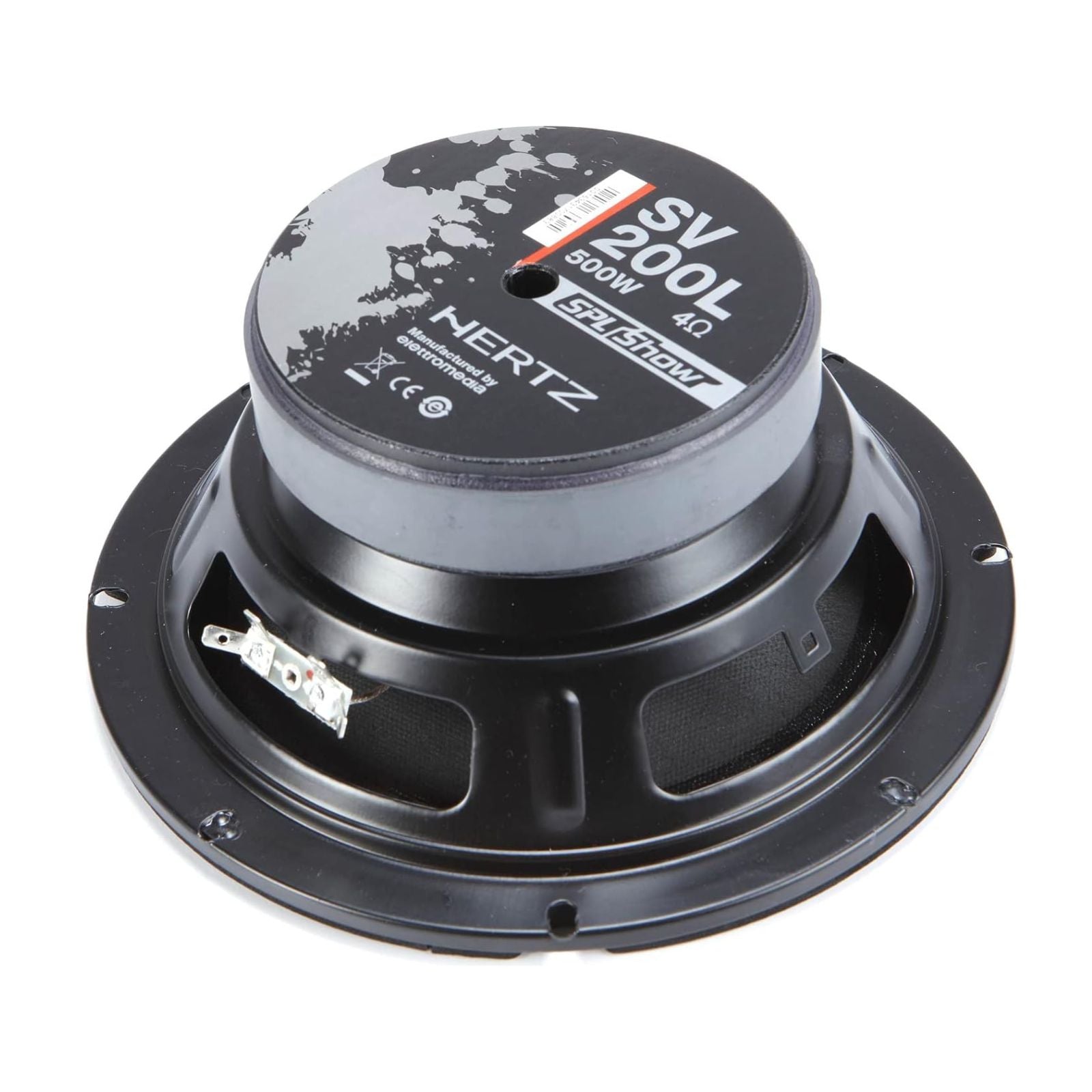

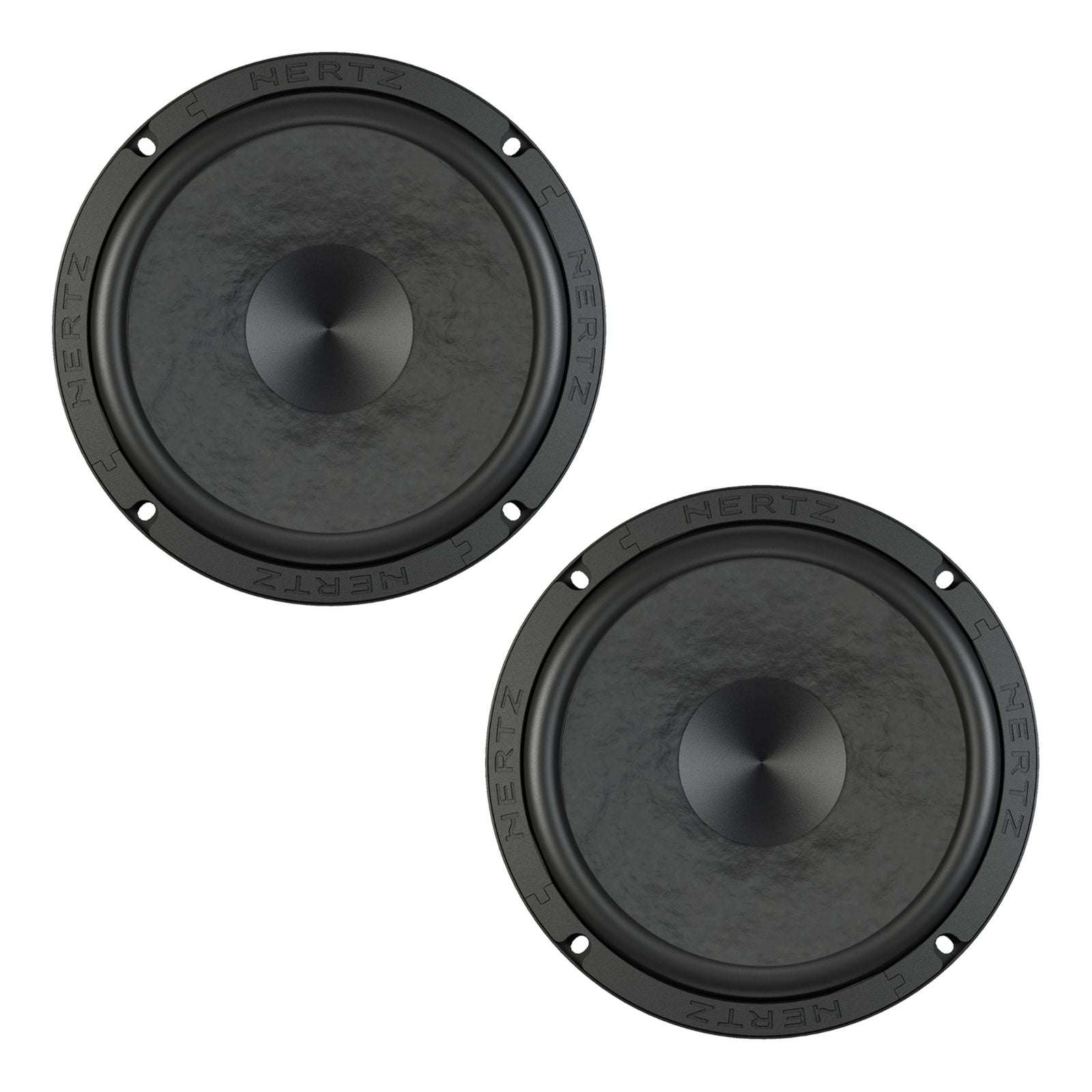

The Hertz SPL Show SV 200L is an 8 inch (200 mm) weather-resistant SPL woofer rated at 250W RMS (500W peak) at 4 ohms, sold as a pair. Part of the Hertz SPL Show range, it features a 50 mm double-layer copper voice coil on a KSV former, an oversized ferrite magnet, vented bottom plate, V-cone technology and a lossless polymer rubber surround.
Key specifications
- Type: 8 inch (200 mm) SPL woofer
- Power handling: 250W RMS, 500W peak
- Impedance: 4 ohm
- Frequency response: 45 Hz – 4.5 kHz
- Mounting depth: 82 mm (3.2 in)
- Voice coil: 50 mm double-layer copper on KSV former
- Magnet: high density flux ferrite, 120 x 60 x 20 mm
- Cone: V-cone, non pressed paper with cotton fibre
- Weight: 2.32 kg
- Sold as a pair
The SV 200L is built for high thermal and mechanical capability. The pure copper voice coil wound on a KSV former, oversized ferrite magnet and vented bottom plate all contribute to its SPL performance. The proprietary V-cone technology uses a pulp cone mixed with cotton fibre for a powerful low-frequency response, while the lossless polymer rubber surround enables long throw and maximum damping.
Features
- High magnetic permeability plates provide constant, even flux.
- High density flux ferrite magnet for top SPL performance.
- Double-layer copper voice coil wound on KSV former for excellent thermal and mechanical capability.
- Vented bottom plate improves linearity and thermal dissipation.
- High current, tin-plated terminals.
- Pulp cone mixed with cotton fibre for powerful low-frequency response.
- V-cone® for the best off-axis dispersion and mid-frequency detail.
- Lossless polymer rubber surround for long throw and maximum damping.
Explore the full range in Hertz.
Specification
| Component | SPL Woofer |
|---|---|
| Size mm (in.) | 200 (8) |
| Power Handling | - Continuous W 250 |
| Power Handling | - Peak W 500 |
| Impedance | Ohm 4 |
| Depth mm (in.) | 82 (3.2) |
| Voice Coil | Ø 50 (2) |
| Frequency Response | Hz 45 ÷ 4,5k |
| Magnet | size D x d x h mm (in.) 120 x 60 x 20 (4.7 x 2.4 x 0.8) |
| Weight | of one speaker kg (lb.) 2,32 (5.1) |
| Magnet | High density flux ferrite |
| Cone | Non pressed paper with cotton fibre |
What's Included
- SV 200L
Hertz
About the Hertz SV 200L
From our tech experts at CEN
A 8 inch coaxial pair, with the tweeter in the centre of the woofer, rated at 250w RMS.
Who it suits
Drivers replacing tired factory speakers who want a clear improvement without complication.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Door treatment matters as much as the speaker itself, and an amplifier will get far more out of these than a head unit can. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Hertz
More options from the same range, in stock and ready to go
Save 24% Best Seller Hertz UNO K 165 6.5" 16.5cm 2 Way Car Van Door Component Speakers 75w RMS Pair RRP£84.99£64.99 / Save 24%In stock
Save 0% Best Seller Hertz Dieci DBA 201 F Active Under Seat Subwoofer Super Flat Sub Enclosure 220w RRP£349.99£349.00 / Save 0%In stock
Best Seller Hertz Mille Pro MP 165P.3 6.5" 16.5cm Car Midrange Woofer Speakers 100w RMS Pair £179.99 /In stock
Best Seller Hertz Mille Pro MPK 165.3 6.5" 16.5cm Car 2 Way Component Speaker 110w RMS Pair £319.99 /In stock
Staff Pick Hertz Dieci DSK 165.3 6.5" 16.5cm 2 Way Car Door Component Speakers 80w RMS Pair £119.99 /In stock
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Is the Hertz SV 200L a midrange or a woofer?
A: It is an 8 inch SPL woofer with a rated response of 45 Hz to 4.5 kHz, designed for powerful low frequency output with good off-axis dispersion from its V-cone.
Q: How deep is the SV 200L?
A: The mounting depth is 82 mm (3.2 in).
Q: What power does the SV 200L handle?
A: It is rated at 250W RMS continuous and 500W peak at 4 ohms.
