Hertz Marine HM CAM W01 Wireless IP67 Compact Marine WiFi Backup Rear Camera
Couldn't Load Pickup availability
The Hertz Marine HM CAM W01 is a wireless IP67-rated compact backup rear camera offering 720p HD video at 30 fps and a 120° horizontal viewing angle, viewed via a free iOS or Android app. It is part of the Hertz Marine range and suits boats, cars, trucks and campers.
For a wired version that connects to a camera input, see the HM CAM C01.
Key specifications
- Resolution: 720p HD (1280 x 720) at 30 fps
- Viewing angle: 120° horizontal, 90° vertical
- Protection: IP67
- Power supply: DC 12V – 24V, 2W max
- Wireless: 2.4 GHz Wi-Fi, up to 30 m range
- Night vision: 4 – 10 m night sight distance
- Parking lines: Selectable
- Size: 23 x 23 x 33 mm

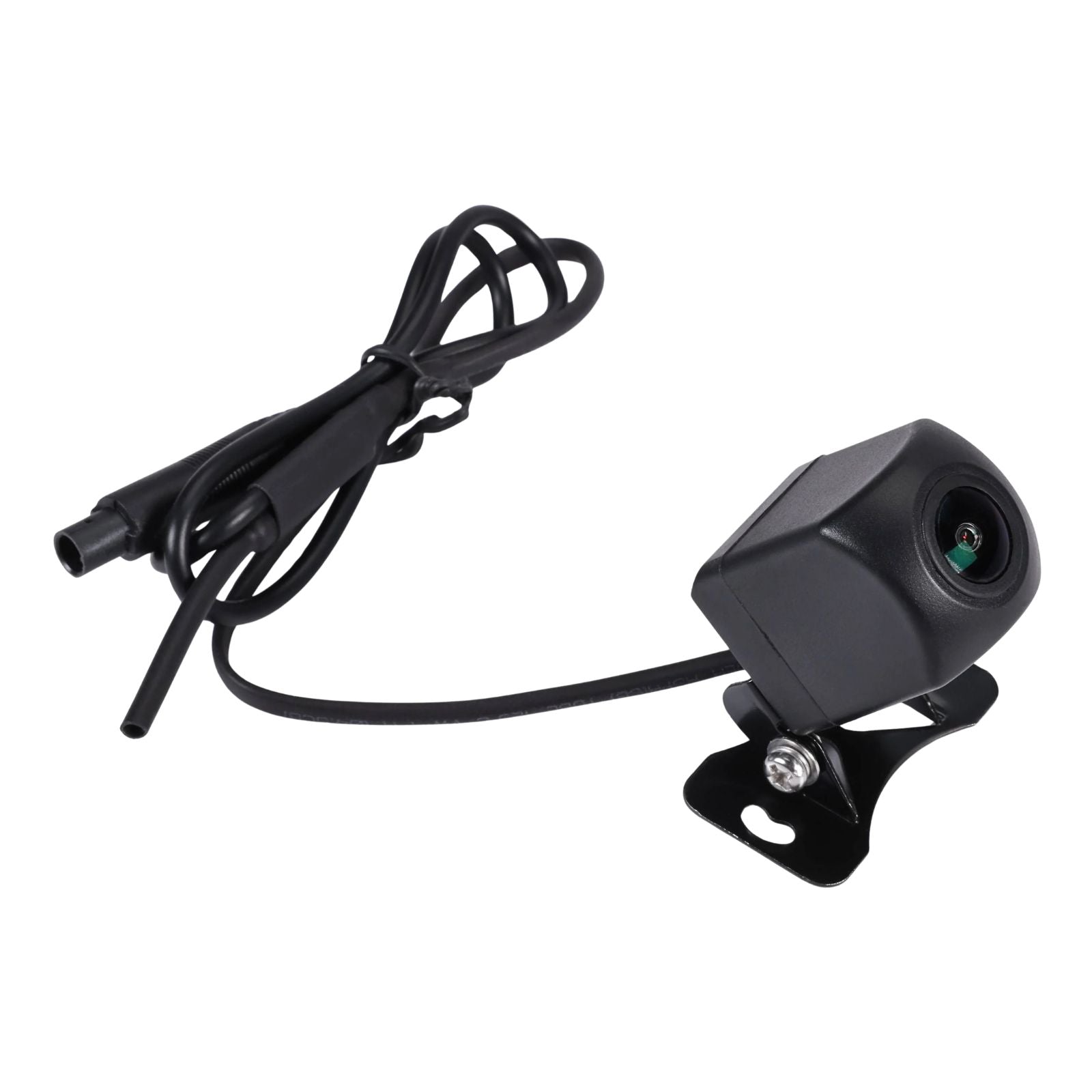

Hertz Marine HM CAM W01 Wi-Fi marine backup camera
The HM CAM W01 is a super compact Wi-Fi backup rear camera suited to cars, boats, trucks and campers. IP67 certification makes it fully waterproof and ready for open-water use. It records in 720p HD at 30 fps with a 120° horizontal and 90° vertical field of view, and includes night vision and selectable parking line display.
Features
- Super compact wireless backup rear camera — suitable for boats, cars, trucks and campers
- IP67 waterproof certification
- 720p HD recording at 30 fps
- 120° horizontal and 90° vertical viewing angle
- Selectable parking line display
- Night vision mode
- Wi-Fi app available for iOS and Android
Explore the full range in Accessories.
Specification
| Power supply | DC 12V ~ 24V |
|---|---|
| Max power consumption | 2 W |
| Camera sensor type | CMOS |
| Angle of view (Deg.) | 90° Vertical, 120º Horizontal |
| Night sight distance | 4 m ~ 10 m |
| Minimum illumination | 0.1 Lux |
| Transmission method | Wireless 2.4Ghz 56Mbps (802.11g) |
| Transmission distance | 30 m |
| IP rating | IP67 |
| Operating temp | -10ºC ~ +75ºC ( 14ºF ~ +167ºF) |
| System requirement | iOS 11+, Android 6+ |
| Video compression | H.264 |
| Resolution | 720p (1280x720pixel) |
| Frame rate | 30 fps |
| Effective pixels | 0,92 megapixel |
| Size (mm/in.) | 23 x 23 x 33 / 0.91 x 0.91 x 1.30 |
| Weight | (Kg/Lbs) 0,086 / 0.189 (including the cable) |

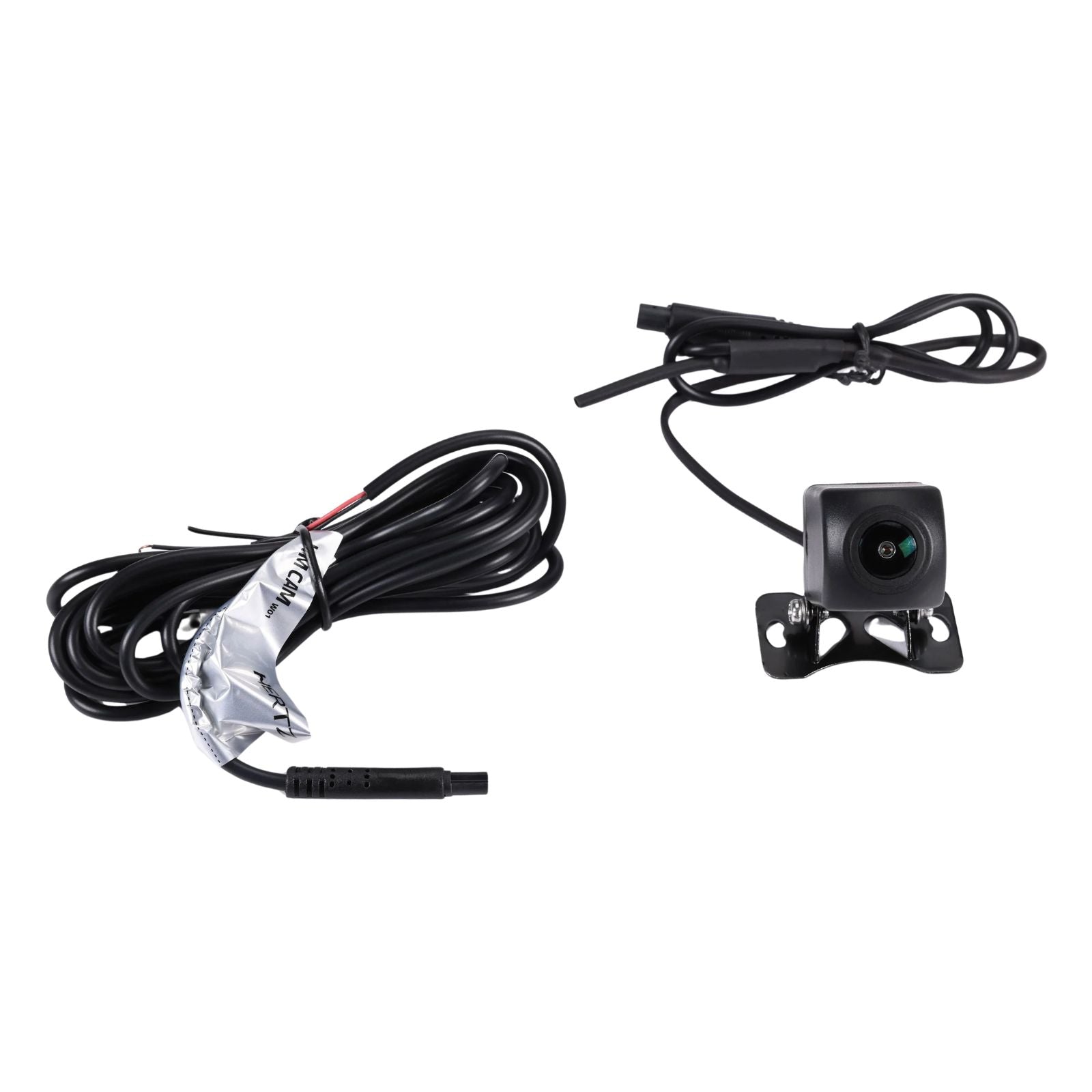

What's Included
- HM CAM W01
Hertz
About the Hertz HM CAM W01
From our tech experts at CEN
A compact backup camera, rated IP67, sending its picture wirelessly so no video cable has to be run the length of the vessel.
Who it suits
Boats and larger craft where visibility astern is limited, and anything that has to be manoeuvred in a tight berth.
Our tech experts advise
Wireless saves the cable run but still needs power at both ends. Check it will display on your existing screen before ordering — get in touch.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Accessories
More options from the same range, in stock and ready to go
Popular JL Audio MBT-RXv2 Bluetooth 5.0 Wireless Receiver for Amplifiers with RCA Outputs £64.90 /In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: How do I view the HM CAM W01?
A: It transmits over 2.4 GHz Wi-Fi (802.11g) to a control app for iOS 11+ and Android 6+, with a transmission distance of up to 30 m.
Q: Is the HM CAM W01 waterproof?
A: Yes. It is IP67 certified.
Q: What voltage does the HM CAM W01 need?
A: It runs on DC 12V to 24V with a maximum power consumption of 2W.
