Hertz Marine HM CAM C01 Wired IP67 Compact Marine Backup Rear Camera
Couldn't Load Pickup availability
The Hertz Marine HM CAM C01 is a wired, IP67-rated compact backup rear camera offering 720p HD video at 30 fps and a 120° horizontal viewing angle. It is part of the Hertz Marine range and suits boats, cars, trucks and campers.
For an app-based wireless version see the HM CAM W01.
Key specifications
- Resolution: 720p HD (1280 x 720) at 30 fps
- Viewing angle: 120° horizontal, 90° vertical
- Protection: IP67
- Power supply: DC 12V – 24V, 2W max
- Connection: Wired, to any camera input
- Night vision: 4 – 10 m night sight distance
- Parking lines: Selectable
- Size: 23 x 23 x 33 mm

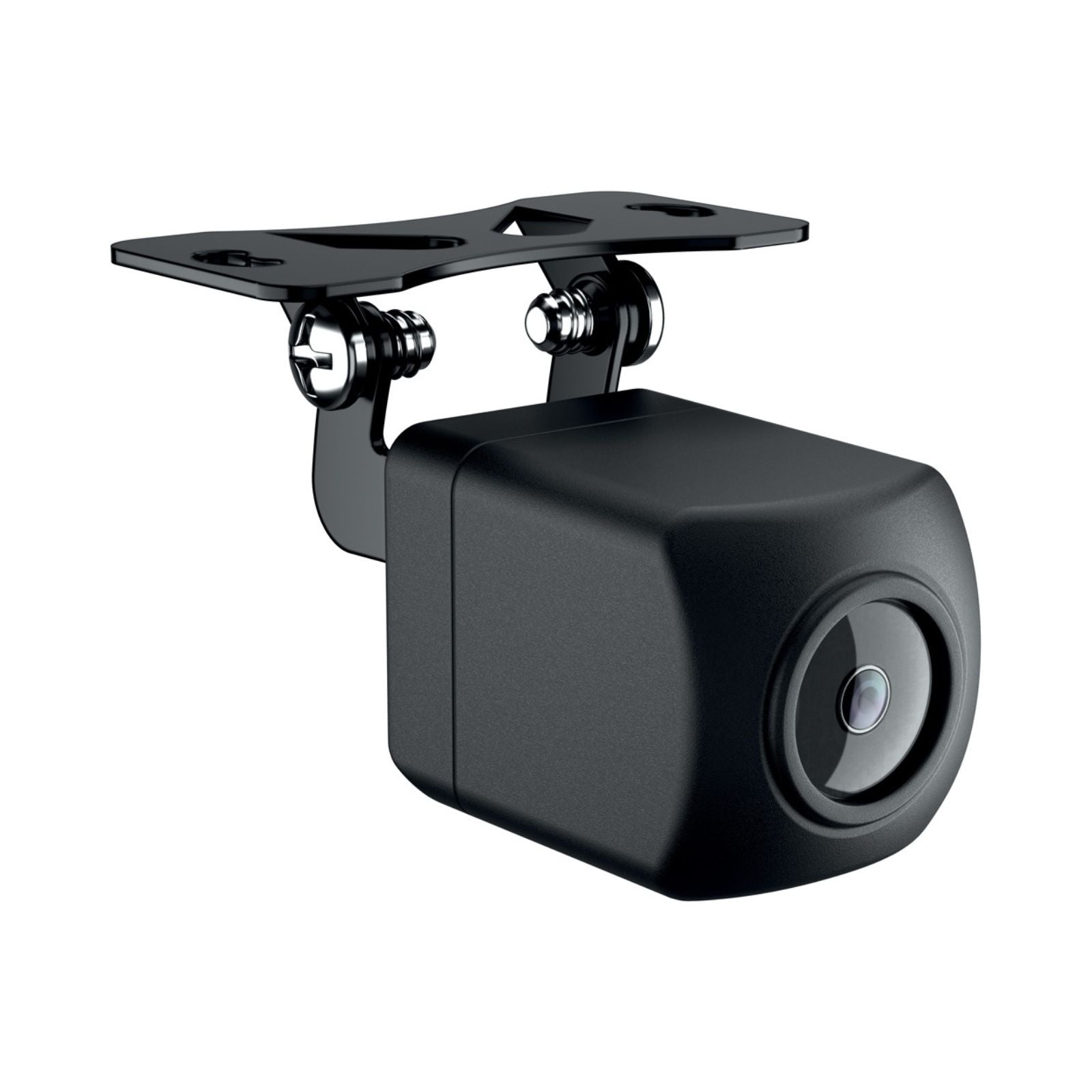

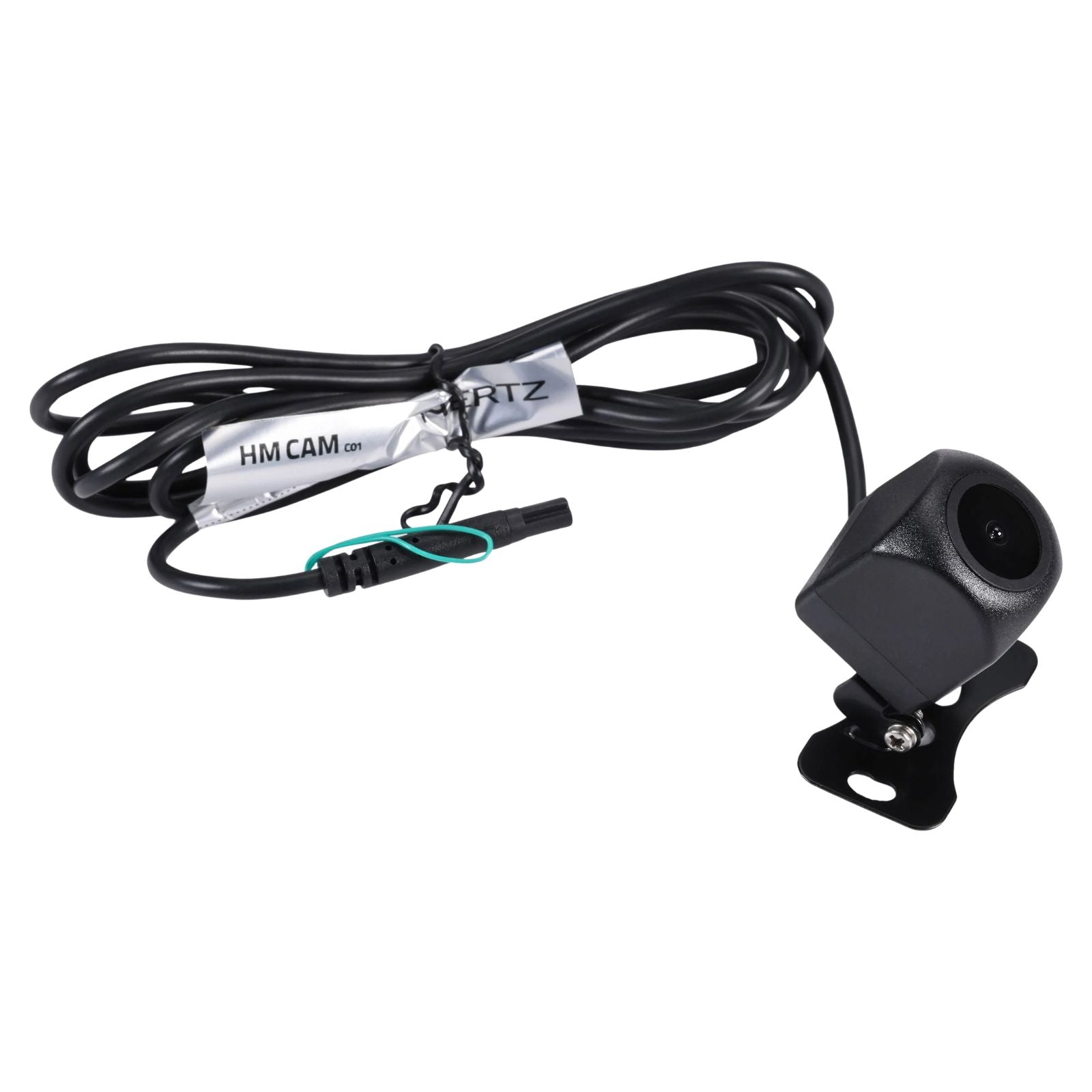

Hertz Marine HM CAM C01 wired marine backup camera
The HM CAM C01 is a super compact wired backup rear camera suited to cars, boats, trucks and campers. It is compatible with the Hertz HMR 50 marine source unit and any device with a camera input, including chart plotters, head units and control panels.
IP67 certification means the camera is ready for open-water use. It records in 720p HD at 30 fps with a 120° horizontal and 90° vertical field of view, and includes night vision and a selectable parking line display.
Features
- Wired marine backup camera
- 720p HD resolution at 30 fps
- 120° horizontal viewing angle
- 90° vertical viewing angle
- Night vision mode (4 – 10 m range)
- IP67 waterproof protection
- Selectable parking guide lines
- Compact body: 23 x 23 x 33 mm
- Compatible with Hertz HMR 50 marine receiver
- Works with any camera input device
- Marine and automotive compatible
Explore the full range in Accessories.
Specification
| Power supply | DC 12V ~ 24V |
|---|---|
| Max power consumption | 2 W |
| Camera sensor type | CMOS |
| Angle of view (Deg.) | 90° Vertical, 120º Horizontal |
| Night sight distance | 4 m ~ 10 m |
| Minimum illumination | 0.1 Lux |
| IP rating | IP67 |
| Operating temp | -10ºC ~ +75ºC ( 14ºF ~ +167ºF) |
| Video compression | H.264 |
| Resolution | 720p (1280x720pixel) |
| Frame rate | 30 fps |
| Effective pixels | 0,92 megapixel |
| Size (mm/in.) | 23 x 23 x 33 / 0.91 x 0.91 x 1.30 |
| Weight | (Kg/Lbs) 0,086 / 0.189 (including the cable) |

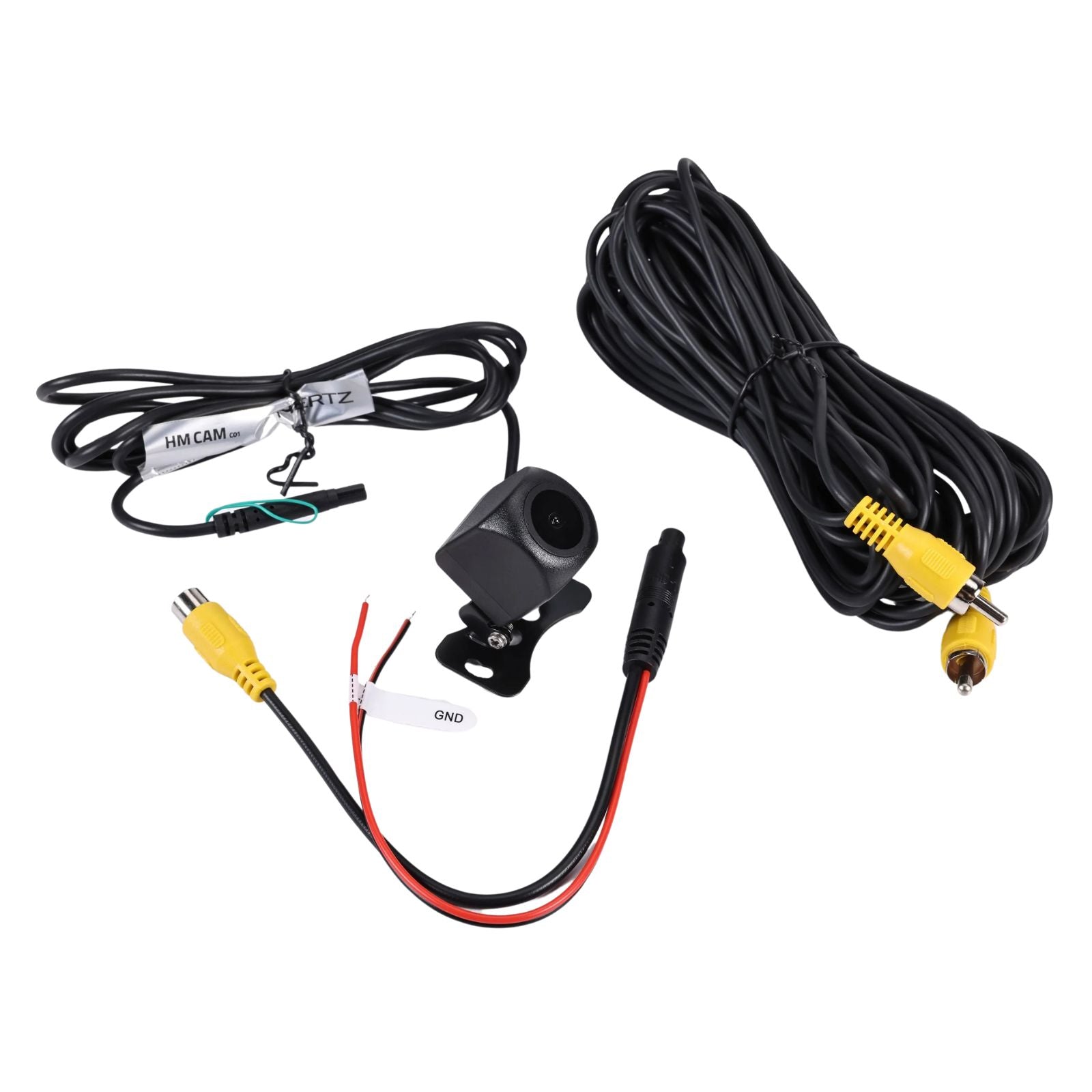

What's Included
- HM CAM C01
Hertz
About the Hertz HM CAM C01
From our tech experts at CEN
A compact backup camera, rated IP67, wired for a stable picture.
Who it suits
Boats and larger craft where visibility astern is limited, and anything that has to be manoeuvred in a tight berth.
Our tech experts advise
The cable run is the real work, and it needs doing properly so it stays hidden and sealed. Check it will display on your existing screen before ordering — get in touch.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Accessories
More options from the same range, in stock and ready to go
Popular JL Audio MBT-RXv2 Bluetooth 5.0 Wireless Receiver for Amplifiers with RCA Outputs £64.90 /In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Will the HM CAM C01 work with my chart plotter?
A: It is compatible with the Hertz HMR 50 marine source and any device with a camera input, such as chart plotters, head units and control panels.
Q: Is the HM CAM C01 waterproof?
A: Yes. It is IP67 certified and ready to face open water.
Q: What voltage does the HM CAM C01 need?
A: It runs on DC 12V to 24V with a maximum power consumption of 2W.
