Hertz H8 DSP 8 Channel Processor 31 Band EQ Time Align + DRC HE Remote Control

£499.99
Low stock
SKU: 90801MPN: H8 DSP
Part of the range · 14 productsPart of the Hertz Amplifiers & DSP range · 14 products See the range →

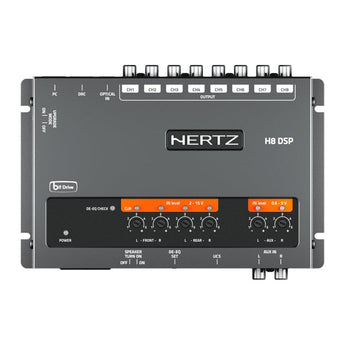

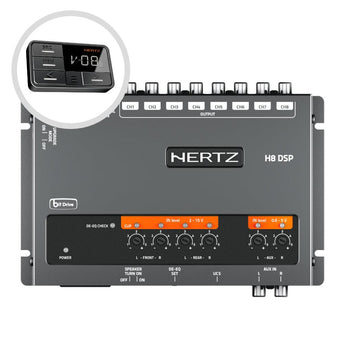

The Hertz H8 DSP is an 8-channel car audio digital signal processor with a 31-band graphic EQ and time alignment on every output, from Hertz's H8 DSP range. The DRC HE remote control is included.

Key specifications

  • Outputs: 8 pre-amp channels, each with its own crossover
  • Equaliser: 31-band graphic, 1/3 octave, per output
  • Time alignment: 0 to 15 ms (0 to 510 cm)
  • Inputs: 4 speaker-level, AUX and optical S/PDIF (up to 96 kHz/24-bit)
  • Crossovers: Linkwitz 12/24 dB, Butterworth 6 to 24 dB, 68 steps
  • THD: 0.005%
  • Operating voltage: 10.8 to 14.4 V DC
  • Dimensions: 191 x 34 x 131 mm
  • Setup: Windows PC software over USB

Any Source, Properly Processed

The H8 DSP works with both analogue and digital sources, turning a factory system into a high-performance integrated setup. It accepts speaker-level inputs from your head unit as well as AUX and optical S/PDIF signals. Tune each channel's level, delay and EQ precisely to your car's acoustics. The DRC HE remote control is included in the box.

Explore the full range in Hertz Amplifiers & DSP.

Specification
Outputs N.8 Graphic-12 dB @ 31 Band
Weightkg/lb 0.6 / 1.322
Fine set 0.02 ms0.7 cm / 0.27 inch
Graphic card min. resolution800 x 600
Ambient operating temperature range0 C to 55 C
More specs
  • Operating power supply voltage 10.8 - 14.4 VDC
  • Power supply 7.5 - 15 VDC
  • Idling current 0.4 A
  • Switched off without DRC 2.5 mA
  • Switched off with DRC 4 mA
  • Remote IN voltage 6.5 - 15 VDC (1.3 mA)
  • Remote OUT voltage 12 VDC (130 mA)
  • INPUT STAGE
  • High Level (Speaker) FL - FR - RL - RR
  • Low Level (Pre) AUX IN
  • Digital Optical IN (S/PDIF max 96 kHz/24bit) OPTICAL IN
  • EQUALIZER
  • On Hi-Levels input (Speaker In) Automatic De-Equalisation On
  • ISO 1/3 Oct. 20 - 20k Hz
  • SIZE
  • W (Width) x H (Height) x D (Depth) mm/inch 191 x 34 x 131 / 7.51" x 1.33" x 4.76"
  • OUTPUT STAGE
  • Low Level Pre (default) FRONT TW L/R, FRONT WF L/R REAR L/R,
  • SUB, CENTER
  • SIGNAL STAGE
  • Distortion - THD @ 1 kHz, 1V RMS Output 0.005%
  • Bandwith @ -3 dB 10 - 22k Hz
  • S/N Ratio @ A weighted
  • Digital input 105 dBA
  • Master Input 95 dBA
  • AUX Input 96 dBA
  • Channel Separation @ 1 kHz 85 dB
  • Input sensitivity (Speaker In) 2 - 15 V RMS
  • Input sensitivity (AUX In) 0.6 - 5 V RMS
  • Input impedance (Speaker In) 2.2 k Ohm
  • Input impedance (AUX) 15 k Ohm
  • Max Output Level (RMS) @ 0.1% THD 4 V RMS
  • CONNECTIONS
  • From / To Personal Computer 1 x USB / B
  • DRC HE Audio controls and Memory / Inputs selection
  • Optical / AUX select Optical In / Aux wire control + 12V / GND enable
  • Memory A / Memory B Memory A / B wire control + 12V / GND enable
  • CROSSOVER N.8 (one for each output channel)
  • Filter Type Full / High Pass / Low Pass / Band Pass
  • Filter mode and slope Linkwitz @ 12 / 24 dB
  • Butterworth @ 6 / 12 / 18 / 24 dB
  • Crossover frequency 68 steps @ 20 - 20k Hz
  • Phase control 0 - 180 degrees
  • TIME ALIGNMENT
  • Distance 0 - 510 cm / 0 - 200.8 inch
  • Delay 0 - 15 ms
  • Step 0.08 ms; 2.8 cm / 1.1 inch
  • GENERAL REQUIREMENTS
  • PC connections USB 1.1 / 2.0 / 3.0 Compatible
  • Software/PC requirements:
  • Microsoft Windows (32/64 bit):
  • XP, Windows 7, Windows 8,
  • Windows 10
What's Included
  • H8 DSP - Signal Interface Processor
  • Power supply cable / Remote / Inputs
  • 3.0 m / 9,84 ft USB cable
  • 4.5 m / 177.16 in. cable

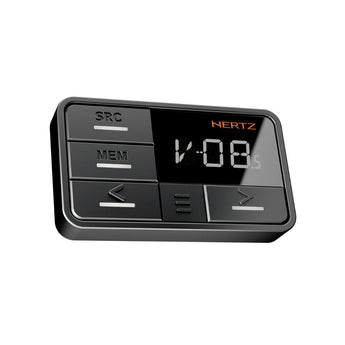

  • DRC HE remote control
Download User Manual(PDF)
Product information

Hertz

About the Hertz H8 DSP

From our tech experts at CEN

The Hertz H8 DSP is an 8-channel car audio digital signal processor with a 31-band graphic EQ and time alignment on every output. It accepts speaker-level inputs from a factory head unit, plus AUX and optical S/PDIF (up to 96 kHz/24-bit). Each output has its own crossover and delay (0–15 ms, up to 510 cm), and the DRC HE remote control is included.

Who it suits

The H8 DSP suits enthusiasts building a multi-way active car audio system who need precise per-channel control of level, timing and tone. It works equally well to upgrade a factory head unit setup. Pair it with speakers from the Hertz range for a complete system.

Our tech experts advise

Setup uses Windows PC software over USB; there is no app. The speaker-level inputs accept 2–15 V RMS, covering most factory head units. Fitting is priced per vehicle — see our car audio installation service for a quote.
