Eton RES12 Sub Spare Wheel 12 Inch Active Amplifier Subwoofer Enclosure 200w RMS
Couldn't Load Pickup availability

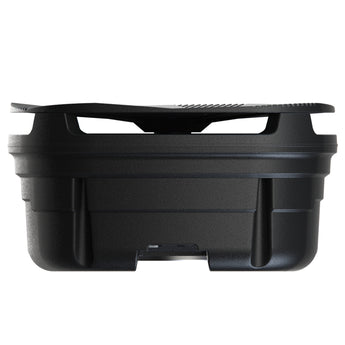

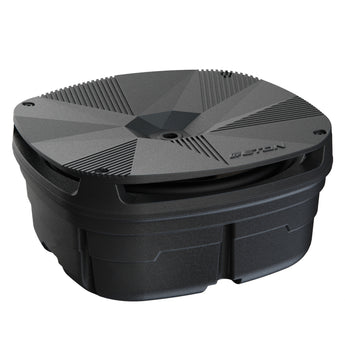

The Eton RES12 is a 12 inch (300mm) active subwoofer enclosure from Eton's RES (hidden rich bass) series. It fits inside a spare wheel from 15 inch rim size, or directly in the spare wheel well, letting you keep your spare. The built-in amplifier delivers 200W RMS (500W music power) at 2 ohms.
Key specifications
- Driver: 12 inch (300mm), stiffened aluminium cone, ferrite magnet
- Amplifier: built-in, 200W RMS / 500W music power
- Impedance: 2 ohms
- Sound pressure level: 91dB
- Low pass filter: 50Hz to 100Hz
- Inputs: high and low-level, auto turn-on (SIG / DC)
- Fitment: inside spare wheel from 15 inch rim size, or in the spare wheel well
- Dimensions (L x W x H): 341 x 321 x 164mm
Eton RES 12: 300mm (12 inch) active spare wheel subwoofer

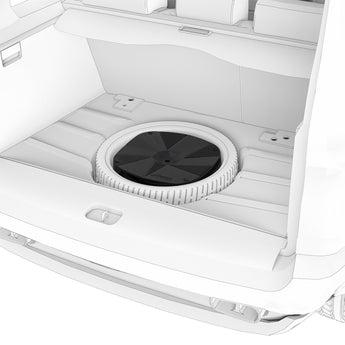

The RES series is designed for hidden mounting in the spare wheel well. The solid die-cast aluminium housing allows the subwoofer to sit inside the spare wheel (from 15 inch rims) while the original emergency wheel is still carried. The original mounting spike of the spare wheel can still be used thanks to the driver's central mounting design.
The 300mm (12 inch) driver uses a stiffened aluminium membrane and ferrite magnet for strong kick bass and deep low bass. The rigid aluminium diaphragm combined with the strong ferrite magnet and special double bead deliver hard, full kick bass, with deep bass passages handled comfortably.

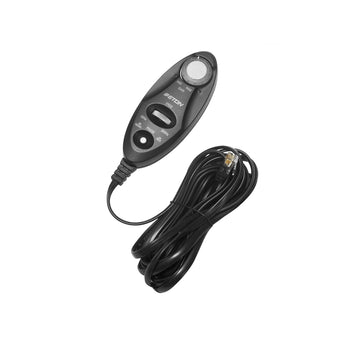

The integrated active amplifier module provides 200W RMS at 2 ohms and 500W music power handling. It features high and low-level inputs, an integrated low pass filter (50Hz to 100Hz), phase shift via the included level remote control, and auto turn-on (SIG/DC). It is compatible with vehicles fitted with start/stop systems. Engineered in Germany.
If you need a more compact solution, the RES series is complemented by underseat options including the Eton USB8 AR 8 inch underseat subwoofer (100W RMS) and the Eton USB10 AR 10 inch underseat subwoofer (150W RMS). Mounting and installation accessories, connection cable and level remote control are all included.
Explore the full range in Eton.
Specification
| Size | 12 Inch |
|---|---|
| RMS Power | 200w |
| Shape | Square |
| Voice Coil | Single |
| Type | Active Enclosure |
| Series | RES |
| Article Number | RES12 |
| Country of Manufacture | China |
More specs
| |
What's Included
- Eton RES12
- Remote Control
- Wiring Kit
- Mounts
Eton
About the Eton RES12
From our tech experts at CEN
An active Eton 12 inch subwoofer in a matched enclosure, handling 200w RMS.
Who it suits
Drivers who want a known result without commissioning a custom build.
Our tech experts advise
It still needs a fused feed from the battery and a signal source, and the level wants setting against your front speakers. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Eton range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Eton
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Eton
More options from the same range, in stock and ready to go
Eton USB10 AR Underseat Sub 10 Inch Active Amplifier Subwoofer Enclosure 150w
£349.99
View product
Eton USB8 AR Underseat Sub 8 Inch Active Amplifier Subwoofer Enclosure 100w RMS
£299.99
Eton PA 4 Amp Class D 4 Channel Bridgeable Speaker Amplifier
£299.99
Eton UGFIAT FD16 U Speakers Plug & Play 6.5 Inch 2 Way Component for Ducato III
£299.99
Eton PA 2 Amp Class D 2 Channel Bridgeable Speaker Amplifier 2 x 140w RMS
£259.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Can I still carry my spare wheel with the Eton RES 12?
A: Yes. It mounts inside the spare wheel (15 inch rims and larger) or in the spare wheel well, and is secured with the original spare wheel mounting pin, so the spare wheel stays in place.
Q: Does the Eton RES 12 need a separate amplifier?
A: No. It has a built-in amplifier delivering 200W RMS (500W music power) with high and low-level inputs, so it can connect to a factory or aftermarket head unit.
Q: What comes in the box with the Eton RES 12?
A: The RES 12 subwoofer, a level remote control, a wiring kit and mounts.
