Eton PA 4 Amp Class D 4 Channel Bridgeable Speaker Amplifier

Name: Eton PA 4 Amp Class D 4 Channel Bridgeable Speaker Amplifier
Brand: Eton
SKU: 92428
Price: 299.99 GBP
Availability: InStock

£299.99

In stock

SKU: 92428MPN: PA 4

Product variants

The Eton PA 4 is a compact 4-channel Advanced Class-D bridgeable amplifier with asymmetrical power: 2 x 45W RMS on channels 1/2 and 2 x 80W RMS on channels 3/4 (2 x 140W RMS at 2 ohms, or 280W bridged). It is part of Eton's PA amplifier range and suits a full front and rear speaker upgrade, or speakers plus a bridged subwoofer, from a factory head unit.

The PA range also includes the Eton PA 1 monoblock and the Eton PA 2 2-channel amplifier.

Key specifications

Type: 4-channel, Advanced Class-D with asymmetrical power management
Power at 4 ohms: CH1/2 2 x 45W RMS, CH3/4 2 x 80W RMS
Power at 2 ohms: CH3/4 2 x 140W RMS (CH1/2 not supported)
Bridged at 4 ohms: CH3/4 1 x 280W RMS
Filters: high pass and low pass, 50Hz to 5kHz, 12dB
Inputs: 4-channel high-level (10 / 150 / 600 ohm) and RCA
Recommended fuse: 30A, min. 12 AWG power cable
Dimensions (L x W x H): 128 x 100 x 45mm, 0.68kg

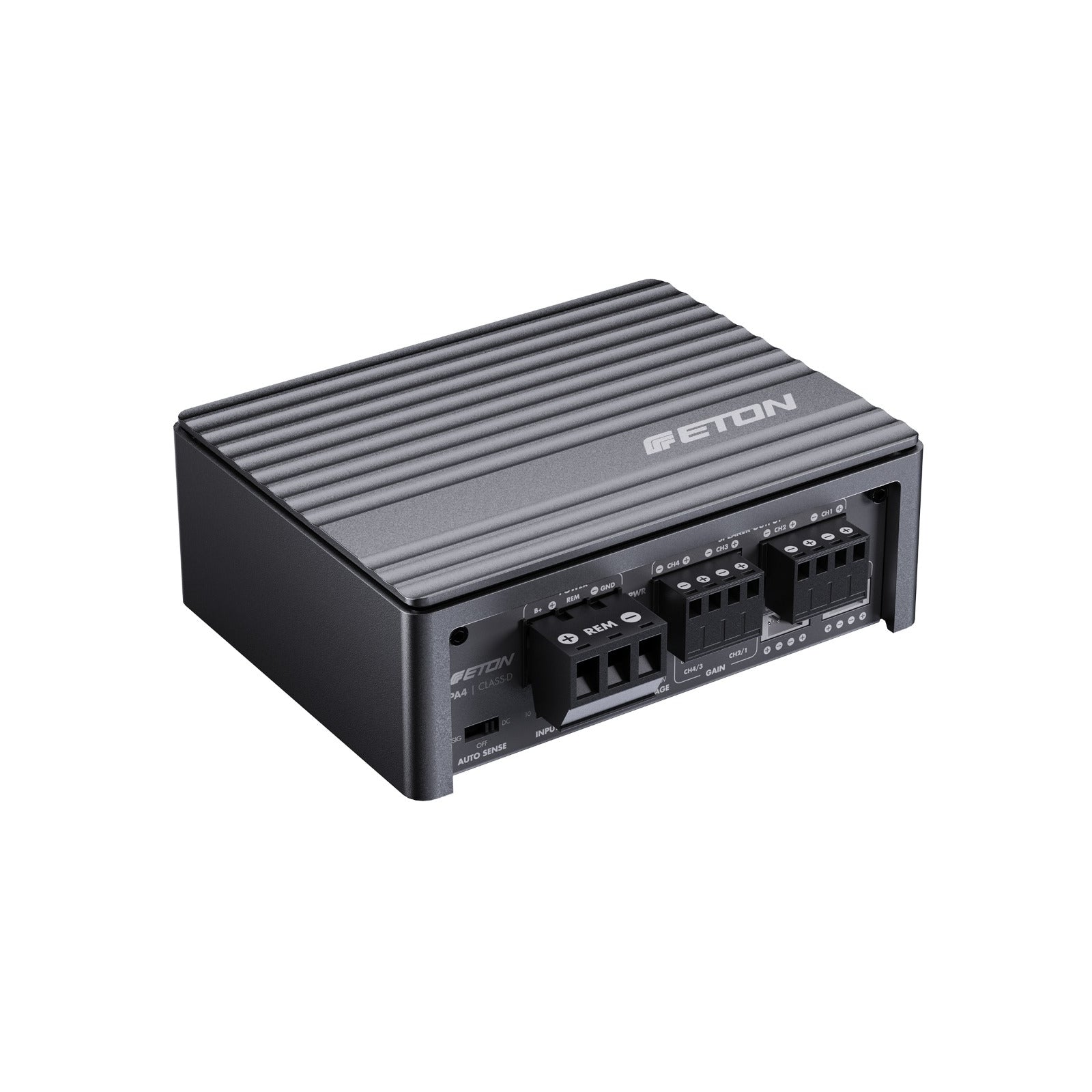

Eton PA 4 4-channel Class-D power amplifier

A compact, full-featured 4-channel amplifier with a small physical footprint.

Key features

Advanced Class-D technology for high efficiency and low heat output
Asymmetrical power distribution across channels
Bridgeable design for flexible speaker configurations
Active filters included as standard
Adjustable input signal impedance and voltage, compatible with modern factory head units

Build quality

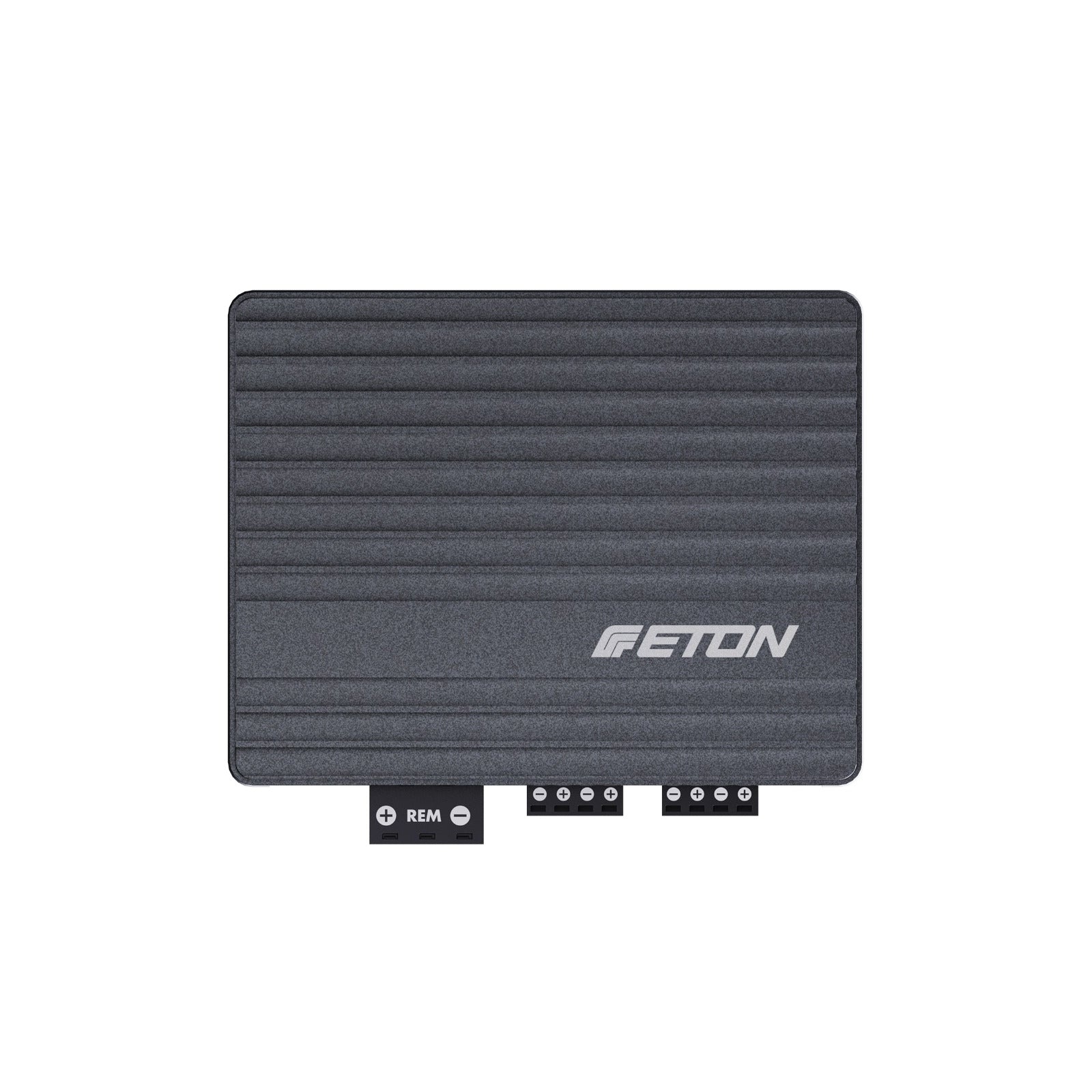

Die-cast aluminium housing in gunmetal finish

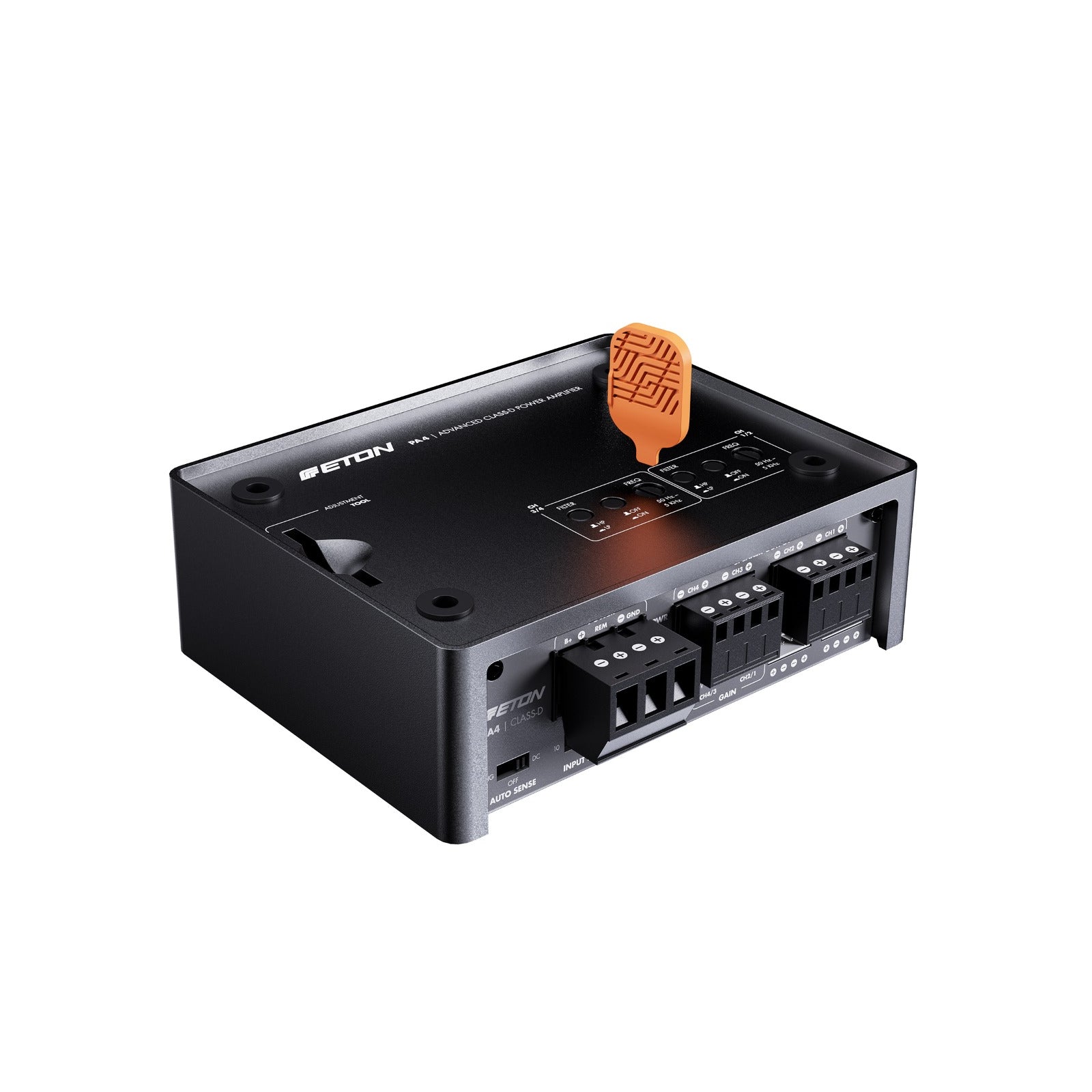

Removable cover with integrated adjustment tool
Variable mounting feet for flexible installation

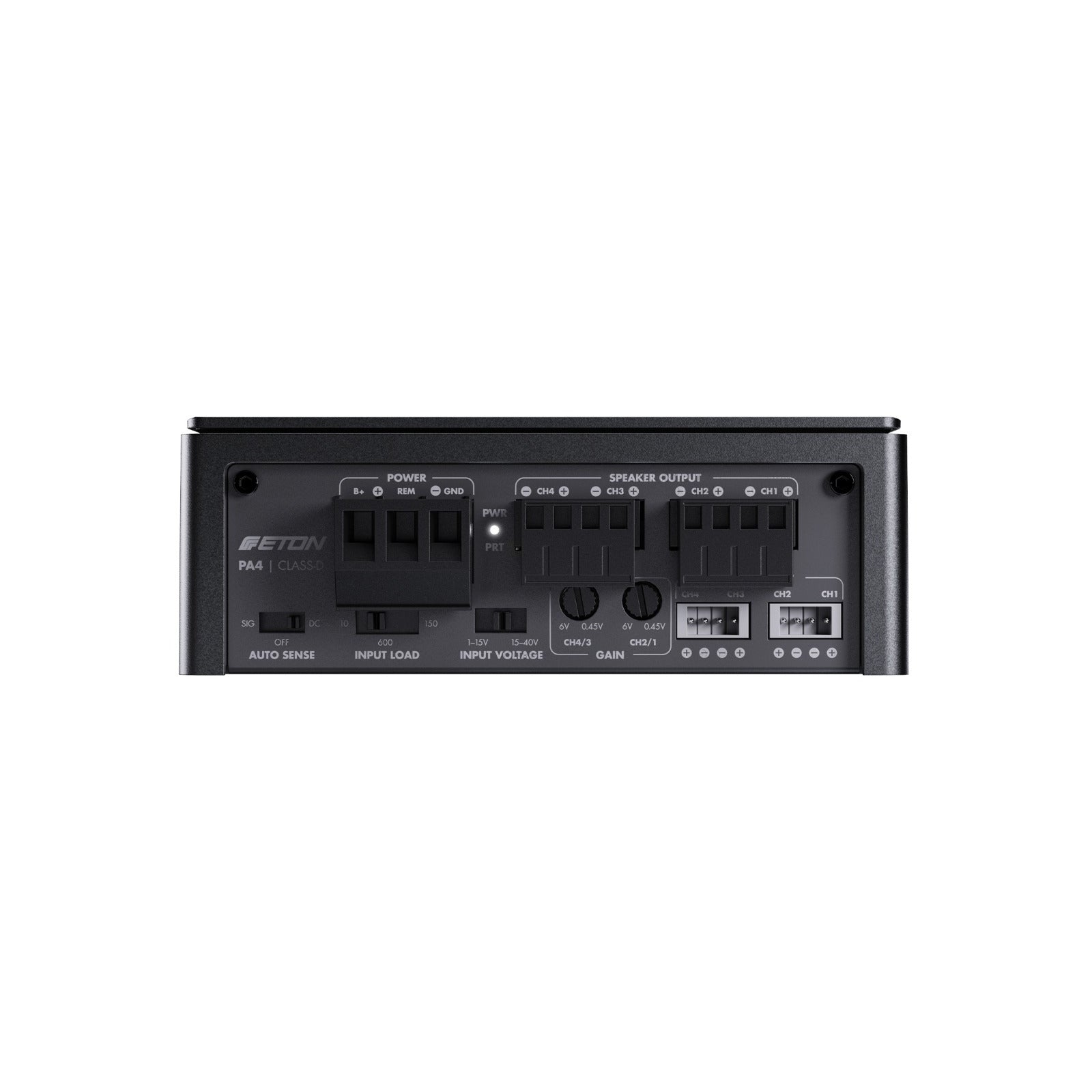

Detachable connection plugs for power and audio cables

Explore the full range in Eton.

Specification

Power at 4 Ω CH1/2	2 x 45 W (RMS)
(High-Power) CH3/4	2 x 80 W (RMS)
Power at 2 Ω CH1/2	not supported
CH3/4	2 x 140 W (RMS)
Power at 4 Ω bridged CH1/2	not supported
CH3/4	1 x 280 W (RMS)
Weight	0,68 kgDimensions (LxWxH) in mm 128 x 100 x 45 mm
More specs Model PA 4 Advanced Class-D power amplifier 4-channel with asymmetrical power management Signal-to-noise ratio 78 dB Damping factor @ 4 Ω >65 THD+N THD+N 0.01% @ 10 W 1 kHz HPF / Highpass filter 50 Hz – 5 kHz / 12 dB LPF / Lowpass filter 50 Hz – 5 kHz / 12 dB Highlevel inputs 4-channel with10 / 150 / 600 Ω 1 – 15 V / 15 – 40 V Lowlevel inputs 2-channel „bridged mode“ / 4-channell Gain / level adjustment CH 1/2 6 V - 0.45 V Gain / level adjustment CH 3/4 6 V - 0.45 V Auto-turn on detection SIG / DC Suitable for vehicles with start stop function yes / 8,5 V – 15,5 V Recommended fuse 30 A Recommended power cable min. 12 AWG fine stranded copper wire

What's Included

Eton PA 4 Amp
Hi Level Input

Product information

Eton

About the Eton PA 4

From our tech experts at CEN

A 4-channel amplifier from Eton, Class D, rated at 45w RMS.

Who it suits

Drivers whose speakers have outgrown the head unit. Eton is a German manufacturer with a long history in both home and car audio.

Our tech experts advise

Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Eton range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Eton

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Eton PA 2 Amp Class D 2 Channel Bridgeable Speaker Amplifier 2 x 140w RMS £259.99

In stock

Eton PA 1 Amp Monoblock Class D 1 Channel Subwoofer Amplifier up to 480w RMS £259.99

In stock

Eton RES12 Sub Spare Wheel 12 Inch Active Amplifier Subwoofer Enclosure 200w RMS - CEN

Eton RES12 Sub Spare Wheel 12 Inch Active Amplifier Subwoofer Enclosure 200w RMS £529.99

In stock

Eton UGFIAT FD16 U Speakers Plug & Play 6.5 Inch 2 Way Component for Ducato III - CEN

Eton UGFIAT FD16 U Speakers Plug & Play 6.5 Inch 2 Way Component for Ducato III £299.99

In stock

Eton USB10 AR Underseat Sub 10 Inch Active Amplifier Subwoofer Enclosure 150w - CEN

Eton USB10 AR Underseat Sub 10 Inch Active Amplifier Subwoofer Enclosure 150w £349.99

In stock

Eton USB8 AR Underseat Sub 8 Inch Active Amplifier Subwoofer Enclosure 100w RMS - CEN

Eton USB8 AR Underseat Sub 8 Inch Active Amplifier Subwoofer Enclosure 100w RMS £299.99

Low stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: How much power does the Eton PA 4 deliver?

A: Channels 1/2 deliver 2 x 45W RMS at 4 ohms. The high-power channels 3/4 deliver 2 x 80W RMS at 4 ohms, 2 x 140W RMS at 2 ohms, or 1 x 280W RMS bridged at 4 ohms. Channels 1/2 do not support 2 ohm or bridged operation.

Q: Can the Eton PA 4 power a subwoofer?

A: Channels 3/4 can be bridged to give 1 x 280W RMS at 4 ohms, which can drive a subwoofer while channels 1/2 run a pair of speakers.
