Eton PA 2 Amp Class D 2 Channel Bridgeable Speaker Amplifier 2 x 140w RMS
Couldn't Load Pickup availability
The Eton PA 2 is a compact 2-channel Class-D bridgeable speaker amplifier rated at 2 x 140W RMS at 2 ohms (2 x 85W at 4 ohms, or 285W bridged), part of Eton's PA amplifier range.
The PA amplifier range also includes the Eton PA 1 monoblock subwoofer amplifier and the Eton PA 4 4-channel amplifier.
Key specifications
- Type: 2-channel, bridgeable, Advanced Class-D
- Power: 2 x 85W RMS at 4 ohms, 2 x 140W at 2 ohms, 1 x 285W bridged at 4 ohms
- Filters: high pass and low pass, 25Hz to 250Hz, 12dB

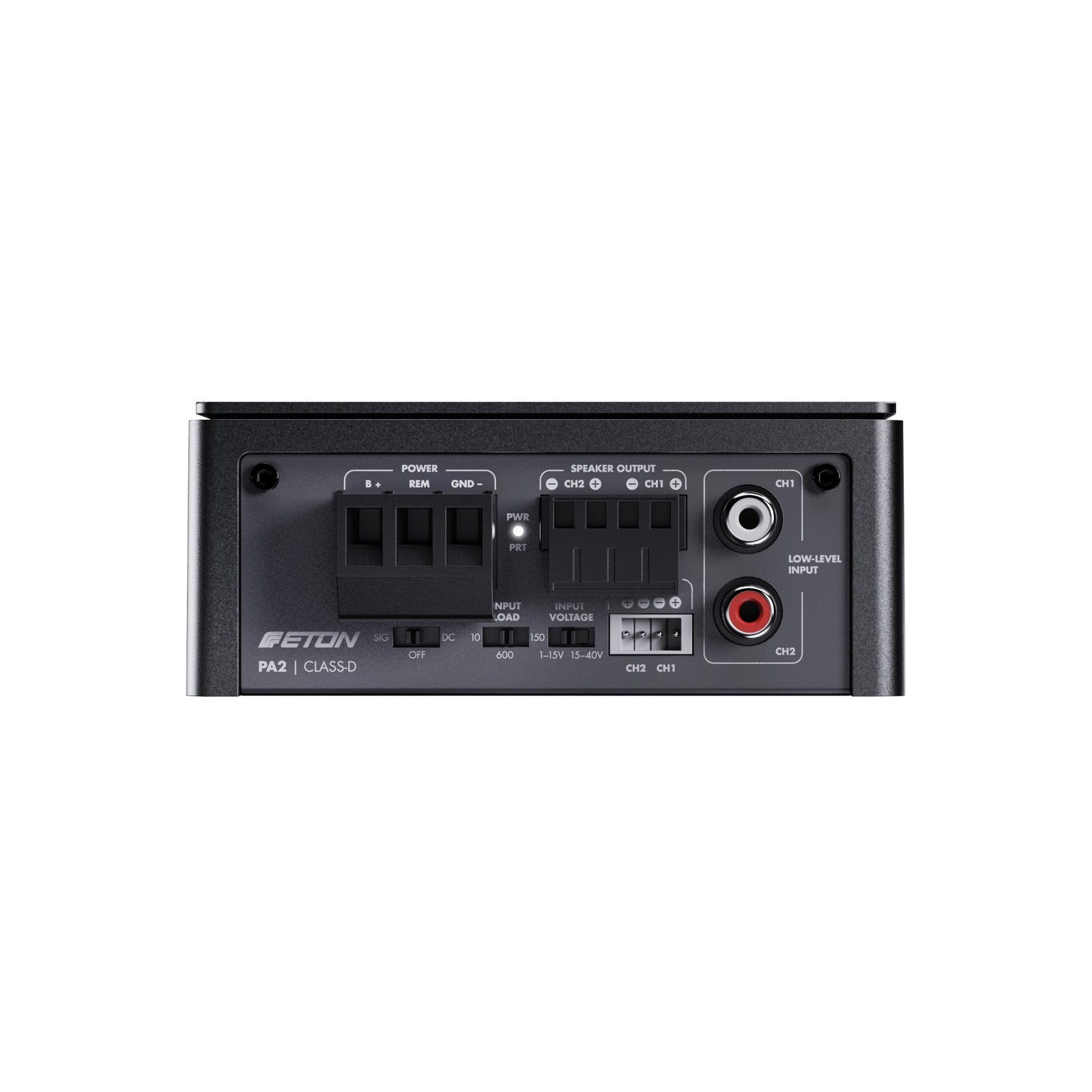

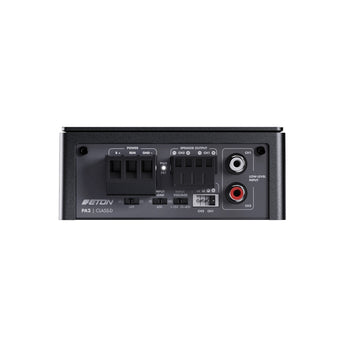

- Inputs: 2-channel high-level (10 / 150 / 600 ohm) and 2-channel RCA
- THD+N: 0.01% at 10W, 1kHz
- Start/stop compatible: yes, 8.5V to 15.5V
- Recommended fuse: 40A, min. 9 AWG power cable
- Dimensions (L x W x H): 110 x 85 x 45mm, 0.65kg
Eton PA 2 2-channel Class-D power amplifier
Advanced Class-D technology delivers high efficiency and strong output in a very compact footprint. Power output reaches 2 x 140W RMS at 2 ohms, with an ultra-low THD+N of 0.01% ensuring clean, accurate sound.
A full set of active filters (high pass and low pass), combined with both high-level and RCA inputs, makes the PA 2 a versatile all-rounder suited to factory head unit upgrades and discreet installs alike.

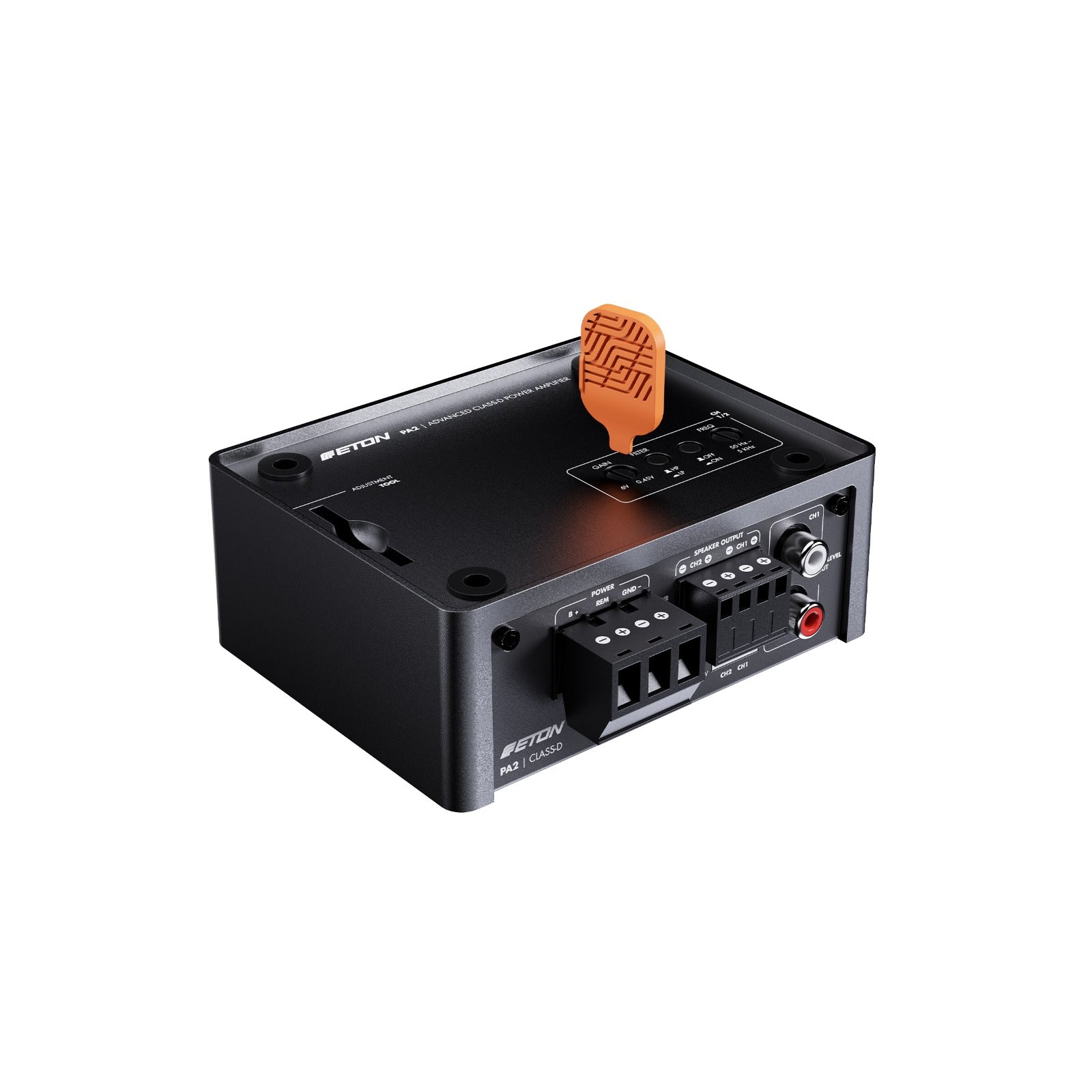

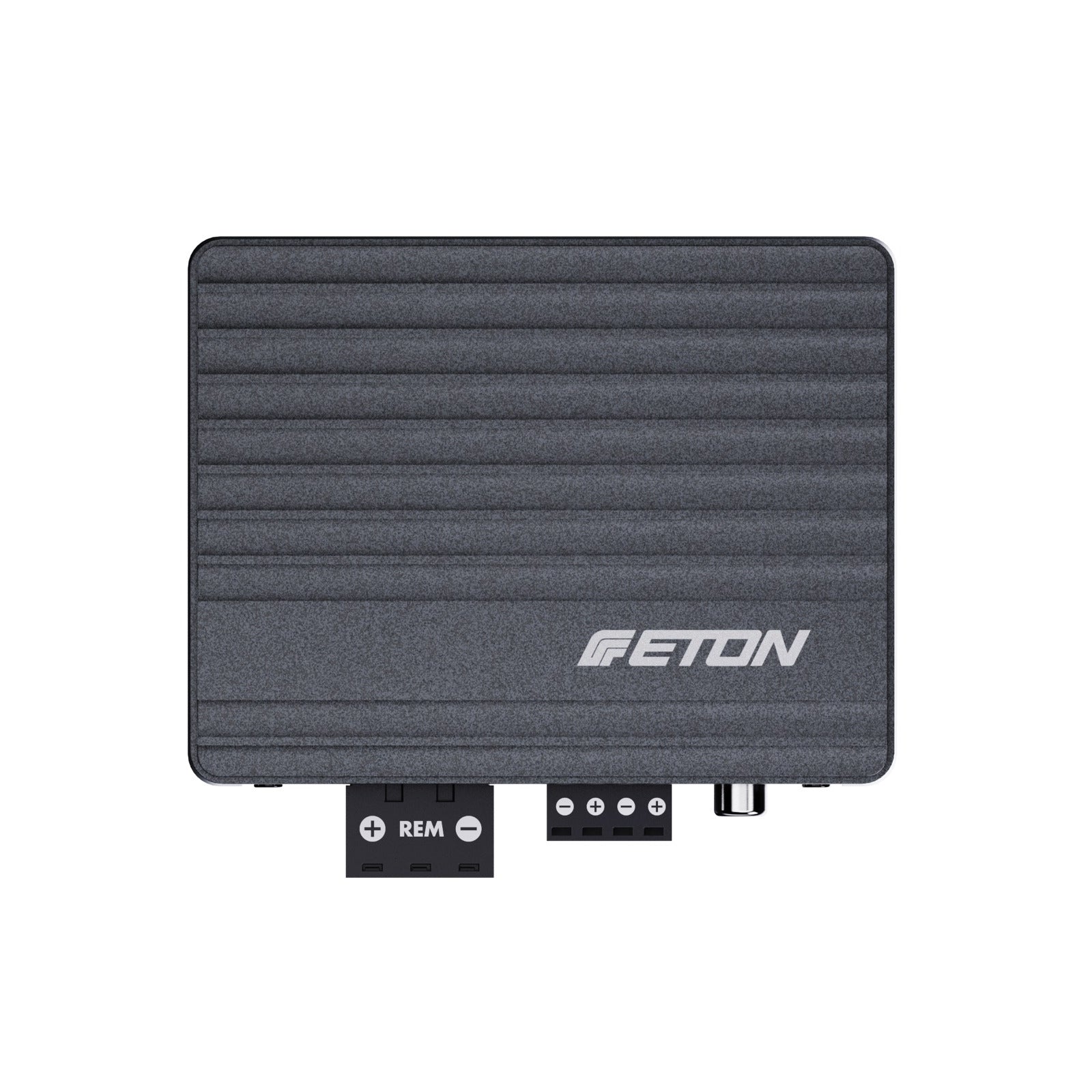

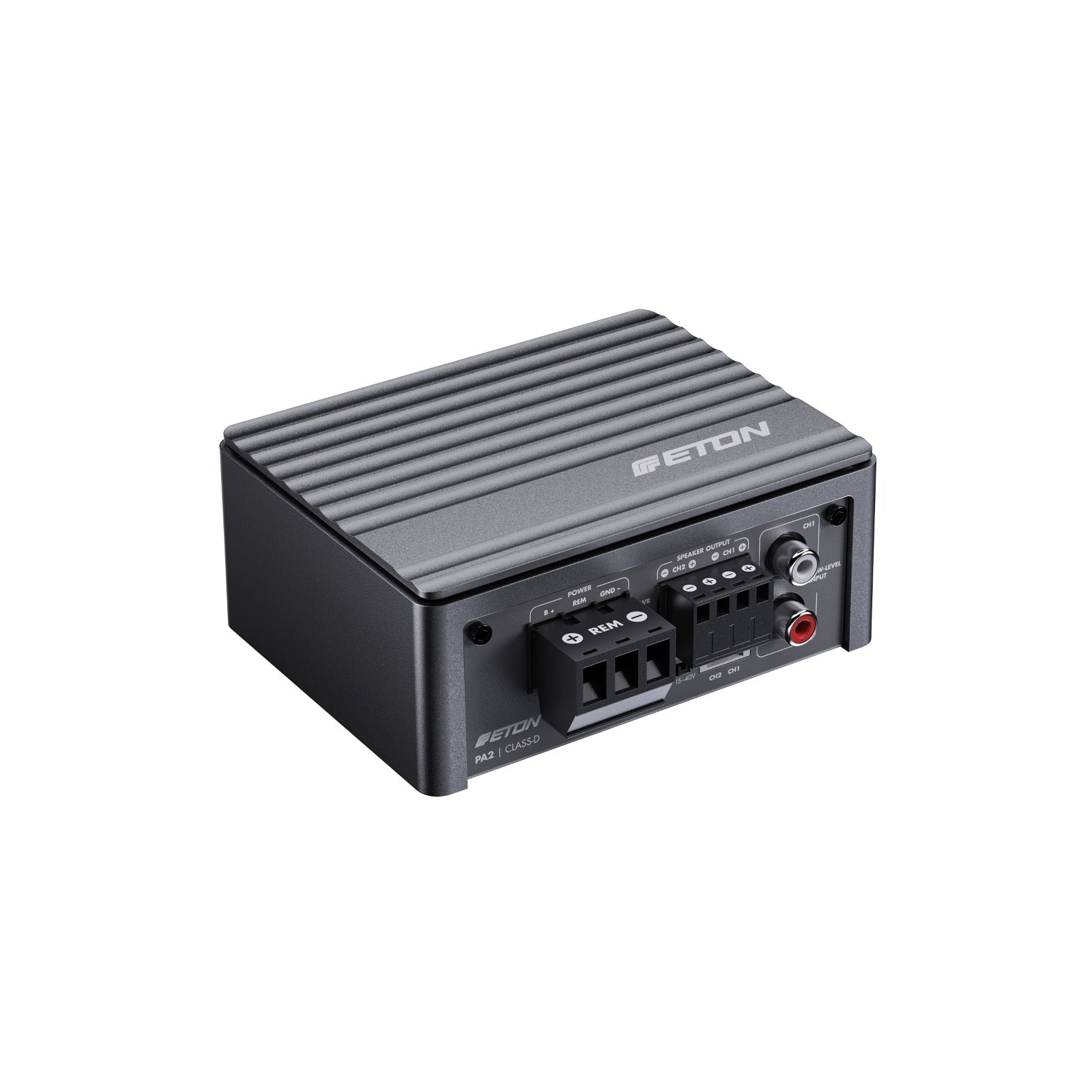

The die-cast aluminium housing has a gunmetal finish and features removable connector plugs, variable mounting feet, and an integrated adjustment tool. Engineered in Germany.
Explore the full range in Eton.
Specification
| Weight | 0,65 kgs |
|---|---|
| Dimensions | (L x W x H) in mm 110 x 85 x 45 mm |
More specs
| |
What's Included
- Eton PA 2 Amp
- Hi Level Input
Eton
About the Eton PA 2
From our tech experts at CEN
A 2-channel amplifier from Eton, Class D, rated at 140w RMS.
Who it suits
Drivers whose speakers have outgrown the head unit. Eton is a German manufacturer with a long history in both home and car audio.
Our tech experts advise
Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Eton range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Eton
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Eton
More options from the same range, in stock and ready to go
Eton PA 1 Amp Monoblock Class D 1 Channel Subwoofer Amplifier up to 480w RMS
£259.99
View product
Eton RES12 Sub Spare Wheel 12 Inch Active Amplifier Subwoofer Enclosure 200w RMS
£529.99
Eton USB10 AR Underseat Sub 10 Inch Active Amplifier Subwoofer Enclosure 150w
£349.99
Eton USB8 AR Underseat Sub 8 Inch Active Amplifier Subwoofer Enclosure 100w RMS
£299.99
Eton PA 4 Amp Class D 4 Channel Bridgeable Speaker Amplifier
£299.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the Eton PA 2 deliver?
A: It delivers 2 x 85W RMS at 4 ohms, 2 x 140W RMS at 2 ohms, or 1 x 285W RMS bridged at 4 ohms.
Q: Can the Eton PA 2 run from speaker-level outputs?
A: Yes. It has 2-channel high-level inputs with selectable 10, 150 or 600 ohm input impedance, plus RCA low-level inputs, and a high-level input lead is included.
