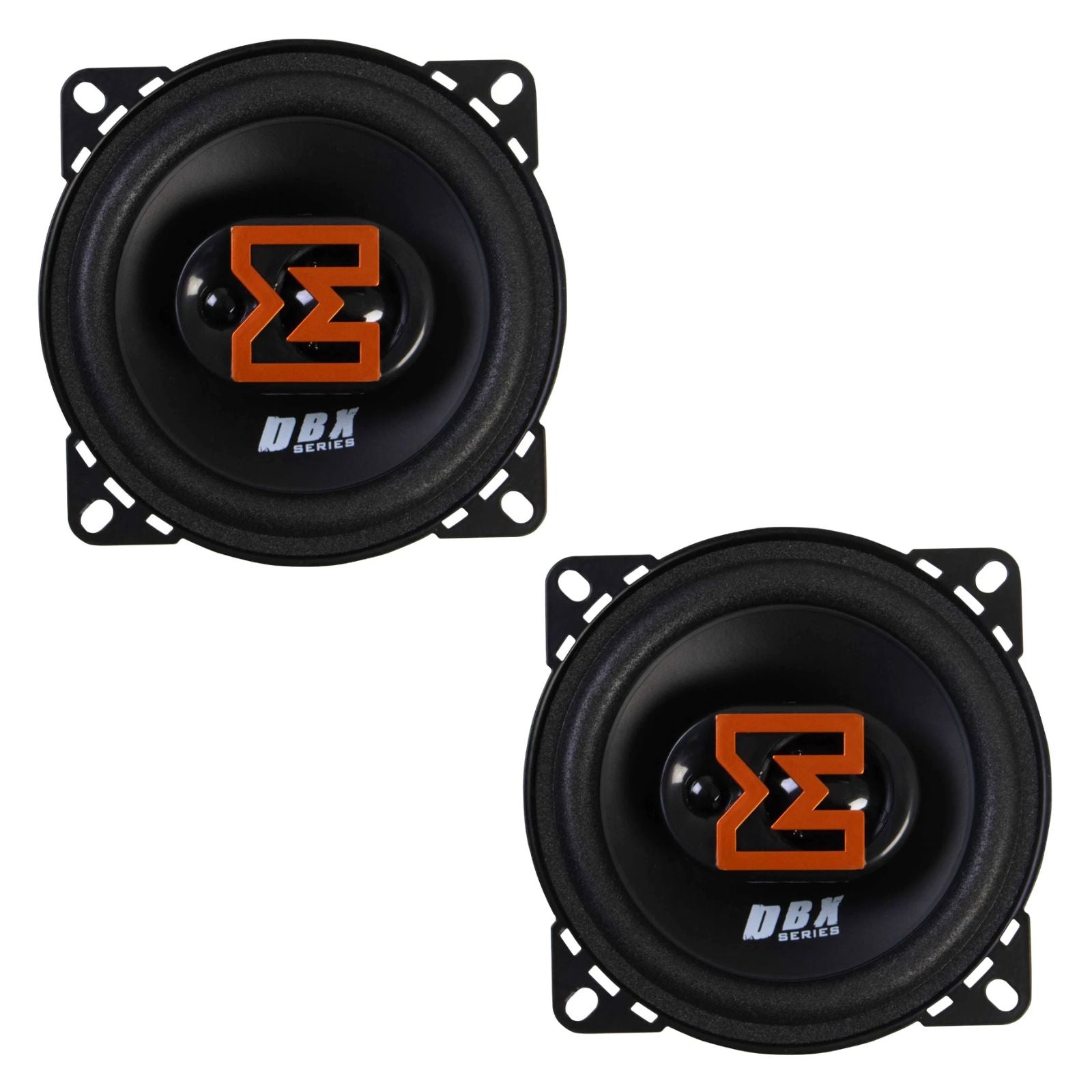

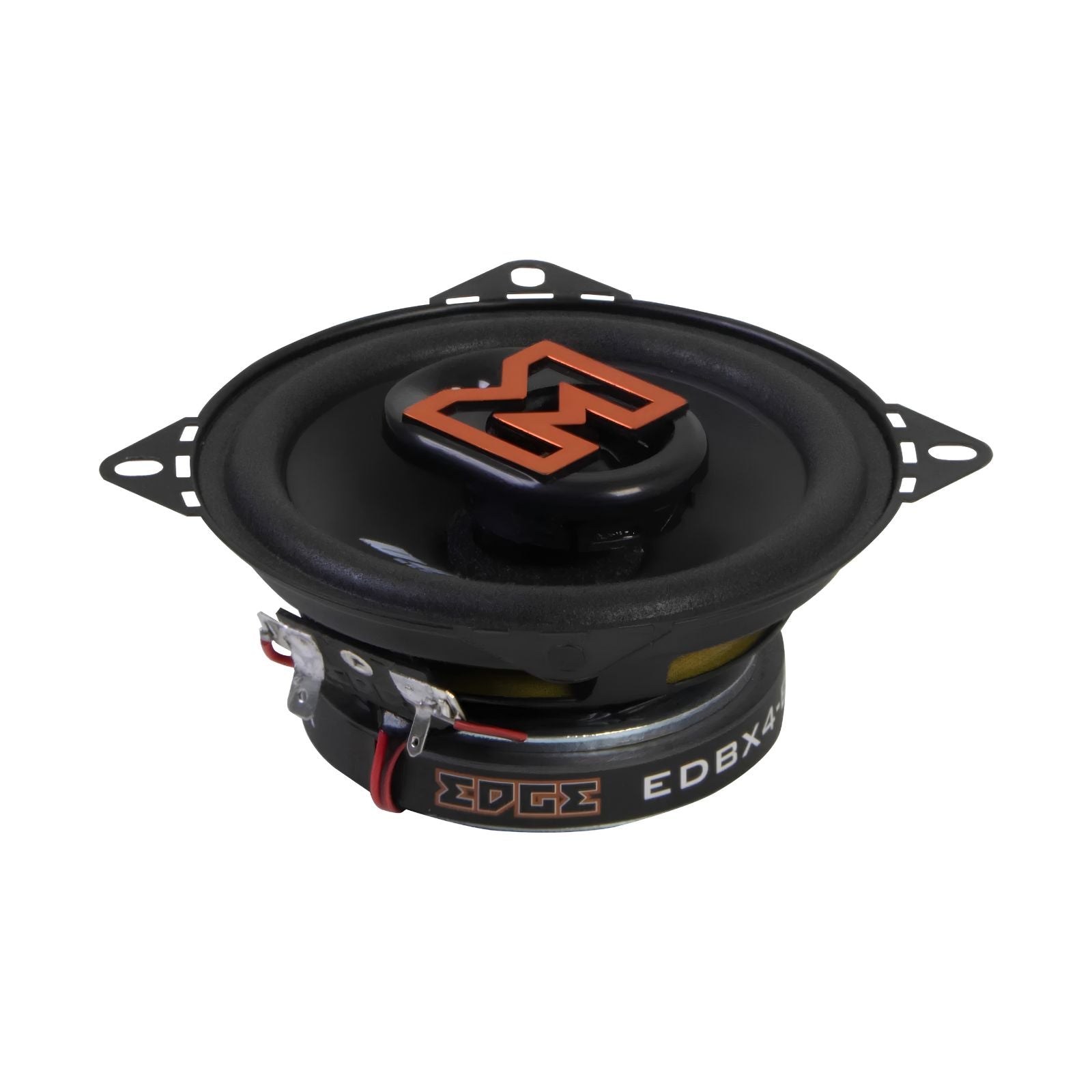

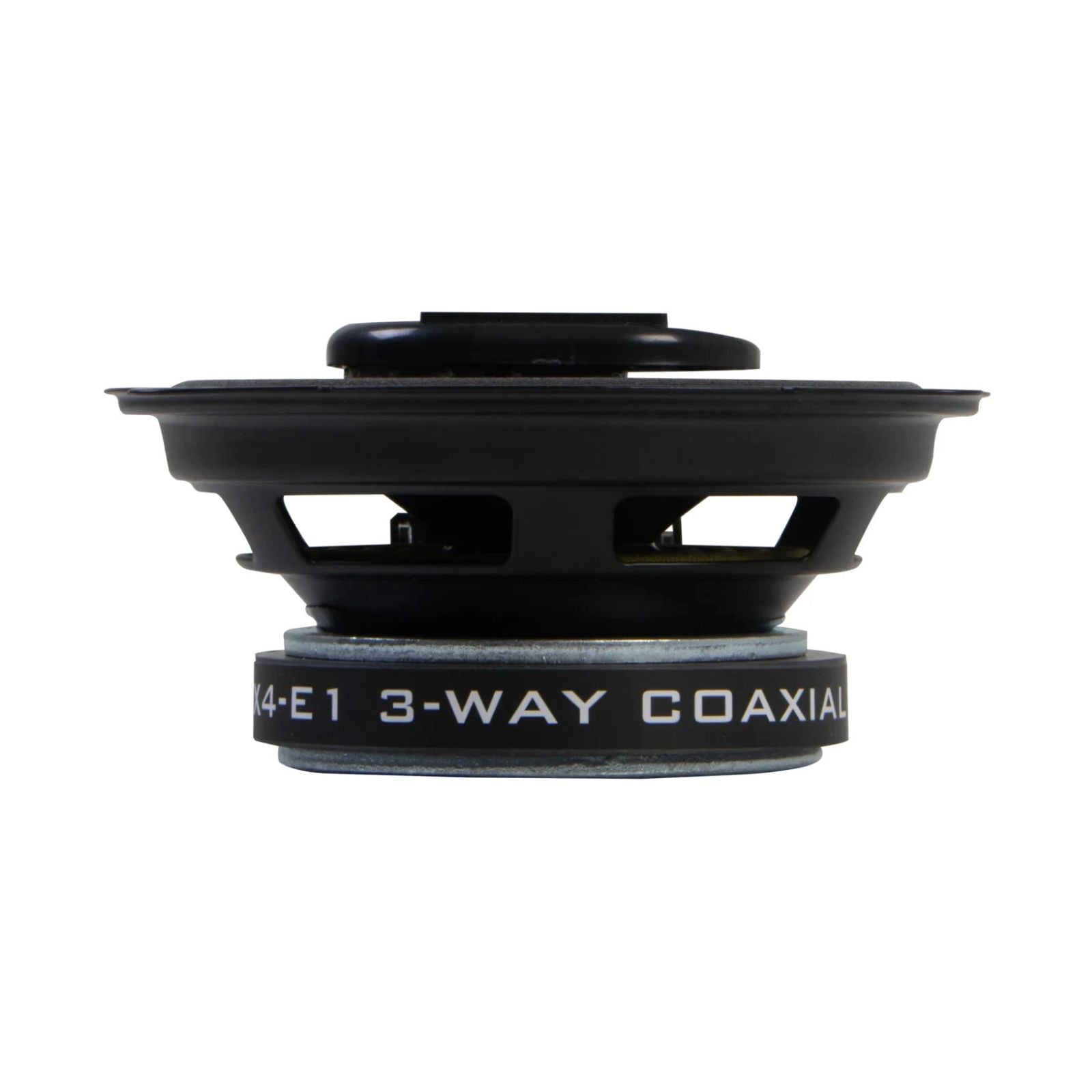

Edge DBX Series EDBX4-E1 3 Way Coaxial Speakers 4 Inch 60w RMS Pair
Couldn't Load Pickup availability
The Edge DBX Series EDBX4-E1 is a pair of 4 inch 3 way coaxial car speakers rated at 60W RMS (120W peak), part of Edge's DBX Series coaxial range.
This listing is the 4 inch. The DBX 3 way coaxial range is also available in 6.5 inch (90W RMS).
Key specifications
- Size: 4 inch
- Configuration: 3 way coaxial
- RMS power: 60W
- Peak power: 120W
- Frequency response: 100Hz – 20kHz
- Impedance: 4 ohms
- Mounting depth: 40mm
- Mounting diameter: 93mm
- Recommended amplifier: EDA100.4-E7
EDBX4-E1 DBX Series coaxial speakers
The DBX Series covers Edge's 3 way coaxial speaker range, available in 4, 5.25, 6.5 and 6x9 inch sizes.
The EDBX4-E1 uses a lightweight composite cone that moves quickly for accurate sound reproduction, paired with a PEI tweeter. PEI delivers sound quality close to silk with volume approaching metal, but without the harshness associated with metal tweeters.
A direct swap for factory speakers, the DBX Series coaxials offer a clear step up in sound quality and output without requiring significant modification.
Features
- 3 way coaxial configuration
- PEI tweeter element
- Composite woofer cone
- Spade terminals
- Grille included
- Multi-fit design suits most vehicles
Explore the full range in Edge DBX Series.
Specification
| Configuration | 3 way |
|---|---|
| Speaker Size | 4" (100mm) |
| RMS Power | 60 watts |
| Peak Power | 120 watts |
| Frequency Response | 100Hz - 20kHz |
| Impedance | 4 Ohms |
| Grille | Yes |
| Recommended Amplifier | EDA100.4-E7 |
| Mounting Depth | 1.6" (40mm) |
| Mounting Diameter | 3.7" (93mm) |
What's Included
- EDBX4-E1
Edge
About the Edge EDBX4-E1
From our tech experts at CEN
Edge speakers, 4 inch, handling 60w RMS.
Who it suits
Drivers replacing tired factory speakers who want more output for the money.
Our tech experts advise
Sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing

Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: How deep are the EDBX4-E1 speakers?
A: The mounting depth is 40mm. Check this against the depth available behind your door card or speaker location.
Q: Do the EDBX4-E1 speakers come with grilles?
A: Yes, grilles are included.
Q: Which amplifier does EDGE recommend for the EDBX4-E1?
A: EDGE recommends the EDA100.4-E7. Each speaker handles 60W RMS at 4 ohms.
