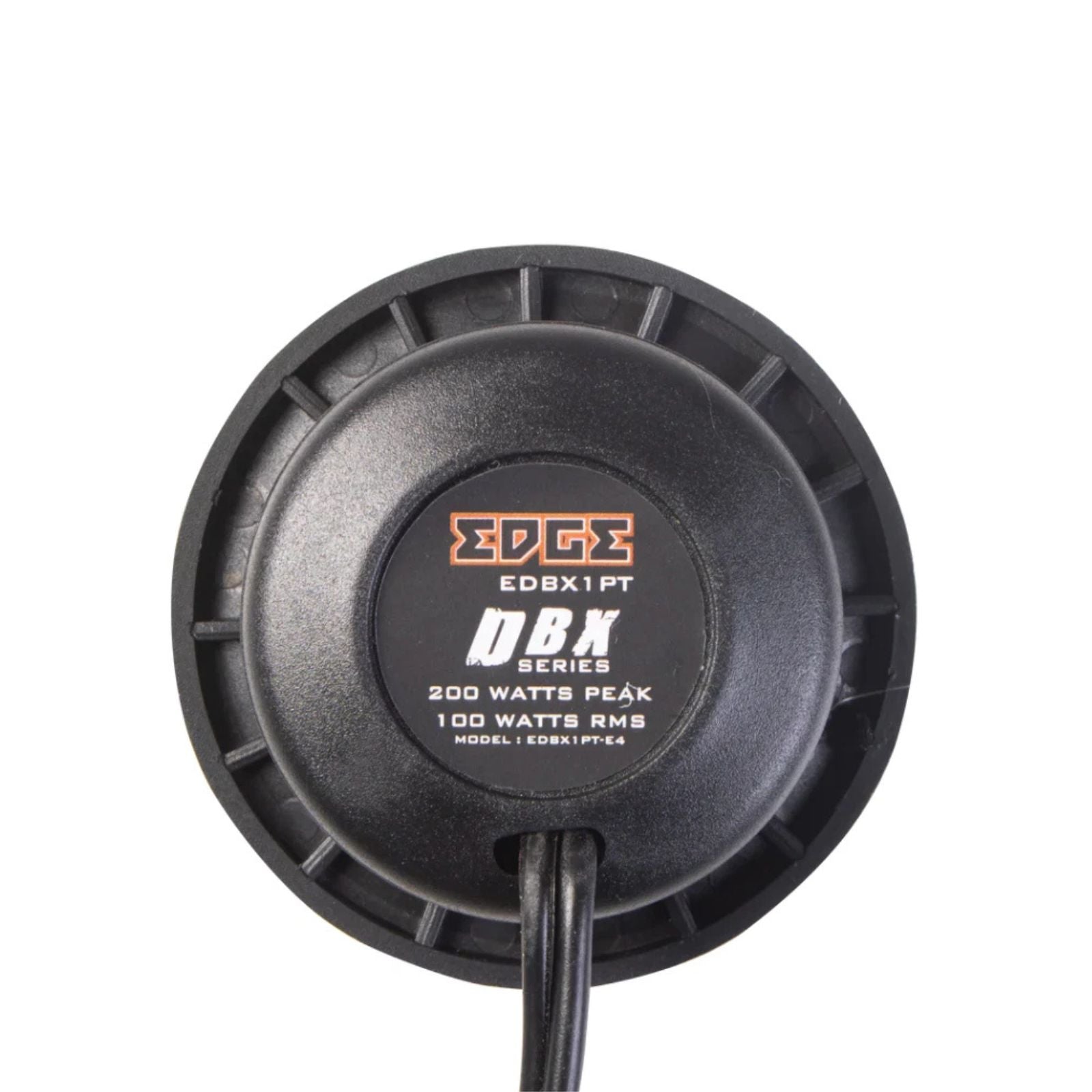

Edge DBX Series EDBX1PT-E4 High Performance Tweeters 2 Inch 100w RMS Pair
Couldn't Load Pickup availability
EDBX1PT-E4
2 inch 200 watts 98dB High Performance Tweeters - Pair
Redesigned and highly refined the EDGE DBX series has a new entry around.The EDGE DBX tweeters offer an affordable but performance-orientated solutionto upgrading the tweeters in your vehicle.Features
- High-performance 1-way tweeters designed for upgrade applications
- Slim, versatile design suitable for factory or aftermarket locations
- Hybrid piezoelectric crystal driver combined with a PEI dome
- No external crossover required for easy installation

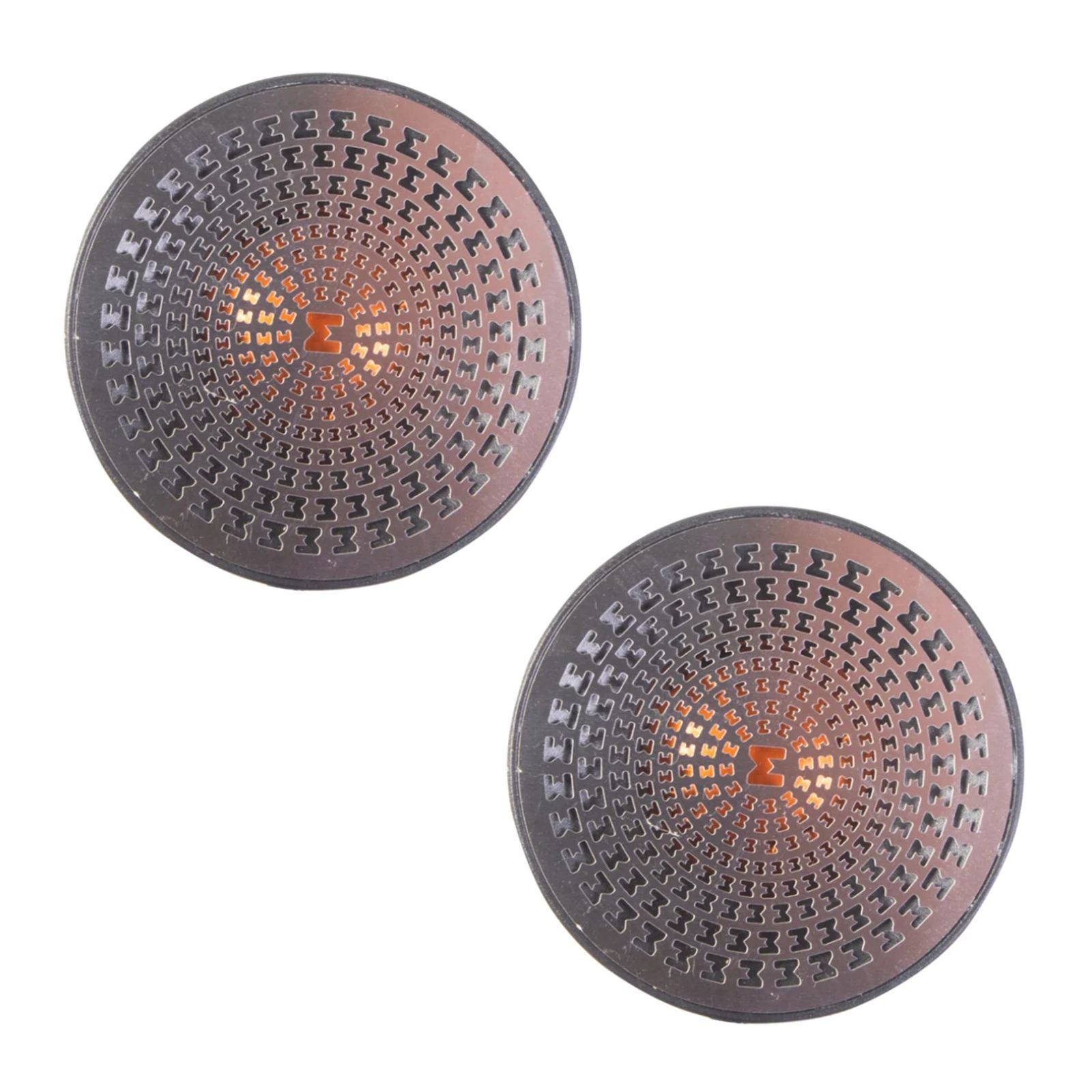

- Custom acid-etched steel mesh grille for exposed mounting points
- Durable construction for long-lasting performance
These versatile tweeters offer a cost-effective solution for enhancing your vehicle's audio system. With their slim design and multiple mounting options, they can be easily integrated into factory locations or aftermarket setups. When installed in exposed locations such as a door card, the tweeters feature a new, custom acid-etched steel mesh grille for protection.
The EDBX1PT tweeters are a perfect blend of performance and affordability. Featuring a unique Hybrid piezoelectric crystal driver and PEI dome, these tweeters eliminate the need for a crossover, making installation a breeze. Their sleek design and durable construction ensure long-lasting performance and a powerful yet refined sound experience.
With a slim design and multiple included mounting brackets these tweeters are made to work in factory tweeter locations or when used in aftermarket settings When installed in exposed locations such as a door card, the tweeters feature anew, custom acid-etched steel mesh grille for protection.

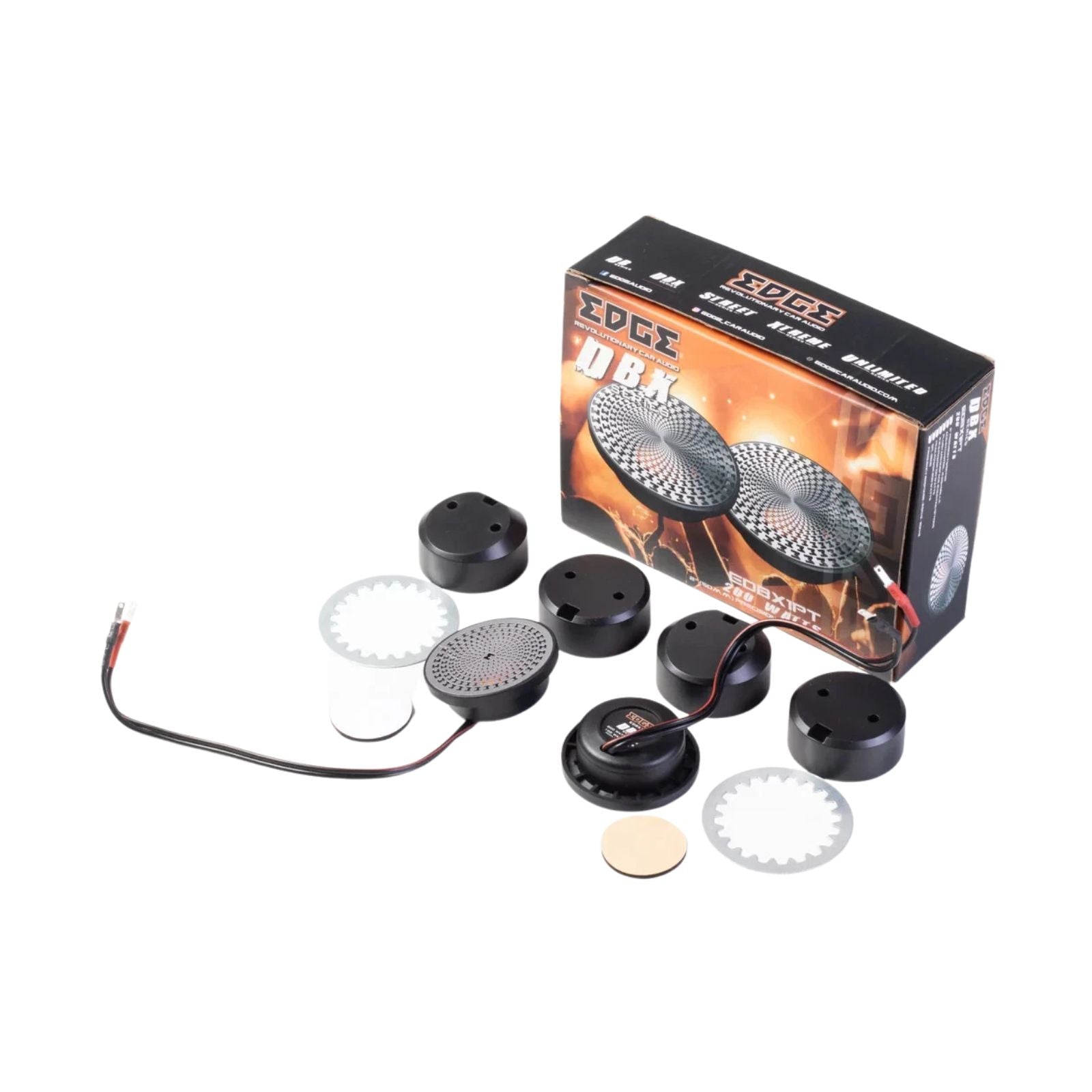

BRAND NEW TECHNOLOGY - Featuring our new egineered PEI tweeter diaphragm for crisp clear high frequency sound reproduction.PREMIUM AESTHETICS - Premium aesthetics with custom tooled EDGE steel mesh grill, orange accent tweeter diaphragm and stealthy all black tweeter housing. FULLY EQUIPPED - The tweeter comes in a package with accessories needed for installation including an in-line passive crossover filter, alongside various mounting brackets and options. BEST VALUE - The EDBX1PT is made to impress with its respectable power handling and crystal clear sound with efficient and dynamic performance.
Explore the full range in Tweeters.
Specification
| Configuration | 1-Way |
|---|---|
| Speaker Size | 2″ (50mm) |
| RMS Power | 100W |
| Peak Power | 200W |
| Sensitivity | 98dB |
| Frequency Response | 3.5kHz – 20kHz |
| Impedance | 4Ω |
| Mounting Depth | 0.6″ (15mm) |
| Mounting Diameter | 1.5″ (39mm) |
What's Included
- EDBX1PT-E4
Edge
About the Edge EDBX1PT-E4
From our tech experts at CEN
Edge tweeters, 2 inch, handling 100w RMS.
Who it suits
Drivers building a front stage where the tweeter needs to sit higher than the door.
Our tech experts advise
Placement and aiming change the result more than the tweeter does, and they must be crossed over so they are never asked to play too low. get in touch. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
