Brake Light Reversing Camera for Renault Master Backup Rear Parking Camera
Couldn't Load Pickup availability

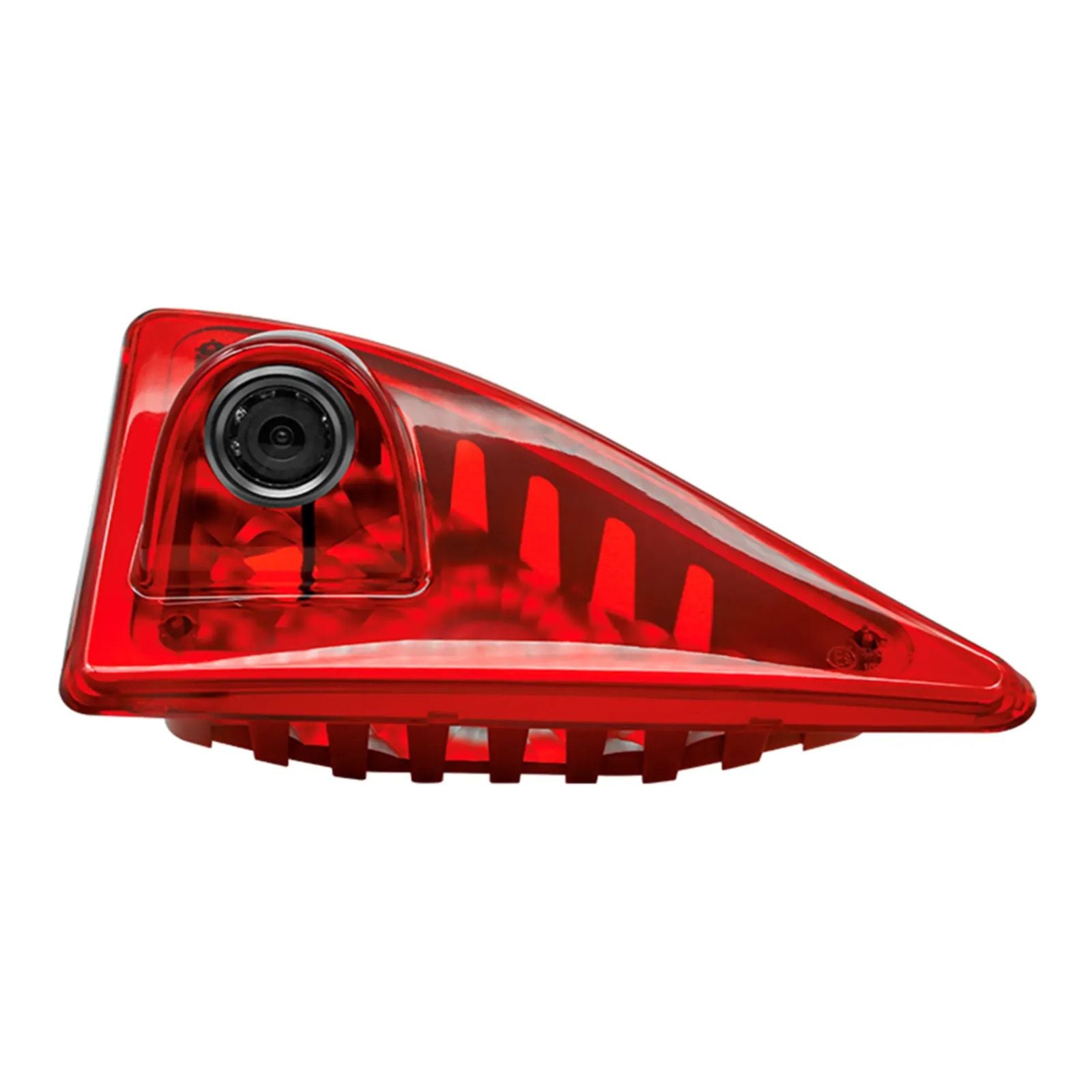

The UP-CAM-RT1 is an OEM-style brake light reversing camera for the Renault Master, Nissan NV400 and Opel Movano (2010 onwards), from CEN. It replaces the original high-level brake light housing and supports CVBS, AHD 720P and AHD 1080P video output with IP68 weatherproofing.
For the new Renault Master from 2024, see the Renault Master 2024+ brake light camera (UP-CAM-RT3).
Key specifications
- Model: UP-CAM-RT1
- Image sensor: 1/2.7 inch HD CMOS
- Video output: CVBS / AHD 720P / AHD 1080P
- Max. resolution: 1920 x 1080 (AHD 1080P)
- Waterproof rating: IP68
- Night vision: up to 30 ft (approx. 9 m), 0 Lux with IR LEDs
- Operating voltage: 6V to 18V (12V standard)
- Guide lines: on/off selectable
Vehicle compatibility
Renault Master / Nissan NV400 / Opel Movano (2010 onwards).
Overview
The UP-CAM-RT1 replaces the original high-level brake light housing on compatible vans, giving a clear rear view while keeping the factory appearance. It helps reduce blind spots when reversing and manoeuvring, and is compatible with a wide range of OEM and aftermarket display systems (model dependent).
Key features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans and commercial vehicles
- Weatherproof IP68 construction for all-weather reliability
- Compatible with selected OEM and aftermarket monitors
- Easy, vehicle-specific installation (model dependent)
- Perfect for safer reversing and parking
Camera features
- 1/2.7 inch high-performance image sensor
- Supports CVBS, AHD 720P and AHD 1080P video output
- High-resolution output up to 1920 x 1080
- Selectable mirror/non-mirror image mode
- Switchable parking guidelines
- Selectable image flip function
- 0 Lux operation with integrated high-brightness IR LEDs
- Night vision range of up to 30 ft (9 m)
- IP68-rated waterproof construction
- Wide 6V to 18V operating voltage range
- Rugged flame-retardant PC housing designed for demanding automotive environments
Explore the full range in Reversing Cameras.
Specification
| Image Sensor | 1/2.7" HD CMOS Image Sensor |
|---|---|
| Effective Pixels | CVBS: 1920 × 530 / AHD 1080P: 1920 × 1080 / AHD 720P: 1280 × 720 |
| Resolution | 1000–2000 TVL |
| TV System | NTSC / PAL |
| Video Output | CVBS / AHD |
| Viewing Angle | Customisable |
| Image Modes | Mirror / Non-Mirror |
| Guide Lines | On / Off Selectable |
| Image Flip | Flip / No Flip Selectable |
| Minimum Illumination | 0 Lux (LED On) |
| Infrared LEDs | High-Brightness IR LEDs |
| Night Vision Range | Up to 30 ft (approx. 9 m) |
| Waterproof Rating | IP68 |
| Current Consumption | 150 mA |
| Power Supply | 12V Standard (Compatible with 6V–18V DC) |
| Connector | 4-Pin Aviation Female (Optional AV + DC or BMW Connector) |
| Operating Temperature | -30°C to +75°C (Max. 95% RH) |
| Storage | Temperature -40°C to +85°C (Max. 95% RH) |
| Housing Material | High-performance PC plastic with high and low temperature resistance and flame-retardant properties |
What's Included
- UP-CAM-RT1
CEN
About the CEN UP-CAM-RT1
From our tech experts at CEN
A brake light reversing camera, replacing the factory brake light housing so the camera sits where the vehicle already has a fitting, supplied by CEN.
Who it suits
Van owners, particularly Transit and Transporter drivers, where there is no tailgate glass to mount a camera on and drilling the bodywork is not wanted. It looks factory because it uses a factory aperture.
Our tech experts advise
The camera is the simple part; running the cable the length of the vehicle and triggering it from the reverse light is the work, and on a van it wants doing properly so it stays weatherproof. Check it will display on your screen before ordering — get in touch. See car stereo installation.
Explore the full CEN range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all CEN
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
CEN News & Guides
The latest CEN product news, launches and guides from the CEN team in Nottingham.
New at CEN: Anker SOLIX S2000 — 2kWh of Off-Grid Power Built to Last 15 Years
The Anker SOLIX S2000 has arrived at CEN: 2kWh of LFP capacity rated for 10,000 charge cycles, recharged six different...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
New at CEN: Option Audio Drive-10Flat — Golf Mk8 Bass, Zero Boot Space Lost
If you drive a VW Golf Mk8 and want real bass without sacrificing the boot, Option Audio built the answer:...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Reversing Cameras
More options from the same range, in stock and ready to go
Save 10% Popular Pioneer ND-BC9 Rear View Reversing Camera Universal SPH AVH DMH AVIC Car Stereos RRP£99.00£89.00 / Save 10%In stock
Save 4% Alpine HCE-C2100RD Multi View Rear Camera HDR Direct Connection for ILX & Halo RRP£279.99£269.99 / Save 4%In stock
Save 0% Best Seller Mini Reversing Camera CMOS Push Fit Car Reverse Backup Rear Parking Camera RRP£99.99£99.95 / Save 0%In stock
Save 23% Kenwood CMOS-740HD Front or Rear View Reversing Camera for HD Car Stereo Screens RRP£299.99£229.99 / Save 23%In stock
Save 20% Best Seller Kenwood CMOS-230 Rear View Reversing Camera for DMX DDX DNX Car Stereos RRP£99.99£79.99 / Save 20%In stock
Save 10% Kenwood CMOS-320 Multi View Reversing Camera Universal DMX DDX DNX Car Stereos RRP£199.99£179.99 / Save 10%In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which vehicles does the UP-CAM-RT1 fit?
A: It is designed for the Renault Master, Nissan NV400 and Opel Movano (2010 onwards). Listed fitment: Renault Master / Nissan NV400 / Opel Movano (2010 onwards). Check your vehicle's rear door type and year before ordering, or contact CEN with your registration.
Q: Can I switch off the parking guidelines or mirror the image?
A: Yes. The parking guidelines can be switched on or off, and the image can be set to mirror or non-mirror and flipped if needed.
Q: What video outputs does the UP-CAM-RT1 support?
A: It supports CVBS, AHD 720P and AHD 1080P video output, with a resolution of up to 1920 x 1080 in AHD 1080P mode. Your screen must accept the chosen format.
Q: Does this brake light camera have night vision?
A: Yes. It has integrated high-brightness IR LEDs for 0 Lux operation and a night vision range of up to 30 ft (approx. 9 m).
