Brake Light Reversing Camera for Peugeot Expert Backup Rear Parking Camera
Couldn't Load Pickup availability

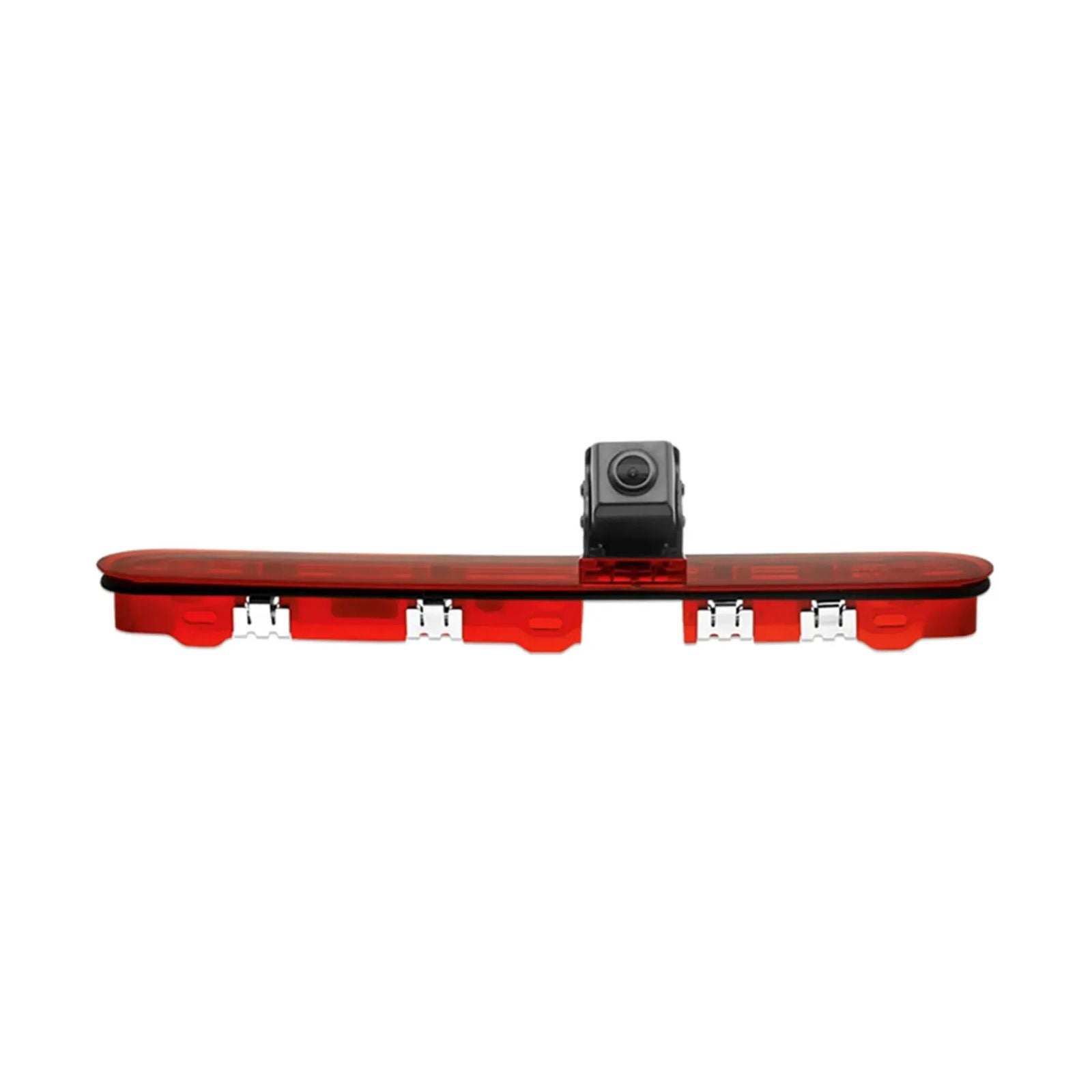

The UP-CAM-TY1 is an OEM-style brake light reversing camera for the Peugeot Expert, Citroen Jumpy and Toyota ProAce (2016 onwards). It replaces the original high-level brake light housing and supports CVBS, AHD 720P and AHD 1080P video output, with a maximum resolution of 1920 x 1080. It is part of CEN's vehicle-specific reversing camera range.
Key specifications
- Model: UP-CAM-TY1
- Image sensor: 1/2.7 inch HD CMOS
- Video output: CVBS / AHD 720P / AHD 1080P
- Max. resolution: 1920 x 1080 (AHD 1080P)
- Waterproof rating: IP68
- Operating voltage: 6V to 18V
- Guide lines: on/off selectable
- Current consumption: 150 mA
Vehicle compatibility
Peugeot Expert / Traveller, Citroen Jumpy / SpaceTourer and Toyota ProAce (2016 to current).
Overview
Designed to replace the original high-level brake light housing, the UP-CAM-TY1 provides a clear rear view while keeping the factory appearance of your van or camper. It reduces blind spots to make reversing and parking safer and easier. The IP68-rated, flame-retardant PC housing is built for reliable all-weather use and is compatible with a wide range of OEM and aftermarket display systems (model dependent).
Key features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans and commercial vehicles
- Weatherproof IP68 construction for all-weather reliability
- Compatible with selected OEM and aftermarket monitors
- Easy, vehicle-specific installation (model dependent)
Camera features
- 1/2.7 inch high-performance image sensor
- Supports CVBS, AHD 720P and AHD 1080P video output
- High-resolution output up to 1920 x 1080
- Selectable mirror/non-mirror image mode
- Switchable parking guidelines
- Selectable image flip function
- IP68-rated waterproof construction
- Wide 6V to 18V operating voltage range
- Rugged flame-retardant PC housing designed for demanding automotive environments
Explore the full range in Reversing Cameras.
Specification
| Image Sensor | 1/2.7" HD CMOS Image Sensor |
|---|---|
| Effective Pixels | CVBS: 1920 × 530 / AHD 1080P: 1920 × 1080 / AHD 720P: 1280 × 720 |
| Resolution | 1000–2000 TVL |
| TV System | NTSC / PAL |
| Video Output | CVBS / AHD |
| Viewing Angle | Customisable |
| Image Modes | Mirror / Non-Mirror |
| Guide Lines | On / Off Selectable |
| Image Flip | Flip / No Flip Selectable |
| Waterproof Rating | IP68 |
| Current Consumption | 150 mA |
What's Included
- UP-CAM-TY1
CEN
About the CEN UP-CAM-TY1
From our tech experts at CEN
A brake light reversing camera, replacing the factory brake light housing so the camera sits where the vehicle already has a fitting, supplied by CEN.
Who it suits
Van owners, particularly Transit and Transporter drivers, where there is no tailgate glass to mount a camera on and drilling the bodywork is not wanted. It looks factory because it uses a factory aperture.
Our tech experts advise
The camera is the simple part; running the cable the length of the vehicle and triggering it from the reverse light is the work, and on a van it wants doing properly so it stays weatherproof. Check it will display on your screen before ordering — get in touch. See car stereo installation.
Explore the full CEN range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all CEN
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
CEN News & Guides
The latest CEN product news, launches and guides from the CEN team in Nottingham.
New at CEN: Anker SOLIX S2000 — 2kWh of Off-Grid Power Built to Last 15 Years
The Anker SOLIX S2000 has arrived at CEN: 2kWh of LFP capacity rated for 10,000 charge cycles, recharged six different...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
New at CEN: Option Audio Drive-10Flat — Golf Mk8 Bass, Zero Boot Space Lost
If you drive a VW Golf Mk8 and want real bass without sacrificing the boot, Option Audio built the answer:...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Reversing Cameras
More options from the same range, in stock and ready to go
Save 10% Popular Pioneer ND-BC9 Rear View Reversing Camera Universal SPH AVH DMH AVIC Car Stereos RRP£99.00£89.00 / Save 10%In stock
Save 4% Alpine HCE-C2100RD Multi View Rear Camera HDR Direct Connection for ILX & Halo RRP£279.99£269.99 / Save 4%In stock
Save 0% Best Seller Mini Reversing Camera CMOS Push Fit Car Reverse Backup Rear Parking Camera RRP£99.99£99.95 / Save 0%In stock
Save 23% Kenwood CMOS-740HD Front or Rear View Reversing Camera for HD Car Stereo Screens RRP£299.99£229.99 / Save 23%In stock
Save 20% Best Seller Kenwood CMOS-230 Rear View Reversing Camera for DMX DDX DNX Car Stereos RRP£99.99£79.99 / Save 20%In stock
Save 10% Kenwood CMOS-320 Multi View Reversing Camera Universal DMX DDX DNX Car Stereos RRP£199.99£179.99 / Save 10%In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which vehicles does the UP-CAM-TY1 fit?
A: It is designed for the Peugeot Expert, Citroen Jumpy and Toyota ProAce (2016 onwards). Listed fitment: Peugeot Expert / Traveller, Citroen Jumpy / SpaceTourer and Toyota ProAce (2016 to current). Check your vehicle's rear door type and year before ordering, or contact CEN with your registration.
Q: Can I switch off the parking guidelines or mirror the image?
A: Yes. The parking guidelines can be switched on or off, and the image can be set to mirror or non-mirror and flipped if needed.
Q: What video outputs does the UP-CAM-TY1 support?
A: It supports CVBS, AHD 720P and AHD 1080P video output, with a resolution of up to 1920 x 1080 in AHD 1080P mode. Your screen must accept the chosen format.
