Brake Light Reversing Camera for Ford Transit Custom Backup Rear Parking Camera
Couldn't Load Pickup availability

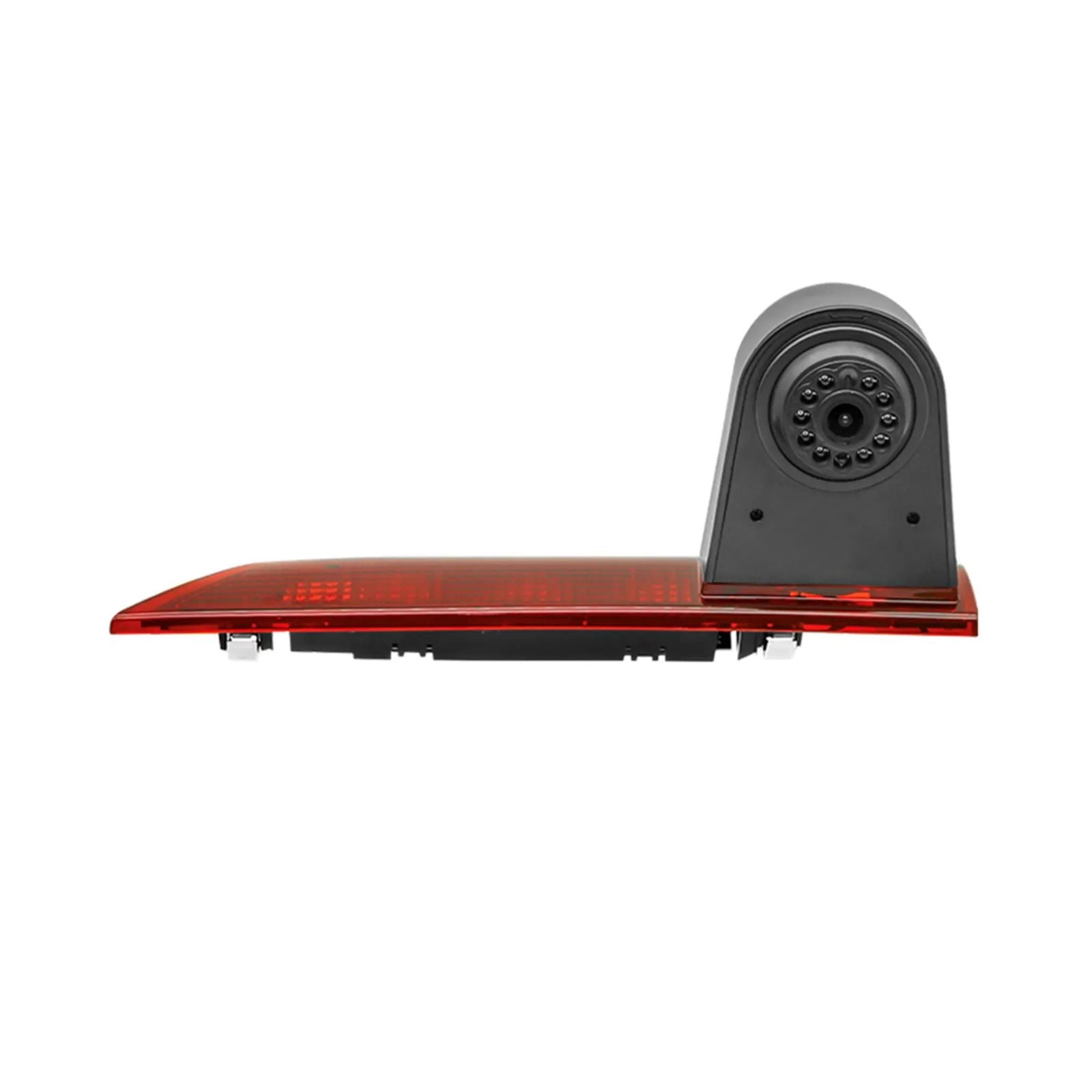

The UP-CAM-FD1 is an OEM-style brake light reversing camera for the Ford Transit Custom (2016 onwards), from CEN. It replaces the original high-level brake light housing, supports CVBS, AHD 720P and AHD 1080P output, and carries an IP68 waterproof rating.
For the latest Transit Custom from 2024, see the Ford Transit Custom 2024+ brake light camera (UP-CAM-FD4).
Key specifications
- Model: UP-CAM-FD1
- Image sensor: 1/2.7 inch HD CMOS
- Video output: CVBS / AHD 720P / AHD 1080P
- Max. resolution: 1920 x 1080 (AHD 1080P)
- Waterproof rating: IP68
- Night vision: up to 30 ft (approx. 9 m), 0 Lux with IR LEDs
- Operating voltage: 6V to 18V (12V standard)
- Guide lines: on/off selectable
Vehicle compatibility
Ford Transit Custom (2016 to present).
Overview
Replaces the original high-level brake light housing to give a clear rear view while keeping the factory look. Reduces blind spots when reversing and manoeuvring, and works with a wide range of OEM and aftermarket display systems (model dependent).
Key features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans and commercial vehicles
- IP68 weatherproof construction
- Compatible with selected OEM and aftermarket monitors
- Vehicle-specific installation (model dependent)
Camera features
- 1/2.7 inch high-performance CMOS image sensor
- CVBS, AHD 720P and AHD 1080P video output
- High-resolution output up to 1920 x 1080
- Selectable mirror/non-mirror image mode
- Switchable parking guidelines
- Selectable image flip function
- 0 Lux operation with integrated high-brightness IR LEDs
- Night vision range up to 30 ft (9 m)
- IP68-rated waterproof construction
- 6V to 18V operating voltage range
- Flame-retardant PC housing for demanding automotive environments
Explore the full range in CEN Reversing Cameras.
Specification
| Image Sensor | 1/2.7" HD CMOS Image Sensor |
|---|---|
| Effective Pixels | CVBS: 1920 × 530 / AHD 1080P: 1920 × 1080 / AHD 720P: 1280 × 720 |
| Resolution | 1000–2000 TVL |
| TV System | NTSC / PAL |
| Video Output | CVBS / AHD |
| Viewing Angle | Customisable |
| Image Modes | Mirror / Non-Mirror |
| Guide Lines | On / Off Selectable |
| Image Flip | Flip / No Flip Selectable |
| Minimum Illumination | 0 Lux (LED On) |
| Infrared LEDs | High-Brightness IR LEDs |
| Night Vision Range | Up to 30 ft (approx. 9 m) |
| Waterproof Rating | IP68 |
| Current Consumption | 150 mA |
| Power Supply | 12V Standard (Compatible with 6V–18V DC) |
| Connector | 4-Pin Aviation Female (Optional AV + DC or BMW Connector) |
| Operating Temperature | -30°C to +75°C (Max. 95% RH) |
| Storage | Temperature -40°C to +85°C (Max. 95% RH) |
| Housing Material | High-performance PC plastic with high and low temperature resistance and flame-retardant properties |
What's Included
- UP-CAM-FD1
CEN
About the CEN UP-CAM-FD1
From our tech experts at CEN
The UP-CAM-FD1 is an OEM-style brake light reversing camera for the Ford Transit Custom from 2016 onwards, made by CEN. It replaces the original high-level brake light housing and supports CVBS, AHD 720P and AHD 1080P video output. The camera carries an IP68 waterproof rating and provides 0 Lux night vision up to 9 m with integrated IR LEDs.
Who it suits
This camera suits Ford Transit Custom owners from 2016 who want improved rear visibility while keeping the van's factory appearance. It works with selected OEM and aftermarket display systems. For 2024 and later Transit Custom vans, see the Ford Transit Custom 2024+ brake light camera instead.
Our tech experts advise
The camera connects via a 4-pin aviation connector, so confirm your monitor or head unit accepts CVBS or AHD input before ordering. Parking guidelines and mirror image mode are both selectable. Installation involves removing the existing brake light unit and is priced per vehicle — book fitting at our Nottingham workshop.
Explore the full CEN range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all CEN
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
CEN News & Guides
The latest CEN product news, launches and guides from the CEN team in Nottingham.
New at CEN: Anker SOLIX S2000 — 2kWh of Off-Grid Power Built to Last 15 Years
The Anker SOLIX S2000 has arrived at CEN: 2kWh of LFP capacity rated for 10,000 charge cycles, recharged six different...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
New at CEN: Option Audio Drive-10Flat — Golf Mk8 Bass, Zero Boot Space Lost
If you drive a VW Golf Mk8 and want real bass without sacrificing the boot, Option Audio built the answer:...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from CEN Reversing Cameras
More options from the same range, in stock and ready to go
Save 0% Best Seller Mini Reversing Camera CMOS Push Fit Car Reverse Backup Rear Parking Camera RRP£99.99£99.95 / Save 0%In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which vehicles does the UP-CAM-FD1 fit?
A: It is designed for the Ford Transit Custom (2016 onwards). Listed fitment: Ford Transit Custom (2016 to present). Check your vehicle's rear door type and year before ordering, or contact CEN with your registration.
Q: Can I switch off the parking guidelines or mirror the image?
A: Yes. The parking guidelines can be switched on or off, and the image can be set to mirror or non-mirror and flipped if needed.
Q: What video outputs does the UP-CAM-FD1 support?
A: It supports CVBS, AHD 720P and AHD 1080P video output, with a resolution of up to 1920 x 1080 in AHD 1080P mode. Your screen must accept the chosen format.
Q: Does this brake light camera have night vision?
A: Yes. It has integrated high-brightness IR LEDs for 0 Lux operation and a night vision range of up to 30 ft (approx. 9 m).
