Brake Light Reversing Camera for Iveco Daily Backup Rear Parking Camera
Couldn't Load Pickup availability

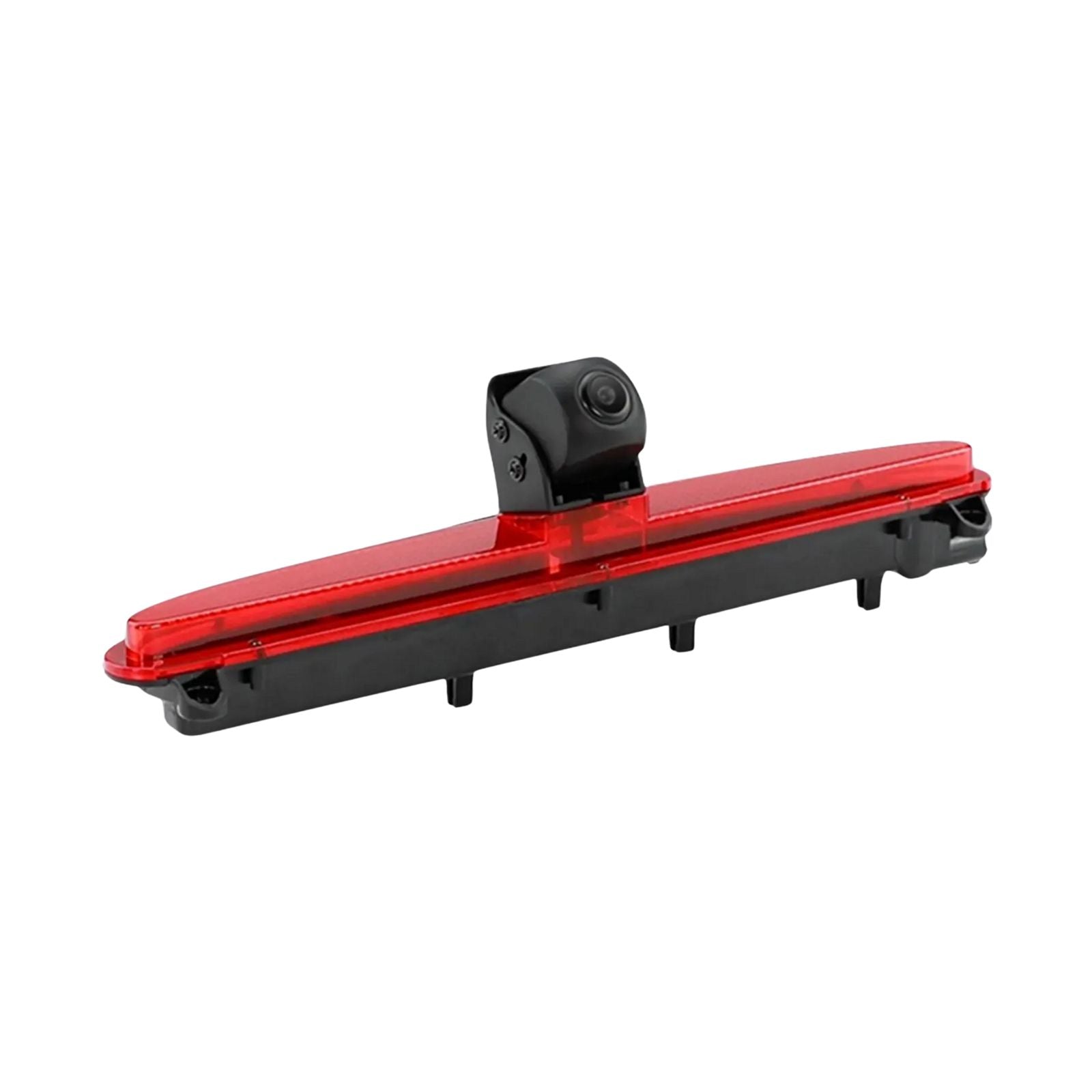

The UP-CAM-IV1 is an OEM-style brake light reversing camera for the Iveco Daily (2014–2022), replacing the original high-level brake light housing. It outputs CVBS, AHD 720P or AHD 1080P video and carries an IP68 waterproof rating. Part of the CEN reversing camera range.
This listing is for the 2014–2022 Iveco Daily. For the 2023+ Daily, see the Iveco Daily 2023+ brake light camera (UP-CAM-IV2).
Key specifications
- Model: UP-CAM-IV1
- Image sensor: 1/2.7 inch HD CMOS
- Video output: CVBS / AHD 720P / AHD 1080P
- Max. resolution: 1920 x 1080 (AHD 1080P)
- Waterproof rating: IP68
- Operating voltage: 6V to 18V
- Guide lines: on/off selectable
- Current consumption: 150 mA
Vehicle compatibility
Iveco Daily (2014–2022).
Overview
The UP-CAM-IV1 replaces the original high-level brake light housing on the Iveco Daily, giving a clear rear view while preserving the factory appearance. It reduces blind spots to make reversing and parking safer, and is compatible with a wide range of OEM and aftermarket display systems (model dependent).
Key features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans and commercial vehicles
- IP68-rated weatherproof construction
- Compatible with selected OEM and aftermarket monitors
- Vehicle-specific installation (model dependent)
Camera features
- 1/2.7 inch high-performance CMOS image sensor
- CVBS, AHD 720P and AHD 1080P video output
- Resolution up to 1920 x 1080
- Selectable mirror/non-mirror image mode
- Switchable parking guidelines
- Selectable image flip function
- 6V to 18V operating voltage range
- Flame-retardant PC housing for demanding automotive environments
Explore the full range in CEN Reversing Cameras.
Specification
| Image Sensor | 1/2.7" HD CMOS Image Sensor |
|---|---|
| Effective Pixels | CVBS: 1920 × 530 / AHD 1080P: 1920 × 1080 / AHD 720P: 1280 × 720 |
| Resolution | 1000–2000 TVL |
| TV System | NTSC / PAL |
| Video Output | CVBS / AHD |
| Viewing Angle | Customisable |
| Image Modes | Mirror / Non-Mirror |
| Guide Lines | On / Off Selectable |
| Image Flip | Flip / No Flip Selectable |
| Waterproof Rating | IP68 |
| Current Consumption | 150 mA |
What's Included
- UP-CAM-IV1
CEN
About the CEN UP-CAM-IV1
From our tech experts at CEN
The UP-CAM-IV1 is an OEM-style brake light reversing camera for the Iveco Daily (2014–2022), replacing the original high-level brake light unit. It outputs CVBS, AHD 720P or AHD 1080P video at up to 1920 × 1080 resolution. The IP68-rated housing preserves the factory appearance.
Who it suits
It suits Iveco Daily owners from 2014 to 2022 who want a factory-fit reversing camera that keeps the van's original look. It works equally well on campervans and light commercial vehicles. For the 2023 or later model, see the Iveco Daily 2023+ brake light camera.
Our tech experts advise
Check your Daily's model year before ordering — this camera fits 2014 to 2022 only. It supports CVBS and AHD outputs, so confirm your head unit or monitor is compatible with the output you plan to use. Parking guidelines and mirror mode are both selectable during setup. Installation is vehicle-specific and priced per vehicle — visit our Nottingham fitting page for details.
Explore the full CEN range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all CEN
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
CEN News & Guides
The latest CEN product news, launches and guides from the CEN team in Nottingham.
New at CEN: Anker SOLIX S2000 — 2kWh of Off-Grid Power Built to Last 15 Years
The Anker SOLIX S2000 has arrived at CEN: 2kWh of LFP capacity rated for 10,000 charge cycles, recharged six different...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
New at CEN: Option Audio Drive-10Flat — Golf Mk8 Bass, Zero Boot Space Lost
If you drive a VW Golf Mk8 and want real bass without sacrificing the boot, Option Audio built the answer:...
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from CEN Reversing Cameras
More options from the same range, in stock and ready to go
Save 0% Best Seller Mini Reversing Camera CMOS Push Fit Car Reverse Backup Rear Parking Camera RRP£99.99£99.95 / Save 0%In stock
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which vehicles does the UP-CAM-IV1 fit?
A: It is designed for the Iveco Daily (2014 to 2022). Listed fitment: Iveco Daily (2014-2022). Check your vehicle's rear door type and year before ordering, or contact CEN with your registration.
Q: Can I switch off the parking guidelines or mirror the image?
A: Yes. The parking guidelines can be switched on or off, and the image can be set to mirror or non-mirror and flipped if needed.
Q: What video outputs does the UP-CAM-IV1 support?
A: It supports CVBS, AHD 720P and AHD 1080P video output, with a resolution of up to 1920 x 1080 in AHD 1080P mode. Your screen must accept the chosen format.
