AudioControl Space Series 10 Inch Subwoofer Enclosure
Couldn't Load Pickup availability
The AudioControl SPC-W10 is a 10-inch sealed wedge subwoofer enclosure, supplied loaded with the Space Series SPC-10S2 shallow-mount subwoofer rated at 400W RMS. It is part of AudioControl's Space Series and is designed as a ready-to-install, weather-resistant bass solution.
This listing is the 10-inch enclosure. The Space Series loaded enclosure is also available in a 12-inch version.
Key specifications
- Subwoofer: 10-inch Space Series SPC-10S2 (2 ohm)
- Enclosure type: sealed wedge
- Construction: high-density wood fibreboard, marine-grade vinyl wrap
- Power handling: 400W RMS / 600W peak
- Frequency response: 20Hz–150Hz
- Sensitivity: 86.1dB
- Dimensions: 19.10in W x 12.36in H
- Depth: 4.095in (top) / 6.276in (bottom)
- Wire terminals: 12–8 gauge

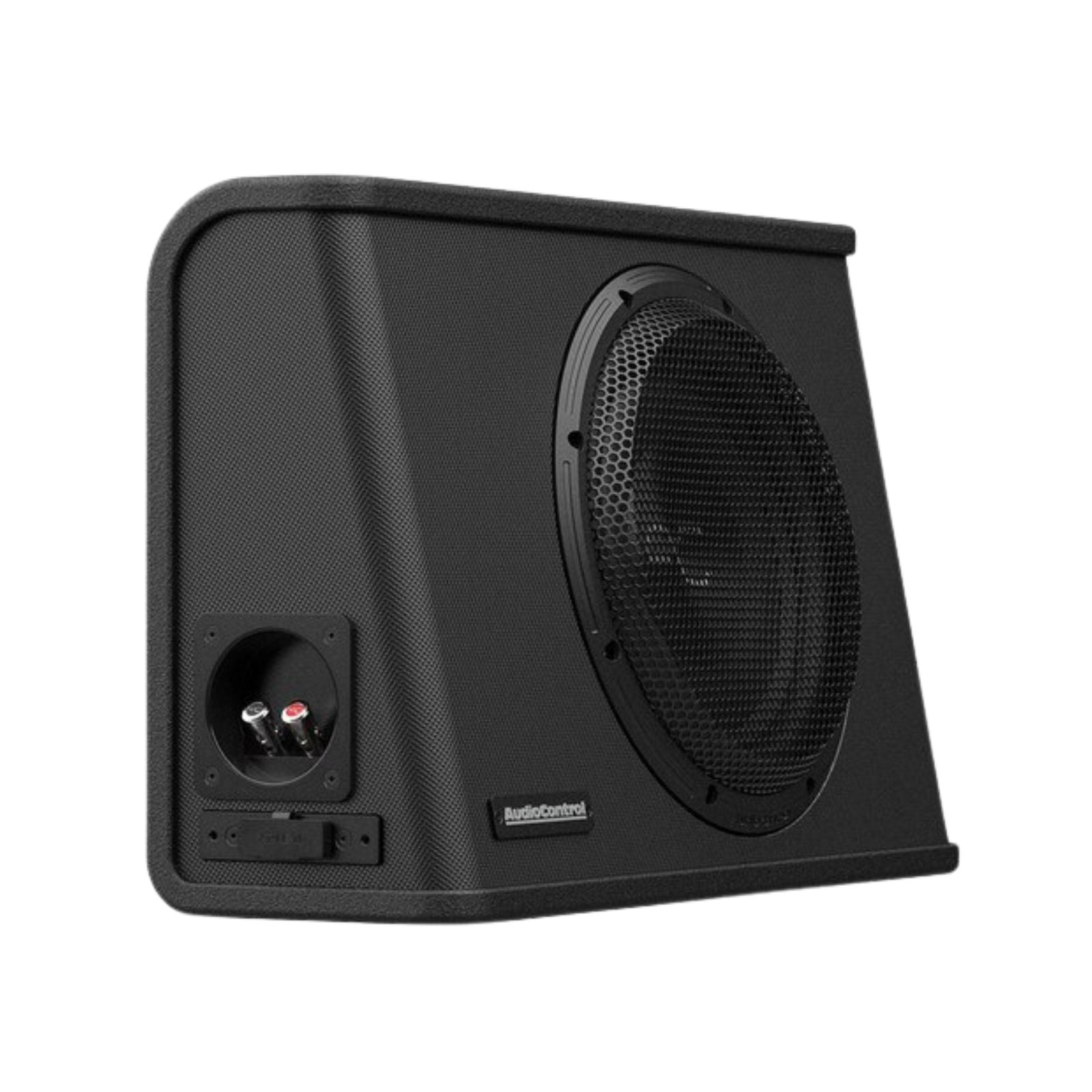

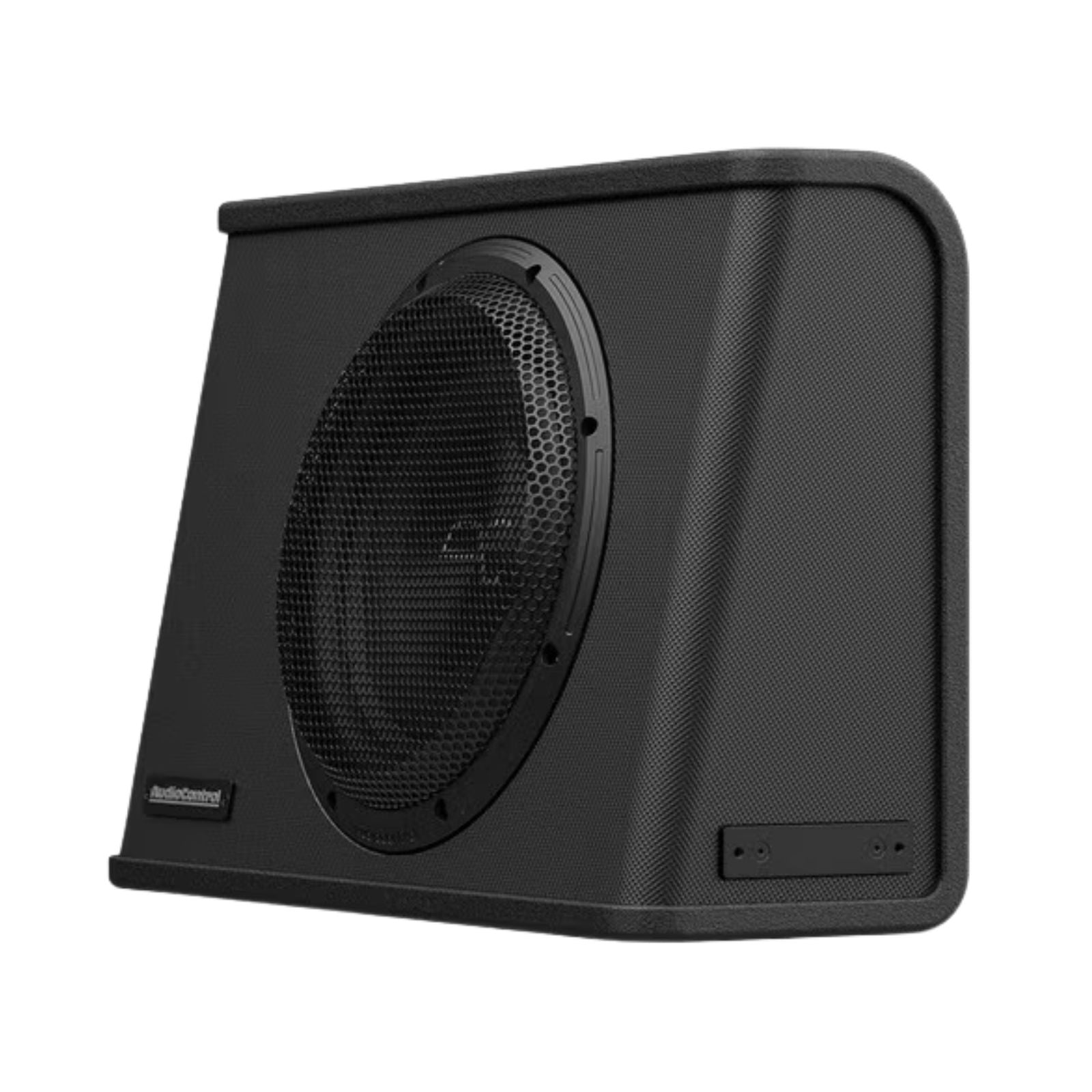

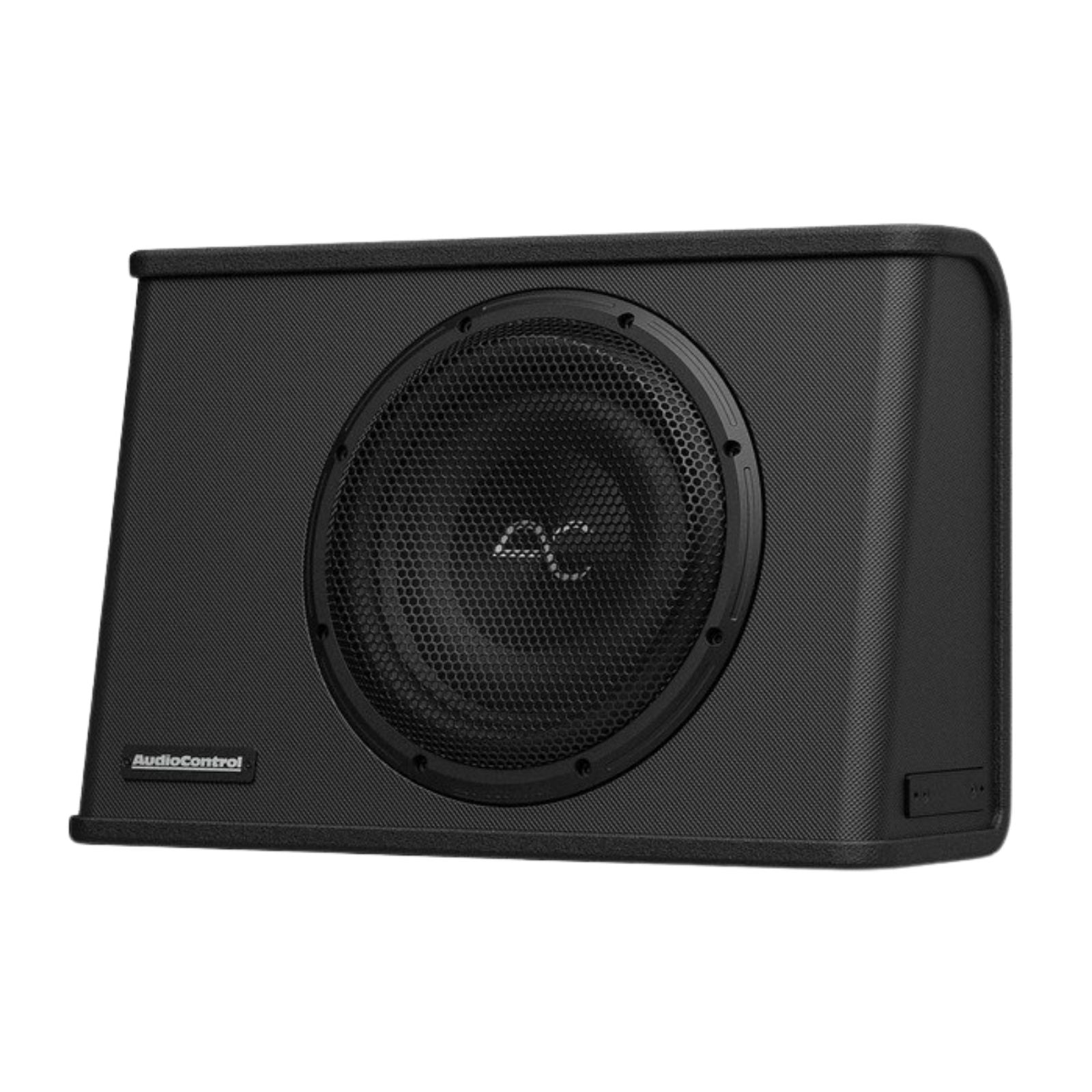

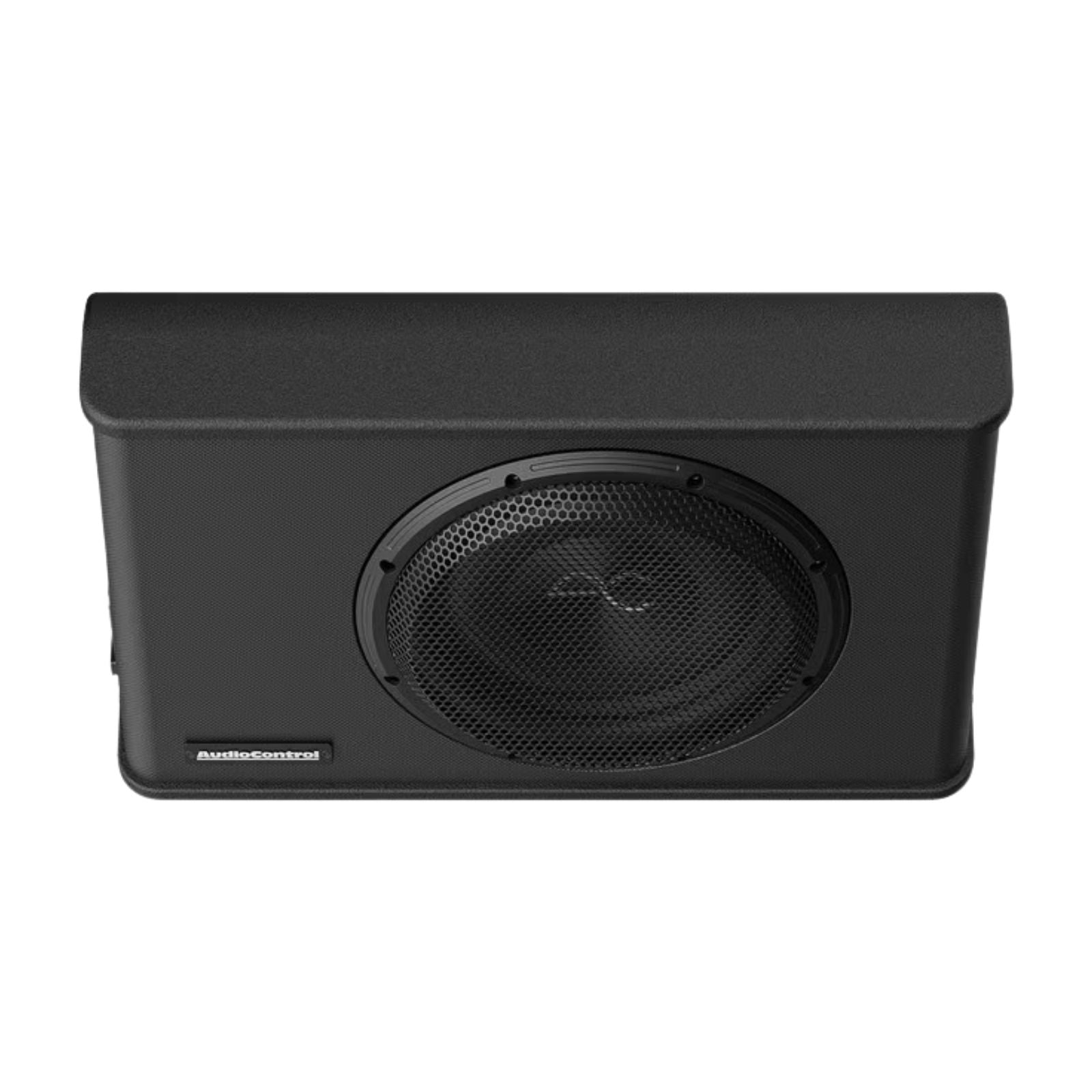

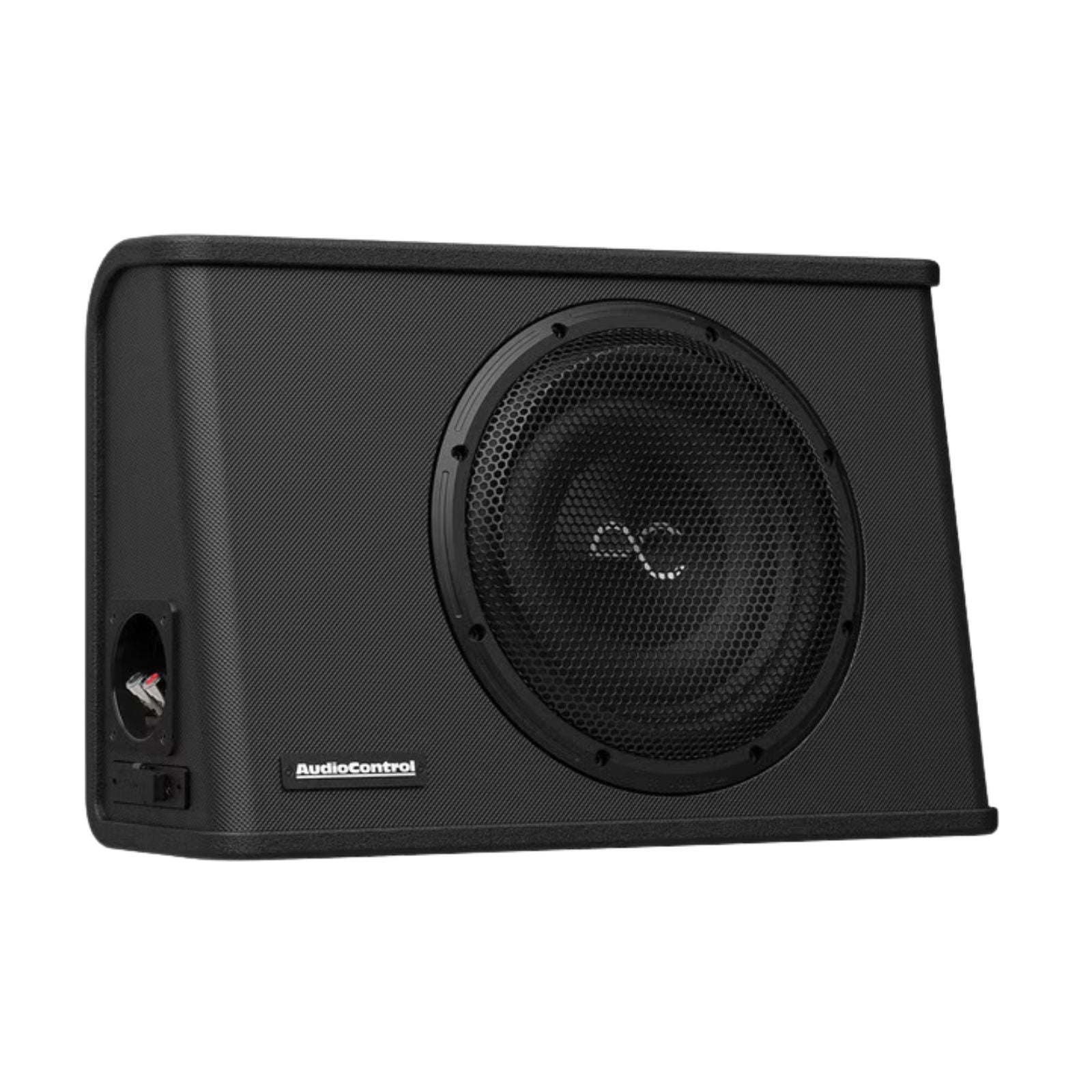

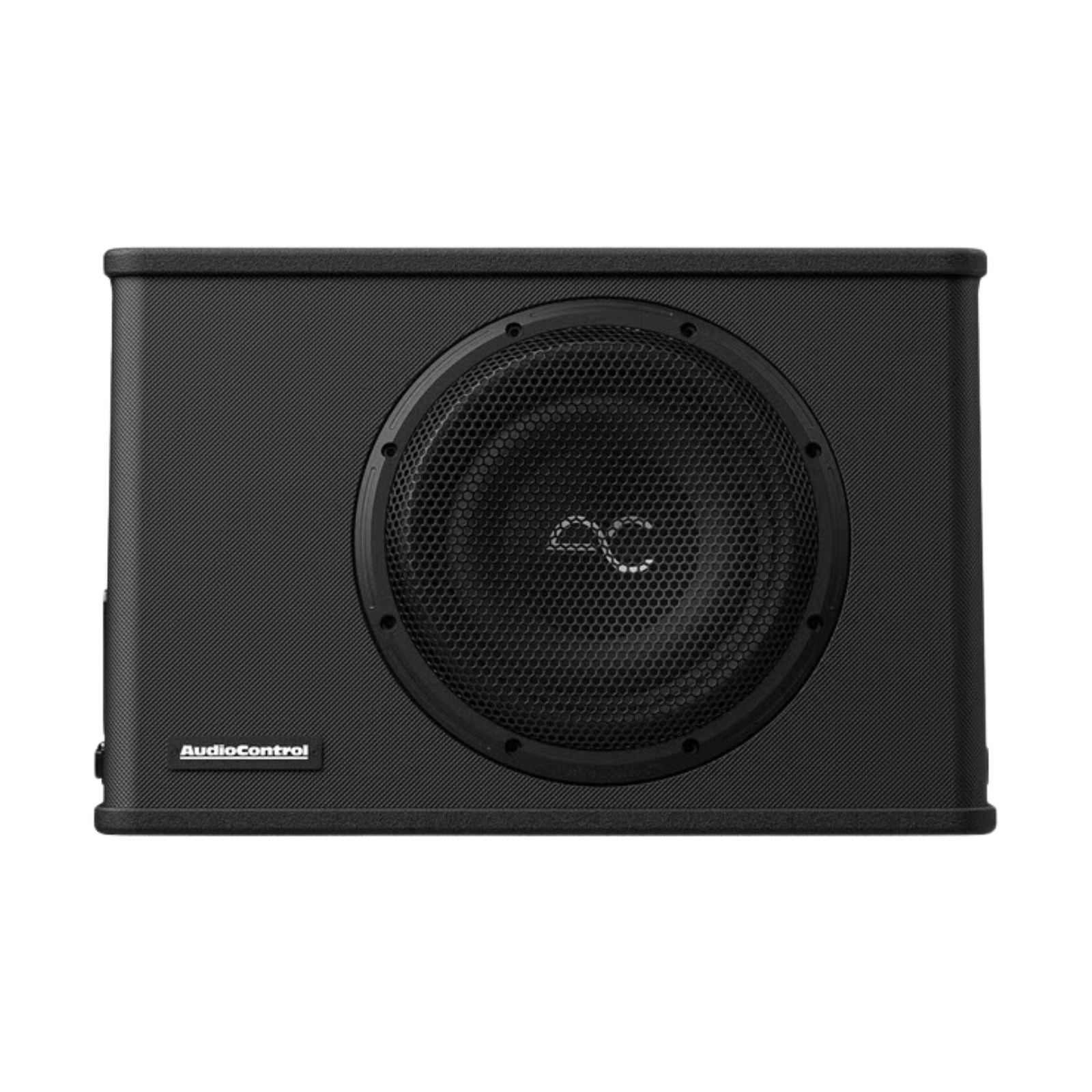

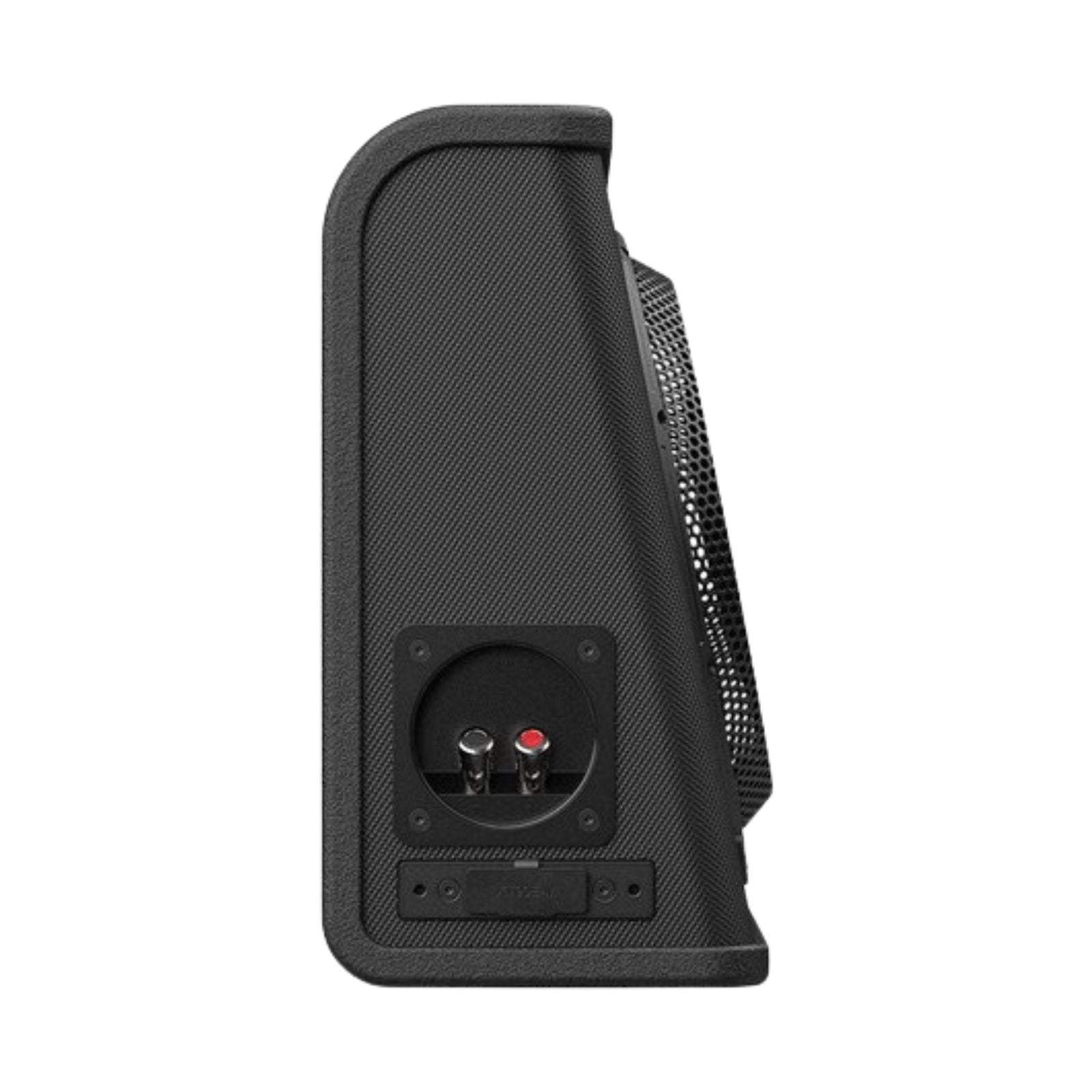

SPC-W10: Space Series 10" Sealed Wedge Enclosure
The SPC-W10 is a loaded wedge enclosure built from high-density wood fibreboard and fitted with an AudioControl Space Series shallow-mount subwoofer. The wedge profile suits a range of boot and cabin installation positions.
Features
- Wedge shape fits a variety of locations
- Element-resistant design for any environment
- Optional quick-plug connector for convenience
- Space Series enclosures available in 10" and 12"
- Fibre matrix injection-moulded polypropylene cone
- Structurally rigid heavy-duty voice coil
- Optimal thermal efficiency to produce less heat
- Subwoofer grille included for added protection
The enclosure is coated with Roadkill Armor and wrapped in marine-grade vinyl for durability and moisture resistance. Internal support bracing and precision-filled poly-fibre material help control resonance and deliver tight, accurate bass response. A dual front mounting baffle optimises speaker placement.
A powder-coated steel grille is included, along with a multi-secure mounting system and quick-disconnect harness for straightforward installation. For best results, pair the SPC-W10 with a compatible AudioControl amplifier — the AudioControl LC2i line output converter is a useful addition when integrating with a factory head unit.
Explore the full range in AudioControl Space Series.
Specification
| Woofer Size | 10in |
|---|---|
| Subwoofer Model | SPC-10S2 |
| Frequency Response | 20-150 Hz |
| Sensitivity | 86.1 dB |
| Enclosure Type | Sealed |
| Terminal Wire Acceptance | 12-8 Gauge |
| RMS Power | 400 watt |
| Peak Power | 600 watt |
| Enclosure Width | 19.10in |
| Enclosure Height | 12.36in |
| Enclosure Depth (Top) | 4.095in |
| Enclosure Depth (Bottom) | 6.276in |
What's Included
- SPC-W10
- Manual
- Warranty
AudioControl
About the AudioControl SPC-W10
From our tech experts at CEN
The AudioControl SPC-W10 is a ready-to-install sealed wedge enclosure, supplied loaded with the 10 inch Space Series SPC-10S2 shallow-mount 2 ohm subwoofer. It handles 400 W RMS and 600 W peak, with a 20 to 150 Hz response.
Who it suits
Cars and vans where boot space matters, as the wedge is shallow: about 485 mm wide, 314 mm high and only 104 to 159 mm deep. The marine-grade vinyl wrap suits open or damp locations. The same driver is sold alone as the Space Series 10 inch 2 ohm.
Our tech experts advise
Sealed boxes give tight, controlled bass. Use an amplifier stable at 2 ohms and secure the wedge properly. Installation is priced per vehicle; get in touch.
Explore the full AudioControl range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all AudioControl
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from AudioControl
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Is the subwoofer included with the SPC-W10?
A: Yes. The SPC-W10 is a loaded enclosure supplied with a 10-inch Space Series SPC-10S2 shallow-mount subwoofer already fitted.
Q: What size is the SPC-W10 enclosure?
A: It measures 19.10in wide and 12.36in high, with a wedge depth of 4.095in at the top and 6.276in at the bottom, so it fits a variety of locations.
Q: Is the SPC-W10 sealed or ported?
A: It is a sealed enclosure, rated at 400W RMS and 600W peak with a 20Hz-150Hz frequency response.
Q: Do I need an amplifier for this enclosure?
A: Yes. The loaded enclosure is passive, so it needs an external amplifier matched to its RMS power and impedance. AudioControl recommends pairing it with an AudioControl amplifier.
Q: Can CEN fit this for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
