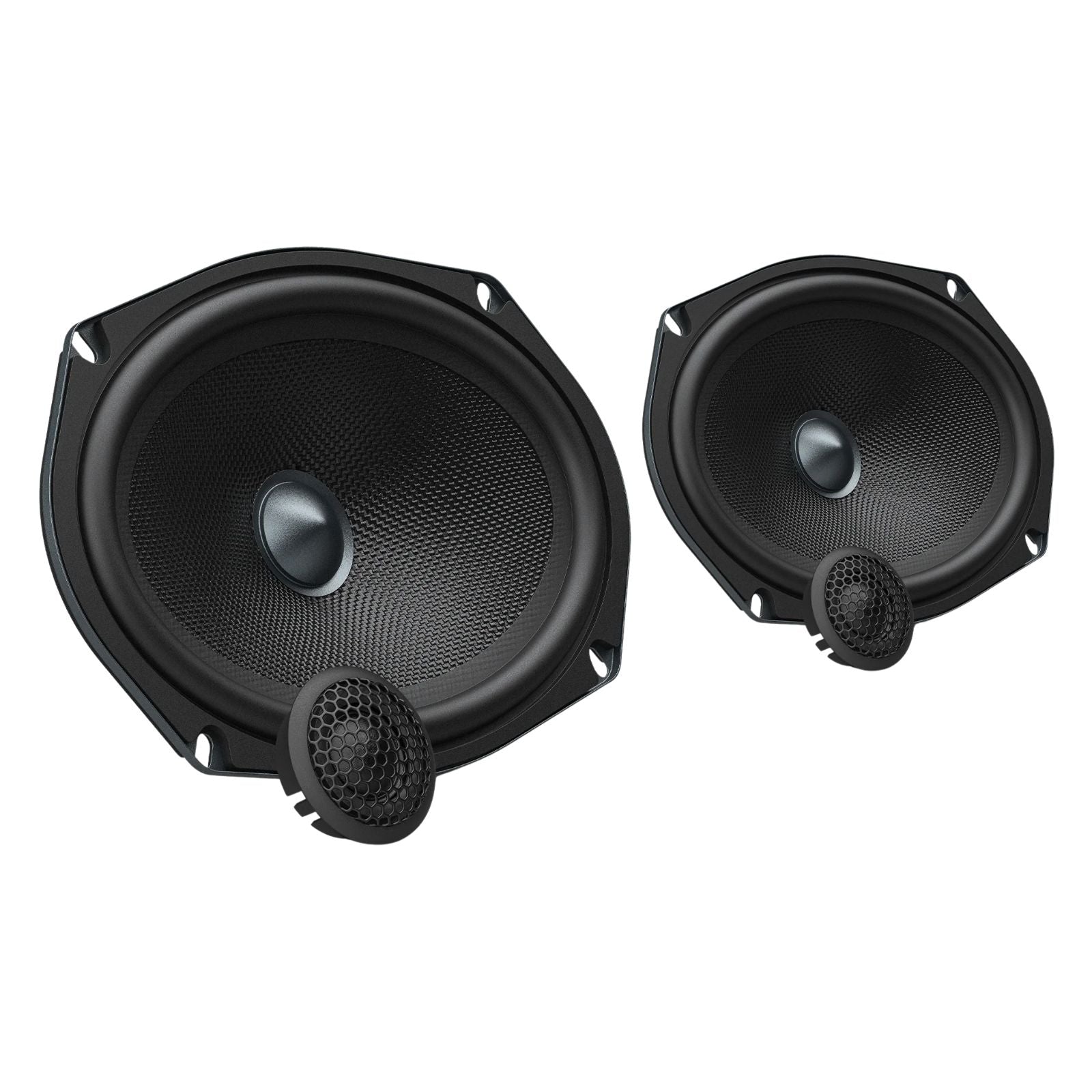

AudioControl Altitude A69CS2 6x9 Inch Component Speakers

The AudioControl Altitude A69CS2 is a 6x9 inch component speaker set from the Altitude Series, rated at 100 W RMS, featuring a glass fibre woofer cone, 1 inch silk dome tweeters and included passive crossovers.

Key specifications

• Type: 6x9" component set with 1" silk dome tweeters (pair)
• Power handling: 100 W RMS
• Impedance: 4 ohms
• Frequency response: 55 Hz to 20,000 Hz
• Sensitivity: 86.9 dB 1W/1m, 89.9 dB at 2.83V/1m
• Woofer cut-out: 144 x 209 mm (5.67 x 8.23")
• Woofer mounting depth: 68 mm (2.67")
• Tweeter cut-out diameter: 35 mm (1.37")

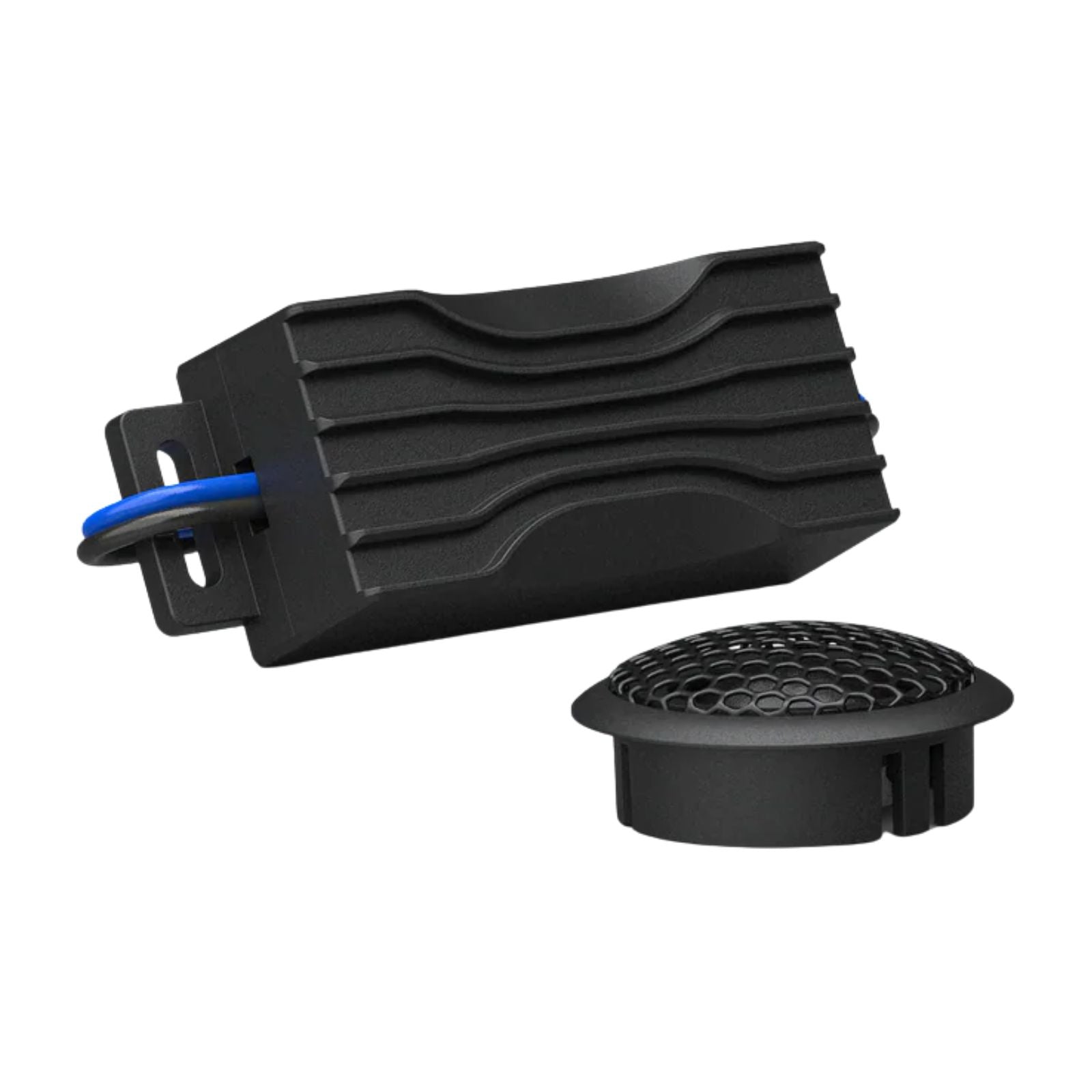

• Passive crossovers included

Altitude Series 6x9" Component Speaker Set with 1" Tweeters

Altitude Series speakers are built for sound quality in everyday fitments. The A69CS2 suits 6x9 door or rear deck locations where a standard coaxial won't cut it.

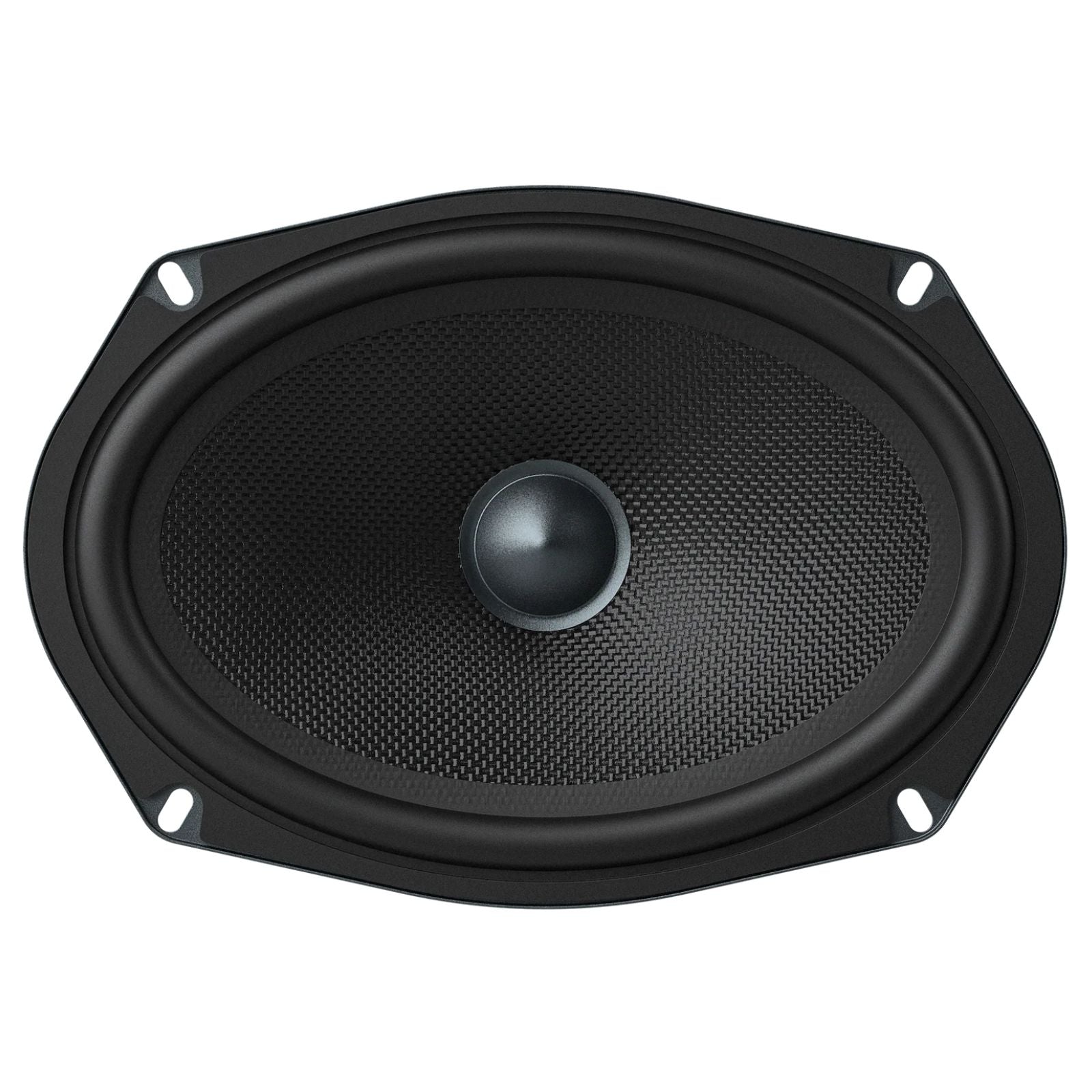

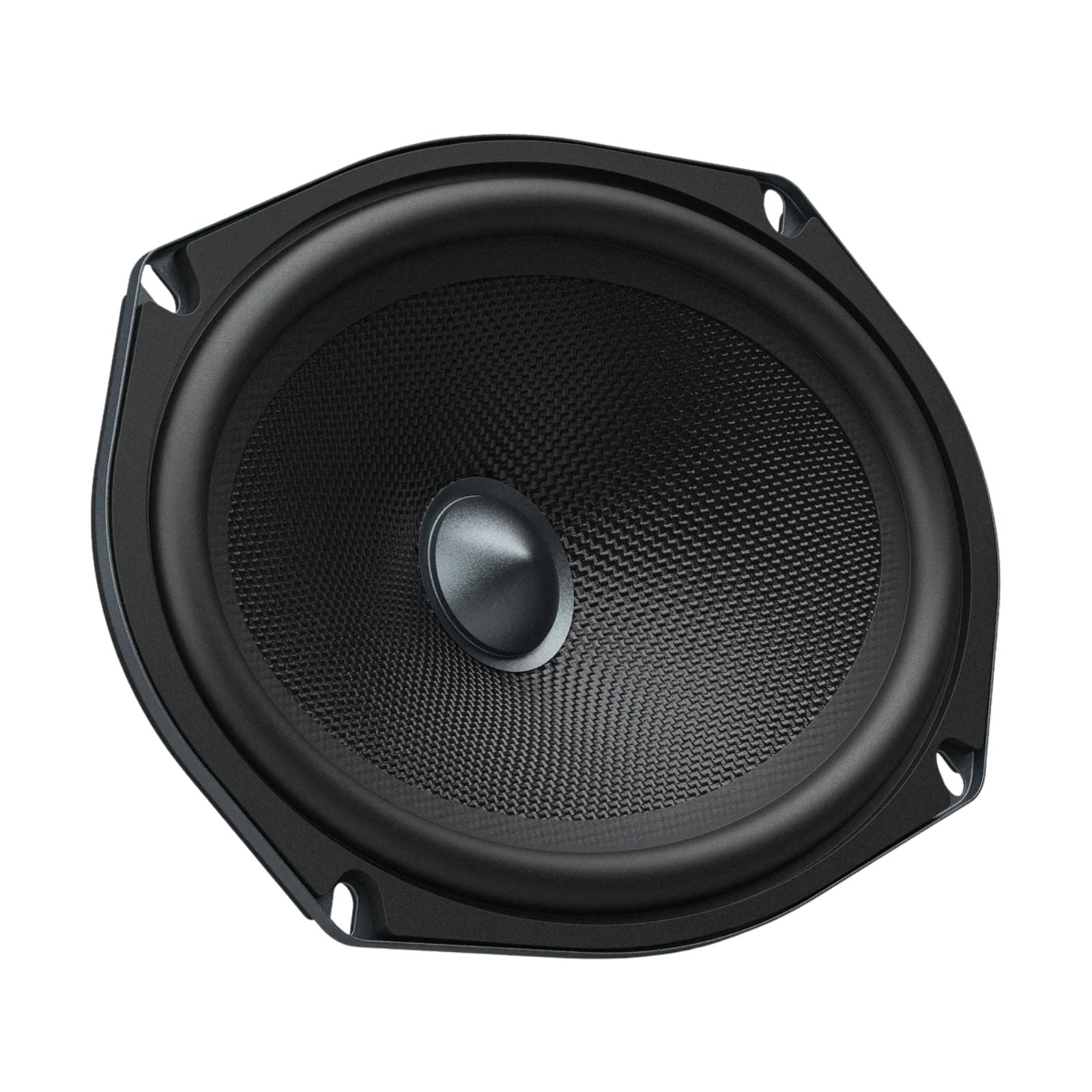

The woofer uses a precision-moulded glass fibre cone for warm, accurate sound reproduction. An anti-phasing aluminium dust cap enhances sensitivity and extends frequency response. A butyl rubber surround keeps low frequencies controlled, and the silk dome tweeter handles high-frequency detail cleanly. Passive crossovers are included for straightforward, matched signal routing.

Features

• Wide frequency response: separate woofer and tweeter design covers the full audio spectrum
• Lightweight aluminium dust cap: enhances sensitivity and extends frequency response
• Precision-moulded glass fibre cone: warm, accurate sound reproduction
• Durable butyl rubber surround: improves low-frequency performance and control
• Silk dome tweeter: smooth, detailed high-frequency response

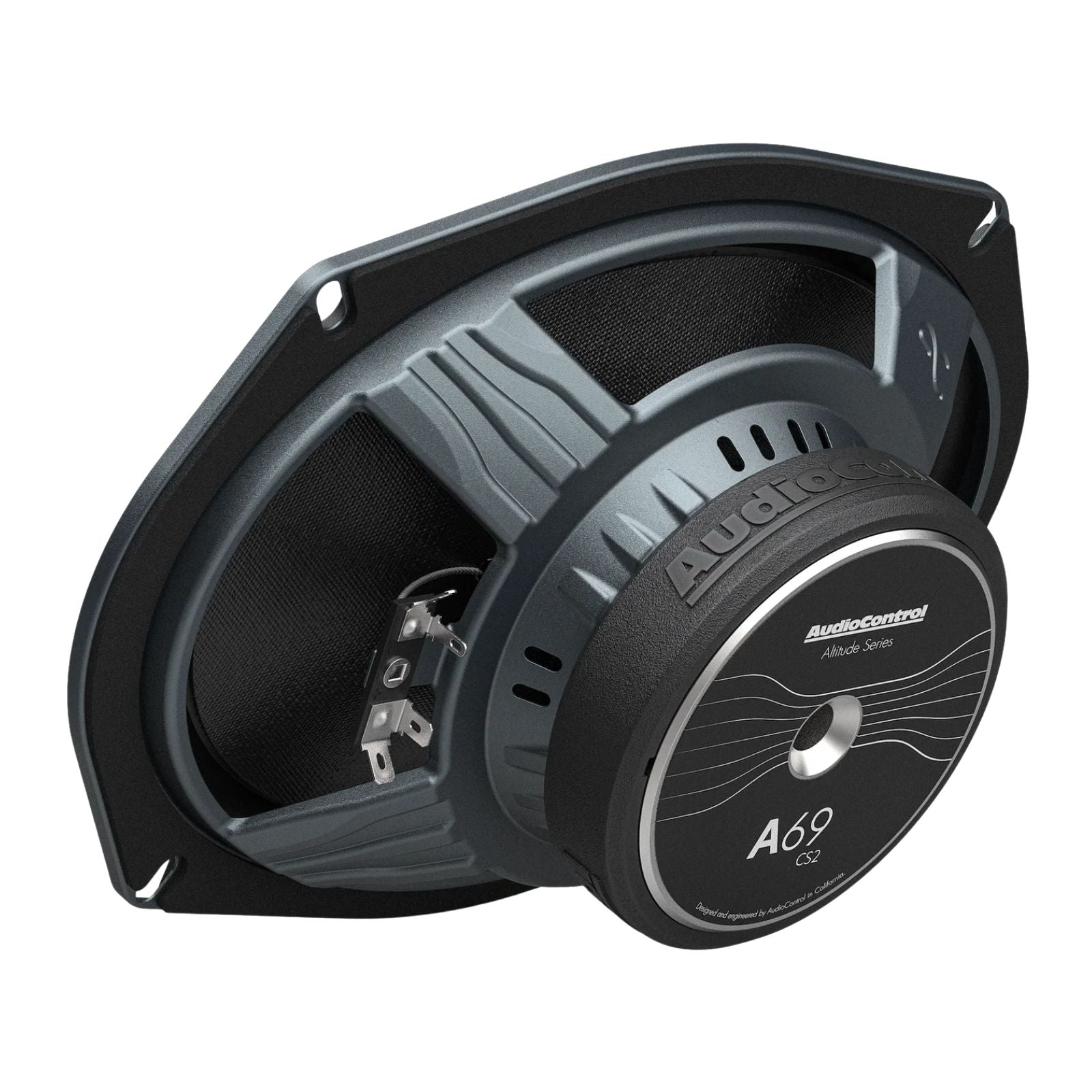

• Enhanced steel slimline basket: space-saving installation
• Improved system efficiency: matched drivers and included passive crossovers ensure clean signal routing and power delivery
