Alpine SWE-815 Subwoofer Amplified Powered Active Sub with Wired Remote 100w RMS

RRP £179.99 £134.99 Save 25% Out of stock
Out of Stock
SKU: 90081MPN: SWE-815
Part of the range · 22 productsPart of the Alpine Subwoofers range · 22 products See the range →

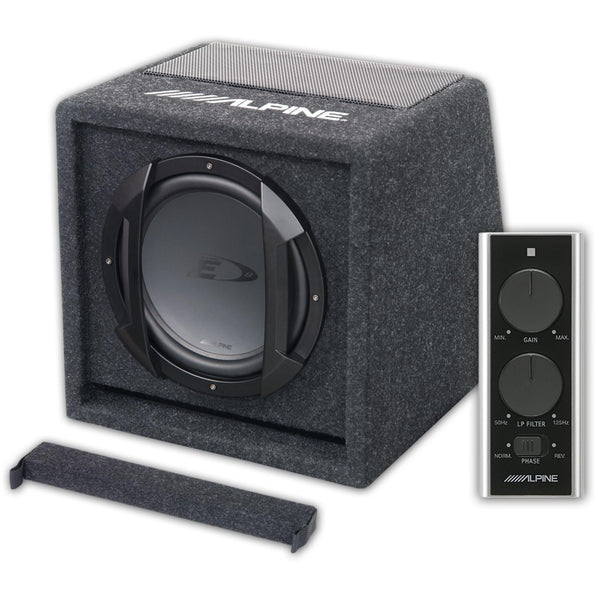

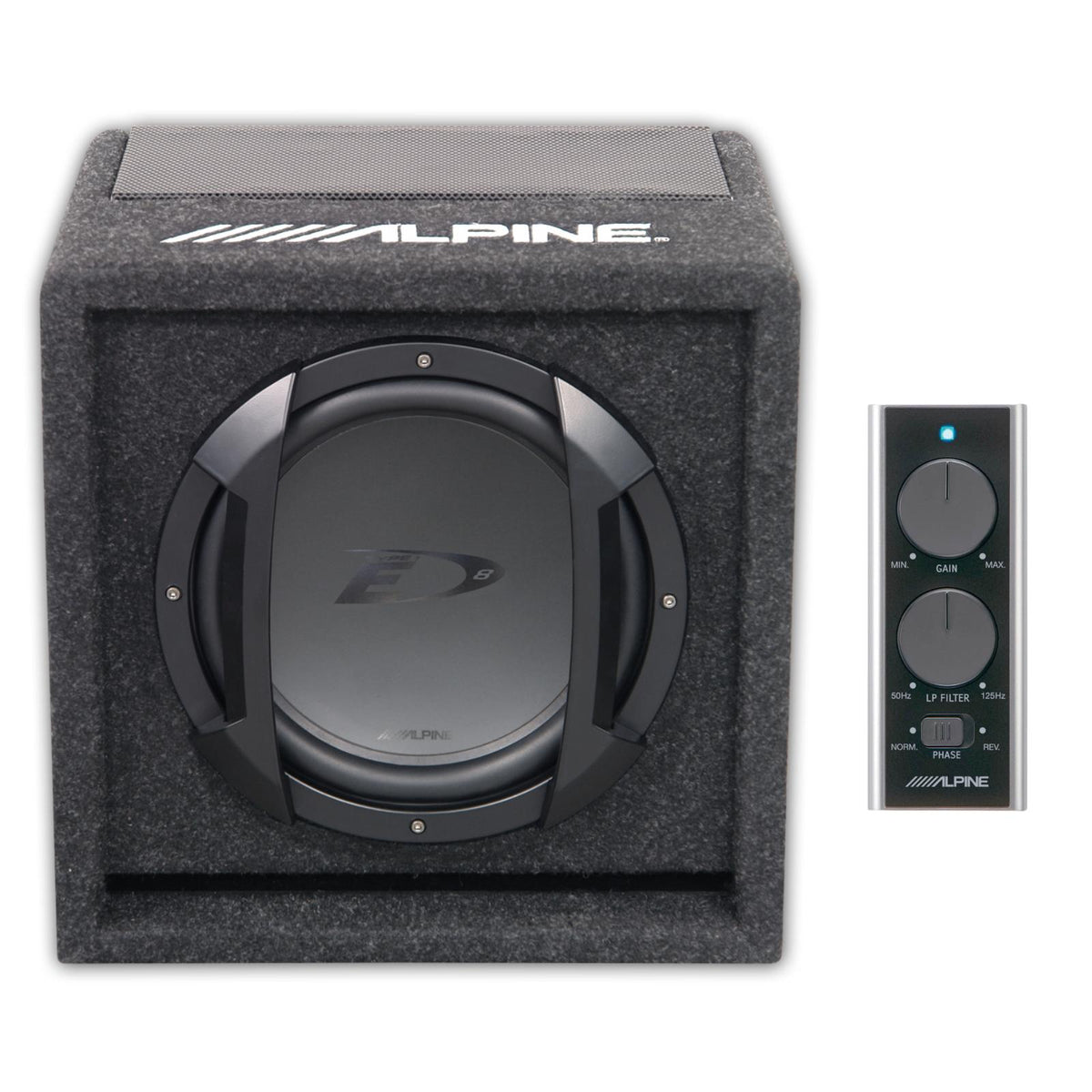

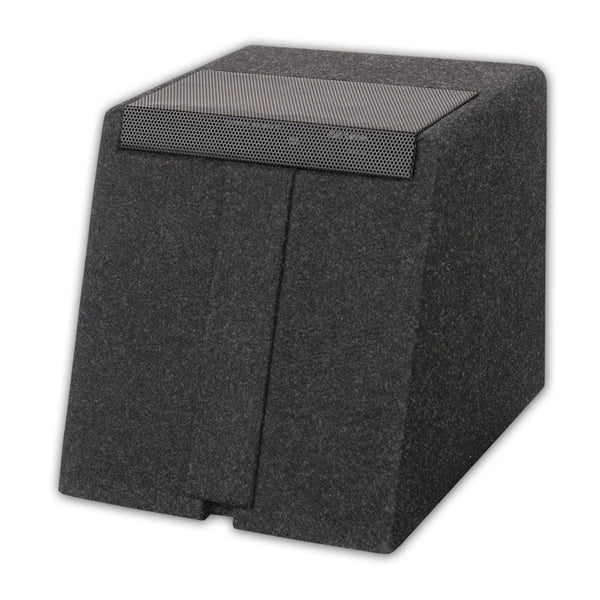

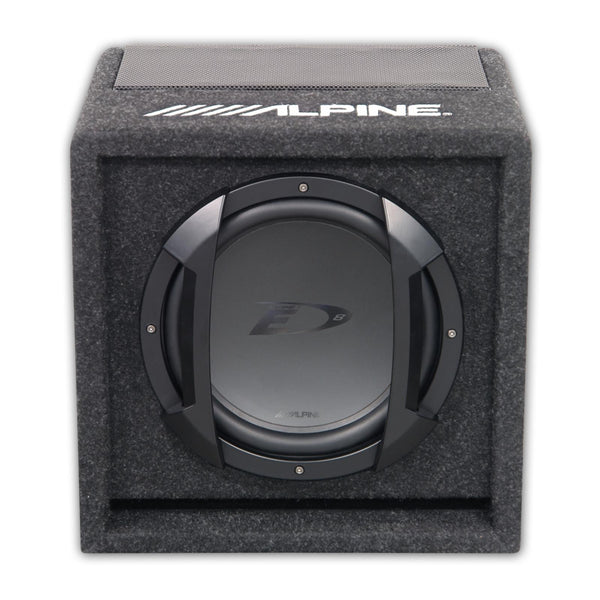

The Alpine SWE-815 is a compact 8-inch (20cm) amplified subwoofer box with a built-in 150W amplifier, 100W RMS output and a wired remote control. It is part of Alpine's SWE range and is designed for drivers who want to add bass that plugs straight into their existing system with no extra amplifier needed.

It accepts both RCA and speaker-level inputs, and a removable port plug allows sealed or vented operation.

Key specifications

  • Subwoofer: 8-inch (20cm) customised SWE-843E
  • Power handling: 100W RMS, 300W peak
  • Built-in amplifier: MXE-M150CKD, 150W max
  • Frequency response: 34Hz to 1.5kHz
  • Low-pass filter: 50 to 125Hz at -12dB/oct, adjustable from the wired remote
  • Inputs: RCA and speaker level
  • Enclosure: bass reflex, slot vented, removable port plug for sealed operation
  • Dimensions: 288mm (W) x 291mm (H) x 253mm / 363mm (D)

Ready-to-use amplified subwoofer box

The Alpine SWE-815 is a compact, self-contained subwoofer that plugs straight into your existing system with no extra amplifier needed.

8" (20cm) Amplified Subwoofer Box SWE-815

  • 8-inch (20cm) SWE subwoofer with built-in 150W amplifier
  • 100W RMS continuous output

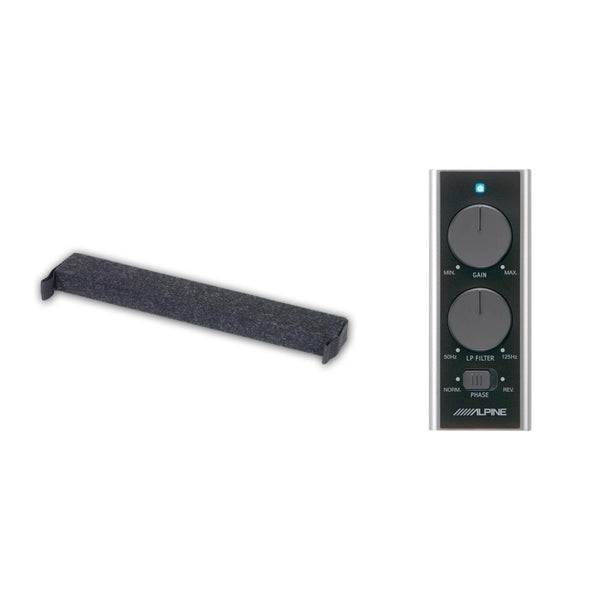

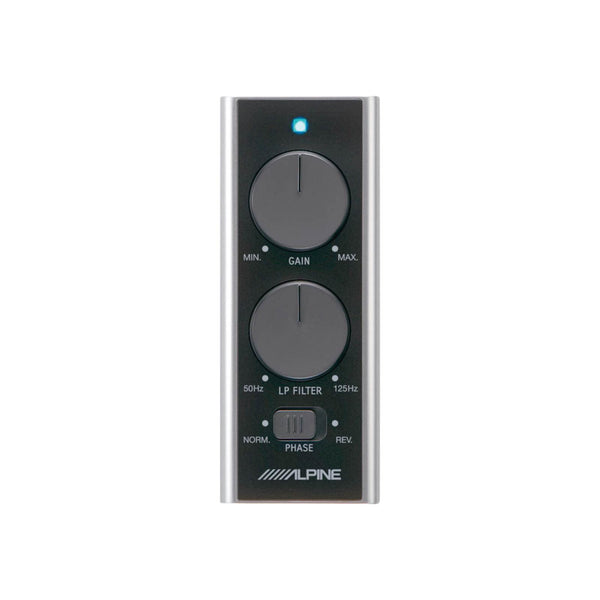

  • Wired remote control included: adjust level, phase and low-pass frequency (50 to 125Hz at -12dB/oct)
  • Port plug included for sealed or vented operation

Explore the full range in Alpine Subwoofers.

Specification
Frequency Response34Hz - 1.5kHz
Impedance2x 2Ω
Sensitivity91.0dB/W(1m)
Dimensions288mm (W) x 291mm (H) x 253mm / 363mm (D)
More specs
  • Featuring 8” (20cm) Customized SWE-843E Subwoofer
  • 300W Peak Power Handling (100W rms)
  • Heavy Duty Subwoofer Grill
  • Built-in MXE-M150CKD Amplifier
  • 150W Max Power
  • Wired Remote Controller for Vol., Freq., Phase Setting
  • RCA & Speaker Inputs
  • High Quality Bass Reflex Box
  • Optimum Wedge Shaped Design
  • Removable Port Plug for Sealed and Vented Operation
  • High Output Slot Vented Design
What's Included
  • Alpine SWE-815
  • Remote level control with cable attached
  • RCA & Speaker Inputs
  • Wiring Kit
Download User Manual(PDF)
Product information

Alpine

About the Alpine SWE-815

From our tech experts at CEN

An active subwoofer with the amplifier built in, rated at 100w RMS, so you get bass from one compact unit rather than a separate sub, amp and enclosure.

Who it suits

Drivers who want more low end without rebuilding the system or losing the boot. Powered units suit cars where space is tight, and anyone who wants bass but not a competition install.

Our tech experts advise

It still needs a proper fused feed from the battery and a signal source, which is where most DIY attempts come unstuck. Setting level and crossover against your existing speakers is what makes it blend. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs and what the work involves. See car audio installation.

Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Alpine S2-S40 Speakers 4 Inch 10cm S2 Series Car 2 Way Coaxial 55w RMS Pair - CEN
Save 28% Best Seller Alpine S2-S40 Speakers 4 Inch 10cm S2 Series Car 2 Way Coaxial 45w RMS Pair RRP £109.99 £79.00 Save 28%
In stock
Alpine S2-A60M Amplifier 1 Channel Class D Monoblock Subwoofer Car Amp 600w RMS - CEN
Save 22% Alpine S2-A60M Amplifier 1 Channel Class D Monoblock Subwoofer Car Amp 600w RMS RRP £329.99 £259.00 Save 22%
Low stock
Alpine S2-A36F Amplifier 4 Channel Class D Bridgeable Stereo Car Amp 360w RMS - CEN
Save 9% Alpine S2-A36F Amplifier 4 Channel Class D Bridgeable Stereo Car Amp 360w RMS RRP £329.99 £299.00 Save 9%
Low stock
Alpine S2-W12D2 Sub 12" 30cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS - CEN
Save 38% Alpine S2-W12D2 Sub 12" 30cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS RRP £239.99 £149.00 Save 38%
Low stock
Alpine SS-SB10 S Series 10 Inch Shallow Preloaded Subwoofer Enclosure 300w RMS - CEN
Alpine SS-SB10 S Series 10 Inch Shallow Preloaded Subwoofer Enclosure 300w RMS £449.00
Low stock
Alpine S2-W10D2 Sub 10" 25cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS - CEN
Save 39% Alpine S2-W10D2 Sub 10" 25cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS RRP £209.99 £129.00 Save 39%
Low stock
Alpine S2-S50 Speakers 5 Inch 13cm S2 Series Car 2 Way Coaxial 55w RMS Pair - CEN
Save 22% Alpine S2-S50 Speakers 5 Inch 13cm S2 Series Car 2 Way Coaxial 55w RMS Pair RRP £139.99 £109.00 Save 22%
In stock
Alpine KTE-S65G Metal Mesh Grilles for S Series S-S65 S-S65C & 6.5 Inch Speakers - CEN
Best Seller Alpine KTE-S65G Metal Mesh Grilles for S Series S-S65 S-S65C & 6.5 Inch Speakers £29.99
In stock
Alpine KTE-S69G Metal Mesh Grilles for S Series S-S69 S-S69C 6x9 Inch Speakers - CEN
Alpine KTE-S69G Metal Mesh Grilles for S Series S-S69 S-S69C 6x9 Inch Speakers £29.99
Low stock
Alpine SWD-355 Subwoofer Amplified Powered Active Sub with Wired Remote 150w RMS - CEN
Alpine SWD-355 Subwoofer Amplified Powered Active Sub with Wired Remote 150w RMS £289.99
Low stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Alpine Subwoofers

More options from the same range, in stock and ready to go

View all Alpine Subwoofers ›

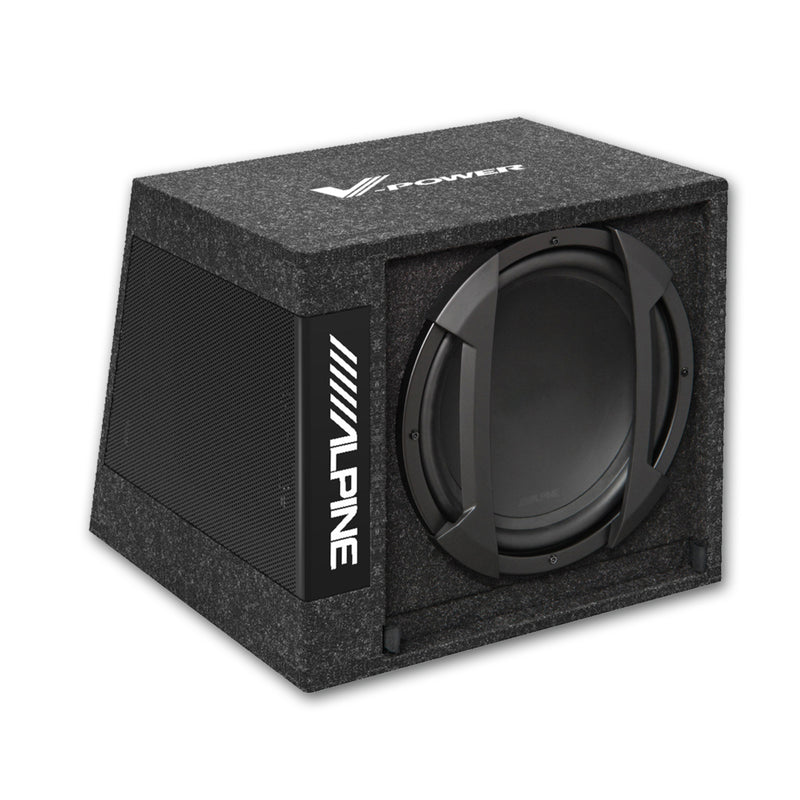

Alpine SWD-355 Subwoofer Amplified Powered Active Sub with Wired Remote 150w RMS

Alpine SWD-355 Subwoofer Amplified Powered Active Sub with Wired Remote 150w RMS

£289.99

View product

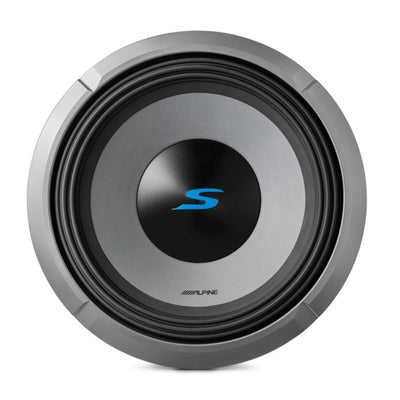

Alpine S2-W12D2 Sub 12" 30cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS

Alpine S2-W12D2 Sub 12" 30cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS

RRP £239.99Save 37%£149.00

 Alpine SWG-1244 Sub Type G Series 12 Inch High Performance Subwoofer 250w RMS

Alpine SWG-1244 Sub Type G Series 12 Inch High Performance Subwoofer 250w RMS

£119.00

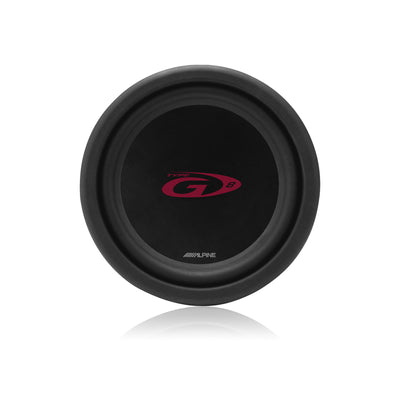

 Alpine SWG-844 Sub Type G Series 8 Inch High Performance Subwoofer 120w RMS

Alpine SWG-844 Sub Type G Series 8 Inch High Performance Subwoofer 120w RMS

£89.90

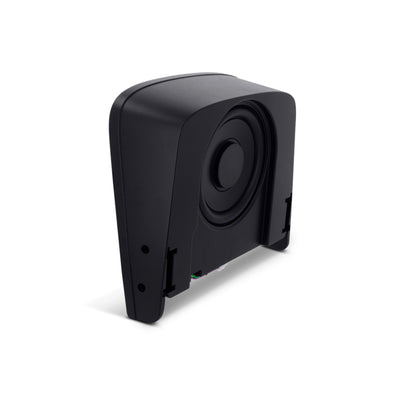

 Alpine SWC-D84DU Centre Console Subwoofer Enclosure for Fiat Ducato 8 and 9

Alpine SWC-D84DU Centre Console Subwoofer Enclosure for Fiat Ducato 8 and 9

£449.99

Frequently Asked Questions

Q: Do I need an amplifier for this subwoofer?

A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.

Q: What size enclosure does this subwoofer need?

A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.

Q: What does RMS power mean?

A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.

Q: Sealed or ported enclosure - which should I choose?

A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.

Q: Can CEN build or supply an enclosure and fit everything?

A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.

Q: Does the Alpine SWE-815 need a separate amplifier?

A: No. It has a built-in MXE-M150CKD amplifier (150W max) driving the 8-inch subwoofer at 100W RMS, and a wiring kit is included.

Q: Will the Alpine SWE-815 work with a factory stereo?

A: Yes. It has both RCA and speaker-level inputs, so it can connect to aftermarket head units with RCA outputs or to factory systems via the speaker inputs.

Q: What can I adjust with the SWE-815 wired remote?

A: The included wired remote lets you adjust the bass level, phase and low-pass frequency (50 to 125Hz at -12dB/oct).
