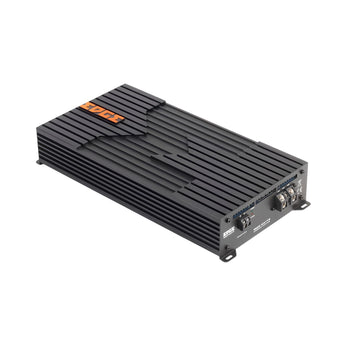

Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS
Couldn't Load Pickup availability
A high-output Class D monoblock built for serious bass. The EDBX1800.1D-E4 delivers 1800W RMS in a robust extruded aluminium chassis designed to run cool under pressure.
EDBX1800.1D-E4
EDGE DBX Series Monoblock 3600 watts Amplifier
Part of EDGE's 2024 DBX Series, the "Big E" range brings high-output Class D monoblock amplifiers in a distinctive extruded aluminium chassis. Thick side fins keep temperatures in check, and the signature E engraving gives it a clean, understated look.
Solid die-cast 4AWG power and ground terminals make wiring straightforward. Dual speaker terminals and a bass remote let you fine-tune output from the listening position. Onboard controls cover gain, bass boost, frequency and subsonic filter adjustment, giving you precise control over your low-end. A signal output means you can easily chain an additional amplifier into your system.
Features
- Built in active crossover with LPF and Subsonic filter
- Parametric bass boost circuit with adjustable frequency
- Remote level control
- RCA input and output
Explore the full range in Edge.
Specification
| Configuration | Monoblock |
|---|---|
| RMS @ 4 Ohms Mono | 1 x 650 watts |
| RMS @ 2 Ohms Mono | 1 x 1200 watts |
| RMS @ 1 Ohms Mono | 1 x 1800 watts |
| Maximum Power | 3600 watts |
| Frequency Response | 10Hz - 180Hz |
| Crossover Type | LP / Subsonic |
| Crossover Range | 0Hz - 180Hz |
| Recommended Fuse | 180A (External Fuse) |
| Topology | Class D |
| Dimensions | (H x W X D) 63mm x 363mm x 179mm (2.5" x 14.3" x 7.1") |
What's Included
- EDBX1800.1D-E4
Edge
About the Edge EDBX1800.1D-E4
From our tech experts at CEN
A monoblock subwoofer amplifier from Edge, Class D, rated at 1800w RMS.
Who it suits
Anyone adding a subwoofer who wants solid power without a specialist budget. Edge is built for people who want loud and reliable rather than boutique.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Edge
More options from the same range, in stock and ready to go
Highly Rated Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 £179.00 /In stock
Save 33% Popular Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS RRP£299.99£199.99 / Save 33%In stock
Best Seller Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS £199.99 /In stock
Save 6% Popular Edge 12 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB12A 300w RMS RRP£159.00£149.00 / Save 6%Low stock
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS £149.99 /Low stock
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
