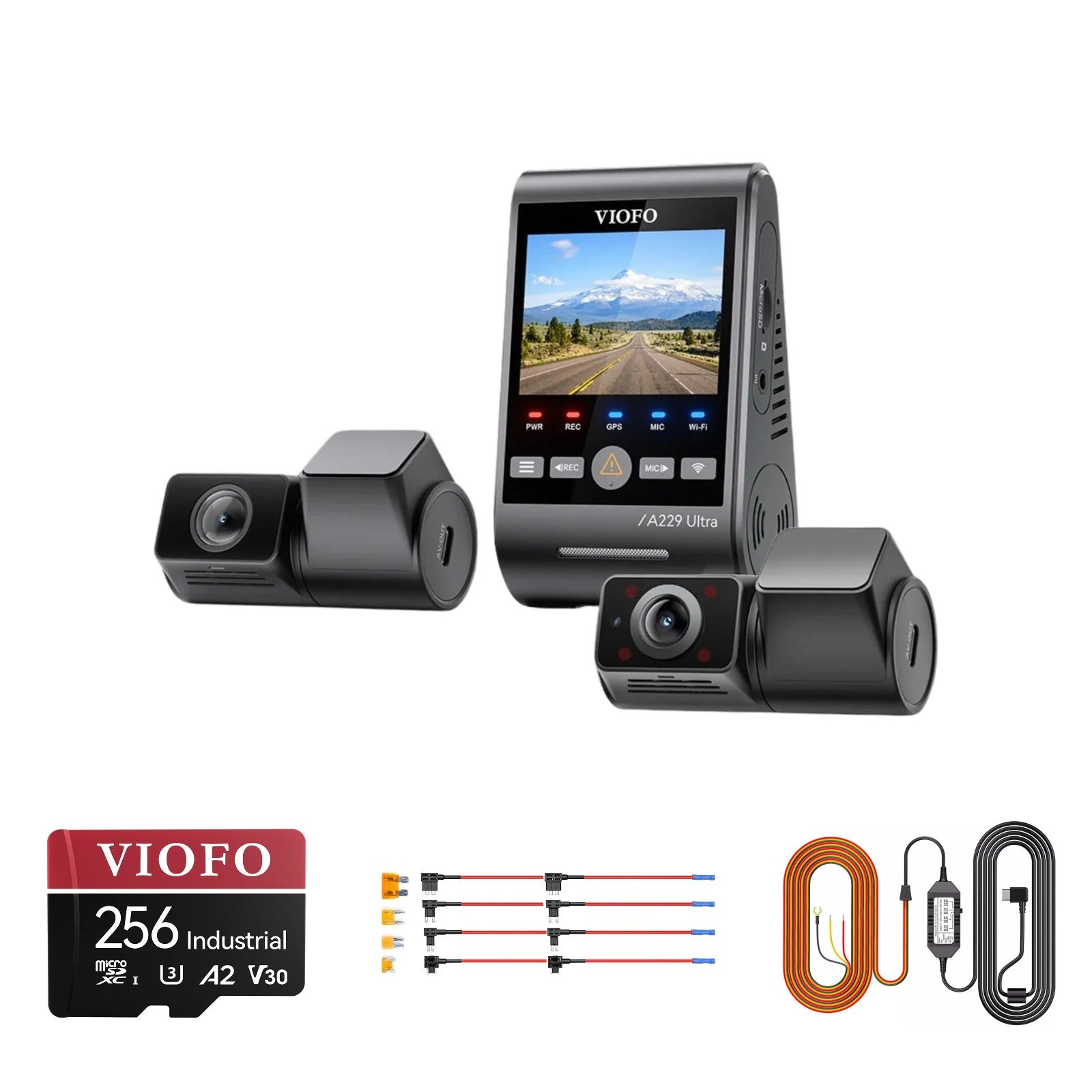

Viofo A229 Ultra 3CH Dash Cam HK4 Hardwire Kit 256GB Bundle
Couldn't Load Pickup availability
This VIOFO A229 Ultra 3CH bundle combines the three-channel dash cam, recording 4K front, 4K rear and 1080P from a 210° infrared fisheye cabin camera, all with Sony STARVIS 2 sensors and HDR, with an HK4 hardwire kit, an 8-piece fuse kit and a 256GB microSD card.
The HK4 hardwire kit and fuse set let you power the camera from the fuse box for parking mode, and the 256GB card gives three channels room to record. The dash cam is also sold on its own or in a bundle without the memory card, and the VIOFO 256GB microSD card is available separately.
Key specifications
- Channels: 3 (front, rear, cabin)
- Resolution: 4K + 4K + 1080P at 30fps
- Front and rear sensors: Sony STARVIS 2 IMX678, 1/1.8", 8MP
- Cabin sensor: Sony STARVIS 2 IMX662, 1/2.8", 2MP, 210° FOV, 4 IR LEDs
- HDR: all three channels
- Wi-Fi: 2.4GHz and 5GHz
- GPS: built-in quad-mode
- Screen: 2.4"
- Bundle extras: HK4 hardwire kit, 8pcs fuse kit, 256GB microSD card

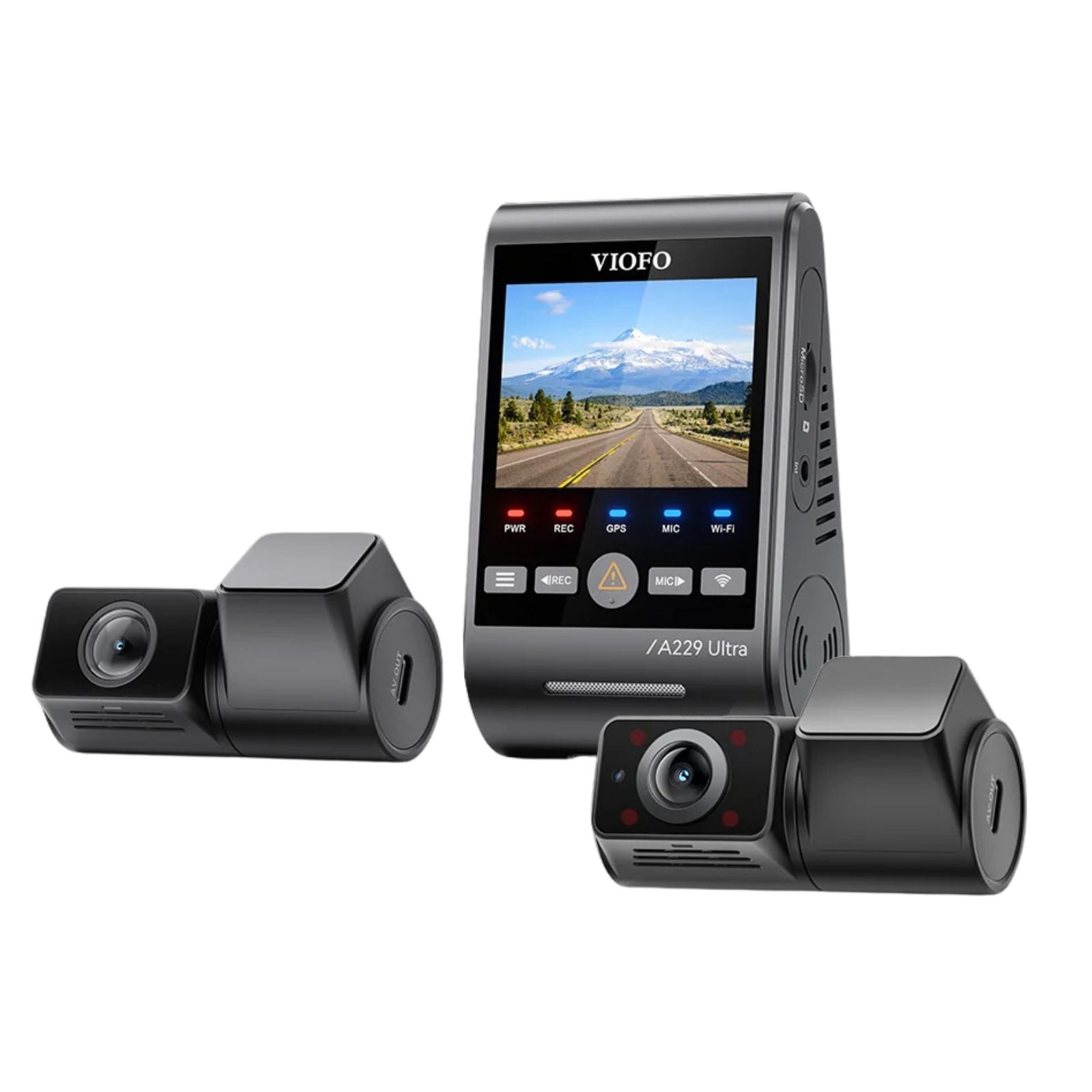

A229 Ultra 3CH Dash Cam Bundle
HK4 Hardwire Kit, 8pcs Fuse Set and 256GB Micro SD Card
The A229 Ultra 3CH records 4K in both directions plus a 210° infrared fisheye view of the cabin and side windows, giving full vehicle coverage in one system. It suits taxis, ride-share drivers and families, and the front CPL-200 filter is included to cut windscreen glare.
Explore the full range in Viofo A229 Ultra Series.
Specification
| Channels | 3-Channel (Front + Rear + Cabin) |
|---|---|
| Sensor | Front - Sony STARVIS 2 IMX678 1/1.8" 8MP / Rear - Sony STARVIS 2 IMX678 1/1.8" 8MP / Cabin - Sony STARVIS 2 IMX662 1/2.8" 2MP |
| Video Resolution | 4K P30+4K P30+1080 P30 / 4K 21:9+4K 21:9+1080 P30 / 1080 P30+1080 P30+1080 P30 |
| HDR | Supports Front & Rear & Cabin |
| Lens | Front - F1.8 Aperture, FOV=140° / Rear - F1.8 Aperture, FOV=140° / Cabin - F2.2 Aperture, FOV=210° |
| Wi-Fi | Built-in 2.4GHz & 5GHz |
| Parking Mode | Auto Event Detection / Time-lapse Recording / Low Bitrate Recording |
| G-sensor | Off / Low / Middle / High Sensitivity |
| Loop Recording | Off / 1 min / 2 min / 3 min / 5 min / 10 min |
| GPS | Logger Built-in |
| Voice Notification | Supported |
| Voice Control | Supported |
| CPL | Front - CPL-200 Included / Rear - CPL-600 (Optional) |
| Bluetooth | Built-in, Support BTR200 (Optional) |
| Hardwire Kit | HK4 Included |
| Micro SD Card | 256GB Included (supports up to 512GB) |
| Video Format | MP4 |
| Image Format | JPEG |
| LCD | 2.4" High-Resolution |
| Input Power | DC 5V / 2A |
| Operating Temperature | -20°C~65°C |
| Storage | Temperature -20°C~70°C |
| Size | Front - 2.3 x 3.9 x 1.8 inch / Rear - 2.79 x 1.2 x 1.61 inch / Cabin - 2.79 x 1.2 x 1.61 inch |
What's Included
- Front Camera + GPS Mount
- Rear Camera
- Fisheye Cabin Camera
- 3.5m Car Charger
- 0.5m USB-A to USB-C Data Cable
- 1m Fisheye Camera Cable
- 6m Rear Camera Cable
- Front Camera CPL
- Trim Removal Tool
- Windshield Static Stickers x 3
- Spare Mount Sticky Pads x 3
- After-sales Service Card
- Warning Sticker
- User Manual
- Quick Start Guide
Bundle Extras

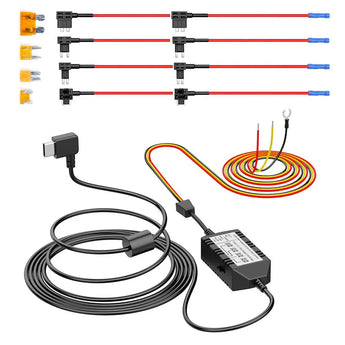

- HK4 Hardwire Kit
- 8pcs Fuse Kit

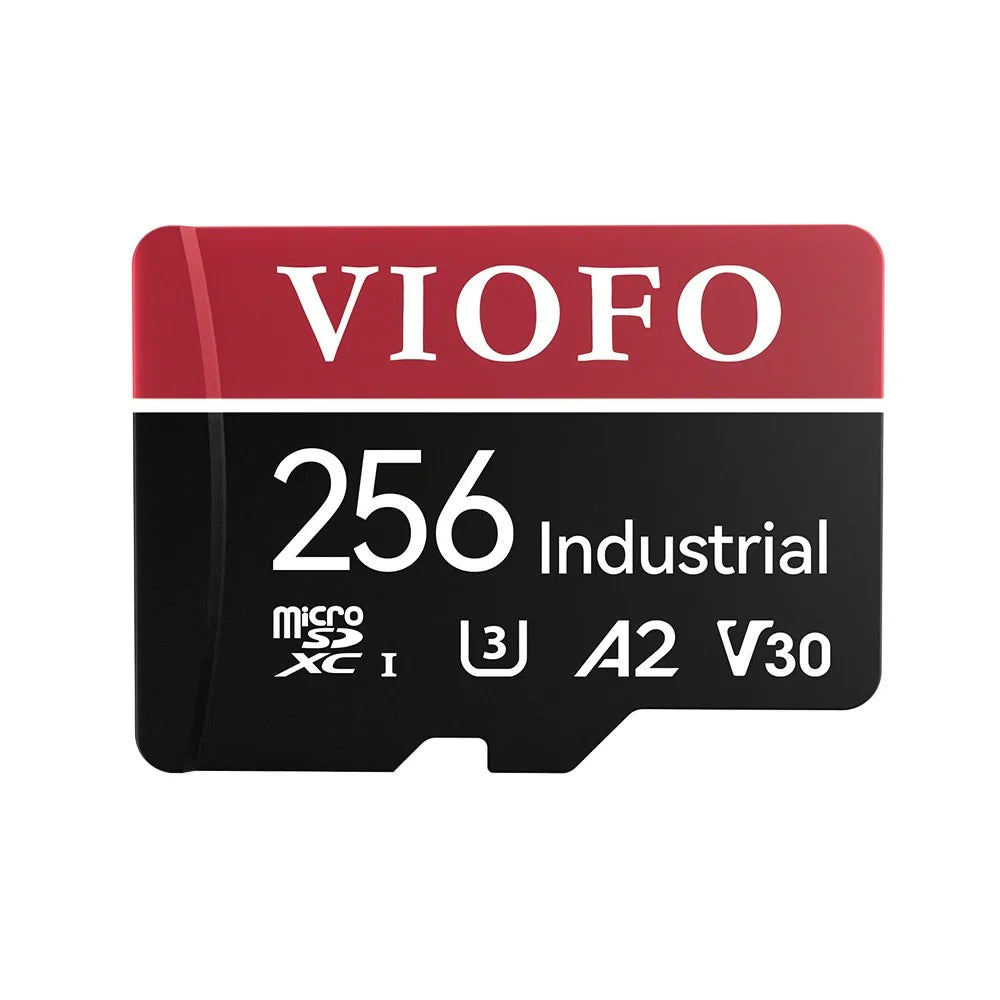

- 256GB Micro SD Card
Other bundles for this product
Viofo
Explore the full Viofo range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Viofo
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Viofo News & Guides
The latest Viofo product news, launches and guides from the CEN team in Nottingham.
Viofo A229 Plus vs A229 Pro: Is 4K Worth It?
Same body, same mount, same hardwire kit. The only real difference is 2K versus 4K at the front, and it...
Viofo A229 Pro vs A329S: Which Should You Buy?
Both record 4K, both take a 2K rear camera, and the price gap is bigger than the spec gap. Here...
New VIOFO Line-Up at CEN: A149 Pro, T330, T340 and the BP60 Battery Pack
VIOFO's biggest launch in years has landed at CEN: the A149 Pro Duo brings 4K and Sony STARVIS 2 to...
More from Viofo A229 Ultra Series
More options from the same range, in stock and ready to go
Save 5% Viofo A229 Ultra 3CH Dash Cam 3 Channel Front Rear Cabin 4K RRP£389.95£369.95 / Save 5%In stock
Save 6% Viofo A229 Ultra 2CH Dash Cam Front Rear 2 Channel 4K RRP£359.95£339.95 / Save 6%In stock
Save 6% Bundle Viofo A229 Ultra 3CH Dash Cam HK4 Hardwire Kit 8pcs Fuse Bundle RRP£419.90£394.90 / Save 6%Low stock
Save 5% Bundle Viofo A229 Ultra 2CH Dash Cam HK4 Hardwire Kit 128GB Bundle RRP£459.85£434.85 / Save 5%Low stock
Save 6% Bundle Viofo A229 Ultra 2CH Dash Cam HK4 Hardwire Kit 8pcs Fuse Bundle RRP£389.90£364.90 / Save 6%Low stock
Frequently Asked Questions
Q: What SD card do I need for this dash cam?
A: Use a high-endurance microSD card designed for continuous recording. Standard cards wear out quickly in dash cams. CEN stocks suitable high-endurance cards, and the maximum supported capacity is listed in the Specification tab.
Q: Does this dash cam record while the car is parked?
A: Parking mode is listed in the Specification tab. Where supported, it requires constant power from either a hardwire kit or a dedicated dash cam battery pack, both of which CEN stocks.
Q: Do I need to hardwire the dash cam?
A: Not necessarily. All dash cams work from the 12V socket for drive recording. Hardwiring hides the cabling and enables parking mode, and CEN offers professional hardwire installation from our Nottingham premises.
Q: Will the footage be accepted by my insurer or the police?
A: Dash cam footage is widely used in insurance claims and can be submitted to most UK police forces through their online portals. Recording quality matters, so check the resolution in the Specification tab.
Q: Front only or front and rear - which should I choose?
A: A front camera covers the most common claim scenarios. A two-channel system adds rear coverage for rear-end collisions and tailgating evidence, which is where many disputed claims arise. Three-channel systems add an interior view, suited to taxi and fleet use.
Q: What is included in the A229 Ultra 3CH 256GB bundle?
A: You get the A229 Ultra front camera with GPS mount, rear camera, fisheye cabin camera, 6m rear and 1m cabin cables, 3.5m car charger, USB-C data cable, front CPL filter, trim tool, stickers and spare sticky pads, plus an HK4 hardwire kit, an 8-piece fuse kit and a 256GB microSD card.
Q: Why a 256GB card with the A229 Ultra 3CH?
A: Two 4K cameras plus a cabin camera write a lot of footage, so a 256GB high-endurance card holds more before loop recording overwrites the oldest clips. Locked event clips are kept until you delete them.
Q: What does the A229 Ultra 3CH cabin camera record?
A: The cabin camera records 1080P through a 210° fisheye lens with a Sony STARVIS 2 IMX662 sensor. Four infrared LEDs keep the interior and side windows visible in low light.
