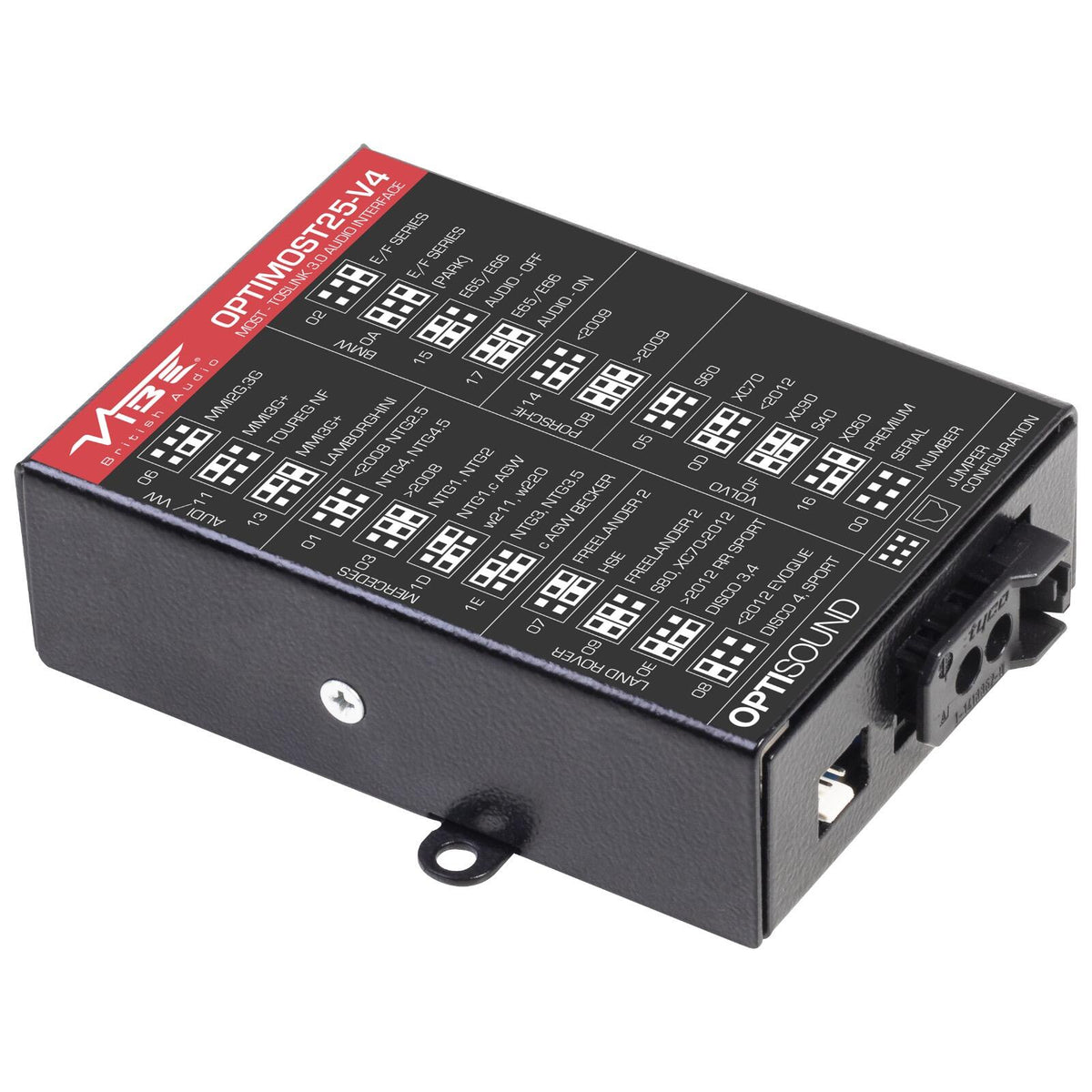

Vibe Most 25 Optical Audio Interface Adapter DSP Integration OPTIMOST25-V4

The Vibe OPTIMOST25-V4 is a MOST25 to Toslink optical audio interface adapter. It extracts the audio signal from a vehicle's MOST25 data stream and outputs it as a lossless stereo SPDIF digital signal, enabling integration with aftermarket DSPs and DSP amplifiers. It is part of the Vibe Optisound integration range.

Key specifications

• Input: MOST25 data stream from the vehicle amplifier
• Output: Optical digital (Toslink), stereo SPDIF
• Vehicle adaptation: Jumper settings
• Factory controls retained: Volume, balance and tone
• Serial number copying: Yes, for serial-protected MOST25 components

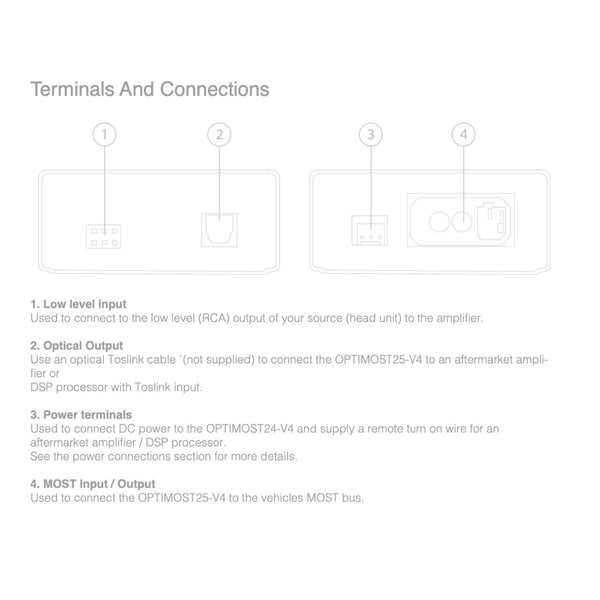

• Power connections: +12V (red), ground (black), remote out (blue)
• Compatible brands: Audi, BMW, Land Rover, Mercedes, Porsche, Volvo, VW

MOST25 audio output adapter

MOST to Toslink 3.0 audio interface

The OPTIMOST25-V4 taps into the MOST25 data stream used in premium factory sound systems, automatically detecting and extracting the music signal for output to aftermarket signal processors and DSP amplifiers — such as the Vibe Powerbox 65.4M.

MOST25 data stream integration

• Lossless, interference-free communication via the vehicle's MOST25 data stream.
• Automatically identifies and extracts the music signal from the data stream.

High-quality digital audio output

• Outputs a high-quality digital stereo signal in SPDIF format.
• Optical digital (Toslink) output ensures signal reaches processors and DSP amplifiers without degradation.

Compatibility and adaptability

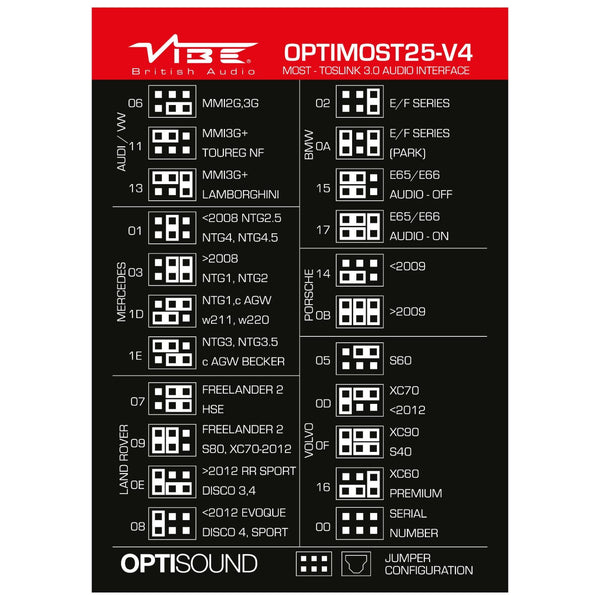

• Jumper settings allow adaptation to different car models.
• Original radio controls for volume, balance and tone remain fully functional.

Special features for BMW vehicles: serial number handling

• Detects and copies the serial number from any replaced serial-protected MOST25 component.
• Automatically logs onto the MOST data bus after copying the serial number for seamless integration.

Installation

• Set the jumpers on the device to match the target vehicle model.
• Once configured, integrates with the factory sound system with no further adjustments required.
• Original car radio controls remain functional throughout.
