Vibe Black Air BA10SQ-V4 Passive 10 Inch Compact Subwoofer Enclosure 300w RMS
Couldn't Load Pickup availability

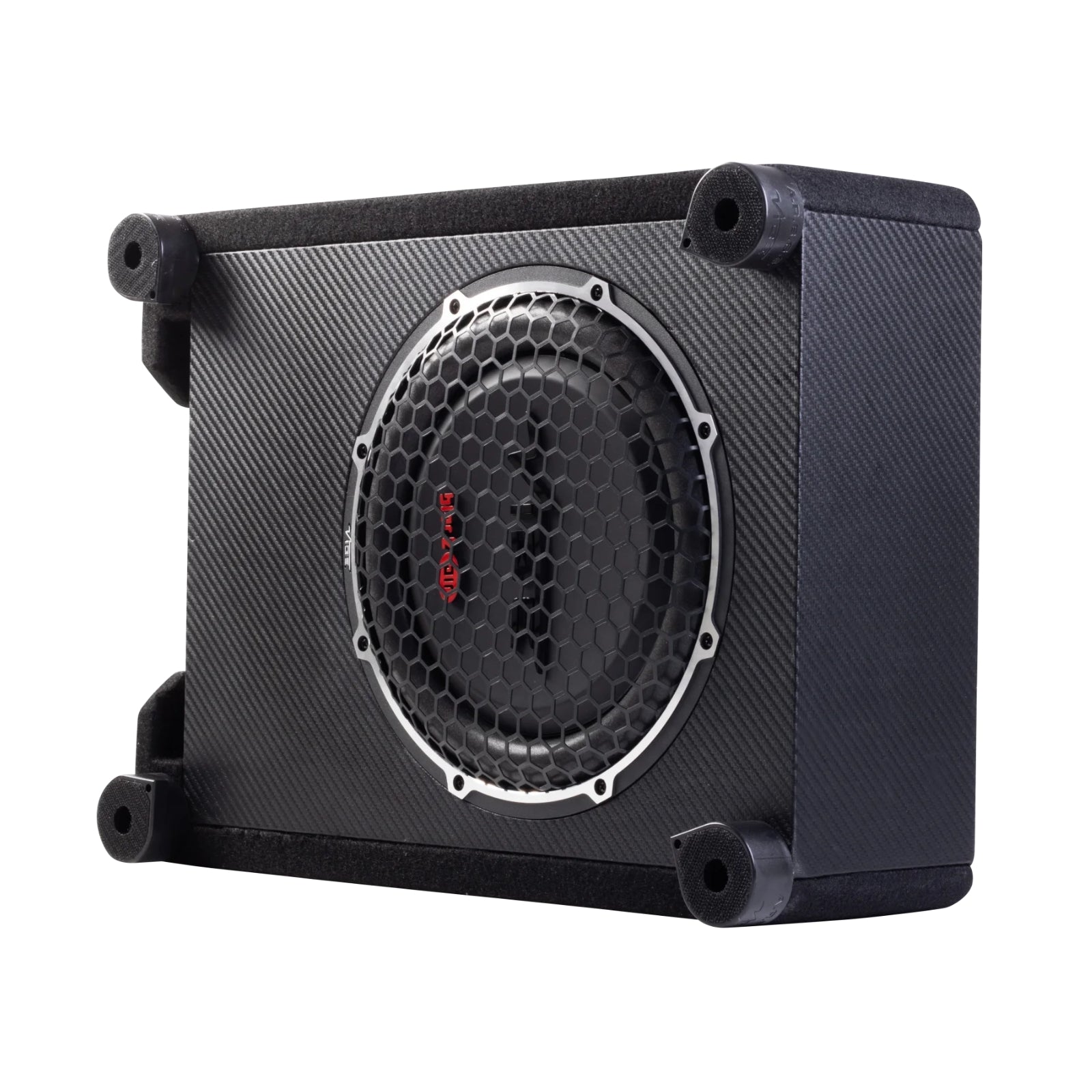

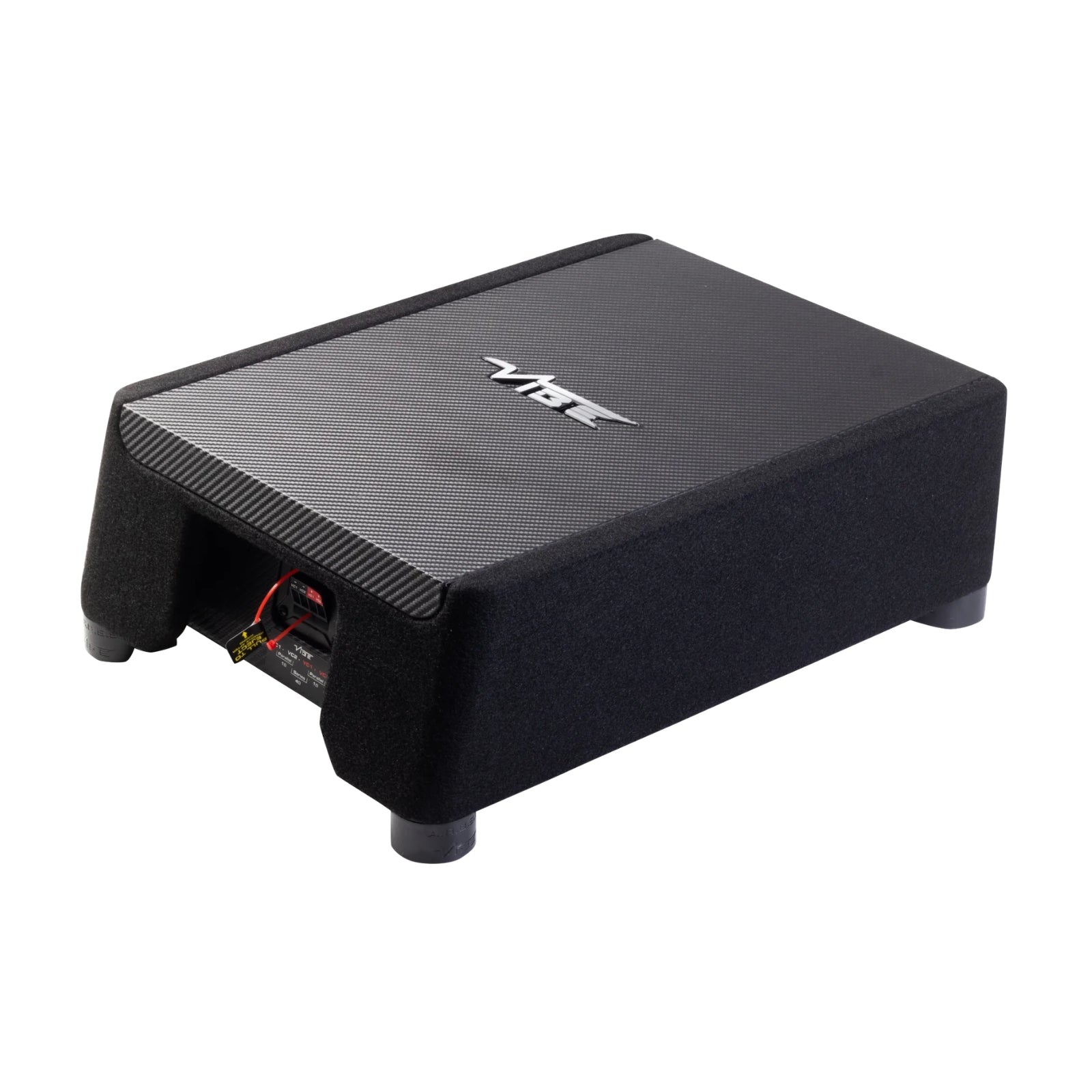

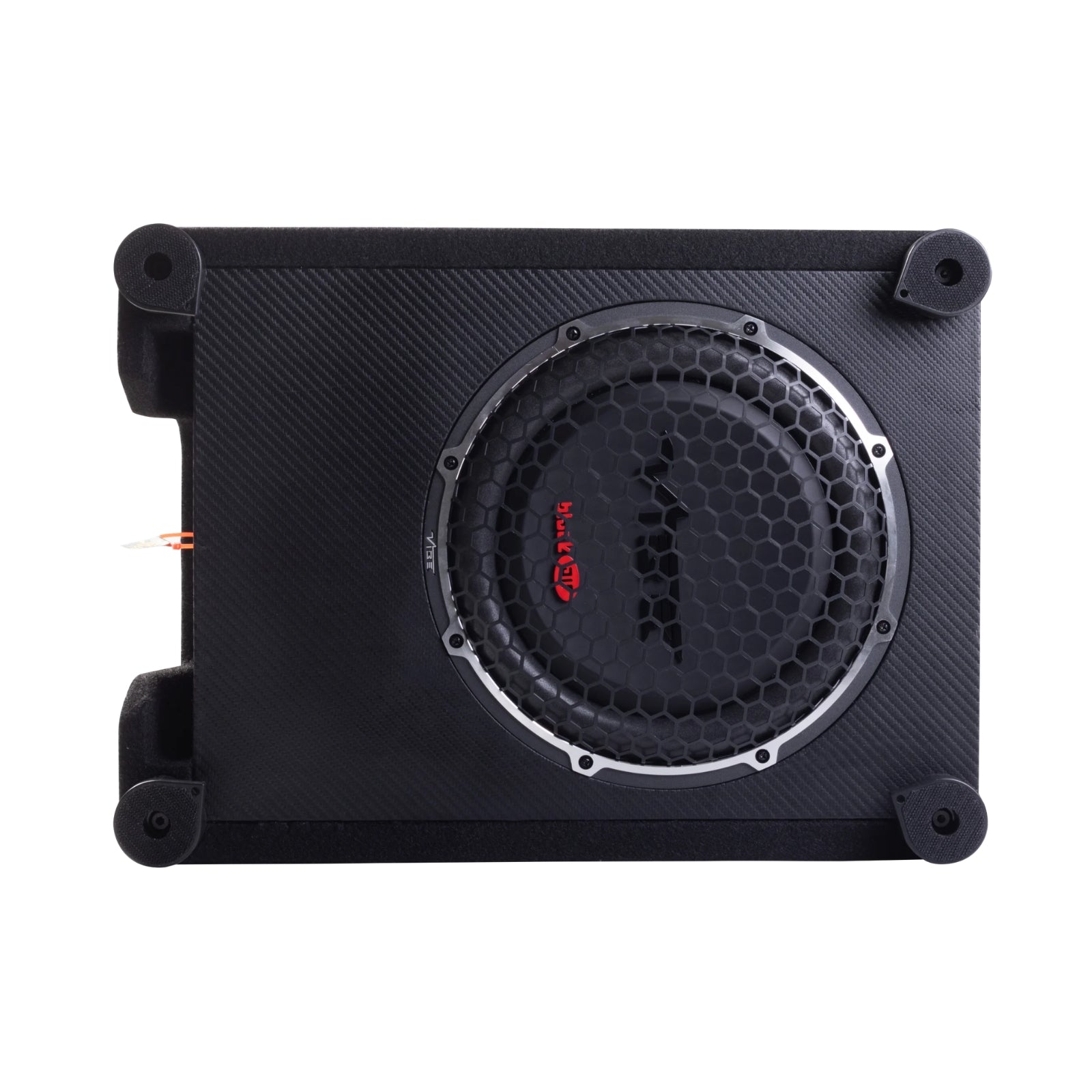

The Vibe Black Air BA10SQ-V4 is a passive sealed 10 inch compact subwoofer enclosure, loaded with the BLACKAIR10D2S-V3 shallow subwoofer and rated at 300W RMS into a dual 2 ohm load. It is a down-firing, sound-quality-focused box from Vibe's Black Air range.
Want the amplifier included? The Black Air BA10ASQ active enclosure pairs the same driver with a 400W amplifier. The BLACKAIR10D2S-V3 subwoofer is also sold on its own.
Key specifications
- Model: BA10SQ-V4
- Type: passive enclosure, sealed, down-firing
- Subwoofer: BLACKAIR10D2S-V3, 10 inch (274mm)
- Power: 300W RMS / 900W peak
- Impedance: dual 2 ohm
- Sensitivity: 86dB
- Frequency response: 30Hz – 250Hz
- Dimensions (H x W x D): 127 x 315 x 452mm
- Grille: included
BA10SQ-V4 Black Air 10 Inch 900 Watts SQ Passive Enclosure
Designed for musical, rounded bass output, the BA10SQ-V4 keeps a compact footprint so it won't swallow your boot space.
Features
- BLACKAIR10D2S-V3 loaded shallow enclosure
- Down-firing configuration for increased bass response
- Audiophile sound quality tuning
- Removable ARBSS (Anti Resonance Bass Support System) feet to reduce unwanted vibration
- Protective grille included
- Dual 2 ohm voice coil
- 4-way fast plug terminal
The auto sense turn-on technology makes the BA10SQ-V4 straightforward to integrate with factory head units, removing the need for a separate trigger wire.
BEST DRIVER – The BLACKAIR10D2S-V3 shallow 10 inch subwoofer is one of Vibe's flagship drivers, chosen specifically for this enclosure application.
PREMIUM DESIGN – Sleek, durable finish with high-end terminals, precision-tooled components and alloy subwoofer detailing.
OPTIFIT – Multiple mounting positions are supported, and the removable ARBSS feet allow flexible installation configurations to suit different boot layouts.
Explore the full range in Vibe Black Air.
Specification
| Type | Passive Enclosure |
|---|---|
| Configuration | Sealed |
| Speaker Size | 10″ (274mm) |
| Peak/RMS Power | 900W/300W |
| Sensitivity | 86dB |
| Freq. Response | 30Hz - 250Hz |
| Impedance | Dual 2 Ohms |
| Amplifier | N/A |
| Dimensions | (H x W x D) 127 x 315 x 452mm |
| Grille Included | Yes |

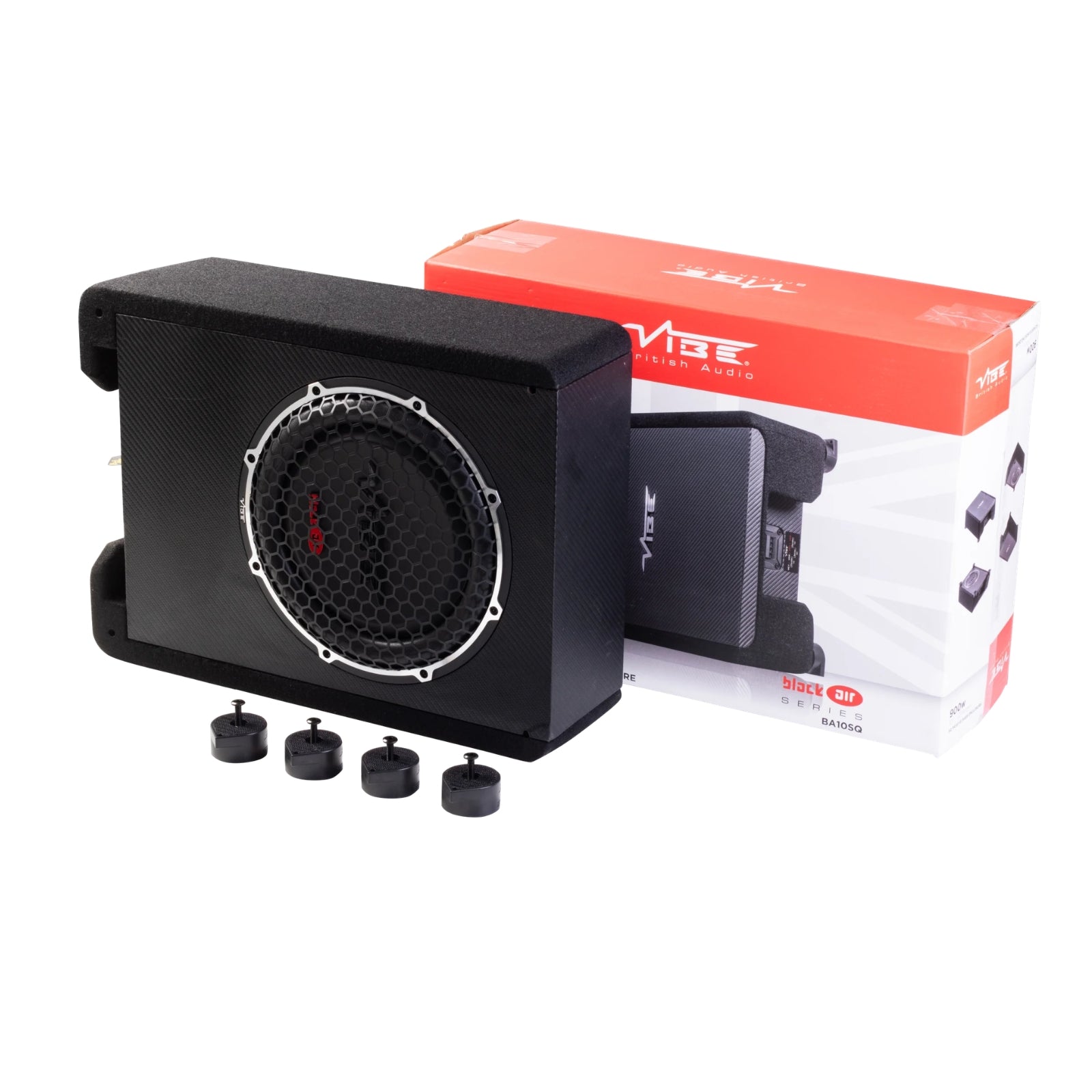

What's Included
Vibe
About the Vibe BA10SQ-V4
From our tech experts at CEN
A Vibe 10 inch subwoofer in a matched enclosure from the Black Air range, with box volume suited to the driver rather than left to guesswork.
Who it suits
Drivers who want a known result without commissioning a custom build. Black Air is the step up from the everyday range, with more control and output.
Our tech experts advise
Match the amplifier to the enclosure’s rating, and secure the box properly: an unrestrained enclosure is dangerous in a crash. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Vibe range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Vibe
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Vibe Black Air
More options from the same range, in stock and ready to go
Vibe Black Air BLACKAIR12D2S-V3 12 Inch Shallow Dual 2 Ohm Subwoofer 300w RMS
£219.99
View product
Vibe Black Air BLACKAIR10D2S-V3 10 Inch Shallow Dual 2 Ohm Subwoofer 300w RMS
£199.99
Vibe Black Air BLACKAIRPRO4.5T-V0 4.5 Inch Pro Audio Tweeter 85w RMS
£59.99
Vibe Black Air BLACKAIRPRO4T-V3 4 Inch Pro Audio Tweeter 75w RMS
£44.99
Vibe Black Air BA6-V4 6.5 Inch 2 Way Coaxial Car Speakers 140w RMS Pair
£149.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Does the BA10SQ-V4 need an amplifier?
A: Yes. The BA10SQ-V4 is a passive enclosure, so it needs an external amplifier suited to 300W RMS into a dual 2 ohm subwoofer. The BA10ASQ is the active version with an amplifier included.
Q: Which subwoofer is inside the BA10SQ-V4?
A: It is loaded with the Vibe BLACKAIR10D2S-V3 shallow 10 inch dual 2 ohm subwoofer.
Q: How big is the BA10SQ-V4 enclosure?
A: It measures 127mm high, 315mm wide and 452mm deep, and comes with a protective grille and removable ARBSS support feet.
