Shanling SM90 Compact Digital Network Streamer DAC Black

The Shanling SM90 is a compact desktop network streamer and DAC, featuring dual AKM AK4493S DACs, a 4.96-inch 1080p touchscreen, TIDAL Connect, Qobuz Connect, Roon Ready, AirPlay 2, an internal M.2 SSD slot and a 35W linear power supply. It is part of Shanling's "90" series.

This listing is the Black finish. The SM90 is also available in Silver.

Key specifications

• DAC: 2 x AKM AK4493S with OPA1612 analogue stage
• Hi-res support: up to 768kHz/32-bit and DSD512
• Streaming: TIDAL Connect, Qobuz Connect, Roon Ready, DLNA, AirPlay 2
• Digital inputs: coaxial, optical, HDMI ARC (192kHz/24-bit), USB DAC (768kHz/32-bit, DSD512)

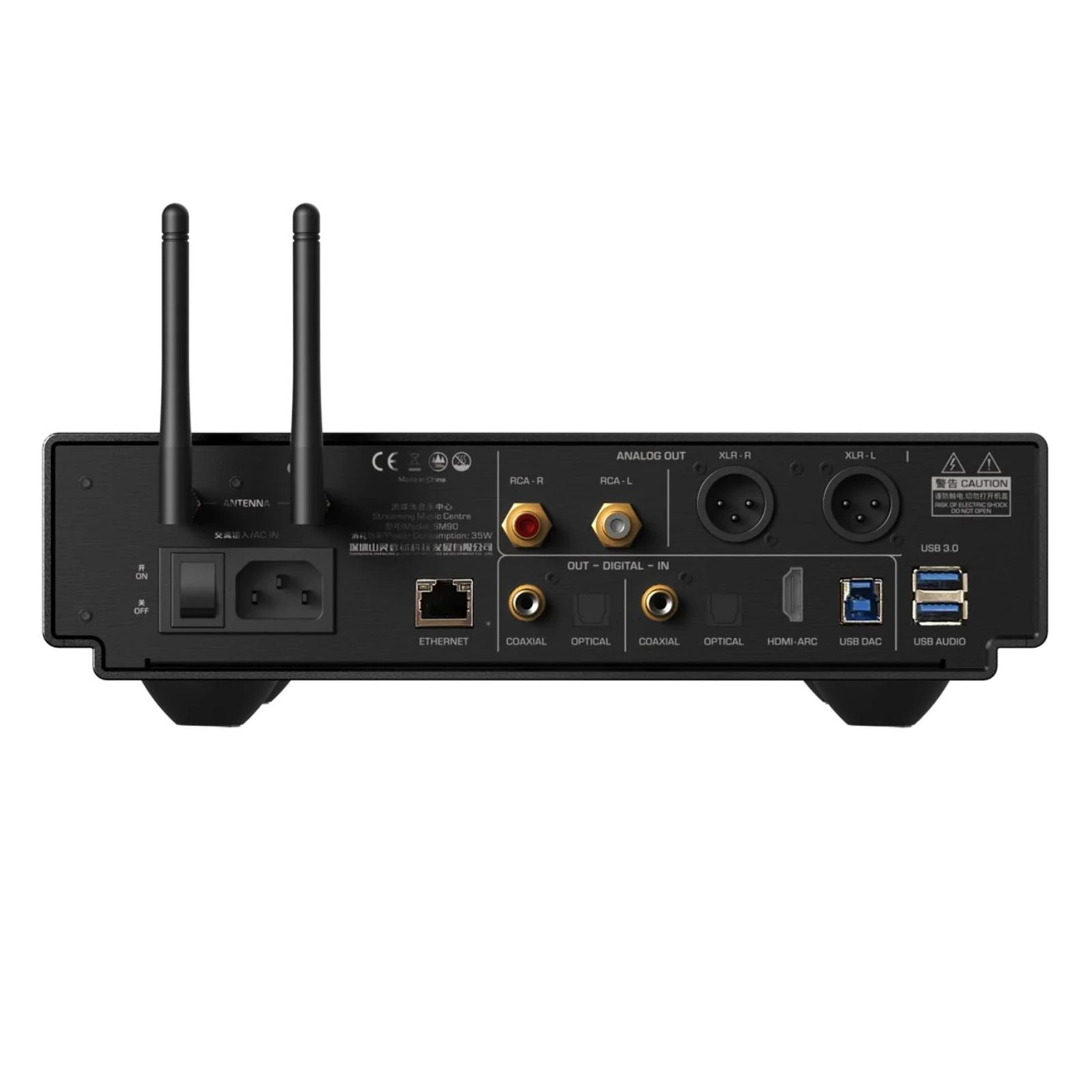

• Outputs: RCA and XLR analogue; coaxial, optical and USB digital
• Network: gigabit LAN and dual-band Wi-Fi 6
• Bluetooth: 5.2 receiver, LDAC/AAC/SBC
• Memory: 4GB RAM, 64GB storage, M.2 SSD slot
• Size and weight: 280 x 230 x 83.1mm (incl. feet), 3.3kg

Shanling SM90 Streamer DAC

The SM90 is built on Shanling's most advanced streaming platform, refined through development of the SM1.3R and SMT1.3 streamers. The result is a mature, stable and intuitive system designed for dedicated audiophiles.

Direct Access to Streaming Apps

Stream directly from the touchscreen with built-in support for Spotify, TIDAL, Qobuz, Apple Music, Apple Classical, Amazon Music, Presto Music and KKBox.

Easy Streaming from Phones and Tablets

Supports TIDAL Connect, Qobuz Connect and Roon Ready for instant phone or tablet control. DLNA and AirPlay 2 are also available for simpler wireless playback.

Optimised Local File Playback

Large audiophile libraries work seamlessly via external USB drives, the internal M.2 SSD slot or network-attached storage (NAS).

Dual AKM AK4493S DACs

Two AKM AK4493S DACs deliver a refined balance of clarity and natural, smooth presentation. An OPA1612-based analogue output stage and carefully designed power supply elevate overall performance.

Modern Streaming Platform and Reliable System Components

The SM90 runs on a 64-bit ARM Cortex CPU with 4GB RAM and 64GB internal storage, operating on Shanling's closed Android platform for stable, consistent performance.

Convenient Menu Structure

Shanling's UI provides fast access to all system levels via an optimised main menu, settings and playback controls. The reduced, well-structured layout improves clarity and navigation speed.

Instant Music Access

The main menu gives immediate playback control and direct access to your music library, with flexible organisation between local files and streaming services.

Cross-Platform Unification

The SM90 interface is unified with the Eddict Player companion app, giving a seamless transition between onboard control and remote use.

Multi-Functional Hi-Fi Source

The SM90 includes analogue inputs alongside digital inputs and outputs, integrating easily with external amplifiers, DACs or CD players for a complete hi-fi system.

Compact Aluminium Chassis

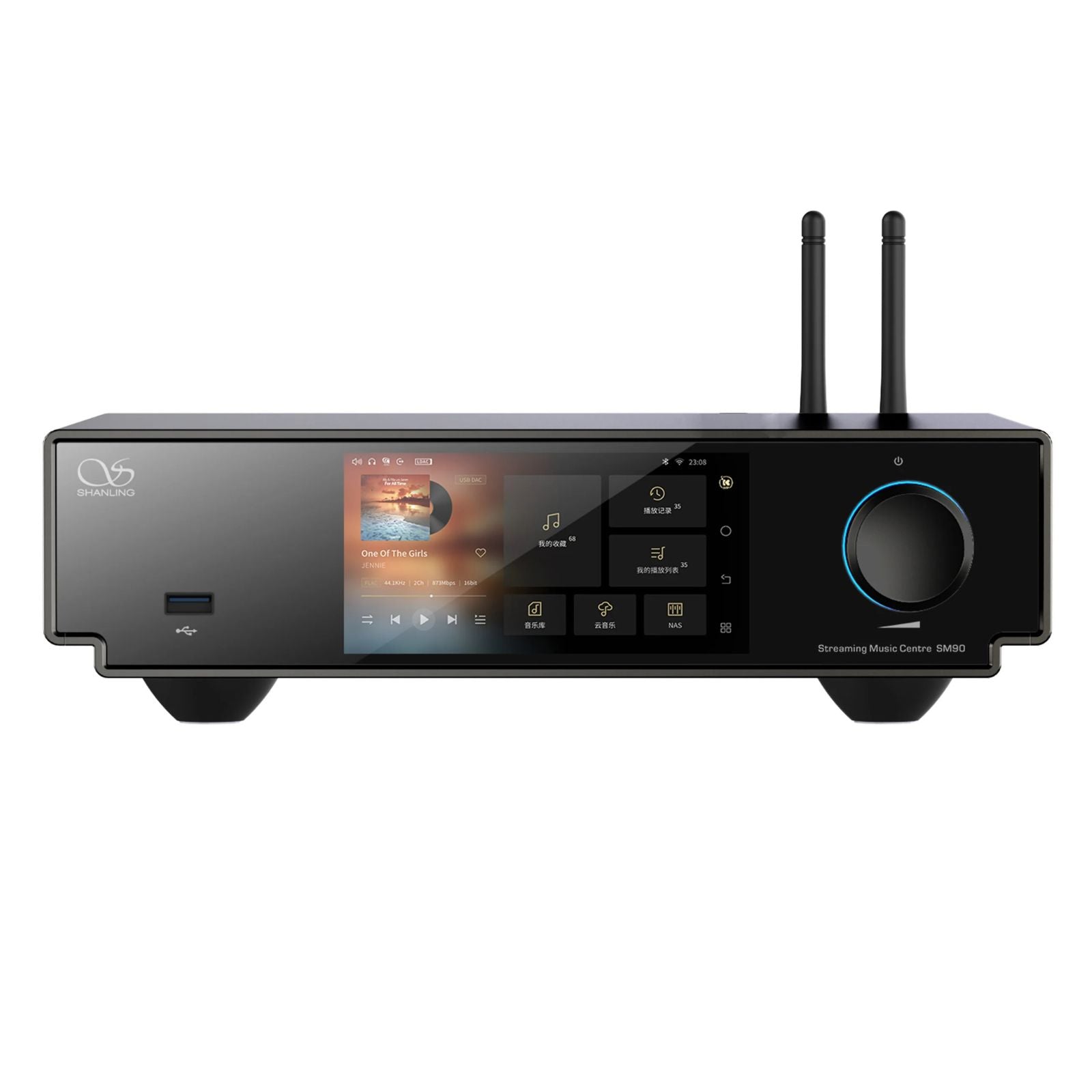

Following Shanling's "90" series design language, the SM90 houses a full streamer in a compact aluminium body with a 4.96-inch 1080p touchscreen set into the front glass panel.

Wi-Fi 6 and Gigabit LAN

Supports both wired gigabit LAN and dual-band Wi-Fi 6 for stable, high-speed streaming over wired or wireless connections.

Bluetooth Streaming

Bluetooth 5.2 with LDAC, AAC and SBC lets the SM90 act as a high-quality wireless receiver for quick playback from smartphones and tablets.

35W Linear Power Supply

A 35W toroidal transformer provides cleaner, more stable power than a switching supply, supporting a natural, analogue-like sound signature.

Android Global Lossless Output

Shanling's AGLO system delivers bit-perfect audio output on Android, enabling PCM up to 768kHz and DSD512 playback without resampling.

Dedicated Crystal Oscillators

An in-house FPGA system paired with 45.1584MHz and 49.152MHz low-phase-noise clocks improves accuracy and stability during high-resolution decoding.

Internal M.2 SSD Slot

An M.2 NVMe drive can be installed directly into the unit for fast, convenient access to large local music libraries.
