Pioneer TS-WX1210AH 12 Inch Powered Active Subwoofer Sub Bass Remote 500w RMS
Couldn't Load Pickup availability

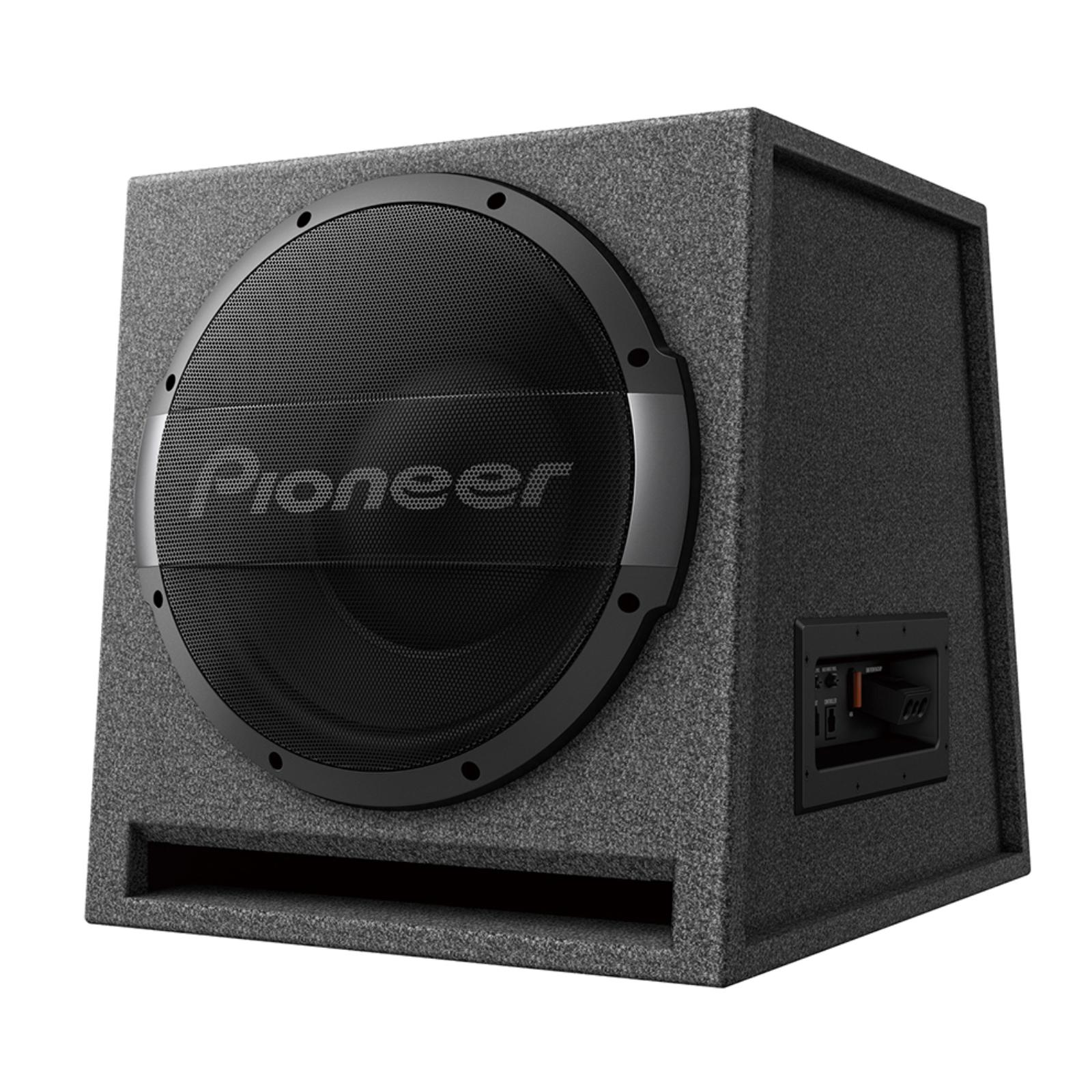

The Pioneer TS-WX1210AH is a 12-inch (30cm) powered bass reflex subwoofer with a built-in amplifier, rated at 500W RMS and 1500W maximum. It is part of Pioneer's active subwoofer range, designed as a single-enclosure bass upgrade with remote control and cables included.
This listing is the 500W RMS 12" model. The Pioneer powered subwoofer range is also available as the Pioneer TS-WX1010LA 10" 300W RMS shallow powered subwoofer.
Key specifications
- Size: 30cm (12")
- Type: single powered bass reflex subwoofer system (built-in amplifier)
- Power: 500W nominal, 1500W maximum
- Frequency response: 20Hz to 2.9kHz
- Low-pass filter: 50Hz to 200Hz (-12dB/oct)
- Sensitivity: 114dB (in car, 2V)
- Weight: 12.3kg
- Dimensions: 373 x 459 (375) x 400mm
Powerful bass and easy to install
The TS-WX1210AH is a single-driver subwoofer package delivering up to 1500W maximum power (500W nominal). Remote control and cables are included, making installation straightforward without needing a separate amplifier.
The cabinet and bass reflex port are optimised around the low-frequency characteristics of the single 30cm woofer, enabling faithful, powerful heavy bass reproduction.
A built-in bass boost circuit lets you adjust sound pressure level and frequency characteristics to suit your music and taste.
Explore the full range in Pioneer Subwoofers.
Specification
| Frequency response | 20 Hz - 2.9 kHz |
|---|---|
| Sensitivity | 114 dB (in car, 2V) dB |
| Impedance | 0.6 Ω |
| Surround | Urethane |
| Voice Coil | type Copper round wire 4-layers single voice coil |
| Voice Coil | bobbin type Kapton |
| Weight | 12.3 kg |
| Dimensions | 373x459(375)x400 mm |
More specs
| |
What's Included
- Powered Subwoofer
- Remote Control
- Remote Cable
Pioneer
About the Pioneer TS-WX1210AH
From our tech experts at CEN
The Pioneer TS-WX1210AH is a 12-inch (30cm) powered bass reflex subwoofer with a built-in amplifier, rated at 500W RMS and 1500W maximum power. The enclosure, amplifier, remote control and cables are all included, so no separate amp is needed. Frequency response runs from 20Hz to 2.9kHz, with a low-pass filter adjustable between 50Hz and 200Hz.
Who it suits
It suits drivers who want serious bass output from a single, self-contained unit without the complexity of a separate amplifier. A built-in bass boost circuit lets you tune sound pressure and frequency to your preference. If boot space is limited, the Pioneer TS-WX1010LA offers a shallower 10-inch, 300W RMS alternative.
Our tech experts advise
At 12.3kg and 373 × 459 × 400mm, measure your boot space carefully before purchasing. The included cables and remote make setup straightforward without needing a separate amplifier. Installation is priced per vehicle — contact our Nottingham fitting team for details.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer Subwoofers
More options from the same range, in stock and ready to go
PopularPioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
RRP £179.00Save 11%£159.00
Best SellerPioneer TS-WX400DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
RRP £219.99Save 9%£199.99
Best SellerPioneer TS-A300S4 Sub 12" 30cm Single Voice Coil Subwoofer 500w RMS
RRP £90.00Save 12%£79.00
Best SellerPioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS
RRP £77.00Save 10%£69.00
Pioneer TS-WX130EA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
RRP £179.99Save 22%£139.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Does the Pioneer TS-WX1210AH need a separate amplifier?
A: No. The TS-WX1210AH is a powered subwoofer with a built-in amplifier, rated at 500W nominal and 1500W maximum.
Q: Is a remote control included with the TS-WX1210AH?
A: Yes. The box contains the powered subwoofer, a remote control and a remote cable.
Q: How big is the Pioneer TS-WX1210AH enclosure?
A: The enclosure measures 373 x 459 (375) x 400mm and weighs 12.3kg, so check your boot space before ordering.
