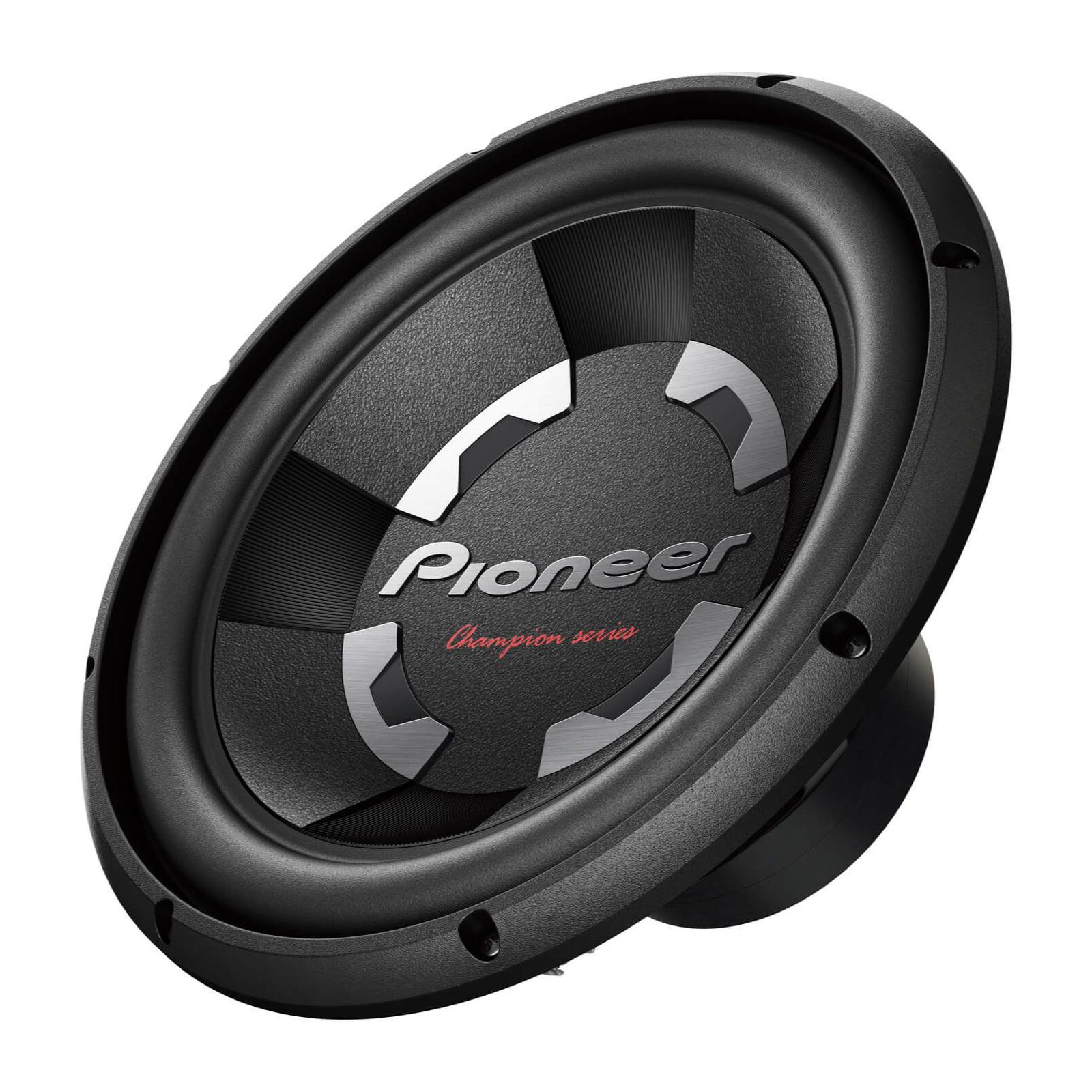

Pioneer TS-300D4 Sub 12" 30cm Champion Series Dual Voice Coil Subwoofer 400w RMS
Couldn't Load Pickup availability
The Pioneer TS-300D4 is a 12" (30cm) Champion Series dual voice coil subwoofer rated at 400W RMS / 1400W max, designed for deep, accurate bass across a wide range of enclosure builds.
Key specifications
- Size: 12 inch / 30cm
- Power handling: 400W RMS / 1400W max
- Impedance: dual 4 ohm voice coils (4 Ω x 2)
- Sensitivity: 96 dB
- Frequency response: 20 - 100 Hz
- Mounting depth: 147 mm
- Cut-out hole: 281 mm
- Recommended enclosure: 35.4 litres (1.25 ft³)
TS-300D4 Champion Series
A 12-inch sub built for deep, accurate bass at high volumes. The dual voice coil design gives flexible wiring options to suit a variety of amplifier configurations and enclosure builds.
Upgrade your sound with powerful bass
400W RMS power handling gives you headroom for loud, clean output. If you'd prefer a ready-to-go solution, Pioneer also offer the Pioneer TS-WX300A, a 12" active subwoofer with built-in amplifier rated at 350W RMS.
Strong sound
Champion Series subwoofers handle heavy loads at high volumes without losing sound quality. Compact dimensions make the TS-300D4 suitable for boot installs and custom enclosure builds alike.
IMPP membrane
The IMPP cone adds rigidity and strength to the diaphragm, producing a tighter, more controlled bass response even at high power levels.
Explore the full range in Pioneer Subwoofers.
Specification
| Mounting depth | 147 mm |
|---|---|
| Voice coil | type Polyimide |
| Weight | 4.44 kg |
| Frequency response | 20 - 100 Hz |
| Sensitivity | 96 dB |
More specs
| |
What's Included
- Pioneer TS-300D4
Pioneer
About the Pioneer TS-300D4
From our tech experts at CEN
The Pioneer TS-300D4 is a 12" (30cm) Champion Series dual voice coil subwoofer rated at 400W RMS and 1400W max. It features an IMPP cone, dual ferrite magnets and four-layer round copper voice coils, with a frequency response of 20–100 Hz. The dual 4Ω voice coil configuration offers flexible wiring to suit a range of amplifier setups.
Who it suits
The TS-300D4 suits those building a custom boot enclosure who want deep bass and flexibility in how they connect to an amplifier. If you would prefer an all-in-one powered option, the Pioneer TS-WX300A is a 12" active subwoofer with a built-in amplifier rated at 350W RMS.
Our tech experts advise
This is a passive driver; you will need a separate amplifier and a suitable enclosure. Mounting depth is 147mm with a 281mm cut-out, and Pioneer recommends an enclosure of 35.4 litres. Fitting is priced per vehicle — visit our Nottingham car audio installation page for details.
Explore the full Pioneer range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Pioneer
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Pioneer Subwoofers
More options from the same range, in stock and ready to go
PopularPioneer TS-WX140DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
RRP £179.00Save 11%£159.00
Best SellerPioneer TS-WX400DA Under Seat Subwoofer Amplifier Space Saving Car Bass Box Sub
RRP £219.99Save 9%£199.99
Best SellerPioneer TS-A300S4 Sub 12" 30cm Single Voice Coil Subwoofer 500w RMS
RRP £90.00Save 12%£79.00
Best SellerPioneer TS-A250S4 Sub 10" 25cm Single Voice Coil Subwoofer 400w RMS
RRP £77.00Save 10%£69.00
Pioneer TS-A250D4 Sub 10" 25cm Dual Voice Coil Subwoofer 400w RMS
RRP £77.00Save 11%£67.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Is the Pioneer TS-300D4 single or dual voice coil?
A: It is a dual voice coil subwoofer with two 4 ohm coils (4 Ω x 2), which gives flexible wiring options to match your amplifier.
Q: How deep is the TS-300D4 and what cut-out does it need?
A: It needs 147 mm of mounting depth and a 281 mm cut-out hole.
Q: What enclosure volume does Pioneer recommend for the TS-300D4?
A: Around 35.4 litres (1.25 ft³), within a range of roughly 24.1 to 49.5 litres.
