Option Audio VW T6.1 Plug & Play Kit 6-Channel DSP Amplifier & Rock-3 Subwoofer
Couldn't Load Pickup availability
VW T6.1 sound system (DSP) + subwoofer | V1 | Plug & Play | OPTION
The compact 6-channel power amplifier makes the original front and rear loudspeaker system and the new OPTION ROCK-3 bandpass subwoofer under the driver's or passenger's seat sing and vibrate to provide you with optimum sound quality. The system is already pre-set so that you only have to adjust the sound to your preferences using two potentiometers (high-pass front system and subwoofer level) and is installed out of sight behind the dashboard. The DSP sound system is super easy to install thanks to the plug & play principle.
The OPTION ROCK-3 offers outstanding efficiency and performance at a low weight. This subwoofer is ideal for car hi-fi enthusiasts who expect excellent bass performance in a compact format. With a power handling capacity of 130 watts RMS, it delivers powerful and clear bass reproduction that transforms your car into a mobile concert hall.
Installing the system is child's play. Start by removing the car radio or base unit, integrate our specific wiring harness and connect it to the DSP6 power amplifier and the OPTION ROCK-3 subwoofer. Complicated wiring work is not necessary, because our cable set contains everything you need.
Specification
Option DSP6 Power Amplifier:
- Powerful 6-channel GD class DSP amplifier
- 6-channel amplifier / 8-channel DSP
- Power: 6 x 60 watts RMS at 4 ohms, plus 4 x 60 watts RMS at 4 ohms plus 1 x 120 watts RMS at 4 or 2 ohms
- Combination of channels 5 and 6 for mono operation
- Minimum impedance on all stereo channels: 3 ohms
- Minimum impedance in mono mode: 1.5 Ohm
- ADEP.3 diagnostic protection for problem-free connection with OEM radios
- Start/stop-capable, stable up to 6 volts for 5 seconds
- High-level input (4 channels) with automatic on/off switching
- Frequency range: 20 Hz to 21 kHz
- Integrated 8-channel DSP processor with 358 kHz
- Two line-out channels up to 3 volts | 3.5 mm jack
- Dual-Phase Synchronous DC/DC Converter
- A/D converter: BurrBrown
- D/A converter: BurrBrown
- Operating voltage: 10.3 V - 17.5 V
- Power mode for reduced power consumption
- Compact dimensions for easy retrofitting: 94 x 149 mm x 32 mm (118 x 149 mm with mounting bracket)
- Standby power consumption: 0.6 mA
- Main connection: 20-pin Molex MiniFit Jr.
- Subwoofer connection: 4-pin Molex MiniFit Jr.
- Programming port for DSP-Eprom: RJ-45 modular jack
- Remote control connection: RJ-45 modular jack
- Power and Protect LED
OPTION ROCK-3:
- Type: 20cm bandpass subwoofer, passive
- Power handling: 130 Watt RMS
- Impedance: 2x 4 Ohm
- Enclosure: High-quality bandpass construction for deep, precise bass

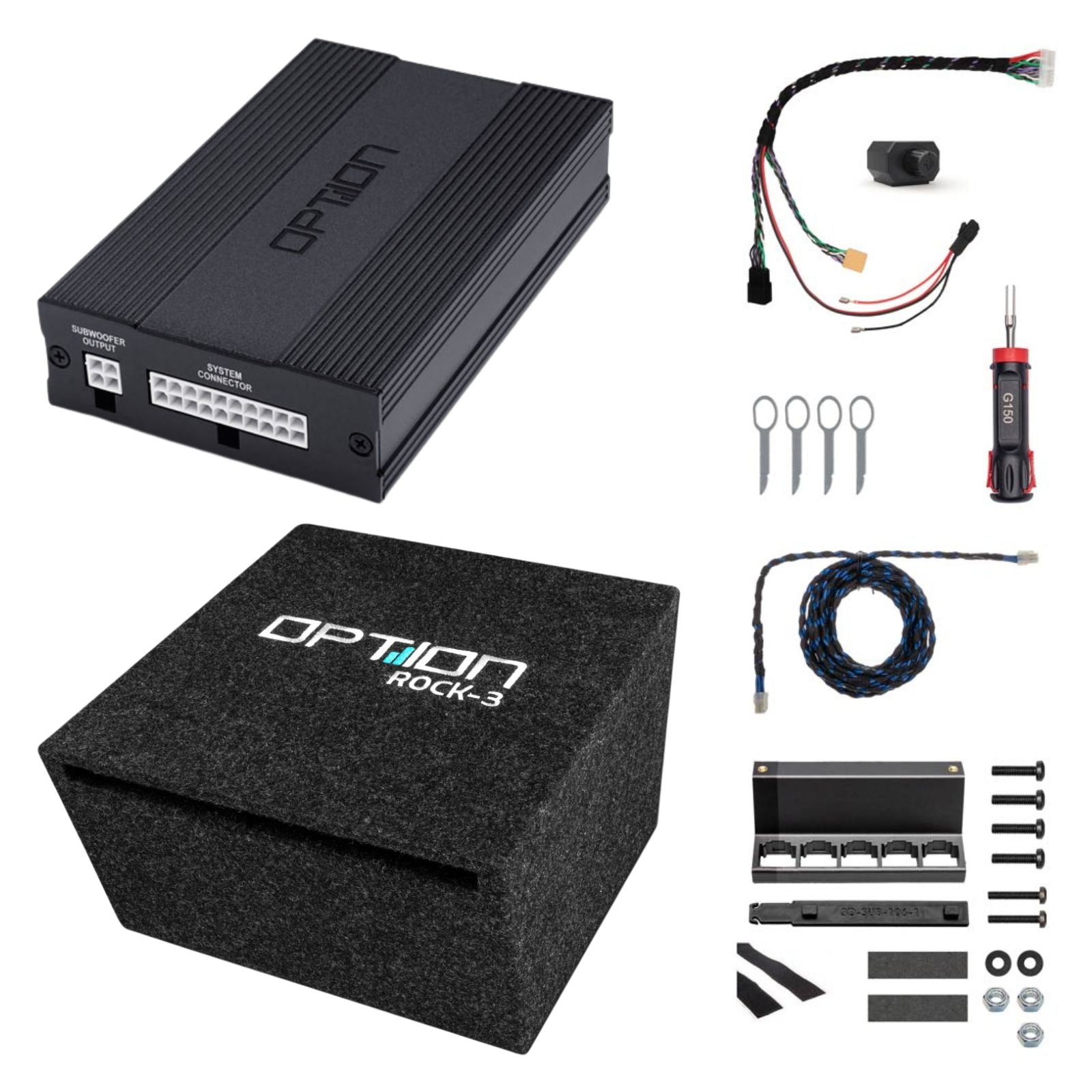

What's Included
- OPTION DSP6 power amplifier (incl. installed DSP software)
- OPTION ROCK-3 subwoofer for T6.1
- Subwoofer level remote control
- Plug & Play cable set between car radio and vehicle (incl. power supply)
- Subwoofer cable (3 metres)
- VW unlocking key
- Unpinning tool for power cable
