Sound system for VW T6.1 | V2 PRO | DSP power amplifier + subwoofer + speakers | HD sound with design grille | OPTION
With the V2 PRO sound system for VW T6.1 (2019-2024), you get a fully tuned complete package consisting of DSP-6 power amplifier, subwoofer, PRO front speakers, door insulation and tools. Everything is harmonised and designed to achieve a significantly better sound result in the vehicle
The DSP-6 power amplifier is already equipped with the right DSP setup for your vehicle before delivery. This means you benefit from greater sound control, clean stage imaging and harmonious tuning without having to calibrate anything yourself. The subwoofer under the passenger seat adds a noticeable bass foundation to the system, while the PRO front speakers provide more detail, clarity and dynamics
The revised PRO tweeters set the tonal focus. Compared to the already very high-quality HS25AIR-VW, which is used in the standard version for the VW T6.1, they have been further optimised. Together with the 165 mm OPTION bass-midrange drivers, the revised crossover and the matching door insulation, the result is a precise, long-lasting and powerful sound

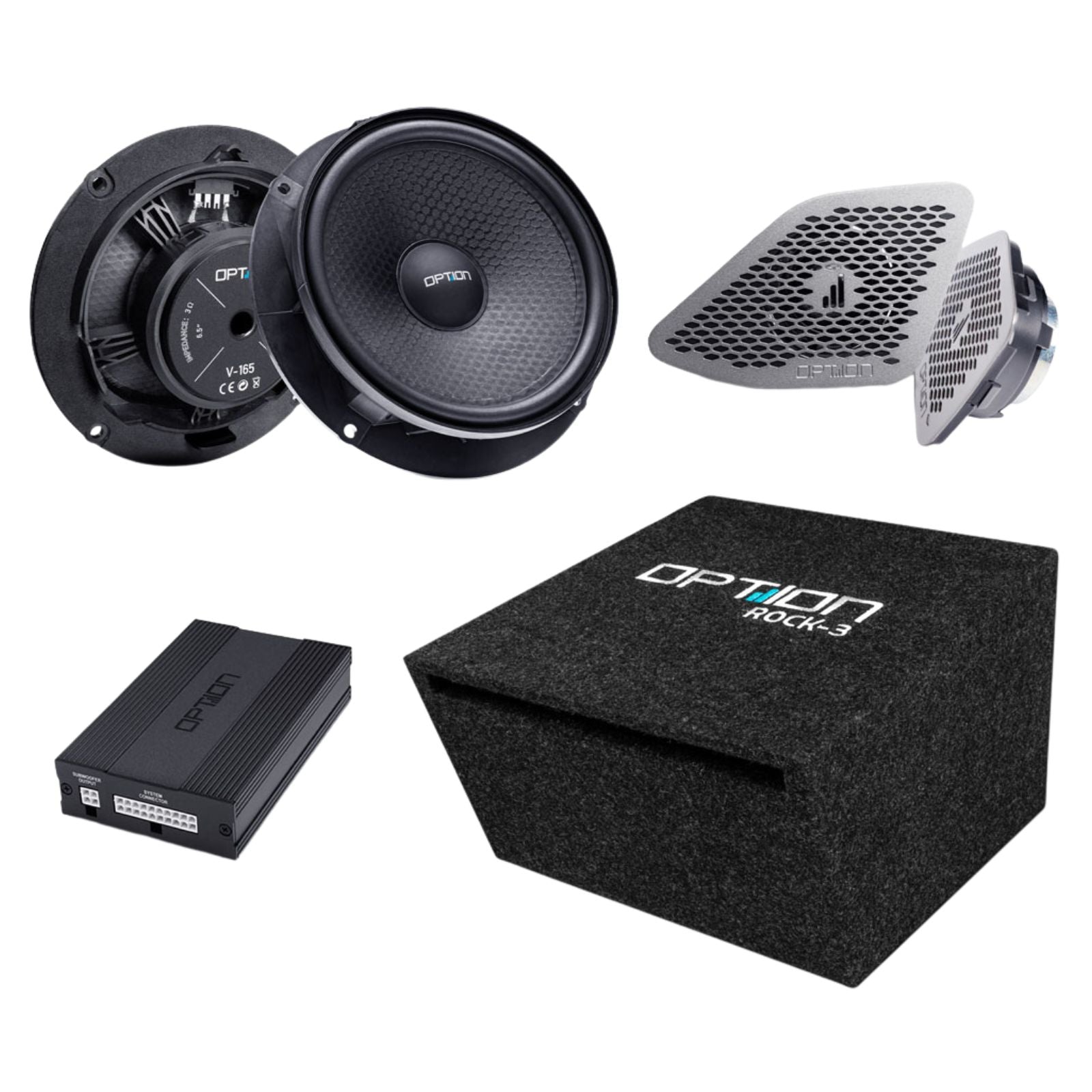

What you get with this set
- DSP-6 power amplifier: more sound control thanks to a vehicle-specific DSP setup that has already been customised for your vehicle.
- Subwoofer: more bass foundation thanks to integration under the passenger seat.
- PRO front speakers: more detail, clarity and stage thanks to the revised PRO tweeters.
- Door insulation: less resonance and tighter kick bass for more precision.
- Tools and installation accessories: clean DIY installation without additional workshop preparation.
The result is a coherent sound system with significantly more control, finer treble, more powerful bass and a visibly high-quality OEM+ look in the interior

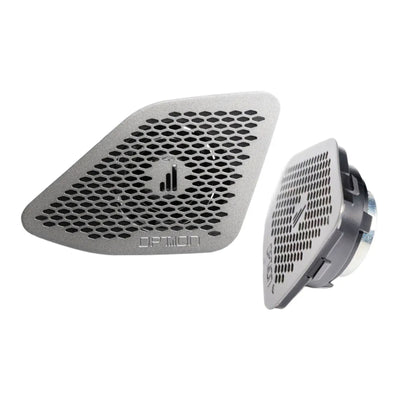

The PRO front system is also visually impressive
- Designer grille made from brushed stainless steel
- Customised design for factory-fitted mounts
- Visible and high-quality enhancement of the interior
Specification

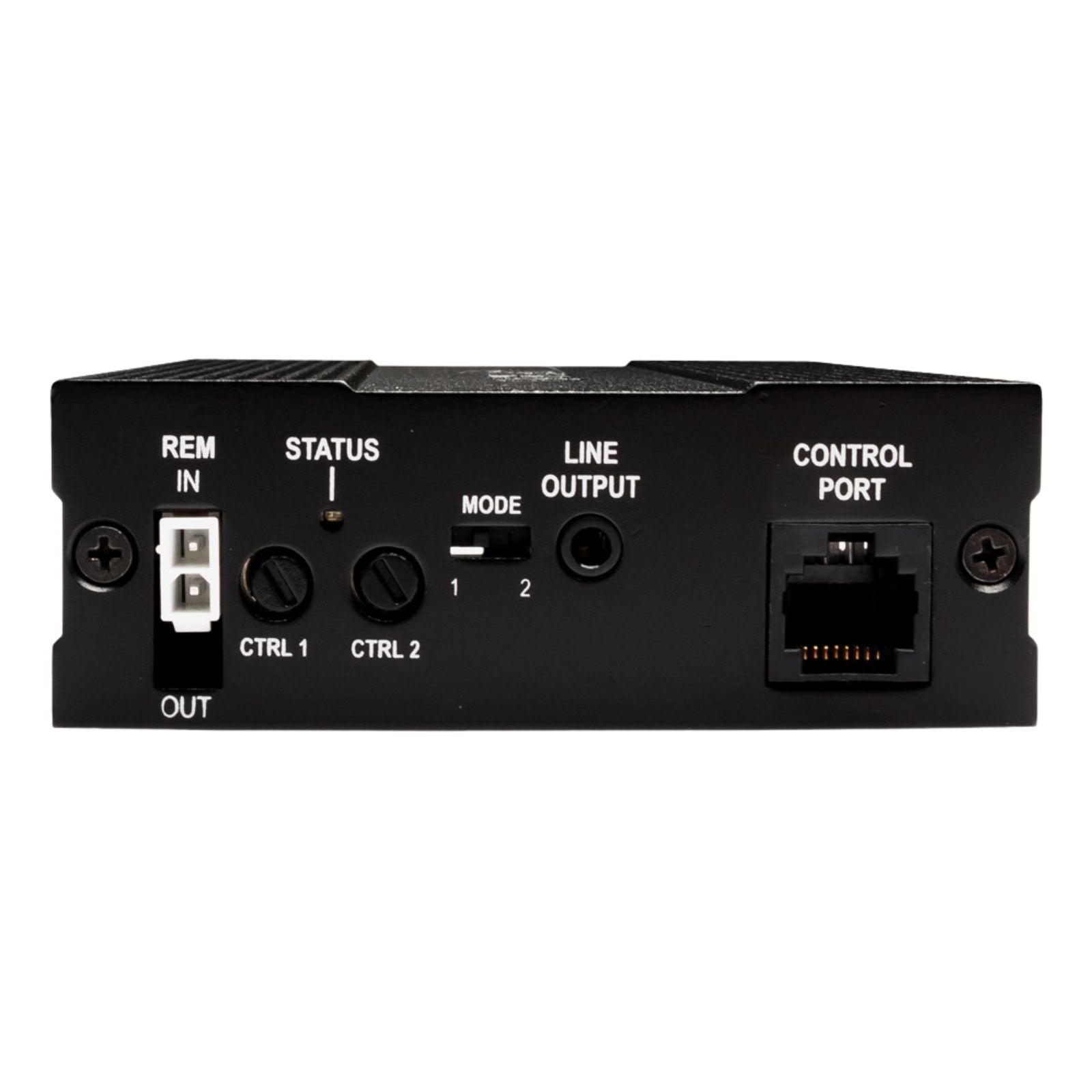

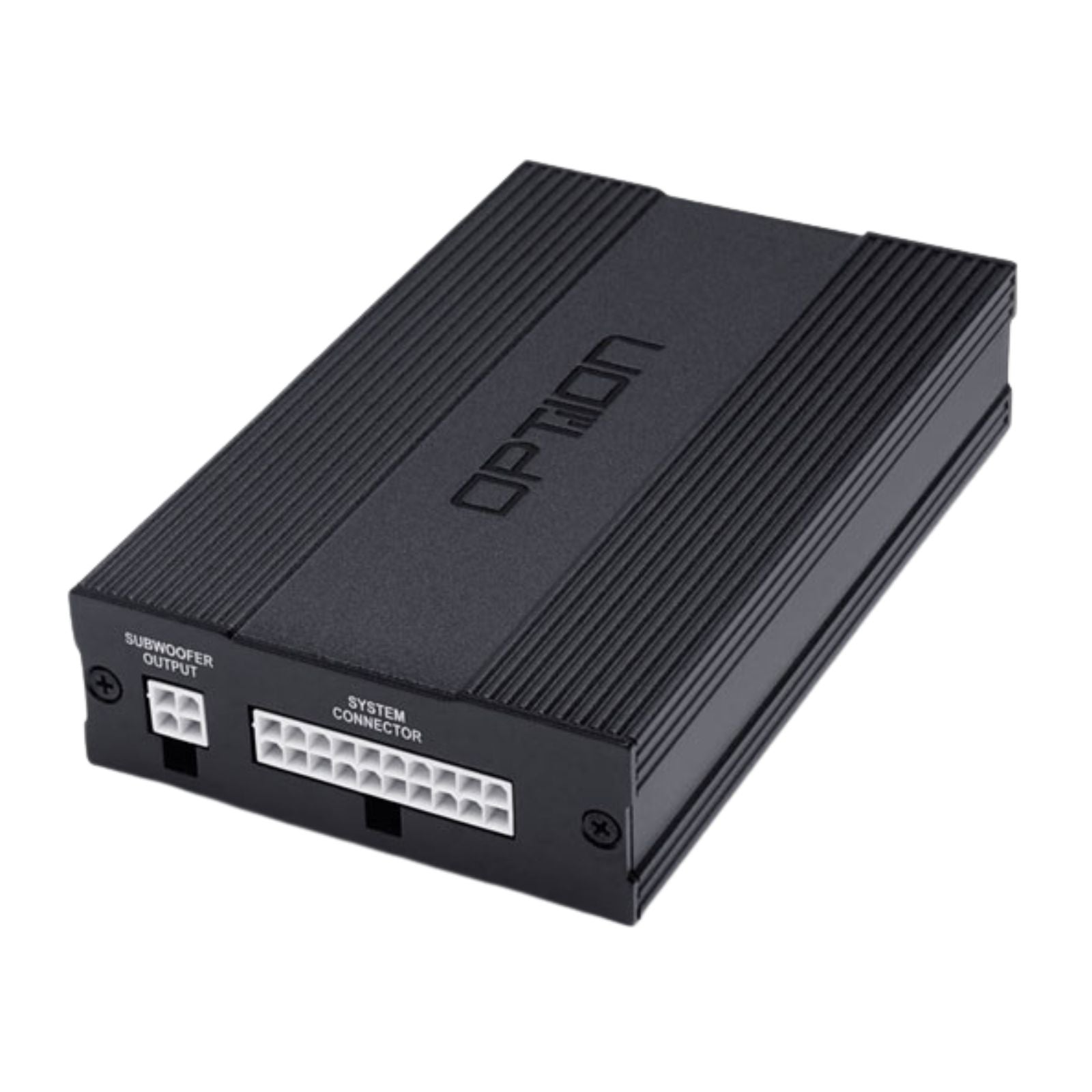

Option DSP6 Power Amplifier:
- Powerful 6-channel GD class DSP amplifier
- 6-channel amplifier / 8-channel DSP
- Power: 6 x 60 watts RMS at 4 ohms, plus 4 x 60 watts RMS at 4 ohms plus 1 x 120 watts RMS at 4 or 2 ohms
- Combination of channels 5 and 6 for mono operation
- Minimum impedance on all stereo channels: 3 ohms
- Minimum impedance in mono mode: 1.5 Ohm
- ADEP.3 diagnostic protection for problem-free connection with OEM radios
- Start/stop-capable, stable up to 6 volts for 5 seconds
- High-level input (4 channels) with automatic on/off switching
- Frequency range: 20 Hz to 21 kHz
- Integrated 8-channel DSP processor with 358 kHz
- Two line-out channels up to 3 volts | 3.5 mm jack
- Dual-Phase Synchronous DC/DC Converter
- A/D converter: BurrBrown
- D/A converter: BurrBrown
- Operating voltage: 10.3 V - 17.5 V
- Power mode for reduced power consumption
- Compact dimensions for easy retrofitting: 94 x 149 mm x 32 mm (118 x 149 mm with mounting bracket)
- Standby power consumption: 0.6 mA

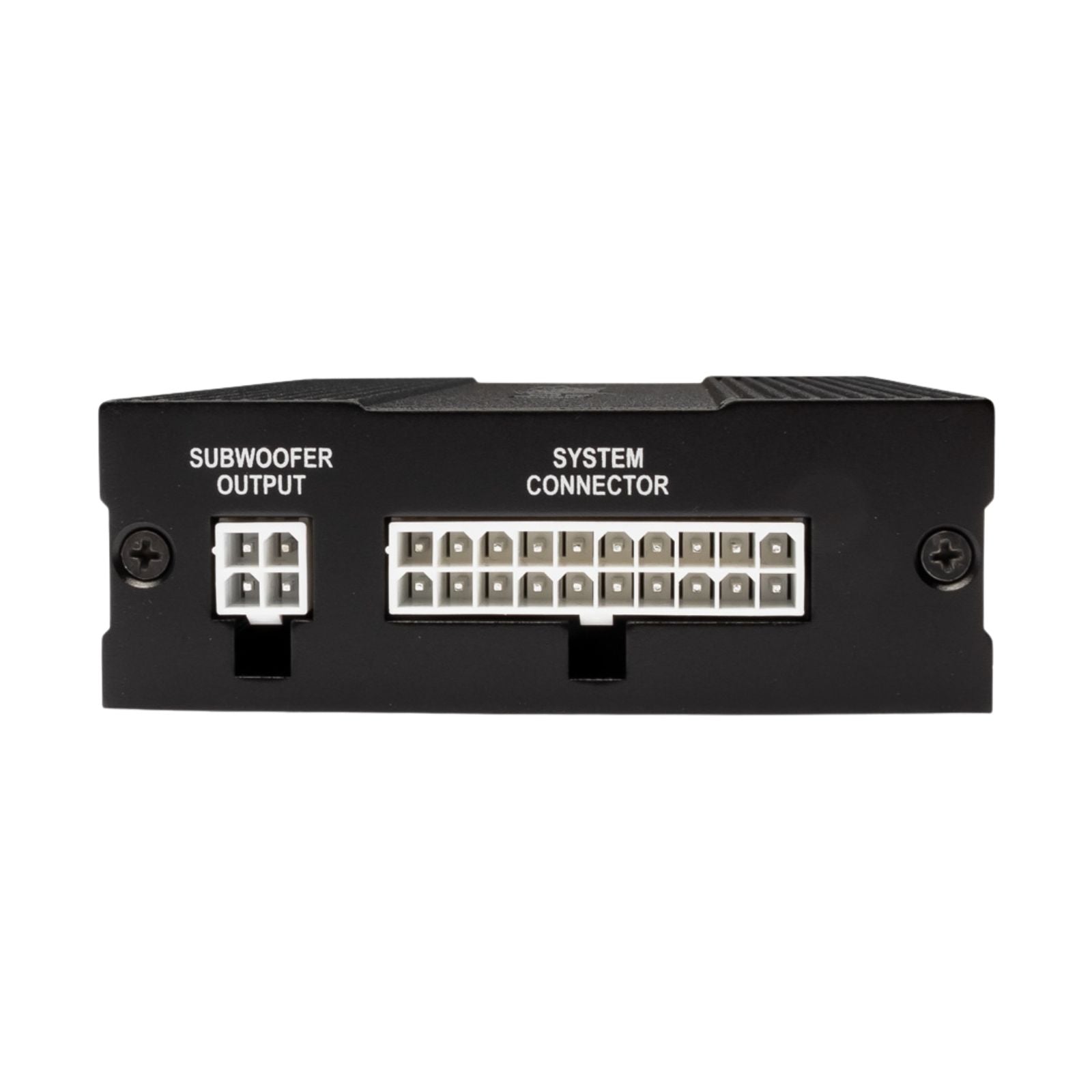

- Main connection: 20-pin Molex MiniFit Jr.
- Subwoofer connection: 4-pin Molex MiniFit Jr.
- Programming port for DSP-Eprom: RJ-45 modular jack
- Remote control connection: RJ-45 modular jack
- Power and Protect LED

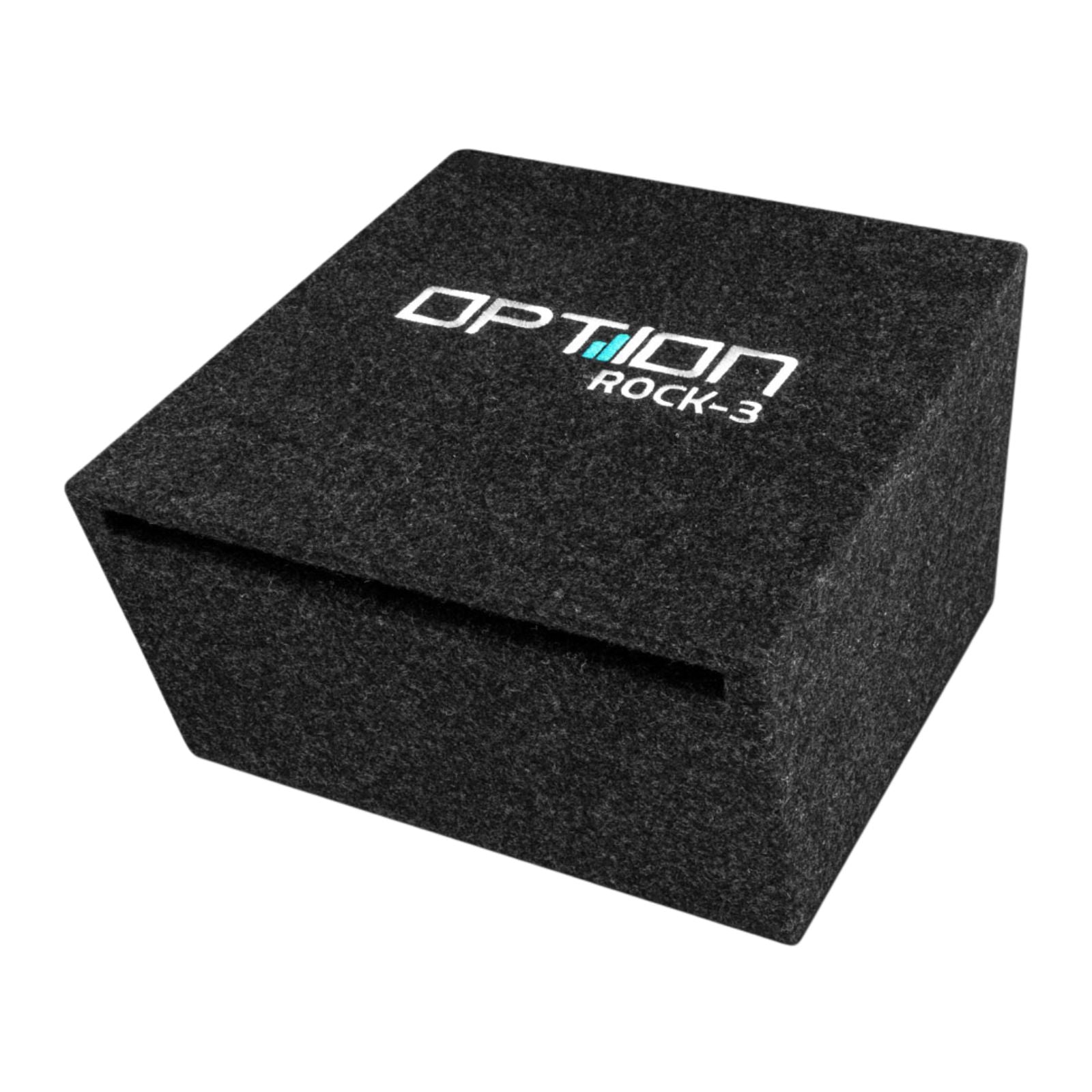

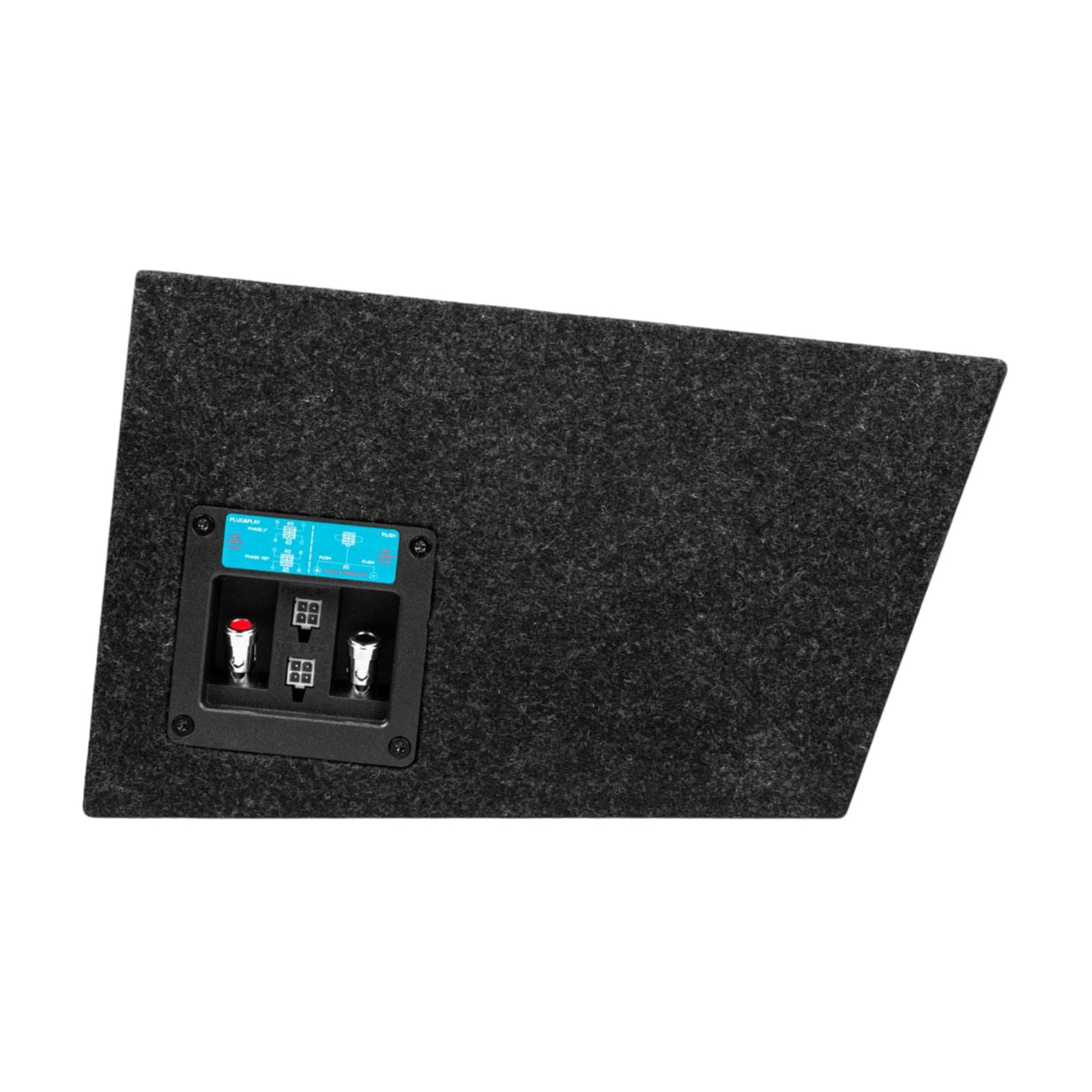

OPTION ROCK-3:
- Type: 20cm bandpass subwoofer, passive
- Power handling: 130 Watt RMS
- Impedance: 2x 4 Ohm
- Enclosure: High-quality bandpass construction for deep, precise bass
Option T6.1 Pro Speakers
- Tweeter: 25 mm fabric dome tweeter with high-quality neodymium magnet
- Bass-midrange driver: 165 mm
- Impedance: 3 Ohm
- Power handling: 70 W RMS
- Efficiency: 91 dB

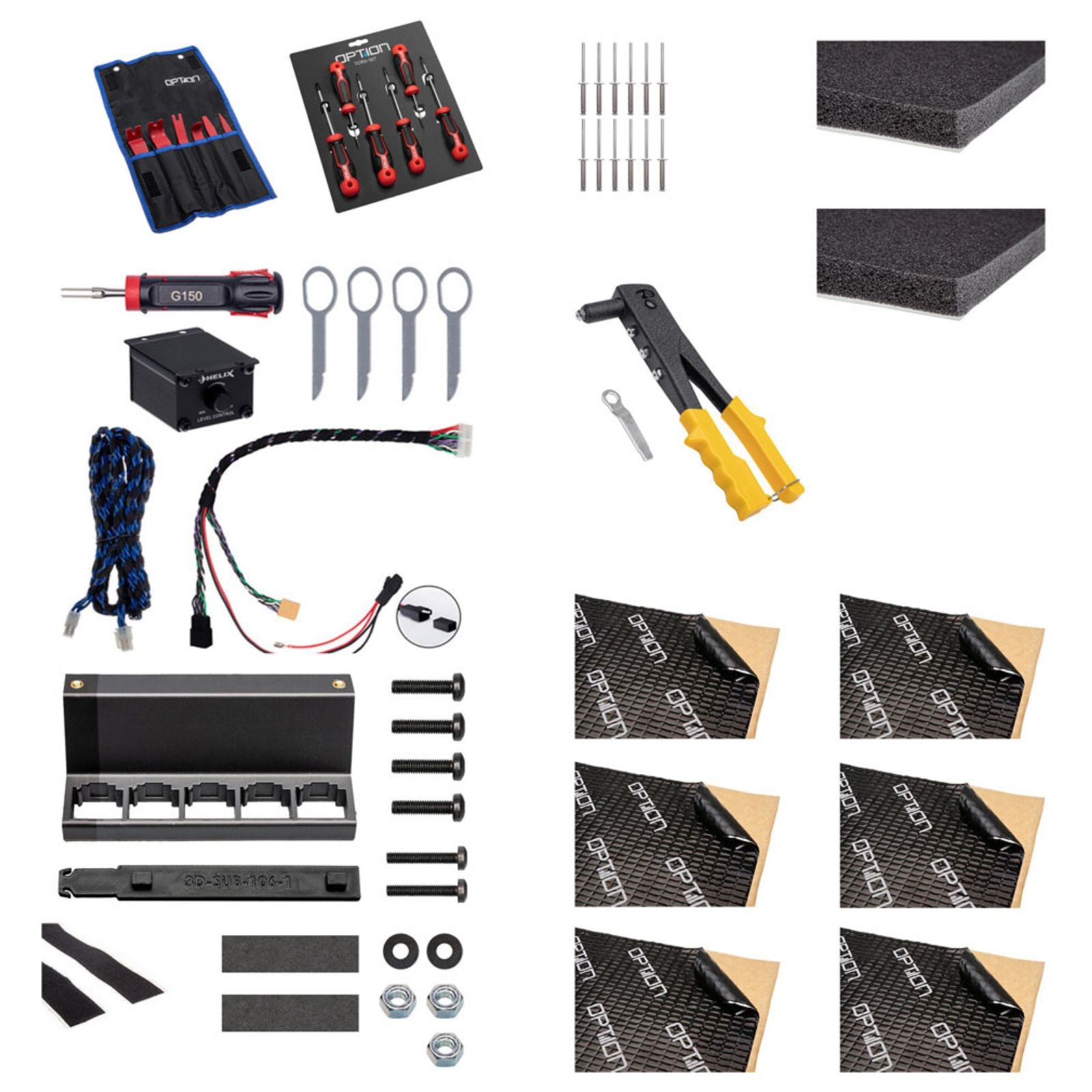

What's Included
- 1 × DSP-6 power amplifier (6-channel amplifier with integrated 8-channel sound processor, incl. pre-installed DSP setup for your vehicle)
- 1 × ROCK-3 subwoofer incl. suitable integration under the passenger seat
- 1 × subwoofer remote control for level control
- 1 pair of OPTION PRO tweeters for VW T6.1 with high-quality crossover and stainless steel grille
- 1 pair of 165 mm OPTION bass-midrange speakers
- Rivets for speaker mounting
- Door insulation: 6 × bitumen mats + 2 × insulating foam panels
- Plug & Play cable set for power & signal
- OPTION Riveting pliers
- Torx set
- ARS24 remover tool
- Milling head attachment for drill
