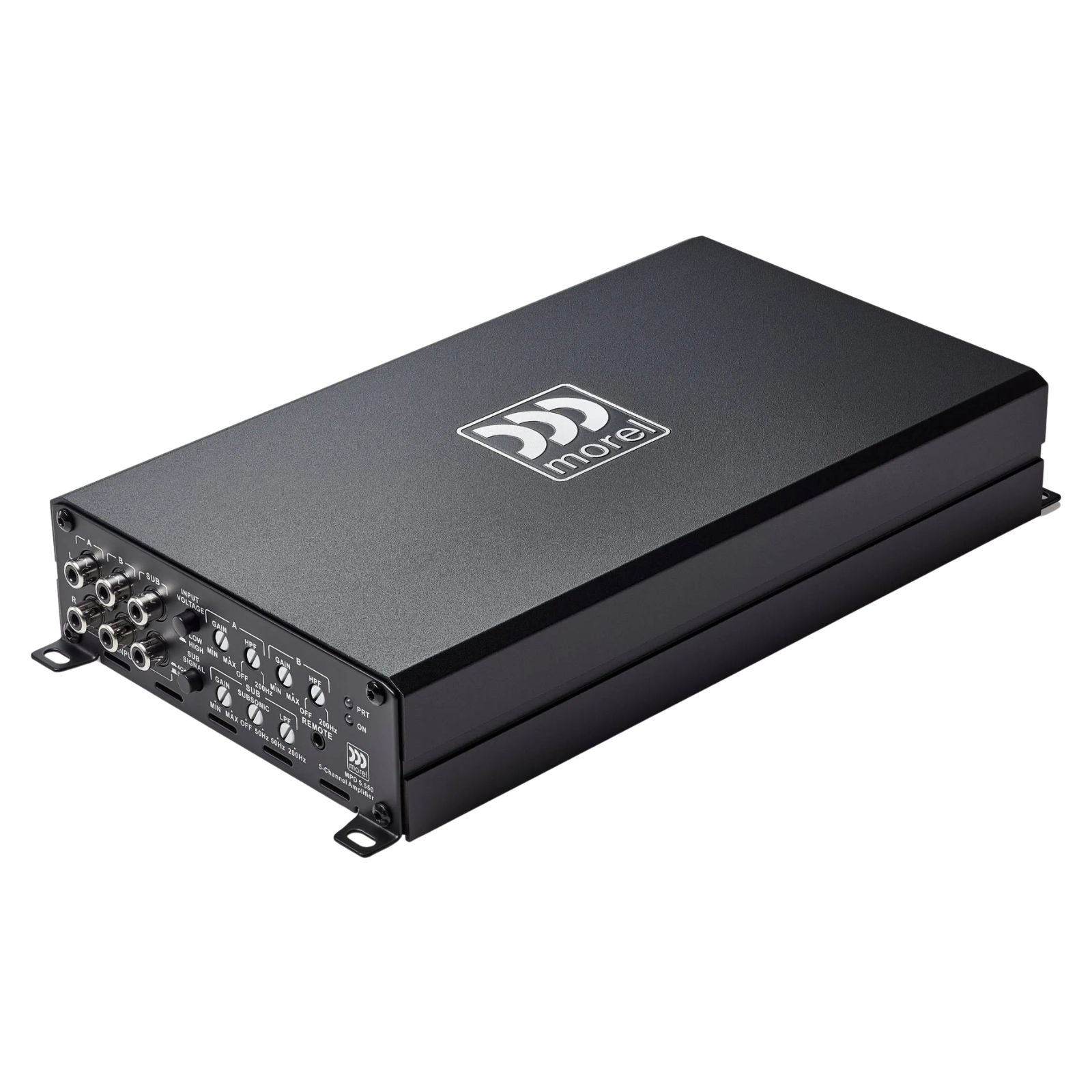

Morel MPD 5.550 5 Channel Class D Compact Amplifier 550w RMS
Couldn't Load Pickup availability
The Morel MPD 5.550 is a 5-channel Class D compact amplifier rated at 550W RMS — 75W x 4 plus 250W x 1 at 4 ohms — from Morel's MPD amplifier range.
Key specifications
- Power at 4 ohms: 75W x 4 + 250W x 1
- Power at 2 ohms: 110W x 4 + 400W x 1
- Minimum impedance: 2 ohms
- Frequency response: main 20Hz to 30kHz, sub 10 to 220Hz
- S/N ratio: over 95dB
- Filters: HPF off to 200Hz (groups A and B), sub LPF 50 to 200Hz, subsonic off to 50Hz, 12dB/octave
- Inputs: pre-amp 0.2 to 5V, speaker-level 0.4 to 10V
- Fuse: 80A
- Dimensions: 48 x 148 x 294.5mm
Morel MPD 5.550
The MPD 5.550 drives a complete front, rear, and subwoofer system from a single compact chassis. It delivers 75W x 4 plus 250W x 1 at 4 ohms, rising to 110W x 4 and 400W x 1 at 2 ohms. Precise crossover control, low distortion, and built-in protection circuitry make it a capable choice for a full premium car audio system where space is limited.
The MPD series is built for high-end audio performance in a compact footprint. If you're pairing this amplifier with new speakers, Morel also offer the Maximo Ultra 602 MKII 6.5-inch coaxial speakers as a well-matched option.
Explore the full range in 4 Channel Amplifiers.
Specification
| 4Ω stereo | 75W x 4 + 1 x 250W |
|---|---|
| 2Ω stereo | 110W x 4 + 1 x 400W |
| 4Ω Mono/Bridged | 220W x 2 (Sub N/A) |
| Minimum Impedance | 2Ω |
| THD+N | <0.3% |
| Frequency Response | (+/-1dB) Main: 20Hz~30kHz ; Sub: 10-220Hz |
| S/N Ratio (Rated Power, A-weighted) | >95dB |
| Channel Separation | >50dB |
| Input Voltage Range | 0.2-5V (PRE INPUT) 0.4-10V (SPK INPUT) |

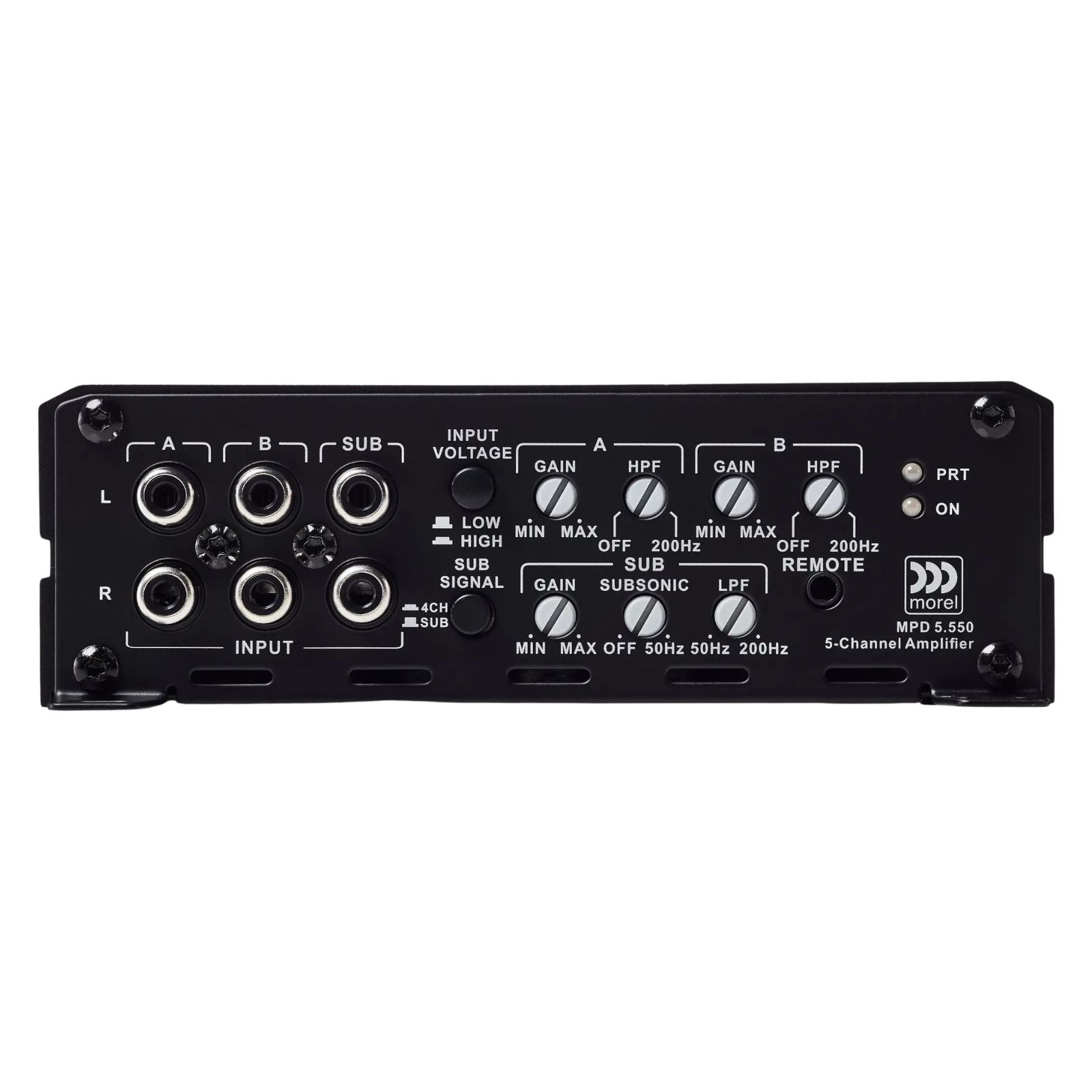

| Filters | HPF OFF-200Hz for Group A & B LPF 50-200Hz, Subsonic OFF -50Hz for SUB |
| Crossover slope | 12dB/Octave |
| Remote Level Control | N/A (MPS-R1 remote not compatible) |
| Fuse recommendation | 80A |
| Dimensions | (HxWxL): 1.9" (48mm) x 5.8" (148mm) x 11.6" (294.5mm) |
What's Included
- Morel MPD 5.550
Morel
About the Morel MPD 5.550
From our tech experts at CEN
A 5-channel amplifier, Class D, rated at 550w RMS.
Who it suits
Drivers who have upgraded their speakers and found the head unit cannot drive them properly.
Our tech experts advise
Matching matters more than headline watts, and the gains want setting with a meter rather than by ear. It also needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from 4 Channel Amplifiers
More options from the same range, in stock and ready to go
Save 5% Popular Vibe Powerbox 65.4M Amp Compact Micro Class D 4 Channel Car Stereo Amplifier RRP£125.00£119.00 / Save 5%In stock
Save 6% Best Seller Pioneer GM-D8704 Stereo Amp Compact 4 Channel Class FD Car Amplifier 600w RMS RRP£179.00£167.99 / Save 6%In stock
Save 9% Best Seller Focal Impulse 4.320 Amp Compact Digital 4 Channel Amplifier Class D 4x55w RMS RRP£274.99£249.00 / Save 9%In stock
Best Seller Hertz Dieci DP 4.300 4 Channel Stereo Amp Hi Res Class A B Amplifier 340w RMS £199.99 /In stock
Frequently Asked Questions
Q: Can the Morel MPD 5.550 power a whole system?
A: Yes. It has four full-range channels for front and rear speakers plus a dedicated subwoofer channel: 75W x 4 + 250W x 1 at 4 ohms, or 110W x 4 + 400W x 1 at 2 ohms.
Q: Does the MPD 5.550 have a subsonic filter?
A: Yes. The subwoofer channel has a subsonic filter adjustable from off to 50Hz.
Q: Does the MPD 5.550 accept speaker-level inputs?
A: Yes. It accepts pre-amp inputs of 0.2 to 5V and speaker-level inputs of 0.4 to 10V.
