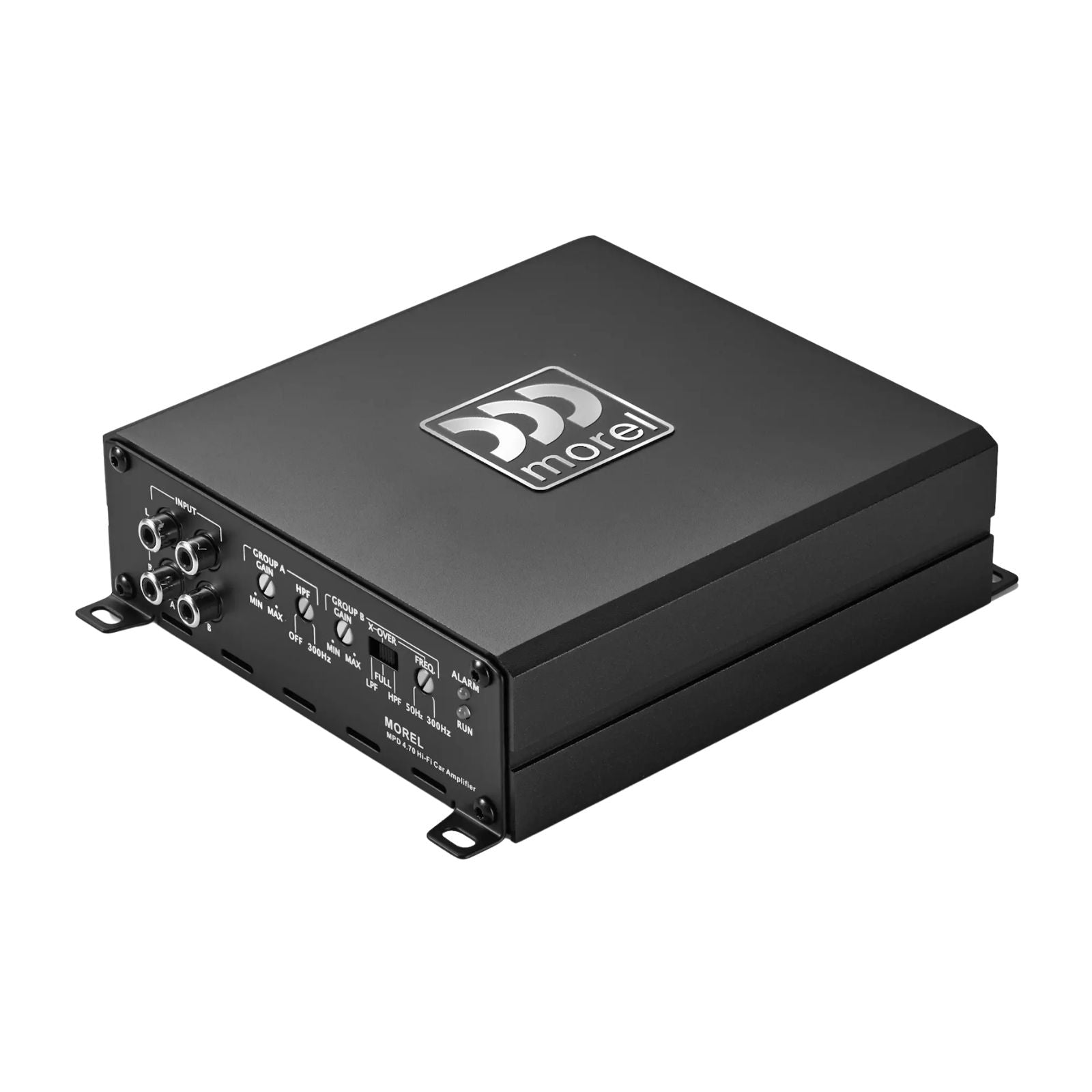

Morel MPD 4.70 4 Channel Class D Compact Amplifier 280w RMS

£249.00 Out of stock
Out of Stock
SKU: 93381MPN: MPD 4.70

The Morel MPD 4.70 is a compact 4-channel Class D amplifier producing 70W x 4 at 4 ohms (280W RMS total), part of Morel's MPD compact amplifier range.

Key specifications

  • Power at 4 ohms: 70W x 4
  • Power at 2 ohms: 100W x 4
  • Bridged at 4 ohms: 200W x 2
  • Frequency response: 20Hz to 30kHz
  • S/N ratio: over 93dB
  • THD+N: under 0.2%
  • Filters: HPF off to 300Hz (group A), LPF/HPF 50 to 300Hz (group B), 12dB/octave
  • Fuse: 50A
  • Dimensions: 48 x 148 x 195.5mm

Morel MPD 4.70

The MPD 4.70 delivers 70W x 4 at 4 ohms, 100W x 4 at 2 ohms, or 200W x 2 bridged at 4 ohms. Frequency response runs from 20Hz to 30kHz with a signal-to-noise ratio over 93dB and THD+N below 0.2%. Variable high-pass and low-pass crossovers (50–300Hz, 12dB/octave) allow precise sound shaping, and a built-in protection circuit adds long-term reliability. The chassis measures just 48 x 148 x 195.5mm, making it straightforward to fit in tight spaces.

The MPD series is built for high-end audio performance in a compact form — well matched with Morel's own speaker range, such as the Morel Maximo Ultra 602 MKII 6.5" coaxial speakers.

Explore the full range in 4 Channel Amplifiers.

Specification
4Ω stereo70W x 4
2Ω stereo100W x 4
4Ω Mono/Bridged200W x2
Minimum Impedance2Ω
THD+N<0.2%
Frequency Response(+/-1dB) 20Hz~30kHz
S/N Ratio (Rated Power, A-weighted)>93dB
Channel Separation>50dB
Input Voltage Range0.35-3.5V

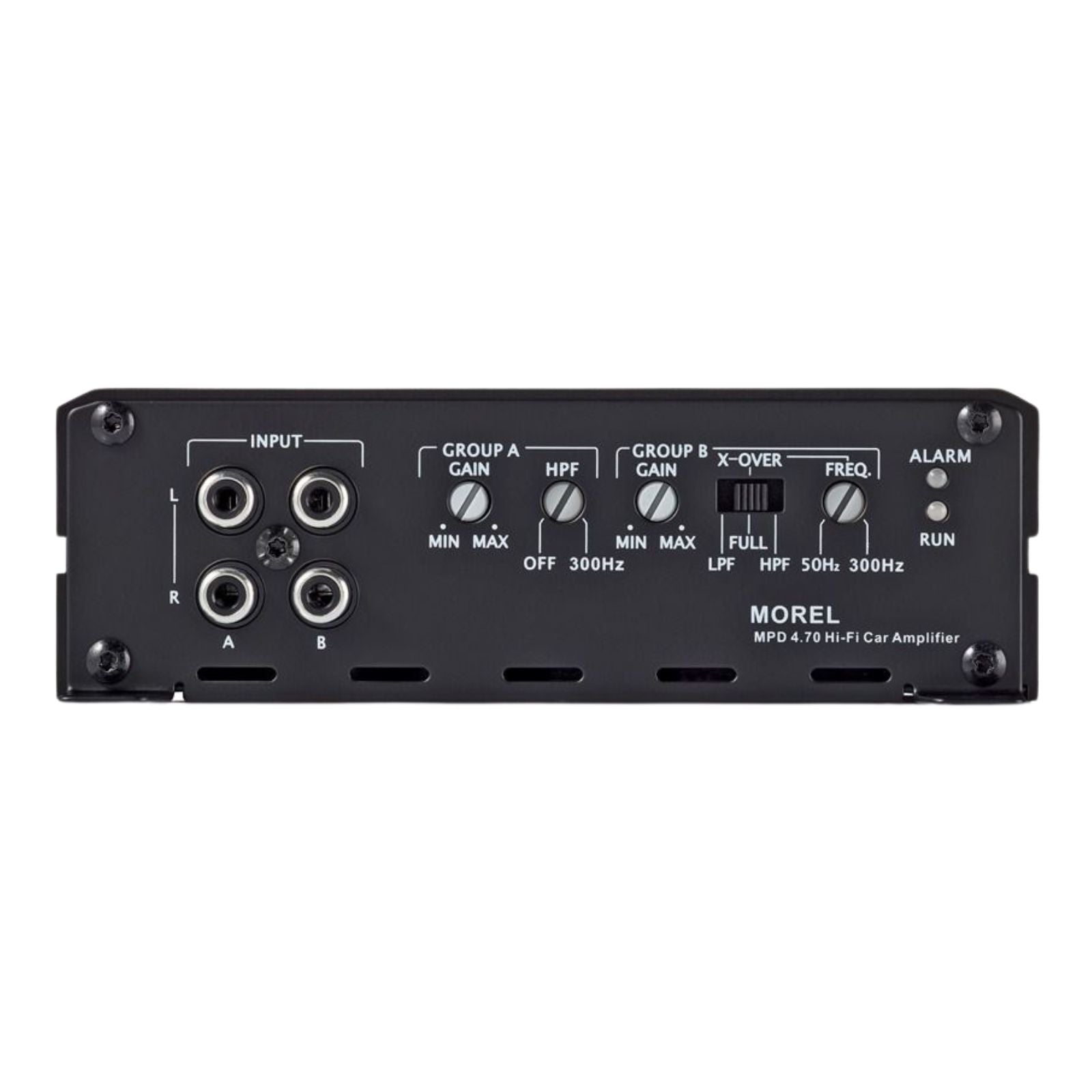

FiltersHPF OFF-300Hz for Group ALPF/HPF 50Hz-300Hz for Group B
Crossover slope12dB/Octave
Remote Level ControlN/A

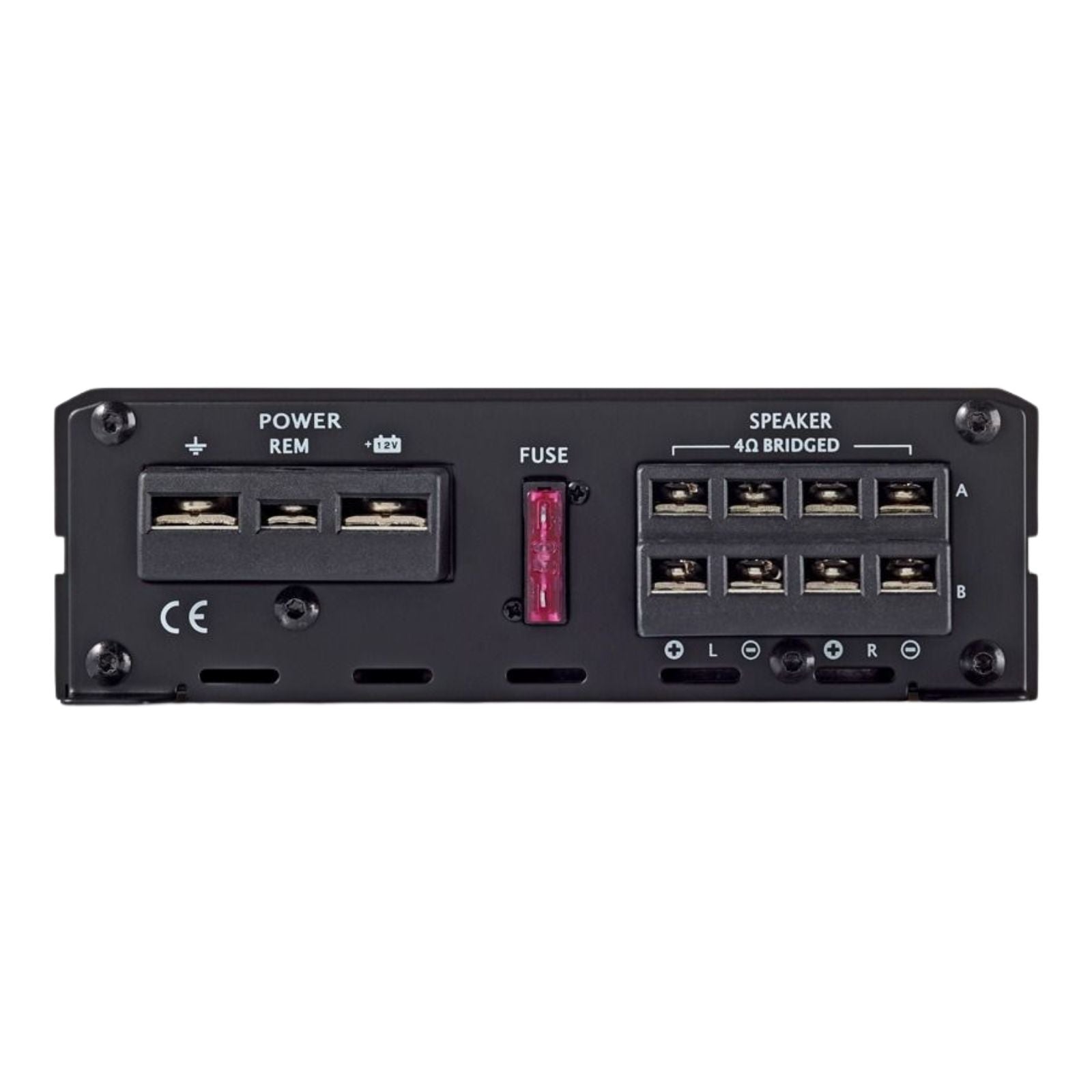

Fuse recommendation50A
Dimensions(HxWxL) 1.9" (48mm) x 5.8" (148mm) x 7.7" (195.5mm)
What's Included
  • Morel MPD 4.70
Download User Manual(PDF)
Product information

Morel

About the Morel MPD 4.70

From our tech experts at CEN

A 4-channel amplifier, Class D, rated at 280w RMS.

Who it suits

Drivers who have upgraded their speakers and found the head unit cannot drive them properly.

Our tech experts advise

Matching matters more than headline watts, and the gains want setting with a meter rather than by ear. It also needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Morel MPS 4.400 Amp 4 Channel 4x70w Class A B Car Stereo Amplifier 400w RMS - CEN Morel MPS 4.400 Amp 4 Channel 4x70w Class A B Car Stereo Amplifier 400w RMS - CEN
Morel MPS 4.400 Amp 4 Channel 4x70w Class A B Car Stereo Amplifier 400w RMS £449.00
Low stock
Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS - CEN Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS - CEN
Save 30% Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS RRP £4,999.99 £3,499.99 Save 30%
In stock
Morel BMW Integration Performance IP-BMWSUB82 Plug & Play Under Seat Subwoofers - CEN Morel BMW Integration Performance IP-BMWSUB82 Plug & Play Under Seat Subwoofers - CEN
Morel BMW Integration Performance IP-BMWSUB82 Plug & Play Under Seat Subwoofers £739.99
In stock
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w - CEN Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w - CEN
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w £329.00
In stock
Morel Primo Slimline PSL10AE 10 Inch Sub Active Enclosure Subwoofer 350w RMS Morel Primo Slimline PSL10AE 10 Inch Sub Active Enclosure Subwoofer 350w RMS
Morel Primo Slimline PSL10AE 10 Inch Sub Active Enclosure Subwoofer 350w RMS £599.00
Low stock
Morel Ultimo PS 104D 10inch Subwoofer 4 Ohm Voice Coils 700w - CEN Morel Ultimo PS 104D 10inch Subwoofer 4 Ohm Voice Coils 700w - CEN
Morel Ultimo PS 104D 10inch Subwoofer 4 Ohm Voice Coils 700w £849.00
In stock
Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS - CEN Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS - CEN
Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS £899.00
In stock
Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 80w RMS - CEN Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 80w RMS - CEN
Save 31% Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Coaxial Car Van Door Speakers 90w RMS RRP £319.00 £219.00 Save 31%
In stock
Morel Virtus 402 Reference Series 4" 2 Way Component Speaker 100w RMS - CEN
Save 53% Morel Virtus 402 Reference Series 4" 2 Way Component Speaker 100w RMS RRP £849.00 £399.00 Save 53%
Low stock
Morel Tempo Ultra Integra 502 MKII 5.25 Inch 2 Way Coaxial Car Speakers 100w RMS - CEN Morel Tempo Ultra Integra 502 MKII 5.25 Inch 2 Way Coaxial Car Speakers 100w RMS - CEN
Morel Tempo Ultra Integra 502 MKII 5.25 Inch 2 Way Coaxial Car Speakers 100w RMS £269.00
In stock

Looking for Installation?

At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.

Get a quote

More from 4 Channel Amplifiers

More options from the same range, in stock and ready to go

Frequently Asked Questions

Q: Can the Morel MPD 4.70 be bridged?

A: Yes. Bridged, it delivers 200W x 2 into 4 ohms.

Q: How much power does the MPD 4.70 deliver at 2 ohms?

A: It delivers 100W x 4 into 2 ohms, the minimum impedance.

Q: What crossover controls does the MPD 4.70 have?

A: Group A has a high-pass filter from off to 300Hz and group B has a low-pass or high-pass filter from 50 to 300Hz, both at 12dB/octave.
