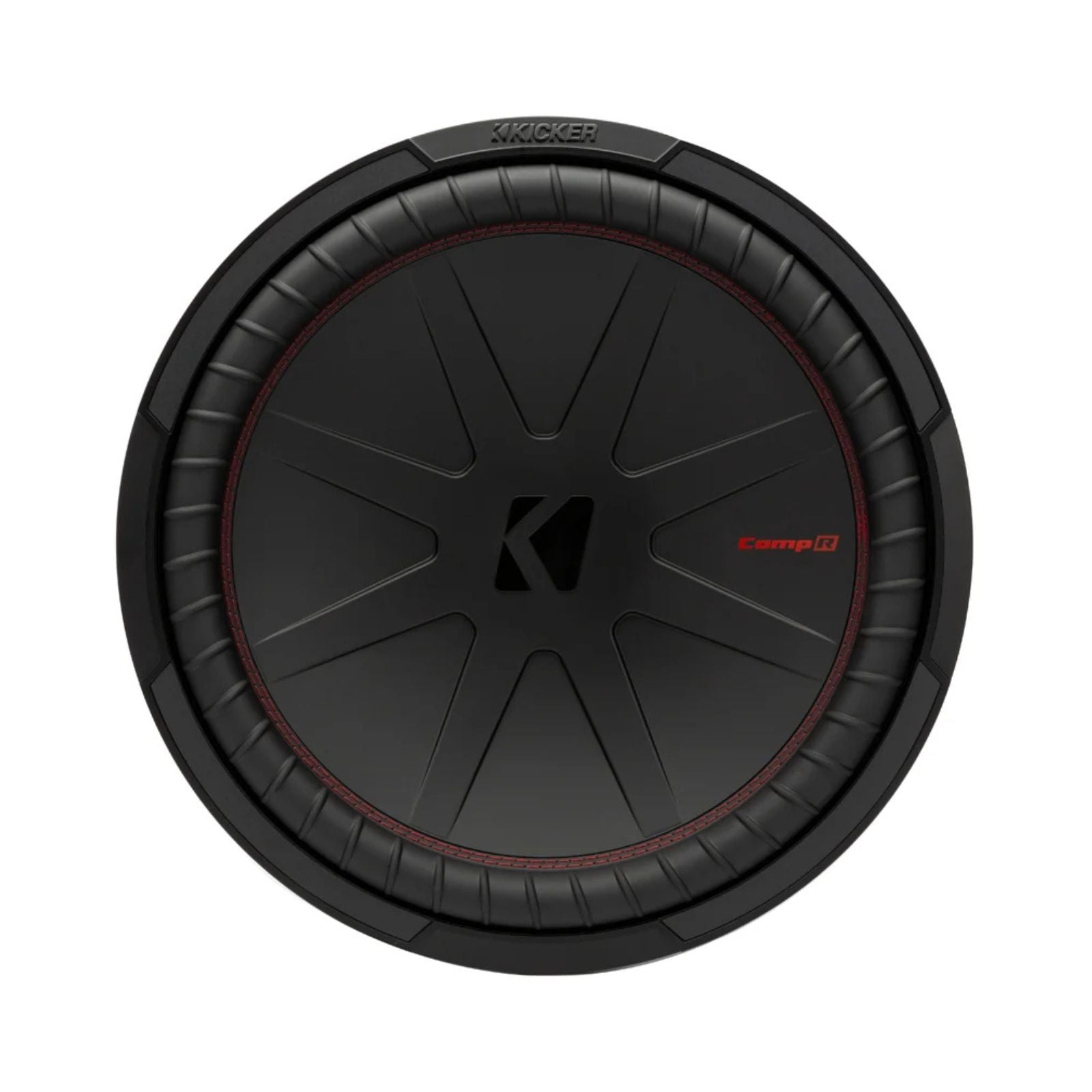

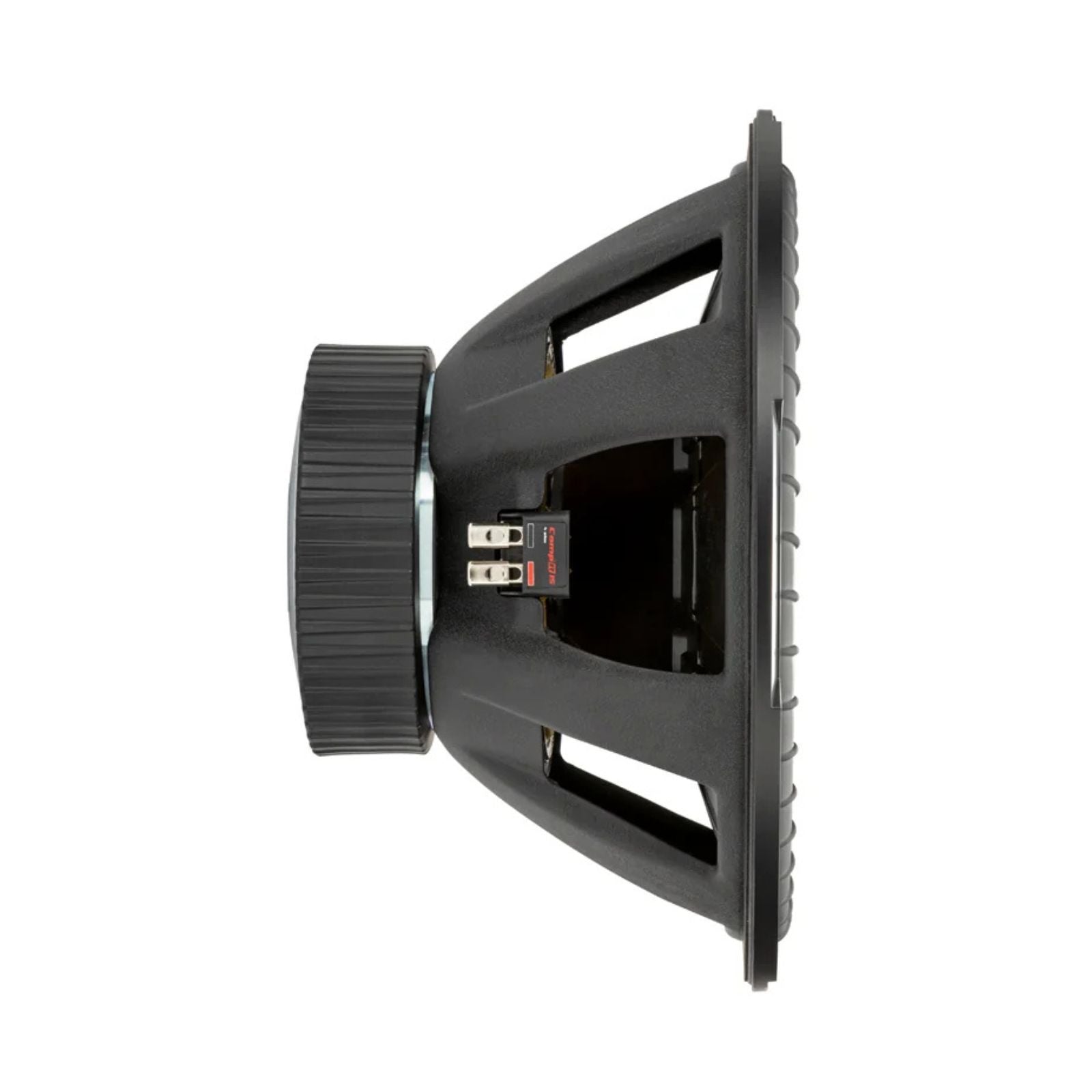

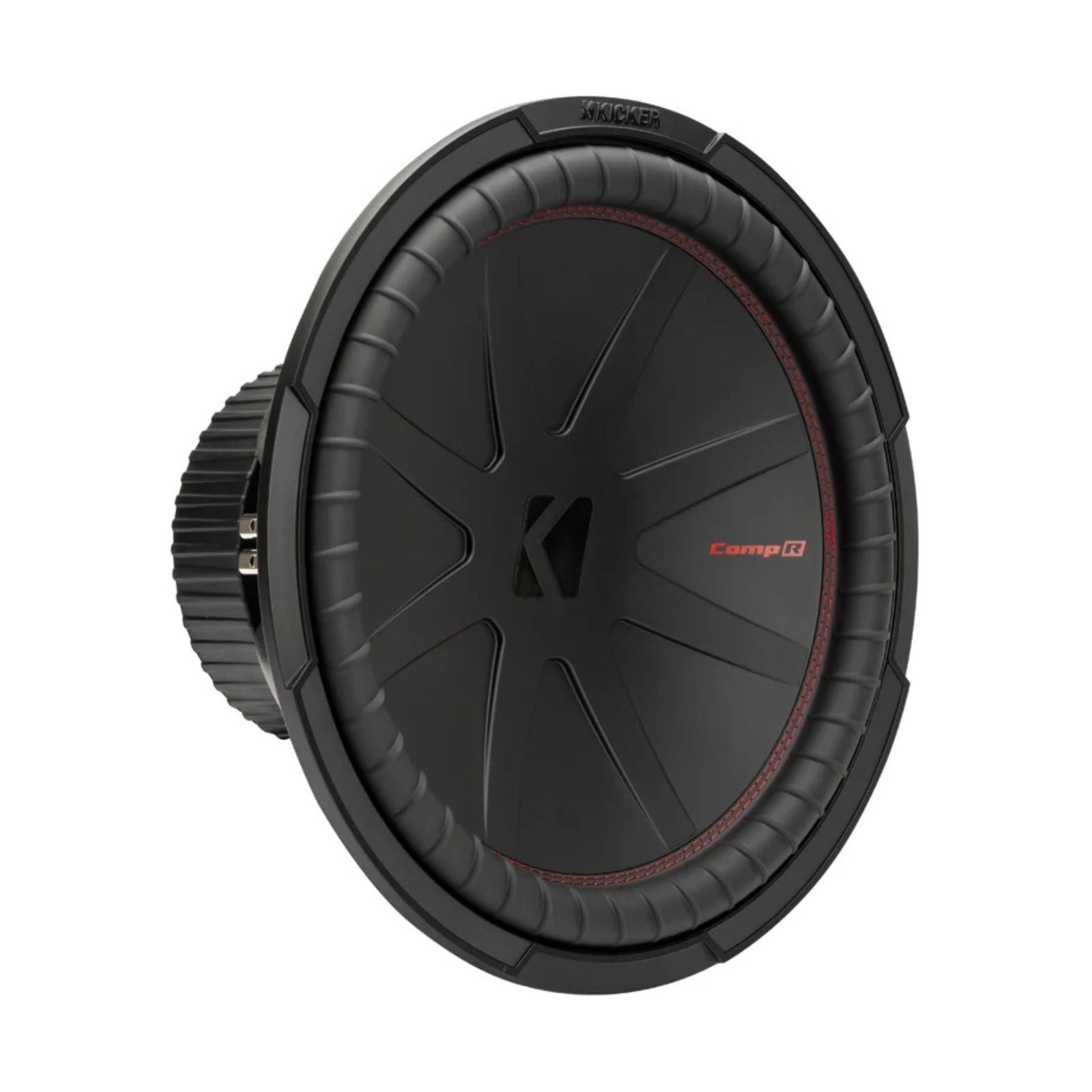

The Kicker 48CWR154 is a CompR 15″ dual 4 ohm voice coil subwoofer rated at 800W RMS (1600W peak), featuring Forced Air Cooling and a double stacked magnet. It suits sealed or ported enclosures and is part of Kicker's CompR subwoofer range.
This listing is the 15″. The CompR range is also available in 48CWR104 10″ and 48CWR124 12″.
Key specifications
- Size: 15″
- Impedance: dual 4 ohm voice coils
- Power handling: 800W RMS, 1600W peak
- Sensitivity: 89.4 dB 1W/1m
- Frequency response: 25–500 Hz
- Mounting depth: 7-15/16″ (20 cm)
- Mounting diameter: 13-3/4″ (35 cm)
- Sealed box volume: 51–85 L
- Vented box volume: 85–142 L
- Cooling: Forced Air Cooling, double stacked magnet
CompR 15″ Dual Voice Coil Subwoofer — 4 Ohm
48CWR154
The CompR range has been updated with improved efficiency and a blacked-out look. The dual 4 ohm voice coil design makes it straightforward to match with your amplifier.
An advanced suspension and heat management system keeps bass powerful, deep and consistent. Double red stitching bonds the Santoprene® surround to the polypropylene woofer cone. SoloKon™ technology joins the cone to the vented back brace, forming a single integrated unit that cools the motor and reduces distortion.
Forced Air Cooling helps the sub run 25% cooler, improving long-term reliability.
Features
- Forced Air Cooling (keeps the voice coil cool)
- Double stacked magnet
- Signature double red stitching
- Santoprene® surround
- Spring-loaded terminals
The 48CWR154 works best in a sealed or ported enclosure with 800W of recommended power.
Explore the full range in Kicker CompR, CompRT & CompC Subwoofers.
Specification
| Impedance | (Ohms) Dual 4 |
|---|---|
| Voice Coils | Dual |
| RMS Power (W) | 800 |
| Peak Power (W) | 1600 |
| Sensitivity | (dB @ 1W/1m) 89.4 |
| Frequency Response | (Hz) 25-500 |
| Fs (Hz) | 28.9 |
| Mounting Depth | 7 15/16" (20 cm) |
| Mounting Diameter | 13 3/4" (35 cm) |
| Min Sealed Box Vol | 1.8 cu ft (51 L) |
| Max Sealed Box Vol | 3.0 cu ft (85 L) |
| Min Vented Box Vol | 3.0 cu ft (85 L) |
| Max Vented Box Vol | 5.0 cu ft (142 L) |
What's Included
- Kicker 48CWR154 Subwoofer
Kicker
About the Kicker 48CWR154
From our tech experts at CEN
A 15 inch subwoofer from the Comp line, Kicker’s long-running range for solid bass without a competition budget, with a 4 ohm voice coil so it can be wired to suit your amplifier, handling 800w RMS.
Who it suits
Drivers building a system where the bass does real work rather than filling in behind the speakers. It needs an enclosure sized correctly for the driver: sealed for tight and accurate, ported for louder and deeper.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier behind it. Box volume, port tuning and how the voice coils are wired decide what you actually hear. We build enclosures to suit the vehicle and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Kicker CompR, CompRT & CompC Subwoofers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What size box does the Kicker 48CWR154 need?
A: Kicker recommends a sealed box of 51-85 L or a vented box of 85-142 L (port volume excluded).
Q: How do I wire the dual 4 ohm voice coils on the 48CWR154?
A: Wire the two 4 ohm coils in parallel for a 2 ohm load, or in series for an 8 ohm load. Use an amplifier that is stable at the final load.
Q: How much power does the 48CWR154 need?
A: Kicker recommends 800W RMS, with peak power handling of 1600W. The mounting depth is 7-15/16" (20 cm).
