Kicker 43DSC6504 DS Series 6.5" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS

Name: Kicker 43DSC6504 DS Series 6.5" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS
Brand: Kicker
SKU: 91110
Price: 69.95 GBP
Availability: InStock

£69.95

In stock

SKU: 91110MPN: 43DSC6504

Product variants

Part of the range · 8 productsPart of the Kicker DS Series Speakers · 8 products See the range →

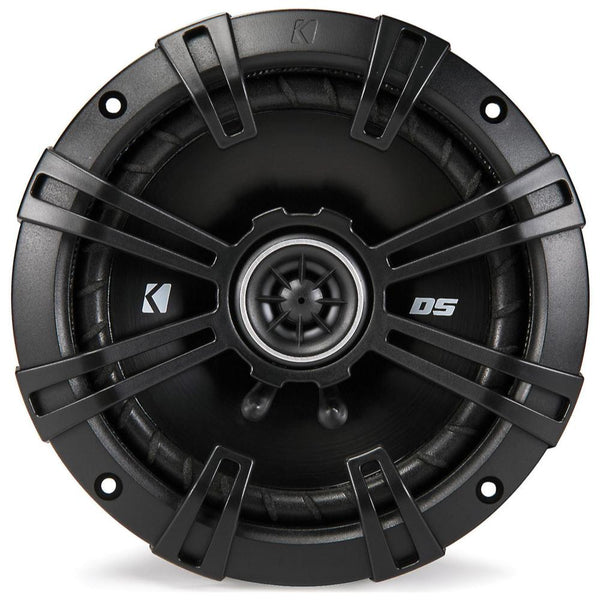

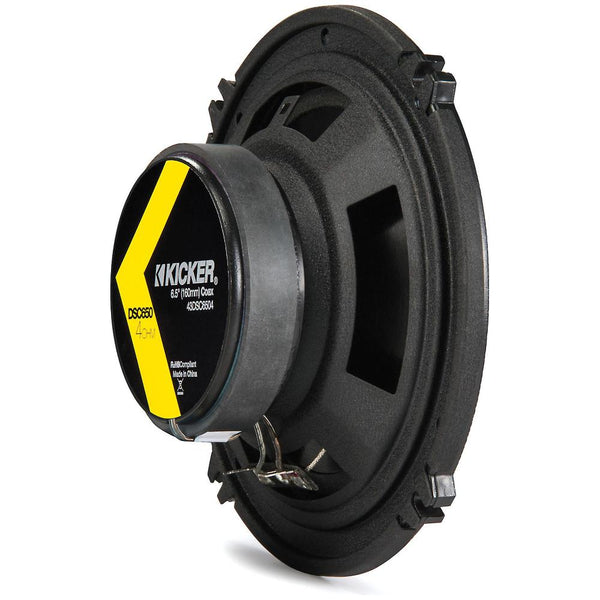

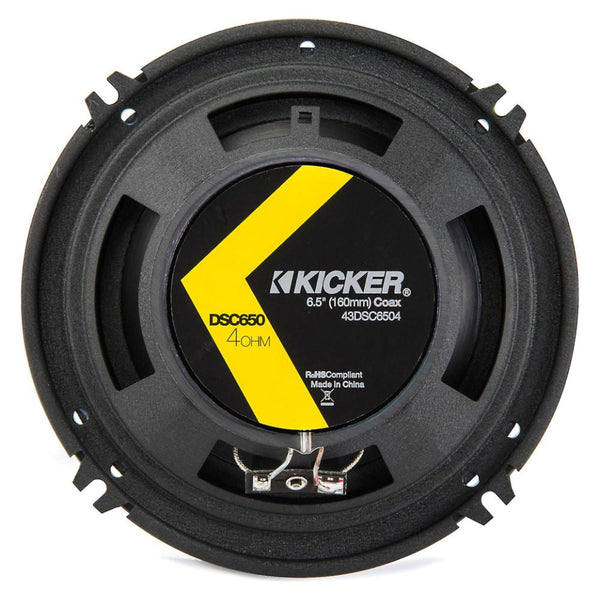

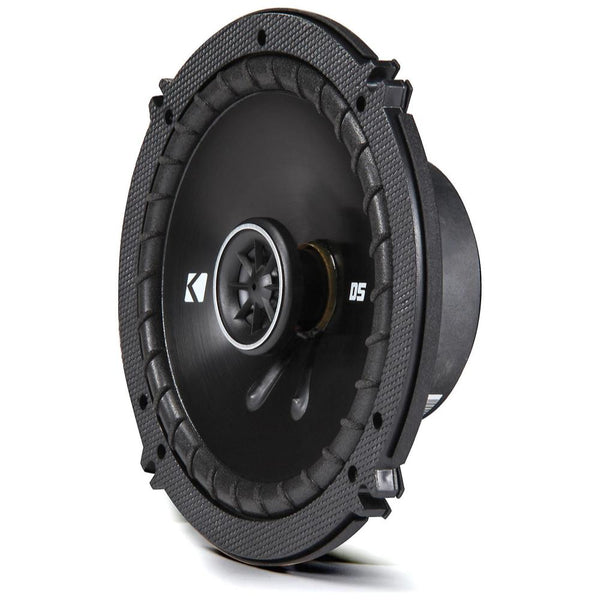

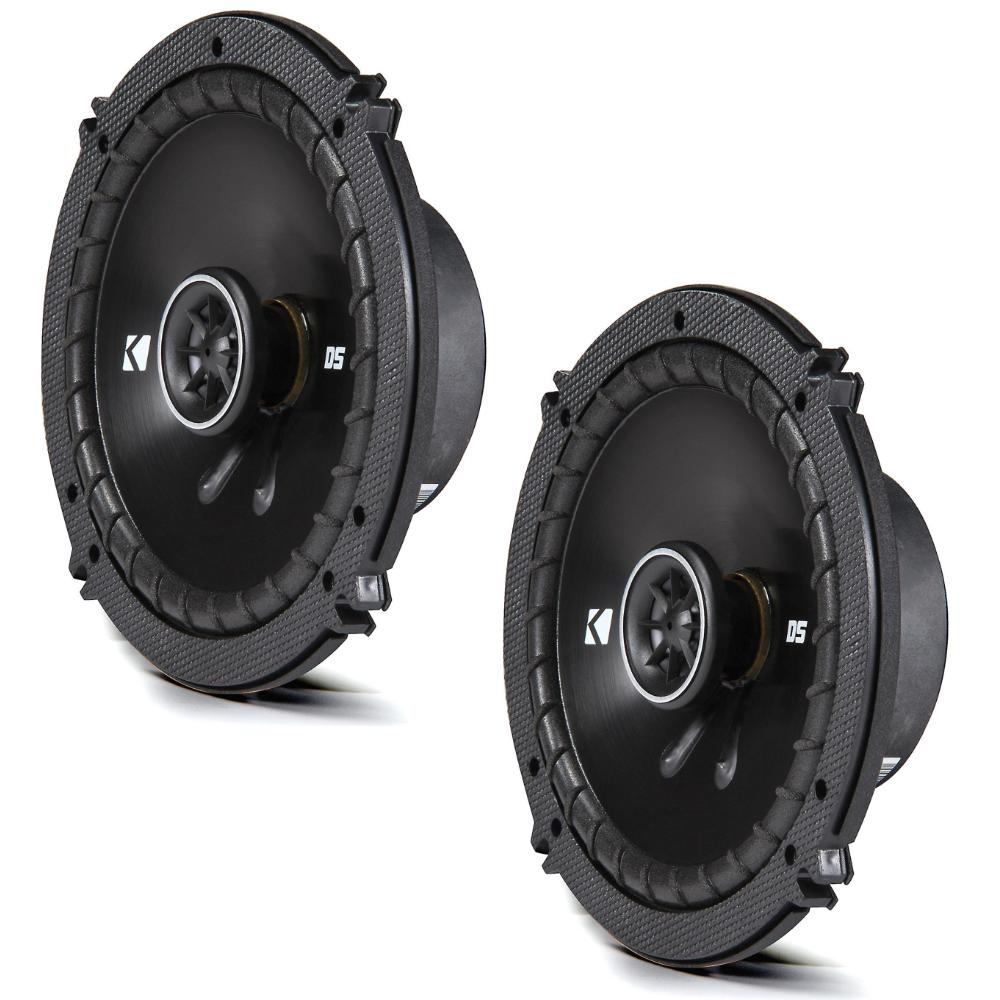

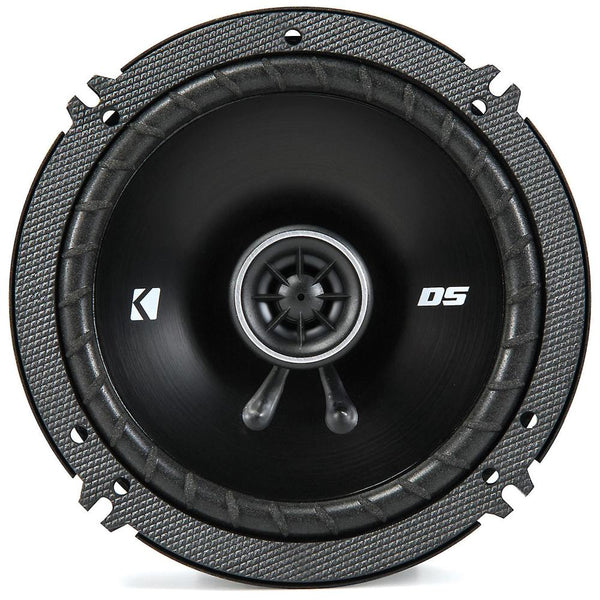

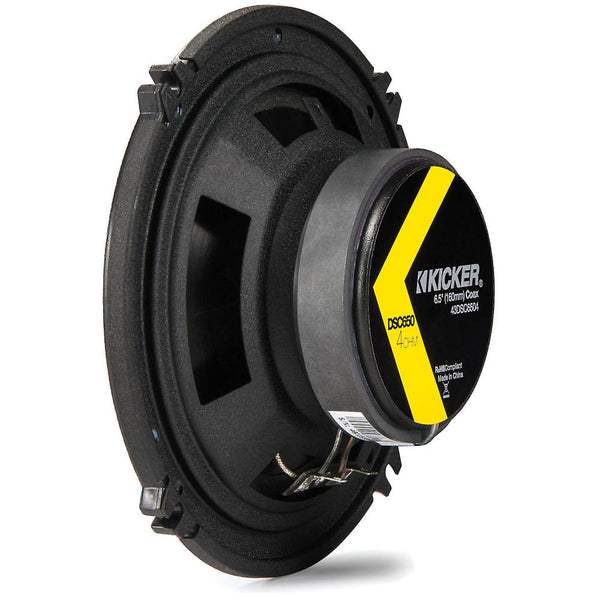

The Kicker 43DSC6504 is a pair of DS Series 6.5" (16.5 cm) 2-way coaxial car door speakers rated at 60W RMS, 240W peak. They feature zero-protrusion PEI tweeters for flush factory-grille fitment and are a direct drop-in replacement for most factory door speakers.

This listing is the DS Series 6.5". The Kicker DS Series is also available in 3.5" (43DSC3504).

Key specifications

Size: 6.5-inch (160 mm woofer), 2-way coaxial
Power: 60W RMS recommended, 240W peak
Impedance: 4 ohms
Sensitivity: 90 dB (1W/1m)
Frequency response: 40 Hz to 20 kHz
Tweeter: 1/2-inch (13 mm) PEI balanced dome, neodymium magnet, zero protrusion
Mounting hole diameter: 123 mm (4-13/16 in)
Mounting depth: 43 mm top mount, 52 mm bottom mount

Kicker 43DSC6504 — DS Series 6-1/2" 2-way car speakers

A straightforward upgrade for factory door speakers, delivering clear, accurate audio at 60W RMS.

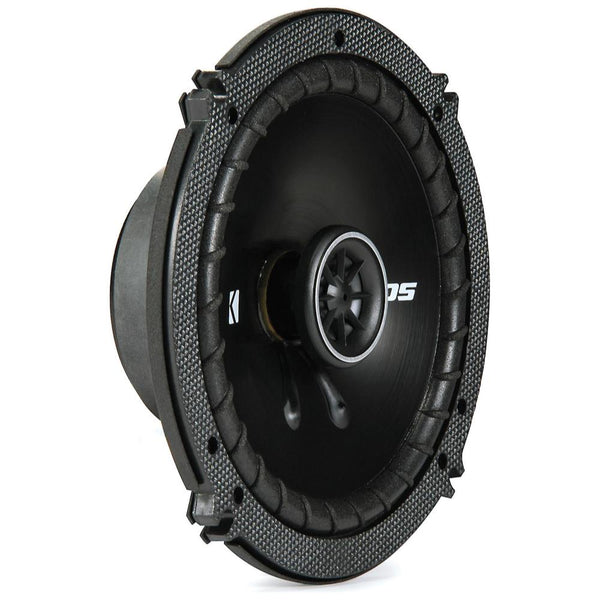

The zero-protrusion PEI tweeters sit flush with factory grilles — no trimming or modification required. A stamped steel framework supports a ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology.

Key features

60W RMS power handling
6.5" (16.5 cm) 2-way coaxial design
Zero-protrusion PEI tweeters for factory grille compatibility
Ribbed UV-treated foam surround
Rigid polypropylene cone
EVC™ (Extended Voice Coil) technology
Stamped steel framework
Drop-in fitment for most car doors

Explore the full range in Kicker DS Series Speakers.

Specification

Sensitivity	[1W, 1m] 90
Frequency Response	[Hz] 40-20k
More specs Model DSC650 Speaker Design 2 - Way Woofer [in, mm] 6-1/2, 160 Mid [in, mm] n/a Tweeter [in, mm] 1/2, 13 Rated Impedance [Ω] 4 Peak Power (watts, per ANSI/CTA-2031-A) 240 Recommended Amplifier Power (watts RMS) 60 Mounting Hole Diameter [in, mm] 4-13/16, 123 Top Mount Depth [in, mm] 1 11/16, 43 Bottom Mount Depth [in, mm] 2 1/16, 52 Tweeter Protrusion [in, mm] 0 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material PEI (polyether imide) Tweeter Design Balanced dome Woofer Cone Material Polypropylene Woofer Surround Material Polyester foam

What's Included

DSC6504 Speakers
Grilles
Speaker Wire
Connectors
Eight Self-tapping screws
8 Speed clips
Owner's manual

Download User Manual(PDF)

Product information

Kicker

About the Kicker 43DSC6504

From our tech experts at CEN

A 6.5 inch coaxial pair, with the tweeter mounted in the middle of the woofer, rated at 60w RMS.

Who it suits

Drivers replacing tired factory speakers who want a clear improvement without complication. Coaxials go where the originals were and sound better immediately.

Our tech experts advise

Speaker sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker: a good driver in an untreated door is doing half a job. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Kicker DSC3504 DS Series 3.5" 9cm 2 Way Car Door Dash Coaxial Speakers 20w RMS - CEN

Best Seller Kicker 43DSC3504 DS Series 3.5" 9cm 2 Way Car Door Dash Coaxial Speakers 20w RMS £42.95

In stock

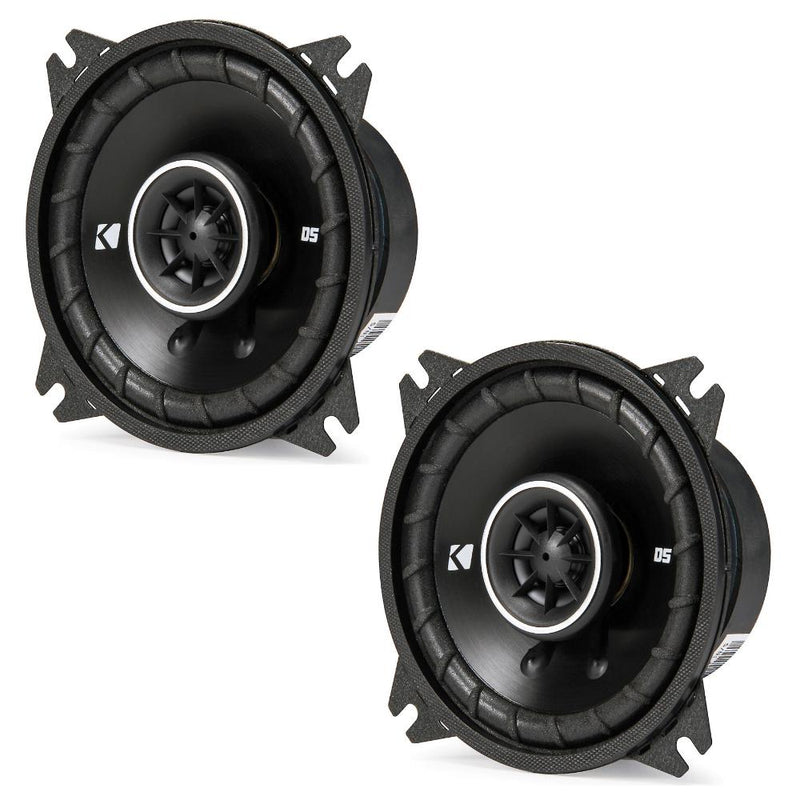

Kicker DSC404 DS Series 4" 10cm 2 Way Car Door Dash Coaxial Speakers 30w RMS - CEN
