Kicker DSC3504 DS Series 3.5" 9cm 2 Way Car Door Dash Coaxial Speakers 20w RMS - CEN

2 Year Warranty

Shop All

Kicker 43DSC3504 DS Series 3.5" 9cm 2 Way Car Door Dash Coaxial Speakers 20w RMS

Name: Kicker 43DSC3504 DS Series 3.5" 9cm 2 Way Car Door Dash Coaxial Speakers 20w RMS
Brand: Kicker
SKU: 91106
Price: 42.95 GBP
Availability: InStock

£42.95 Best Seller

In stock

SKU: 91106MPN: 43DSC3504

Product variants

Part of the range · 8 productsPart of the Kicker DS Series Speakers · 8 products See the range →

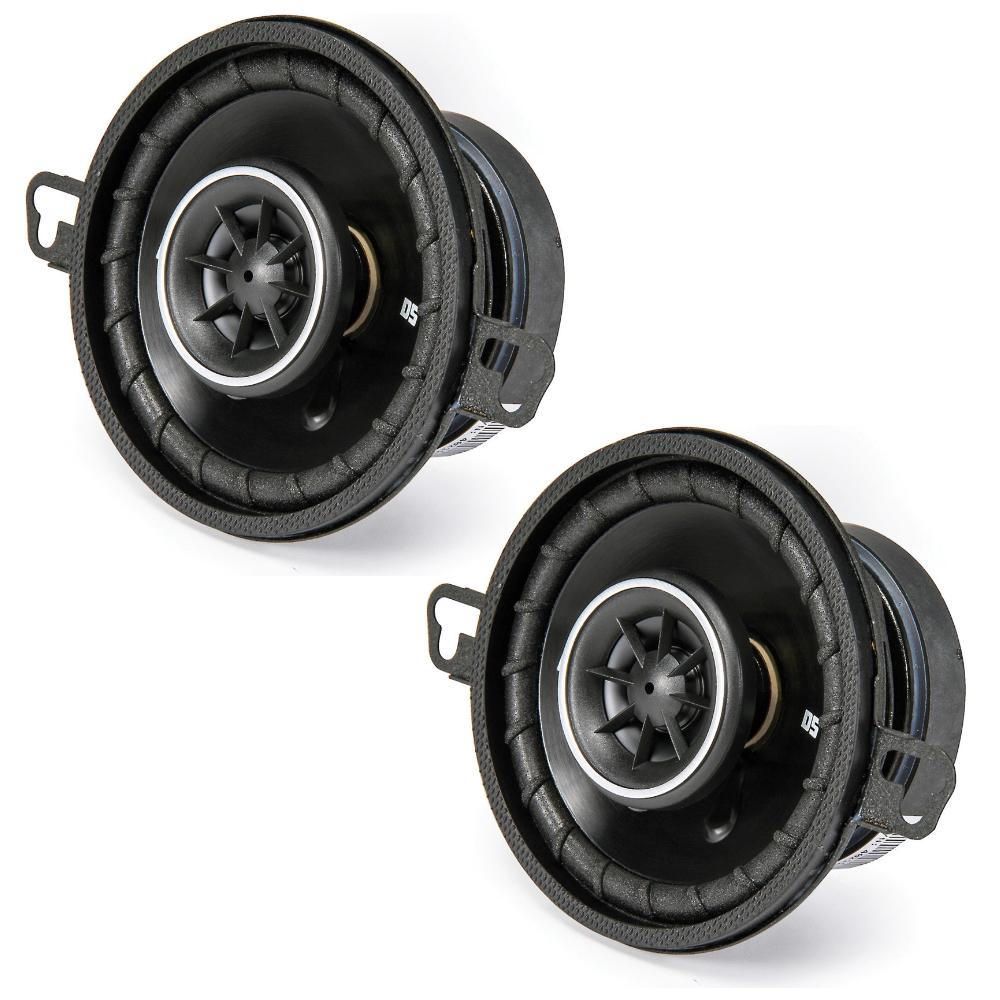

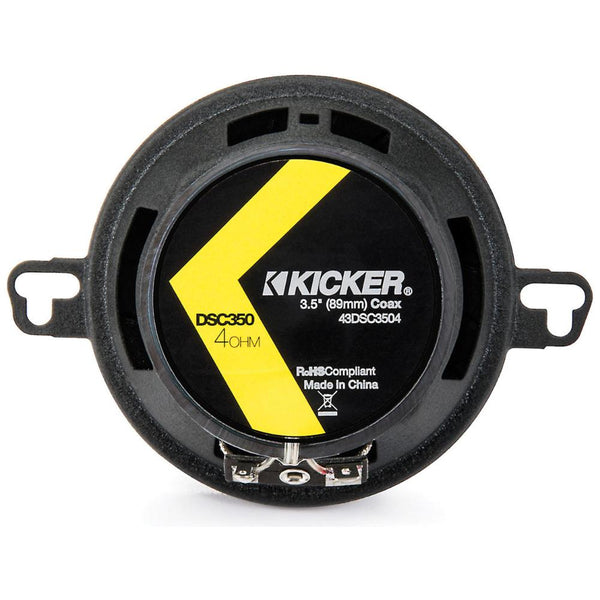

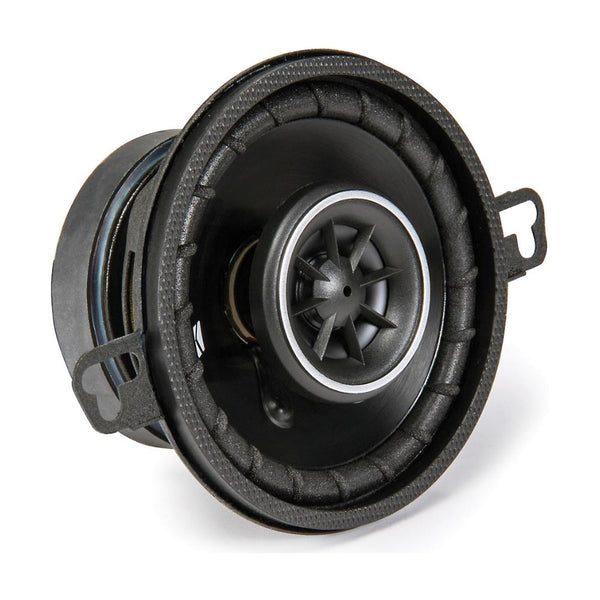

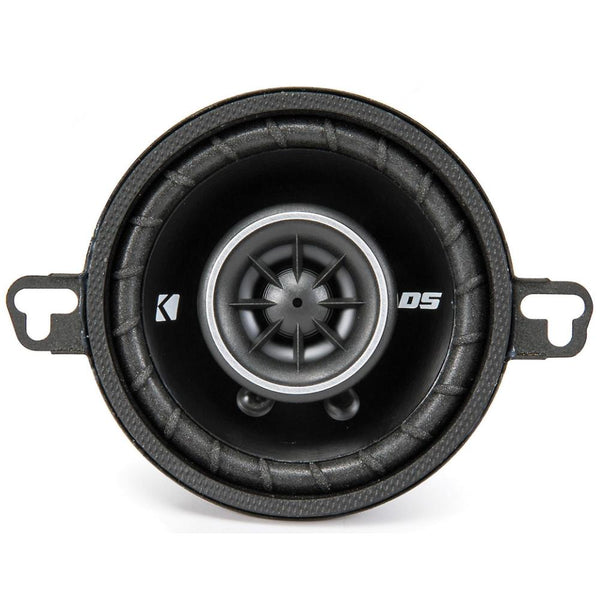

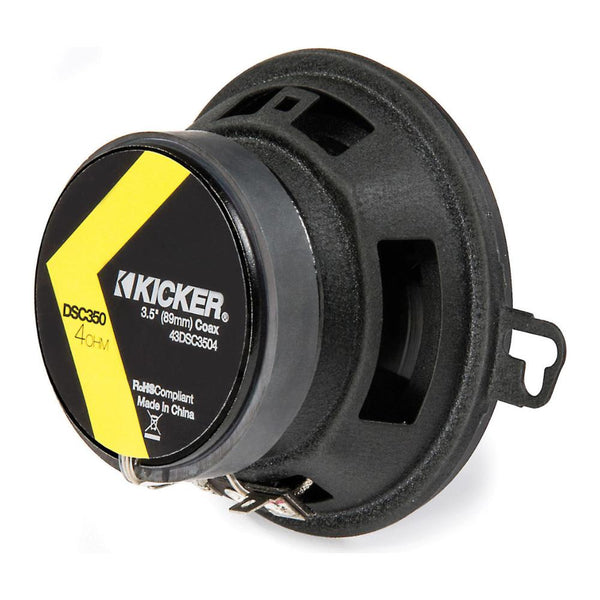

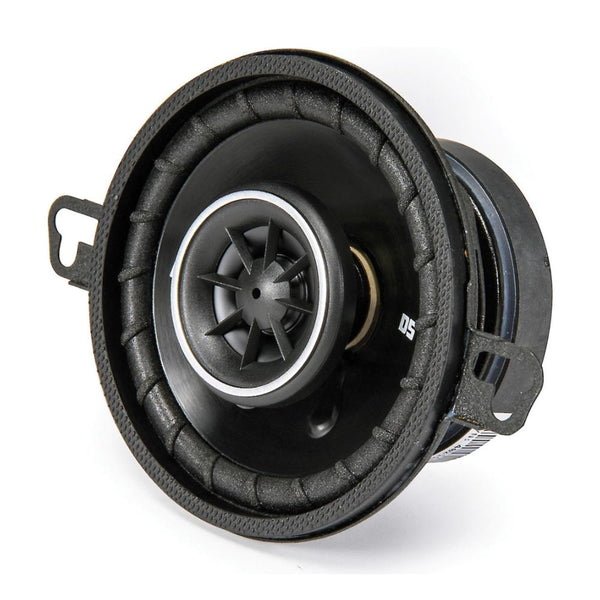

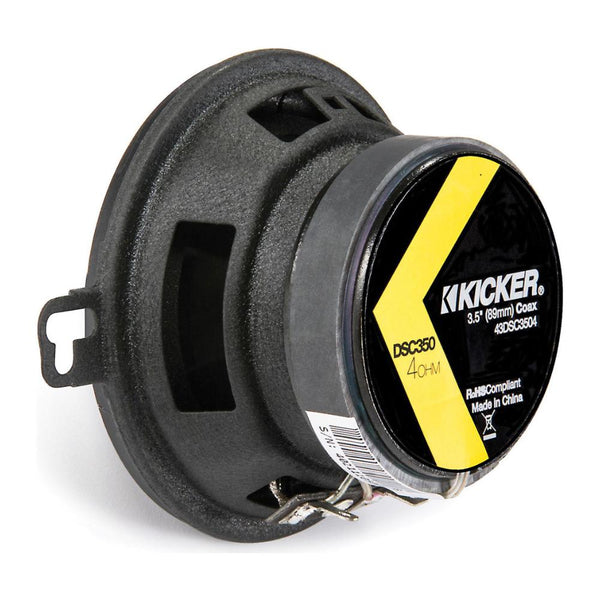

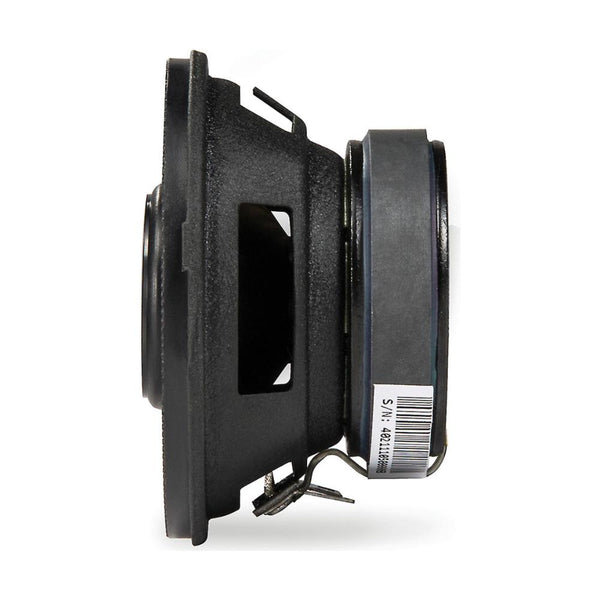

The Kicker 43DSC3504 is a pair of DS Series 3.5" (9 cm) 2-way coaxial car speakers rated at 20W RMS. They feature a polypropylene cone, ribbed UV-treated foam surround, and a low-protrusion PEI tweeter, designed as a straightforward drop-in upgrade for factory door and dash locations.

Other sizes in the DS Series: Kicker DS 4", Kicker DS 4x6", Kicker DS 5.25", Kicker DS 6.75", Kicker DS 6x8", Kicker DS 6x9" 3-way.

Key specifications

Size: 3.5" (89 mm) woofer, 0.5" (13 mm) PEI tweeter
Design: 2-way coaxial
Power: 20W RMS, 80W peak
Impedance: 4 ohms
Sensitivity: 88 dB (1W/1m)
Frequency response: 80 Hz to 20 kHz
Mounting hole: 78 mm
Top mount depth: 41 mm
Grilles: not included

Kicker 43DSC3504

DS Series 3-1/2" 2-way car speakers

A direct drop-in upgrade that fits most factory door and dash locations, with a clear improvement over standard speakers.

Built on a stamped steel framework, the DS 3-1/2" coaxials use a ribbed, UV-treated foam surround and a rigid polypropylene cone. EVC™ (Extended Voice Coil) technology improves sonic accuracy across the range. The low-protrusion (3 mm) PEI tweeter maintains clarity without fouling factory grilles.

Rated at 20W RMS, these speakers work well driven by most head units or a modest amplifier. If you need a larger drop-in upgrade, the Kicker 43DSC6504 DS Series 6.5" speakers offer 60W RMS in the same DS Series range.

Size: 3.5" / 9 cm
Configuration: 2-way coaxial
Power handling: 20W RMS
Cone material: Rigid polypropylene
Surround: Ribbed UV-treated foam
Framework: Stamped steel
Voice coil technology: EVC™ (Extended Voice Coil)
Tweeter: Low-protrusion (3 mm) PEI
Compatible with factory grilles

Explore the full range in Kicker DS Series Speakers.

Specification

Sensitivity	[1W, 1m] 88
Frequency Response	[Hz] 80-20k
More specs Model DSC350 Speaker Design 2 - Way Woofer [in, mm] 3-1/2, 89 Mid [in, mm] n/a Tweeter [in, mm] 1/2, 13 Rated Impedance [Ω] 4 Peak Power (watts, per ANSI/CTA-2031-A) 80 Recommended Amplifier Power (watts RMS) 20 Mounting Hole Diameter [in, mm] 3, 78 Top Mount Depth [in, mm] 1-5/8, 41 Bottom Mount Depth [in, mm] 1-7/8, 47 Tweeter Protrusion [in, mm] 1/8, 3 Grilles No Tweeter Magnet Material Neodymium Tweeter Dome Material PEI (polyether imide) Tweeter Design Balanced dome Woofer Cone Material Polypropylene Woofer Surround Material Polyester foam

What's Included

DSC3504 Speakers
Speaker Wire
Connectors
Eight Self-tapping screws
8 Speed clips
Owner's manual

Download User Manual(PDF)

Product information

Kicker

About the Kicker 43DSC3504

From our tech experts at CEN

A 3.5 inch coaxial pair, with the tweeter mounted in the middle of the woofer, rated at 20w RMS.

Who it suits

Drivers replacing tired factory speakers who want a clear improvement without complication. Coaxials go where the originals were and sound better immediately.

Our tech experts advise

Speaker sizes, adapter rings and harnesses vary by vehicle, year and trim, so we confirm what your car takes before ordering rather than guessing. Treating the door skin matters as much as the speaker: a good driver in an untreated door is doing half a job. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Kicker range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kicker

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Kicker DSC404 DS Series 4" 10cm 2 Way Car Door Dash Coaxial Speakers 30w RMS - CEN

Best Seller Kicker 43DSC404 DS Series 4" 10cm 2 Way Car Door Dash Coaxial Speakers 30w RMS £49.95

In stock

Kicker DSC6704 DS Series 6.75" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS - CEN

Kicker 43DSC6704 DS Series 6.75" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS £69.95

Low stock

Kicker DSC504 DS Series 5.25" 13cm 2 Way Car Door Coaxial Speakers 50w RMS - CEN

Best Seller Kicker 43DSC504 DS Series 5.25" 13cm 2 Way Car Door Coaxial Speakers 50w RMS £59.95

In stock

Kicker DSC4604 DS Series 4x6" 2 Way Car Door Shelf Coaxial Speakers 30w RMS - CEN

Kicker 43DSC4604 DS Series 4x6" 2 Way Car Door Shelf Coaxial Speakers 30w RMS £49.95

In stock

Kicker DSC6804 DS Series 6x8" 2 Way Car Door Shelf Coaxial Speakers 50w RMS - CEN

Kicker 43DSC6804 DS Series 6x8" 2 Way Car Door Shelf Coaxial Speakers 50w RMS £69.95

In stock

Kicker DSC6504 DS Series 6.5" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS - CEN

Kicker 43DSC6504 DS Series 6.5" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS £69.95

In stock

Best Seller Kicker 43DSC504 DS Series 5.25" 13cm 2 Way Car Door Coaxial Speakers 50w RMS £59.95

In stock

Kicker 43DSC6504 DS Series 6.5" 16.5cm 2 Way Car Door Coaxial Speakers 60w RMS £69.95

In stock

Best Seller Kicker 43DSC404 DS Series 4" 10cm 2 Way Car Door Dash Coaxial Speakers 30w RMS £49.95

In stock

Kicker 43DSC4604 DS Series 4x6" 2 Way Car Door Shelf Coaxial Speakers 30w RMS £49.95

In stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: Will these speakers fit my car?

A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.

Q: Do I need an amplifier to run these speakers?

A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.

Q: What is the difference between coaxial and component speakers?

A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.

Q: Do these come as a pair?

A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.

Q: Can CEN fit these speakers for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.

Q: What size mounting hole do the Kicker DSC3504 speakers need?

A: They need a 78 mm (3 inch) mounting hole, with a top mount depth of 41 mm and a bottom mount depth of 47 mm.

Q: Do the Kicker DSC3504 speakers come with grilles?

A: No. Grilles are not included. The low-protrusion PEI tweeter is designed to work with factory grilles.

Q: How much power do the Kicker DSC3504 speakers handle?

A: They are rated at 20W RMS (80W peak) at 4 ohms, so they run well from most head units or a modest amplifier.
