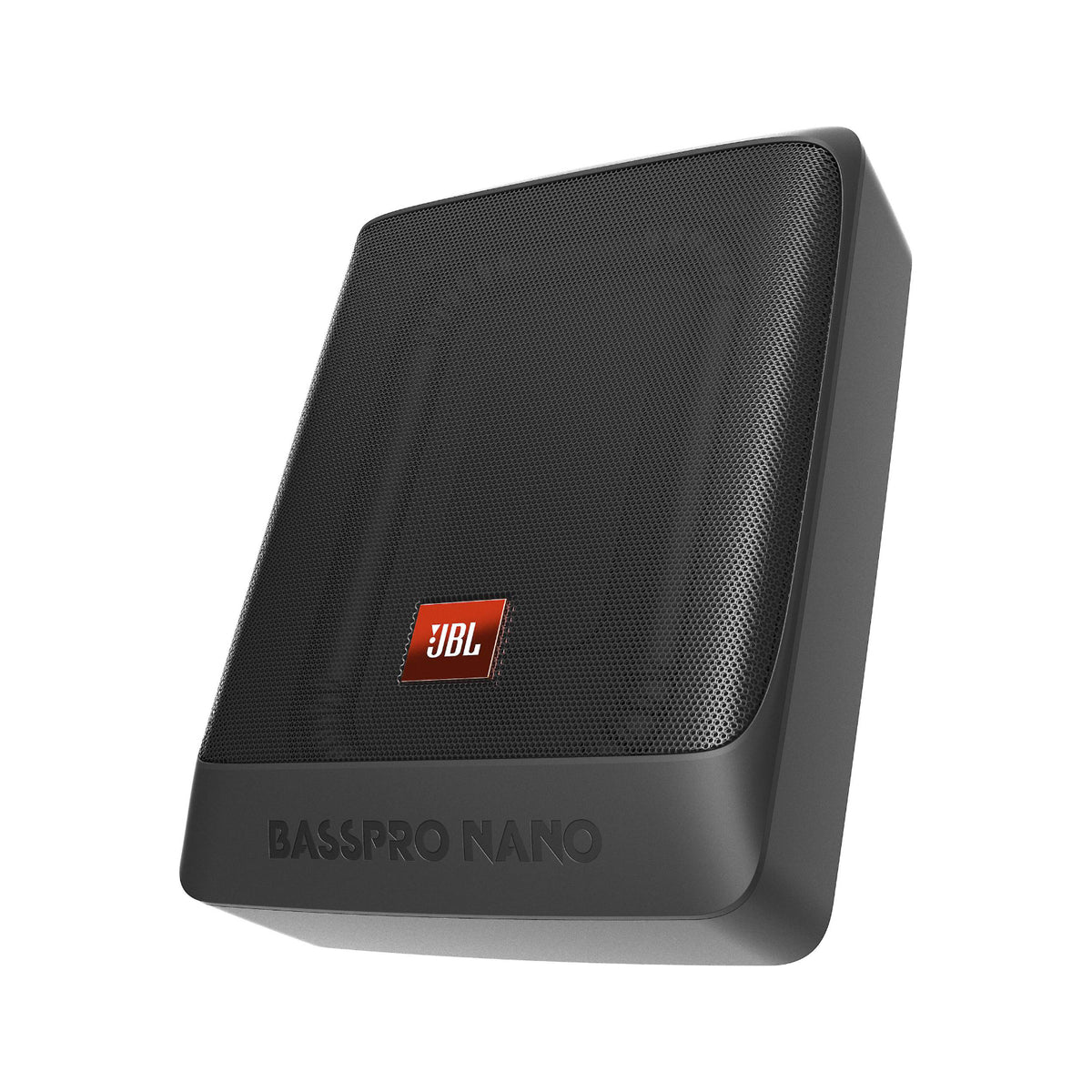

JBL BassPro Nano Sub Compact Powered Active Underseat Car Subwoofer 100w RMS
Couldn't Load Pickup availability

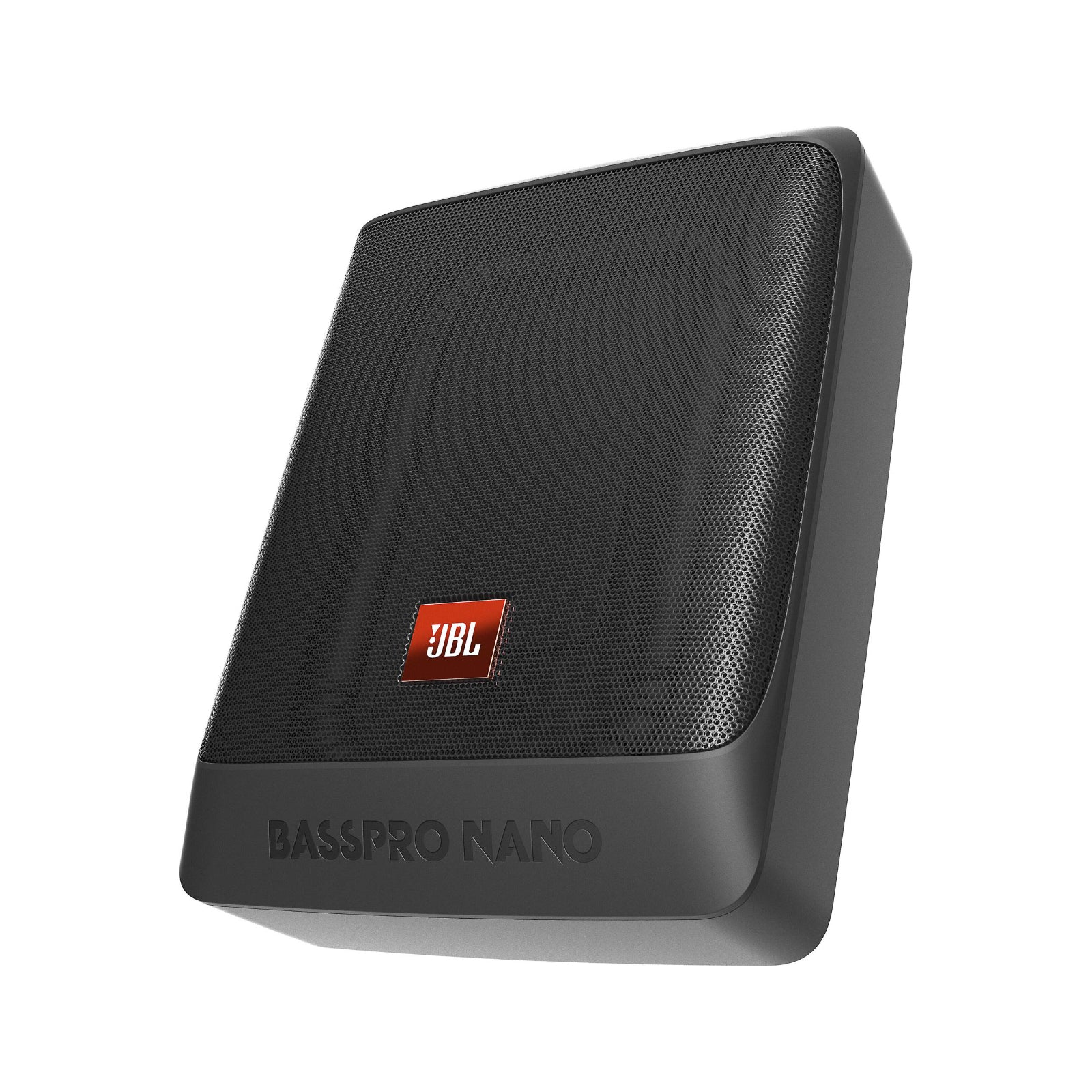

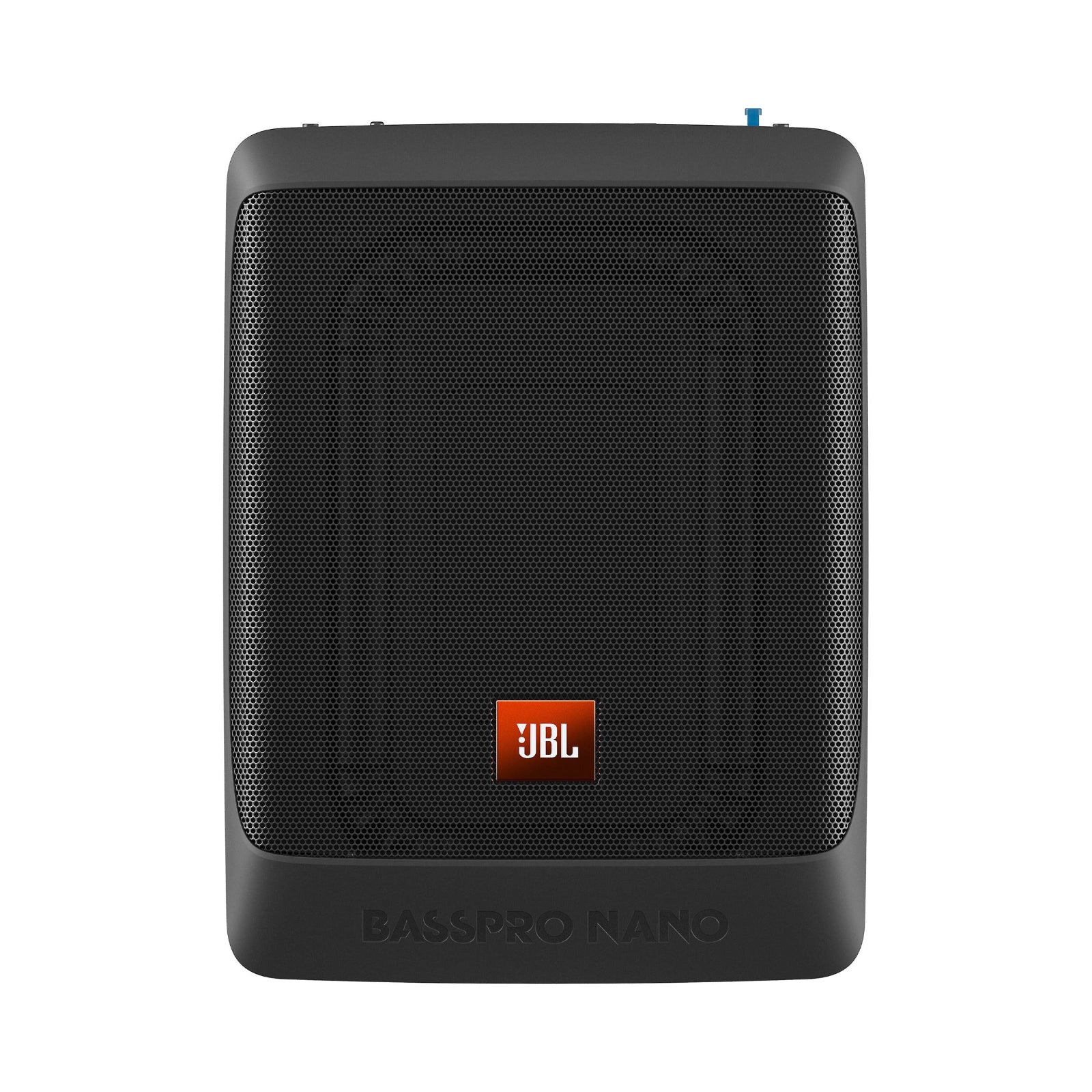

The JBL BassPro Nano is a compact active underseat car subwoofer from JBL's BassPro range, featuring a 6" x 8" driver and a built-in 100W RMS (200W max) amplifier in a die-cast aluminium enclosure.
This listing is the BassPro Nano. The JBL BassPro range is also available as the JBL BassPro 12 and the JBL BassPro Hub.
Key specifications
- Driver: 6" x 8" (152mm x 203mm) subwoofer
- Amplifier: 100W RMS, 200W max
- Frequency response: 30Hz - 150Hz
- Crossover: 50Hz - 150Hz, 12dB/octave
- Bass boost: 0dB to +12dB at 50Hz
- Inputs: low level 0.1V - 4.0V, high level 0.25V - 10V
- Dimensions (L x W x H): 260.0 x 195.0 x 74.6mm
- Weight: 3.53kg
- Remote: wired bass volume remote included
JBL BassPro Nano

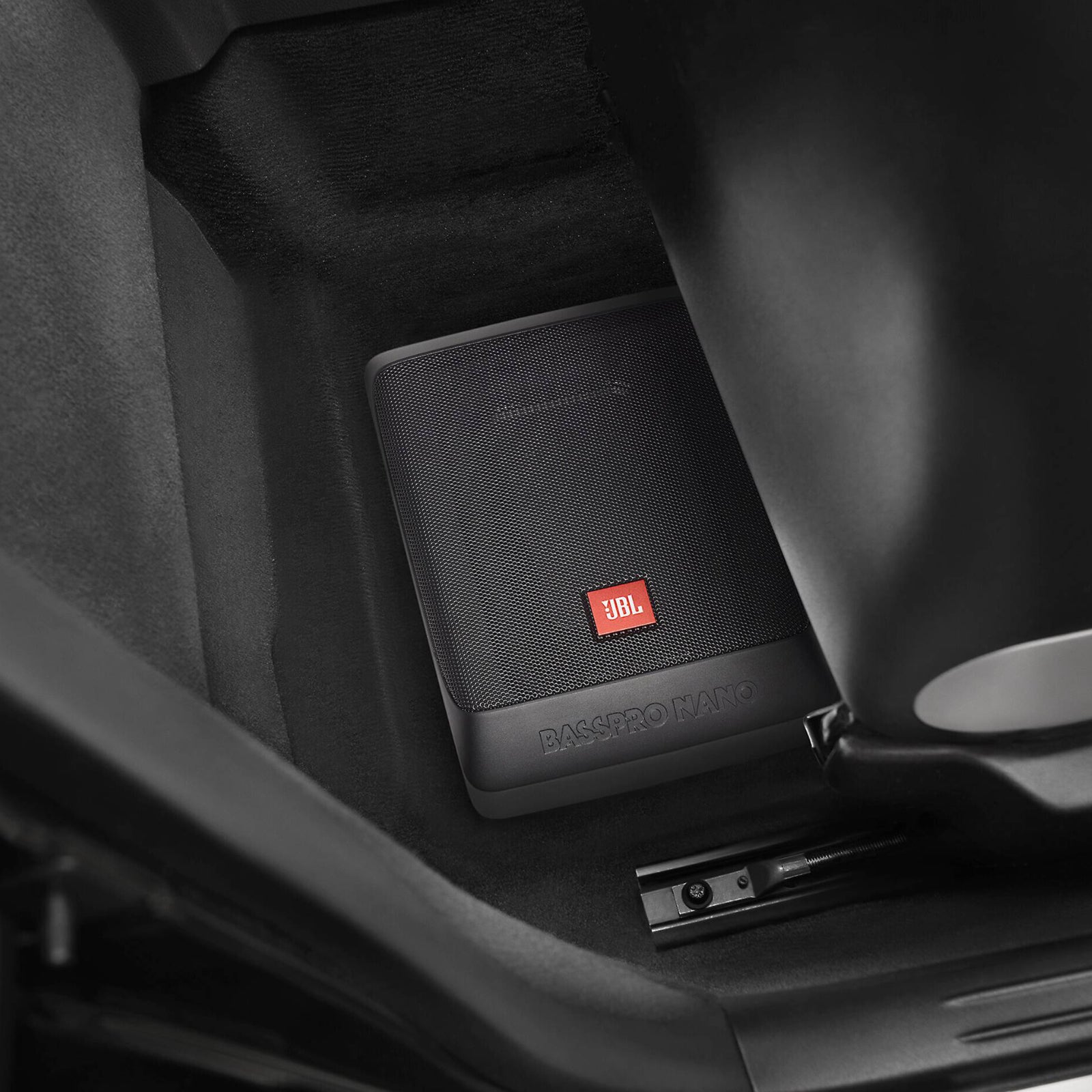

A compact underseat subwoofer designed for cars where a full-size sub won't fit, without sacrificing bass quality.
Compact powered subwoofer with 6"x8" sub and 100-watt amp
The built-in 100W RMS amplifier is matched to the subwoofer driver, delivering tight, clean bass.
Intelligent electronic design for reliable performance
The BassPro Nano uses high-pass filters and limiters to maintain clear performance even when pushed to its limits.

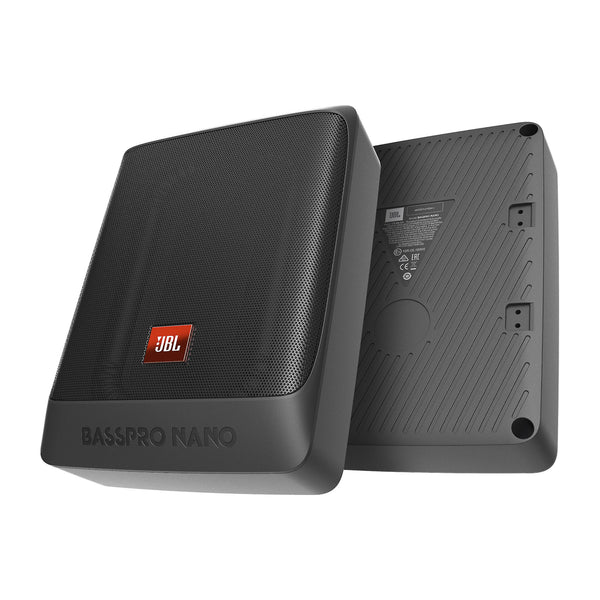

Die-cast aluminium enclosure
The all-die-cast aluminium enclosure has an anodised textured matte black finish, keeping the unit small and rigid and cutting out unwanted rattles for cleaner bass output.
Bass volume remote control
An included wired bass volume remote lets you adjust bass levels from the driver's seat without reaching for the unit.
Explore the full range in JBL BassPro Subwoofers.
Specification
| Driver Complement | 6" x 8" (152mm x 203mm) Subwoofer |
|---|---|
| Amplifier Power | 100Wrms; 200W Max |
| Frequency Response | 30Hz – 150Hz |
| Fuse | 15A Maximum |
| Current Draw | 13A |
| Quiescent Current Draw | <600mA |
| Input Sensitivity | 0.1V – 4.0V Low-Level Input; 0.25V – 10V High-Level Input |
| Crossover Frequency | 50Hz – 150Hz Crossover Slope: 12dB/octave |
| Bass Boost | 0dB to + 12dB @ 50Hz |
| Dimensions | (L x W x H) 10-1/4" x 7-11/16" x 2-15/16" (260.0mm x 195.0mm x 74.6mm) |
| Weight | 7.78 lbs (3.53kg) |

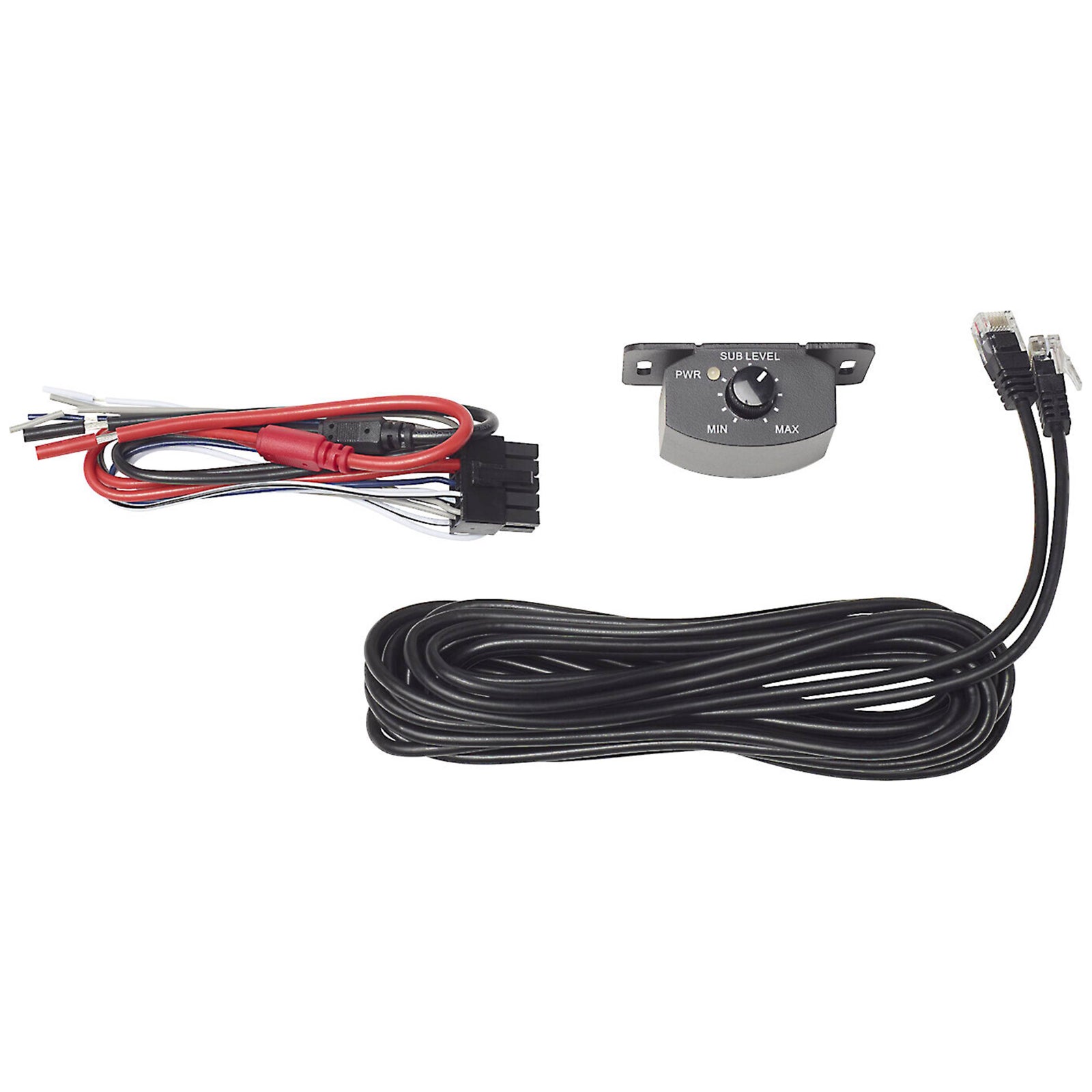

What's Included
- Under seat subwoofer
- Screws
- Small metal plate
- Wiring harness
- Bass volume remote control (with cable)
JBL
About the JBL BassPro Nano
From our tech experts at CEN
The JBL BassPro Nano is a compact active underseat car subwoofer with a 6" x 8" driver and a built-in 100W RMS (200W max) amplifier. Its die-cast aluminium enclosure measures 260 x 195 x 74.6mm, slim enough to sit beneath most front seats. A wired bass volume remote is included in the box.
Who it suits
This suits drivers who want meaningful bass but have no boot space for a traditional subwoofer and separate amplifier. The 74.6mm profile makes it practical for smaller cars and tight underseat areas. Those needing a larger driver could consider the JBL BassPro 8.
Our tech experts advise

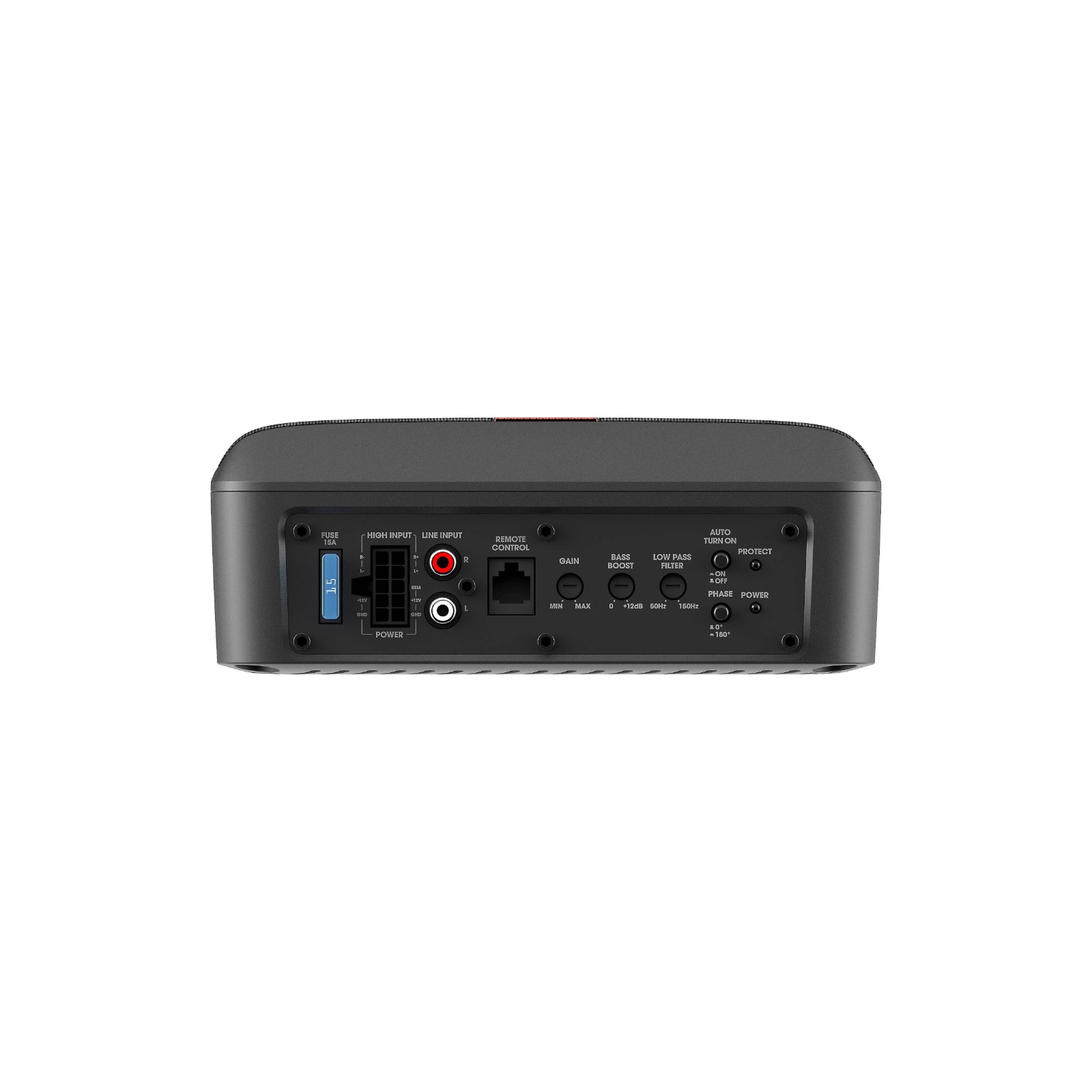

The BassPro Nano accepts both low-level (0.1V–4.0V) and high-level (0.25V–10V) inputs, so it connects to factory or aftermarket head units without a line output converter in most cases. Set the crossover between 50Hz and 150Hz to blend cleanly with your existing speakers. Use the bass boost (0dB to +12dB at 50Hz) cautiously to avoid distortion. Fitting is priced per vehicle — see our Nottingham installation page for details.
Explore the full JBL range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JBL
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from JBL
More options from the same range, in stock and ready to go

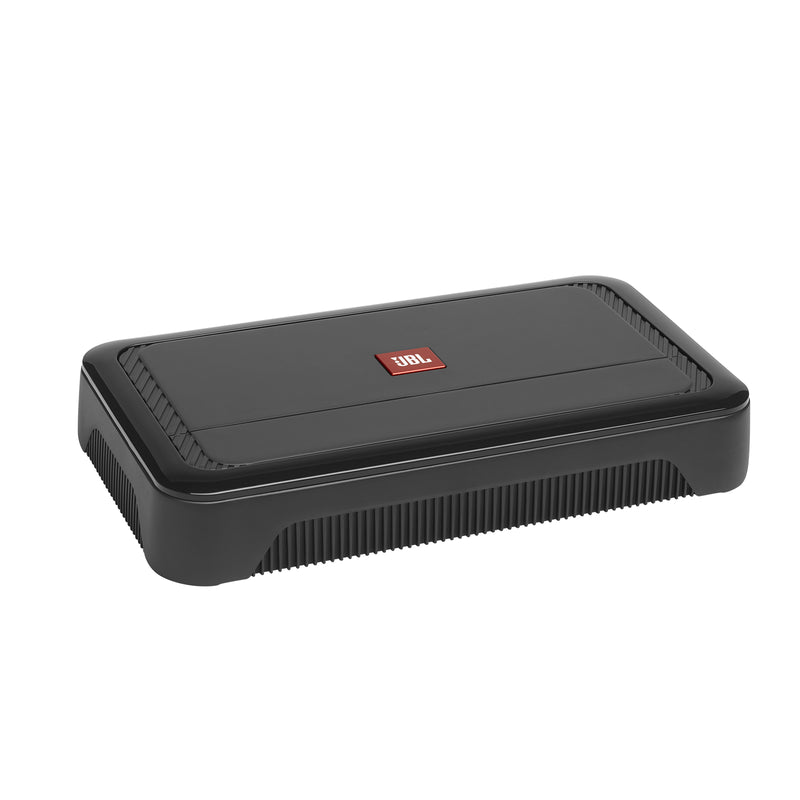

JBL Club A1000 Amp 1 Channel Mono Class D Subwoofer Amplifier 1000w RMS
RRP £389.99Save 12%£339.99
JBL BassPro 8 Sub Powered Active Car 8 Inch Subwoofer with Remote 100w RMS
RRP £269.99Save 18%£219.99
JBL Stage 2 524 5.25 Inch 2 Way Coaxial Car Door Speakers Pair
RRP £49.99Save 18%£40.99
JBL Stage 2 65M 6.5 Inch 3 Way Coaxial Car Speakers 60w RMS Pair
£79.99

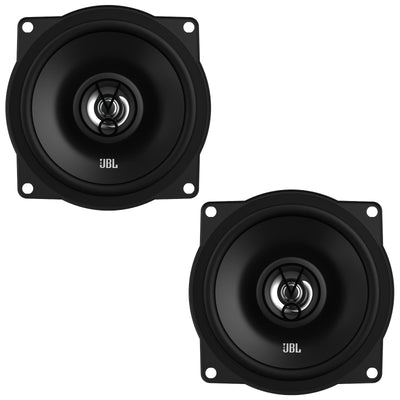

JBL Stage 1 51F 5.25 Inch 2 Way Coaxial Car Door Speakers 30w RMS Pair
RRP £39.99Save 10%£35.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Will the JBL BassPro Nano work with my factory stereo?
A: Yes. It has both low-level (0.1V to 4.0V) and high-level (0.25V to 10V) inputs, so it can connect to aftermarket or factory head units.
Q: How big is the JBL BassPro Nano?
A: It measures 260.0 x 195.0 x 74.6mm (L x W x H) and weighs 3.53kg. Compare these dimensions with the space under your seat, or contact CEN to confirm fitment.
Q: Can I adjust the BassPro Nano bass level from the driver's seat?
A: Yes. A bass volume remote control with cable is included.
