JBL BassPro Lite Sub Compact Powered Active Underseat Car Subwoofer 100w RMS
Couldn't Load Pickup availability

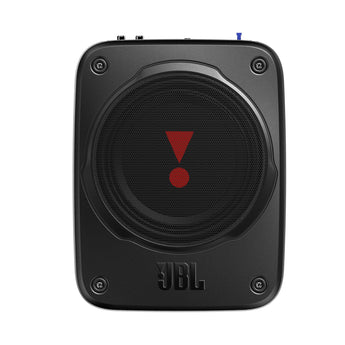

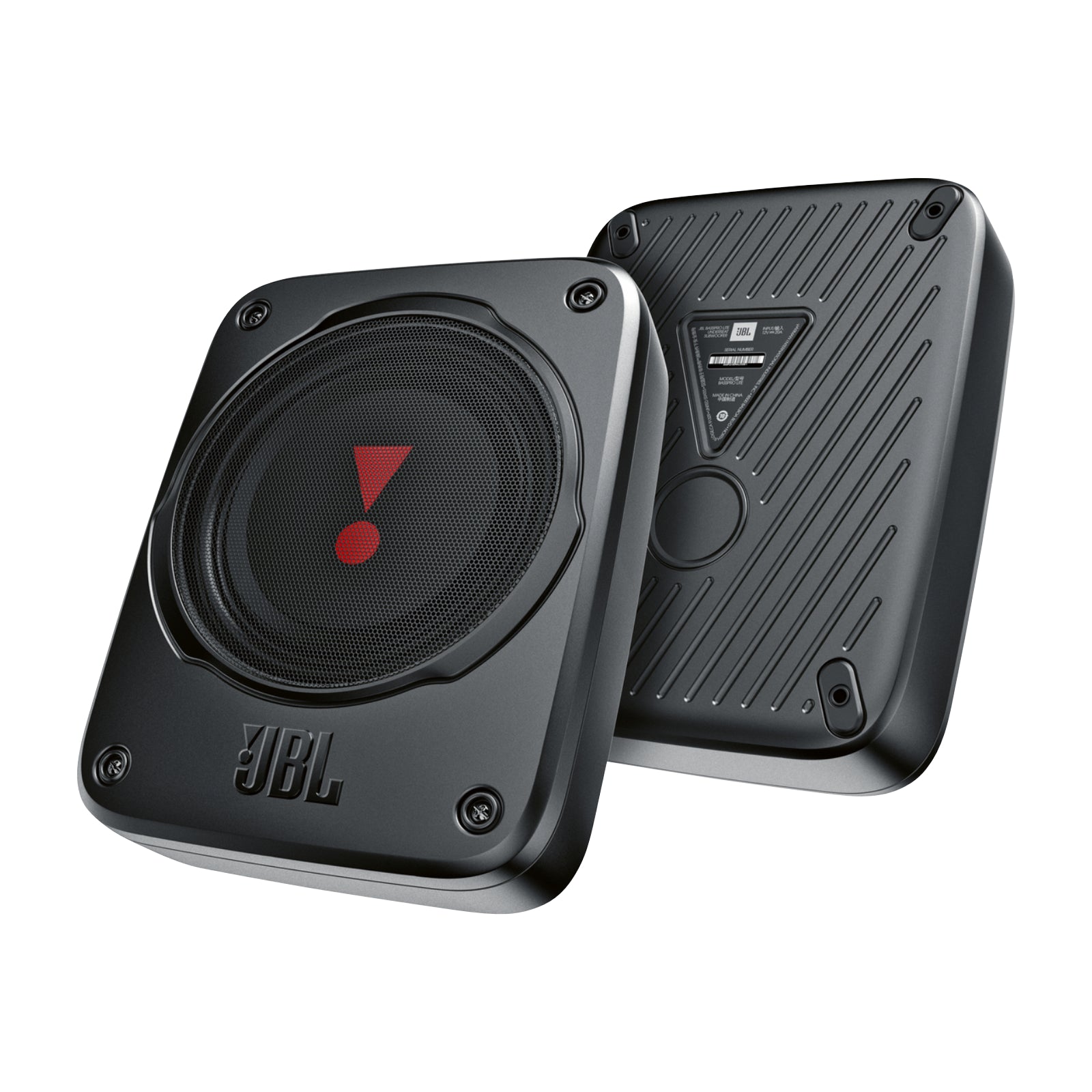

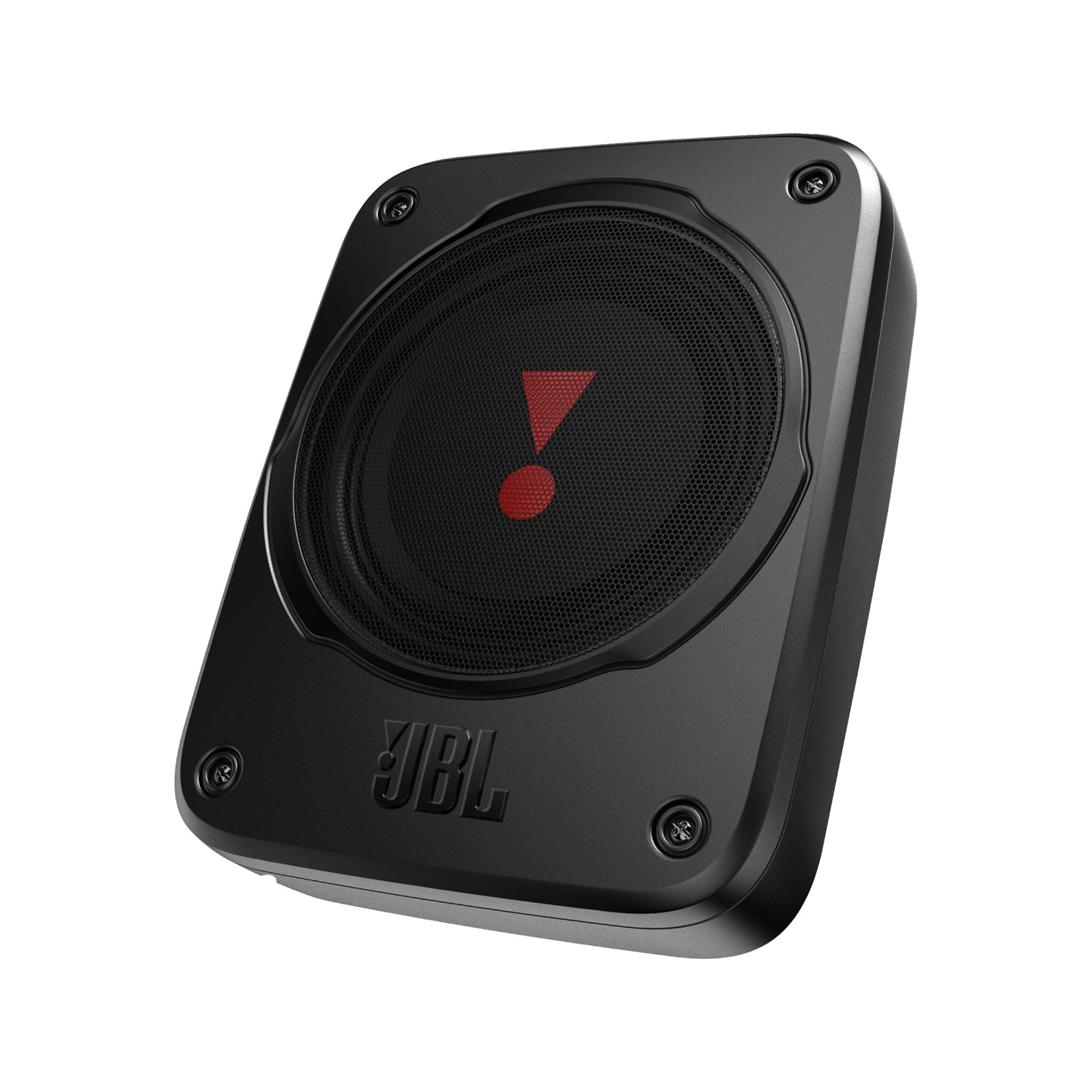

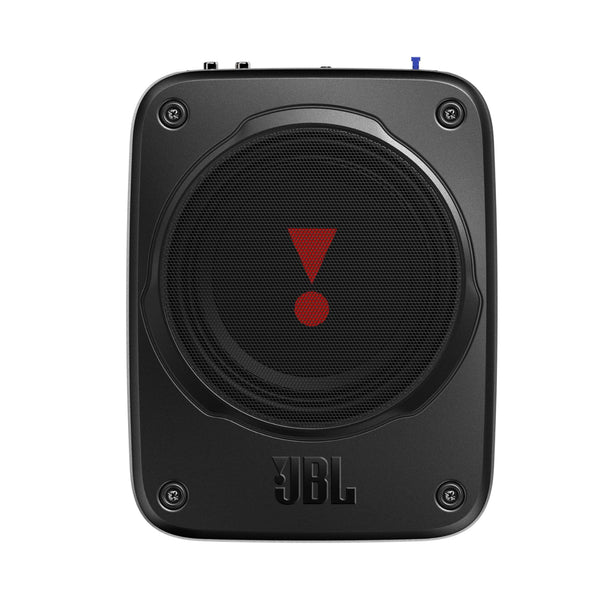

The JBL BassPro Lite is a compact powered underseat car subwoofer from JBL's BassPro range, featuring a 7 inch (178 mm) driver and a 100W RMS Class D amplifier in a die-cast aluminium enclosure just 65.5 mm tall.
This listing is the BassPro Lite. The JBL BassPro range is also available as the JBL BassPro Nano, another compact underseat option at 100W RMS.
Key specifications
- Driver: 7 inch (178 mm)
- Amplifier: Class D, 100W RMS (200W max)
- Frequency response: 30 Hz - 150 Hz
- Crossover: 50 Hz - 150 Hz, 12 dB/octave
- Bass boost: 0 to +12 dB at 50 Hz
- Inputs: low-level 0.18 - 5 V, high-level 0.75 - 20 V
- Enclosure: die-cast aluminium
- Dimensions: 259.6 x 203.1 x 65.5 mm
- Fuse: 15A

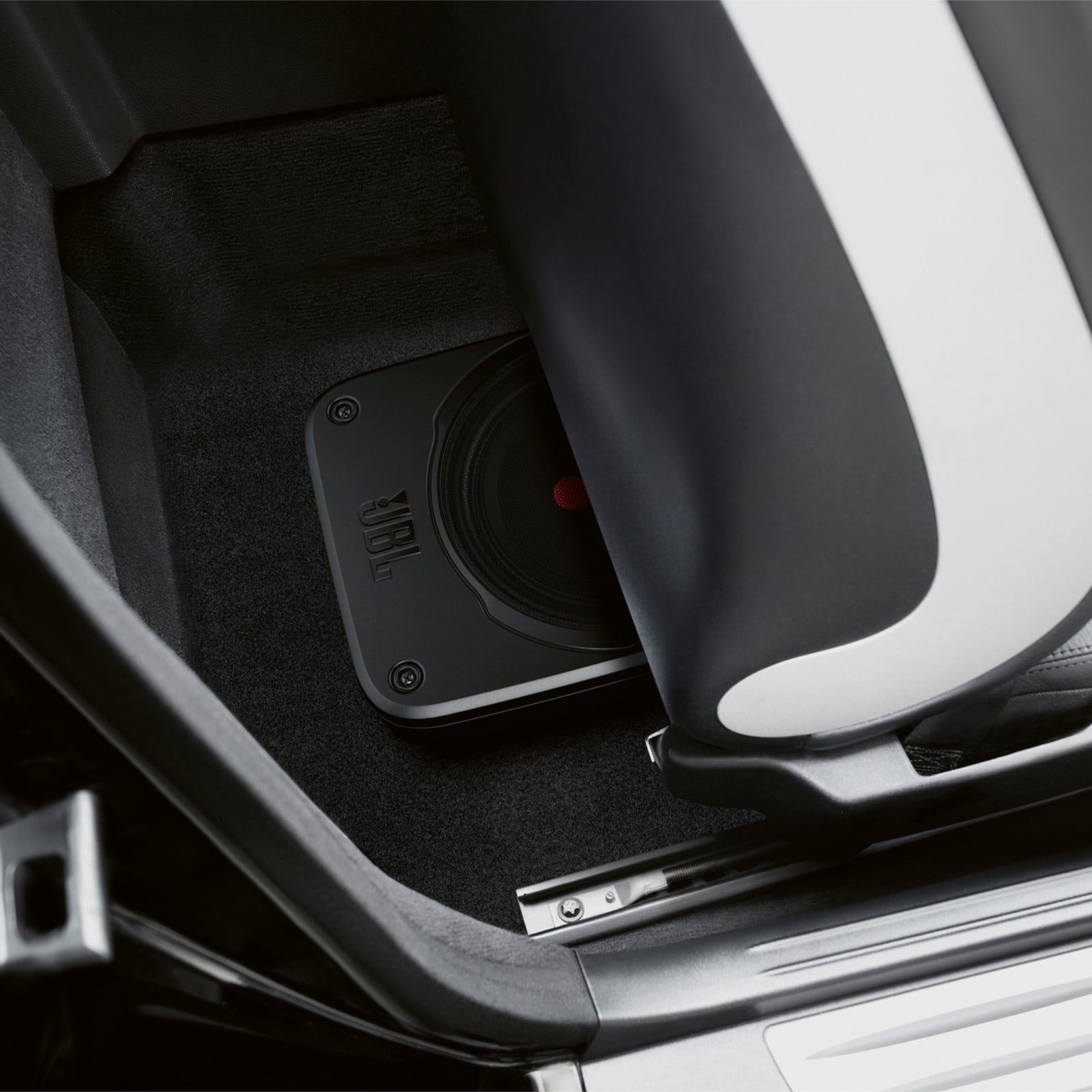

Compact underseat subwoofer
The BassPro Lite fits in tight underseat spaces and delivers tight, accurate bass to any car audio system. Its 100W RMS amplifier is performance-matched to the driver and runs cool while drawing minimal current from your vehicle's charging system.
Big bass, ultra-compact space
- Can be connected in series if upgrading to two units
- Onboard 100W RMS amplifier performance-matched to the subwoofer
- Die-cast aluminium enclosure
- Bass boost volume control on the I/O panel
- High-pass filters and limiters for reliable at-the-limits performance
Upgrade easier, connected in series
Two BassPro Lite units can be connected in series. The second unit adjusts independently with no extra power supply or complex signal wiring required.
Intelligent electronic design for reliable and extraordinary performance
The BassPro Lite uses high-pass filters and limiters to maintain exceptional performance even at its limits.
Die-cast aluminium enclosure design
The all-in-one die-cast aluminium enclosure keeps the unit ultra-compact while combining JBL's industrial design with strong acoustic performance.
Bass boost volume control

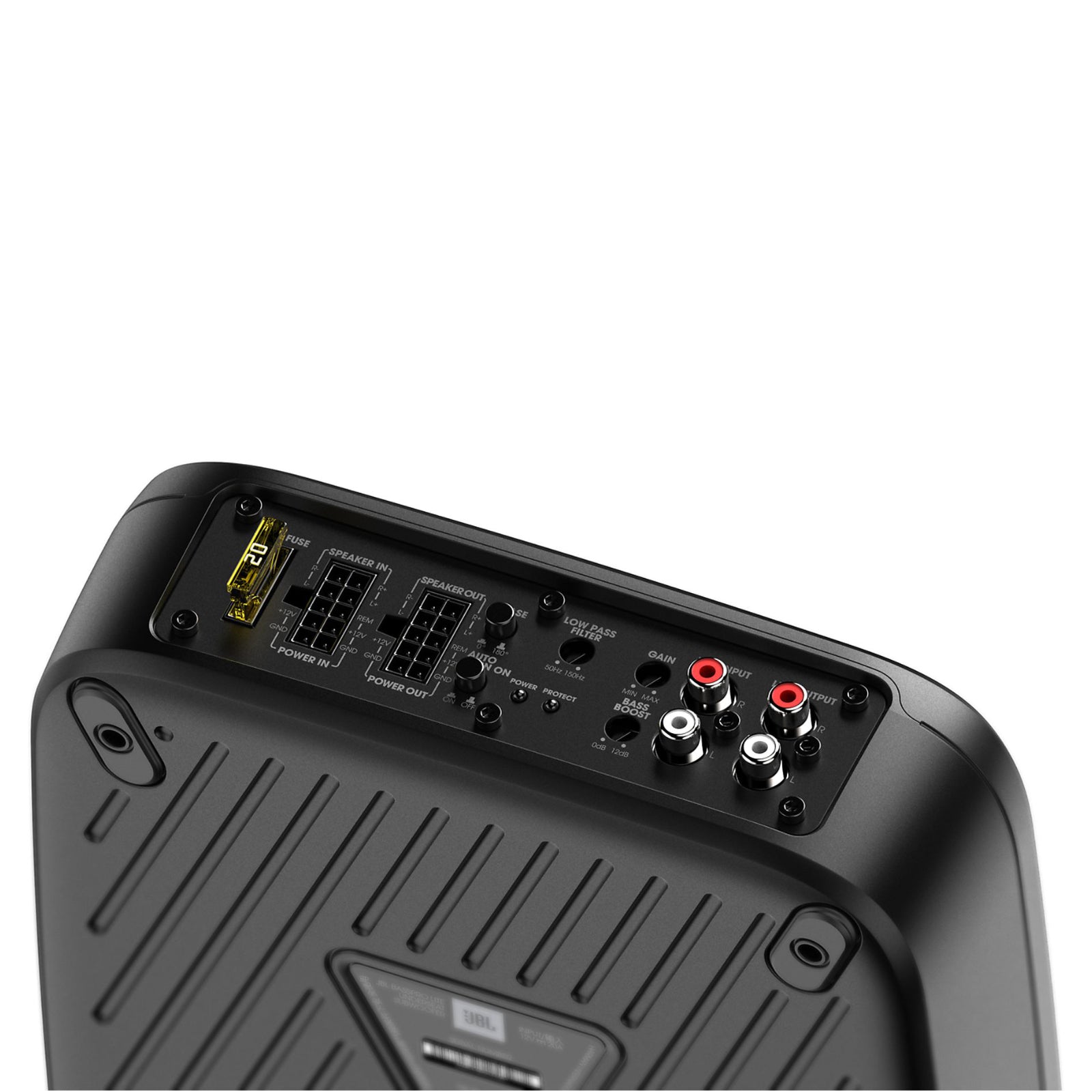

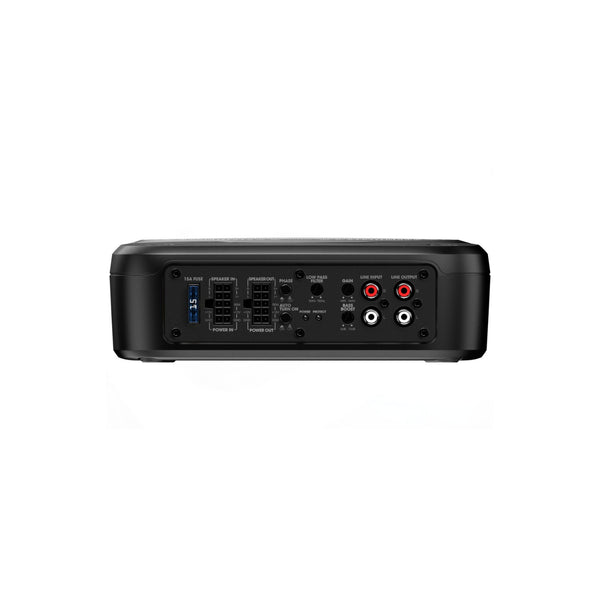

Bass boost volume control is built into the I/O panel, letting you adjust the bass level directly without additional wiring.
Explore the full range in JBL BassPro Subwoofers.
Specification
| Driver Complement | super powerful 7” (178mm) Subwoofer |
|---|---|
| Amplifier Power | Class D, 100Wrms; 200W Max |
| Frequency Response | 30Hz – 150Hz |
| Fuse | 15A |
| Maximum Current Draw | 15 A |
| Input Sensitivity | 0.18 V – 5.0 V Low-Level Input; 0.75 V – 20V High-Level Input |
| Crossover Frequency | 50 Hz – 150 Hz |
| Crossover Slope | 12 dB/octave |
| Bass Boost | 0dB to + 12dB @ 50Hz |
| Dimensions | (L x W x H) 10-1/4” x 8” x 2-9/16” (259.6mm x 203.1mm x 65.5mm) |
| Weight | 8 lbs (3.5kg) |
What's Included
- Under seat subwoofer
- Screws
- Wiring harness for power and speaker level input (300mm)
- 15A Fuse
JBL
About the JBL BassPro Lite
From our tech experts at CEN
The JBL BassPro Lite is a compact powered underseat car subwoofer with a 7 inch (178 mm) driver and an integrated 100W RMS Class D amplifier. The all-in-one die-cast aluminium enclosure measures 259.6 x 203.1 x 65.5 mm. It accepts low-level or high-level inputs and includes onboard bass boost of 0 to +12 dB at 50 Hz.
Who it suits
The BassPro Lite suits drivers who want improved bass without sacrificing boot space. It works well in cars where underseat depth is limited. For a smaller underseat alternative at the same power, see the JBL BassPro Nano.
Our tech experts advise
Check the clearance under your seat before ordering — you need at least 65.5 mm of height. The bass boost control sits on the I/O panel, so no remote wiring is required. Two units can be connected in series for greater output, with each adjusting independently. Installation pricing is per vehicle; speak to us about fitting.
Explore the full JBL range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all JBL
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from JBL
More options from the same range, in stock and ready to go
Best SellerJBL Stage 3 627F 6.5 Inch 2 Way Coaxial Car Door Speakers 45w RMS Pair
RRP £89.99Save 5%£84.99

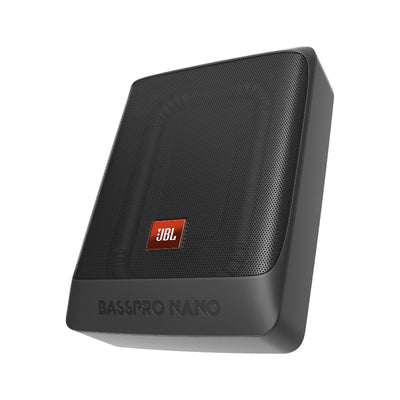

JBL BassPro Nano Sub Compact Powered Active Underseat Car Subwoofer 100w RMS
