Hertz Marine HMX 6.5-C 6.5 Inch 2 Way High Performance Coaxial Speakers 75w RMS
Couldn't Load Pickup availability

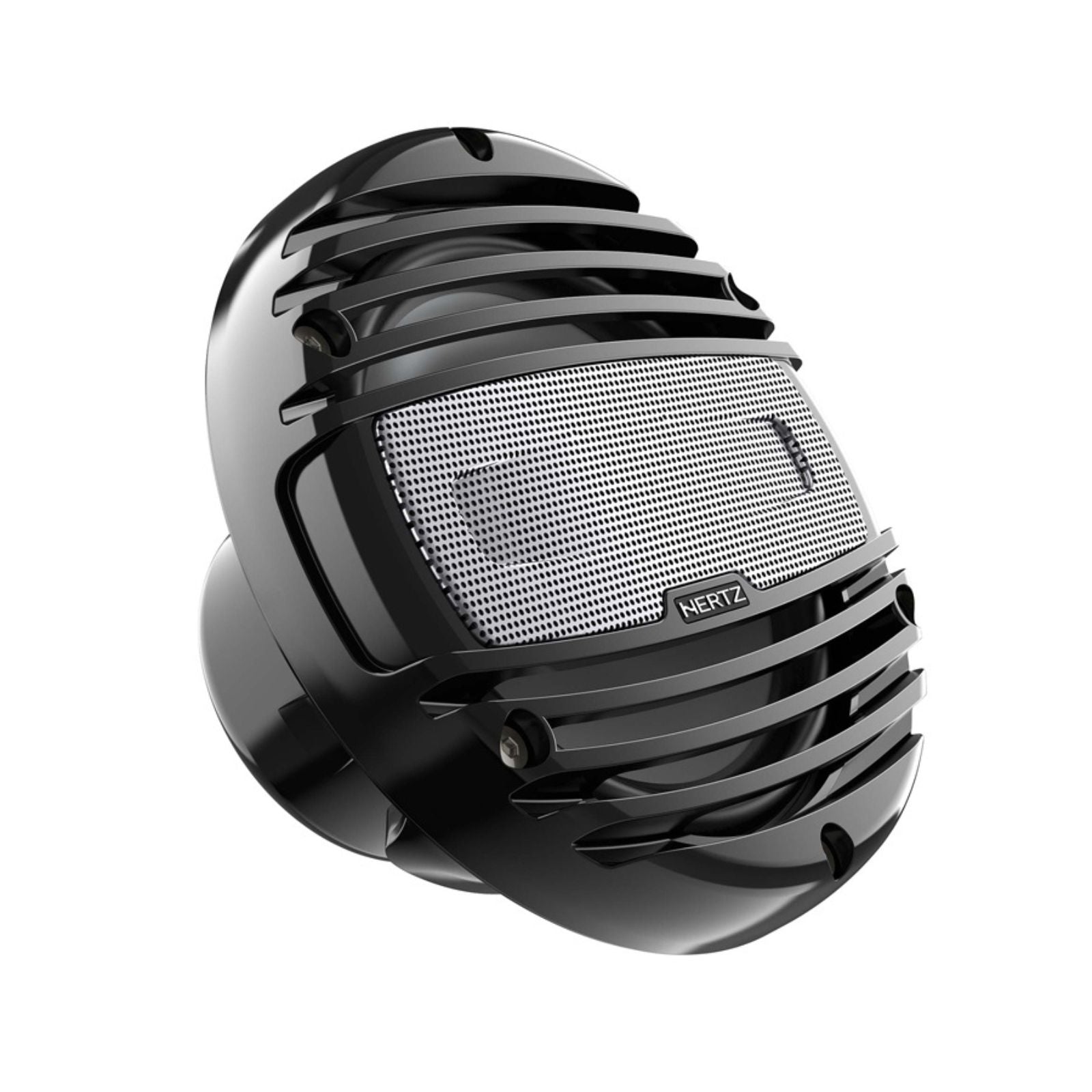

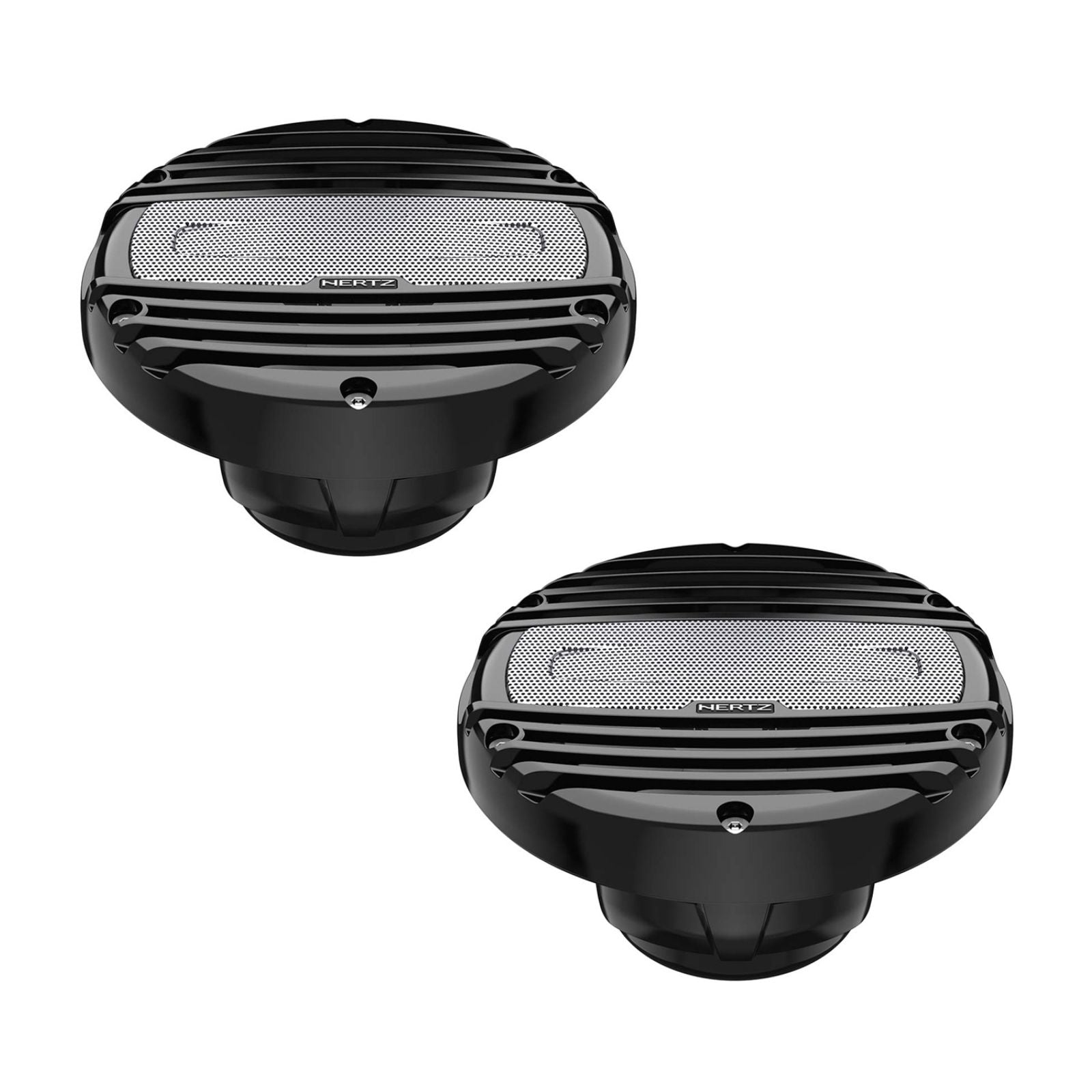

The Hertz Marine HMX 6.5-C is a 6.5 inch (165 mm) 2-way coaxial marine speaker rated at 75W RMS (150W peak) at 4 ohms, from the Hertz Marine HMX range. It features a UV-resistant polypropylene cone, Santoprene surround and a sealed built-in crossover, built for boats and open-air installations.
This listing is the black HMX 6.5-C. The Hertz Marine HMX 6.5 range is also available in white as the Hertz Marine HMX 6.5.
Key specifications
- Size: 6.5 inch (165 mm)
- Power handling: 75W RMS, 150W peak
- Impedance: 4 ohm
- Mounting depth: 95.6 mm (3.76 in)
- Frequency response: 50 Hz to 25 kHz
- Tweeter: 36 mm (1.4 in) PEI dome, neodymium magnet
- Woofer voice coil: 25 mm (1 in)
- Weight: 1 kg per speaker
Hertz Marine HMX 6.5-C
The HMX 6.5-C is optimised for infinite baffle installation, delivering solid bass and high output. The 1.4 in neodymium tweeter uses an acoustic lens for best off-axis dispersion and maximum SPL, protected by a stainless steel mesh grille. The UV-resistant polypropylene cone is co-moulded with a Santoprene rubber surround, and the basket and grille are injected with a high-temperature, UV-resistant polymer to resist water, dust and mud. An aramid fibre spider with silicone-insulated lead wires ensures long-term durability. The high-excursion mobile equipment is driven by a large magnetic group for high, undistorted sound pressure.
Features
- Engineered and tested for real marine environments: UV, salt-fog, vibrations, water spray, thermal shock and dust.
- 1.4 in neodymium magnet tweeter with PEI dome, faceplate and acoustic lens optimised for off-axis dispersion and maximum SPL.
- Sound-transparent, tone-on-tone stainless steel tweeter mesh grille for efficient high-frequency transfer and solid protection.
- Long-throw 25 mm (1 in) voice coil woofer fine-tuned for infinite baffle, with UV-inhibited polypropylene cone and co-moulded Santoprene surround.
- Aramid fibre spider with silicone-insulated lead wires for durability and consistent performance.
- FEM-optimised high-excursion mobile equipment driven by a large magnetic group, encapsulated in a marine-grade polymer injected basket.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- Gold-plated, corrosion-resistant terminals.
Explore the full range in Speakers.
Specification
| Component | HI-END COAX |
|---|---|
| Size mm (in.) | 165 (6.5) |
| Power Handling | - Continuous W 75 |
| Power Handling | - Peak W 150 |
| Impedance | Ohm 4 |
| Depth mm (in.) | 95,6 (3.76) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response | Hz 50 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 78,5 x 32 x 17 (3.09 x 1.26 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight | of one speaker kg (lb.) 1 (2.2) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±6,65 (0.26) |
What's Included
- HMX 6.5-C
Hertz
About the Hertz HMX 6.5-C
From our tech experts at CEN
Marine-grade 6.5 inch coaxial speakers handling 75w RMS, built with UV-stable materials and corrosion-resistant hardware for life in sun, salt and spray.
Who it suits
Boats, ribs and open builds, and campers with an outdoor listening area. Anything mounted where rain reaches it should be marine-rated, whatever the vehicle.
Our tech experts advise
In a marine install the wiring decides longevity: tinned cable, sealed joints and a properly fused feed. Mounting position affects the sound more than the speaker choice, because there are no cabin walls to help you. get in touch and we will talk through mounting, wiring and power for your boat.
Explore the full Hertz range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Hertz
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Hertz Car Audio Range
Hertz produces high-performance car audio systems driven by research.Music fans who attend live concerts know well the emotions that low undistorted frequencies without dynamic compression can arouse.
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
Elettromedia Brands
Evolution of technology and art of sound
More from Speakers
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What makes marine speakers different from car speakers?
A: Marine speakers are built with UV-stable, water-resistant cones, grilles and hardware designed for open-air and wet environments. They are the right choice for boats, jet skis, hot tubs and outdoor installs.
Q: Are these speakers fully waterproof?
A: Marine speakers are water-resistant to marine ratings rather than submersible. The IP rating, where provided, is listed in the Specification tab.
Q: Do I need a marine amplifier as well?
A: For best results, yes. Marine amplifiers carry conformal-coated boards that resist moisture and salt air. Match the amplifier to the RMS rating in the Specification tab as you would with any system.
Q: Will these work outside of marine use?
A: Yes. Marine speakers are popular for motorcycles, quads, hot tubs, garden bars and anywhere the weather reaches. Their durability makes them a strong outdoor choice.
Q: What size is the HMX 6.5-C?
A: The HMX 6.5-C is a 6.5 inch (165 mm) coaxial speaker with a mounting depth of 95.6 mm (3.76 in).
Q: How much power can the HMX 6.5-C handle?
A: It is rated at 75W continuous and 150W peak power handling, with a 4 ohm impedance.
Q: Does the HMX 6.5-C have a built-in crossover?
A: Yes. It has a sealed built-in crossover with a resettable solid-state tweeter protection circuit.
